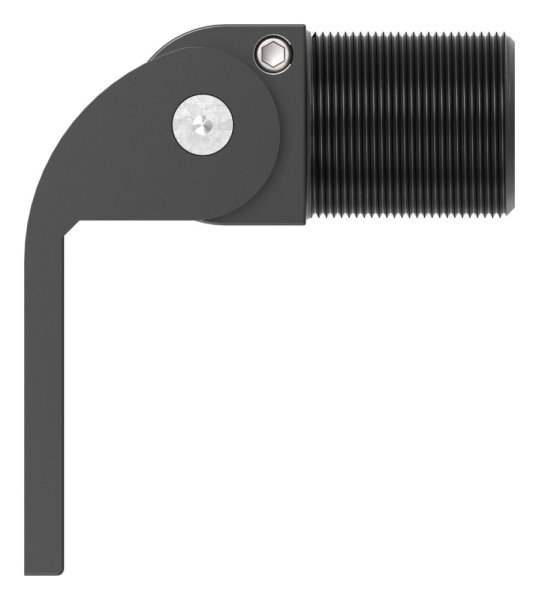

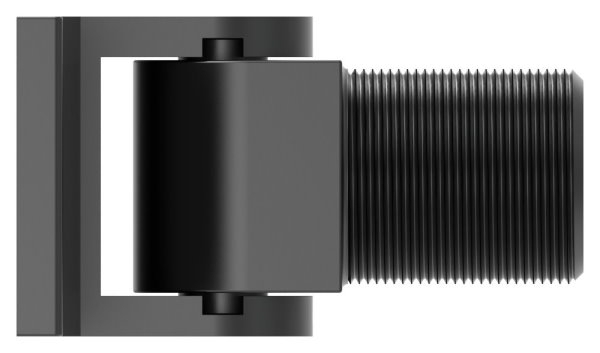

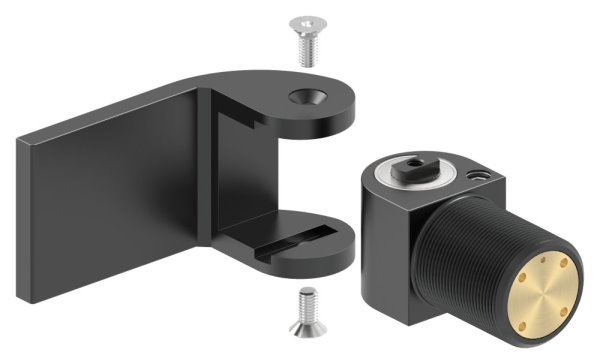

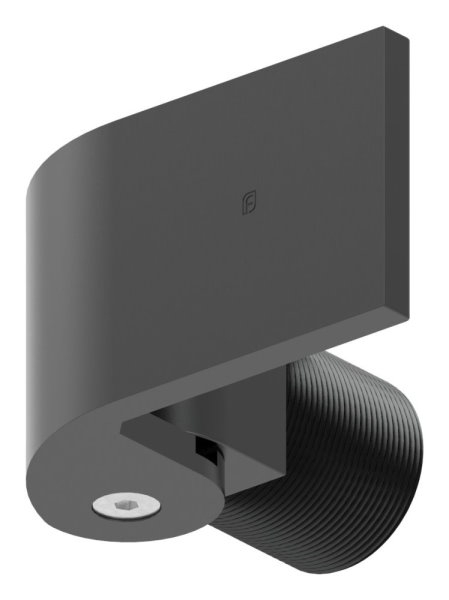

180° self-closing door hinge with stop, weld-on type ITEM: 57 AT90 W (weld-on version)
FeNau Ltd
Product number:
88.11181.57.AT90.W
EAN:
4251412995217
Gewicht:
0.94 kg
Description
Product information "180° self-closing door hinge with stop, weld-on type ITEM: 57 AT90 W (weld-on version)"
If there is limited space between the posts and the gate, we offer two clever solutions: S (for screw fixing) and W (for welding). Both versions are ideal for tight installation spaces.
Self-closing gate hinge with stop function, stopping from 90° to 180°, for welding. Closing speed adjustable. Automatic operation from approx. 85° to 0°. Opening angle from 0° to 180° Note: Protect the welded bracket against corrosion afterwards!!Ariete AT90° – Gate hinge with and without automatic mechanism
The Ariete AT90° door hinges stand for quality, flexibility and functionality. They comprise various models for different applications – with or without an oil-dynamic closing mechanism, available as screw-on (S) or weld-on (W) versions.
Advantages at a glance
- Flexible installation: All models are available as S (screw-on) or W (weld-on) variants.
- Wide opening angle: Up to 180° manually (SF variants 90°).
- Automatic closing: Models 57 and 108 with oil-dynamic mechanism.
- Customisation: Adjustable closing speed and final latch (model 108).
- Perfect combination: Ariete SM is ideal as a complement to an automated hinge.
Model overview
| Model | Automatic | Mounting type | Opening angle | Automatic closing | Adjustment options | Special features |
|---|---|---|---|---|---|---|
| Ariete SM AT90° | No | S or W | Up to 180° (SF: 90°) | None | – | Ideal in combination with 57 or 108 |
| Ariete 57 AT90° | Yes (hydraulic) | S or W | Up to 180° (SF: from 90°) | 85° to 0° | Closing speed via nozzle | Compact automatic mechanism |
| Ariete 108 AT90° | Yes (hydraulic) | S or W | Up to 180° (SF: from 90°) | 85° to 0° | Two jets for speed & final stroke | Maximum control & comfort |
Eigenschaften
| Gewinde : | M37x1,5 |
|---|---|
| Versand Gurtmasspflichtig: | Nein |
| Werkstoff: | Aluminium |
