Steel grating steps

FeNau metal grating steps – non-slip, durable and versatile

Grating steps are a tried-and-tested solution for staircase projects where safety and load-bearing capacity are paramount. FeNau offers a wide range of grating steps that impress with their high-quality workmanship, robust construction and versatile applications. Thanks to the various slip resistance classes and designs, customers can choose exactly the step that meets their requirements.

Technical details of FeNau’s steel grating steps

Our steel grating steps are manufactured to the highest standards and meet the requirements of demanding construction projects. Here are the key technical details:

• Surface: Ribbed for increased slip resistance
• Material: S235JR, hot-dip galvanised
• Slip resistance: Class R10 (tested for DD11 hot-dip galvanised), extendable to R13 depending on the model
• Load-bearing capacity: Point load of 2.0 kN on a 100x100 mm load cube at the tread; 5.0 kN/m² distributed live load
• Variants: Four models with different designs and slip resistance classes

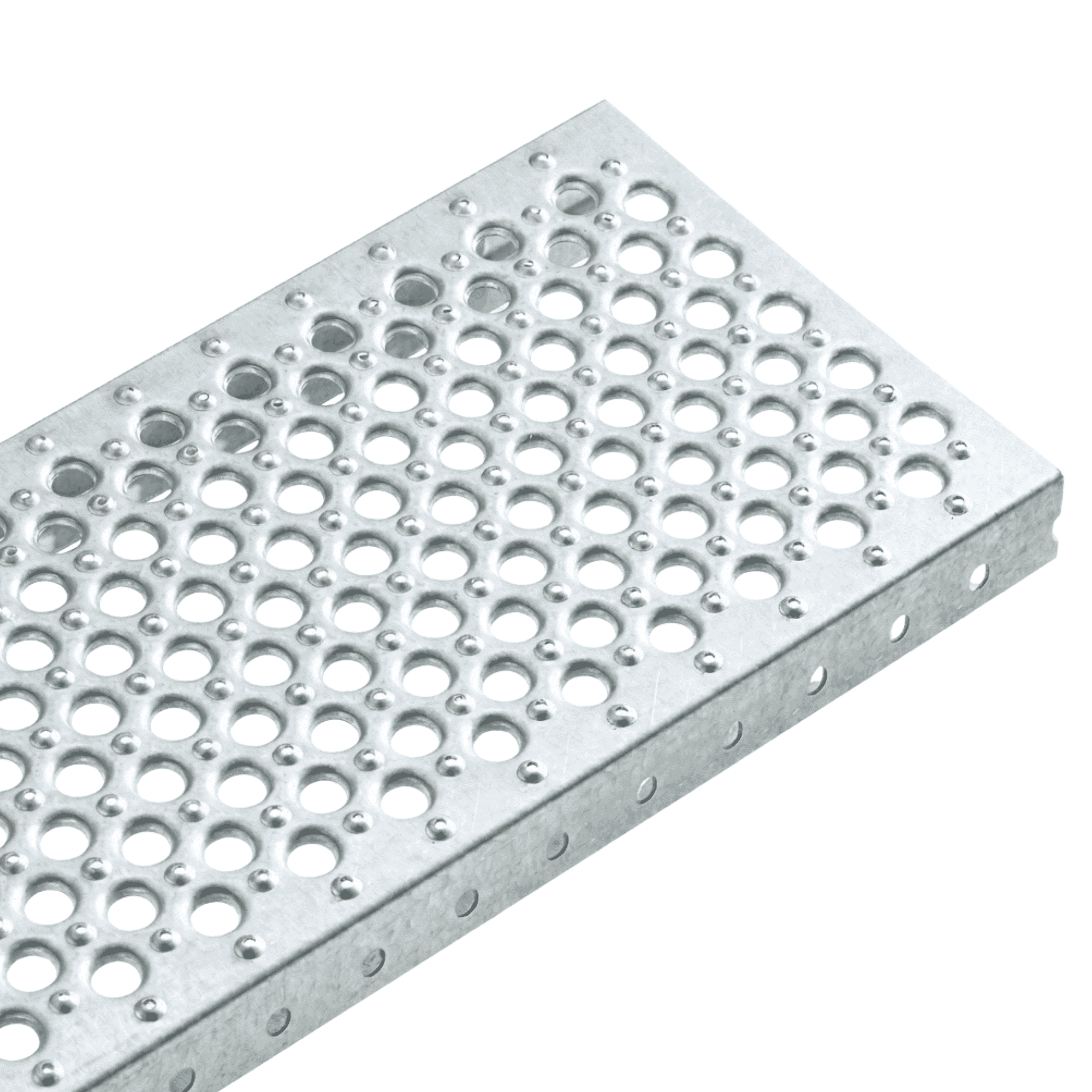

The four models of FeNau’s sheet metal grating steps

FeNau offers four different models of steel grating steps, which differ in design and slip resistance. Each model is optimised for specific applications, so that customers can find exactly the right step for their requirements:

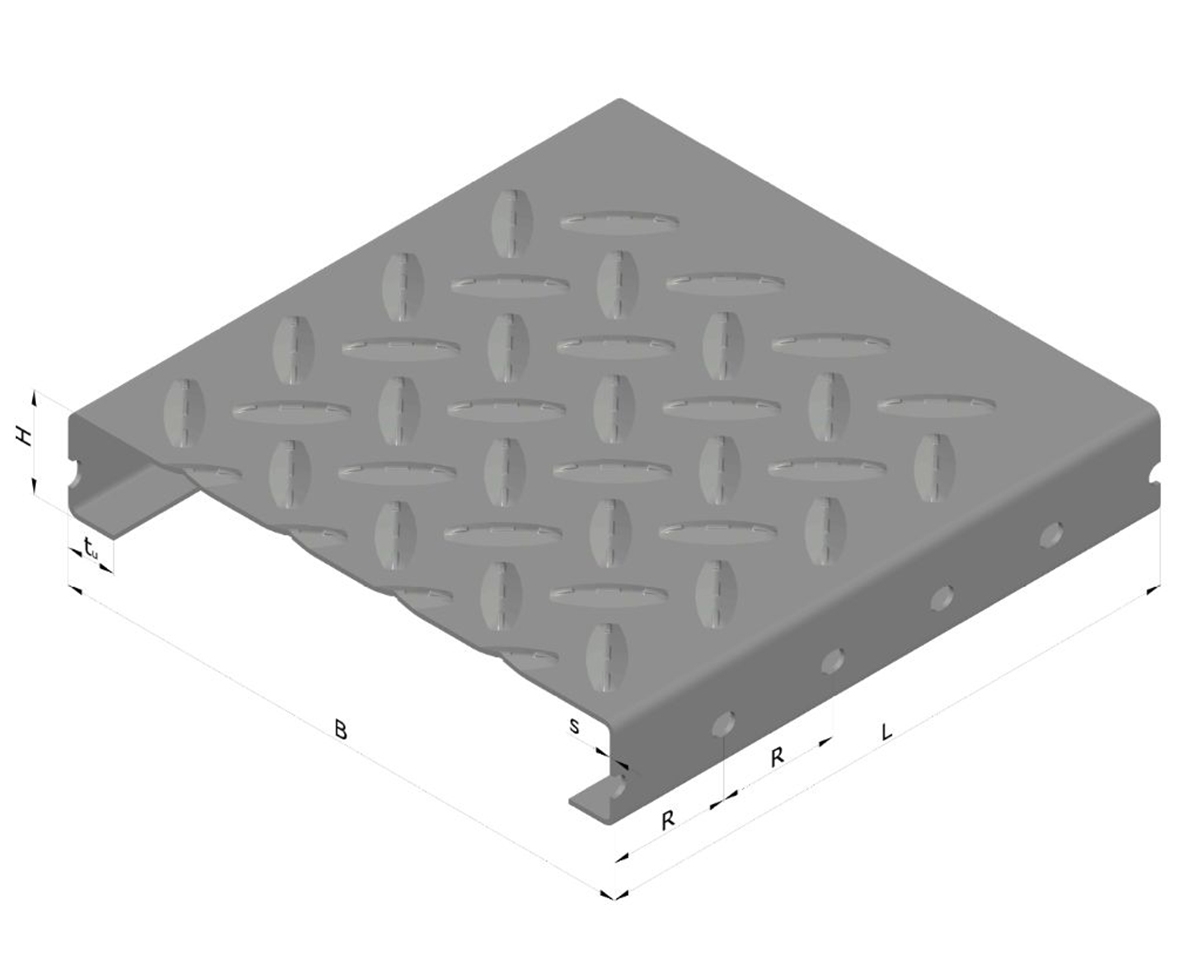

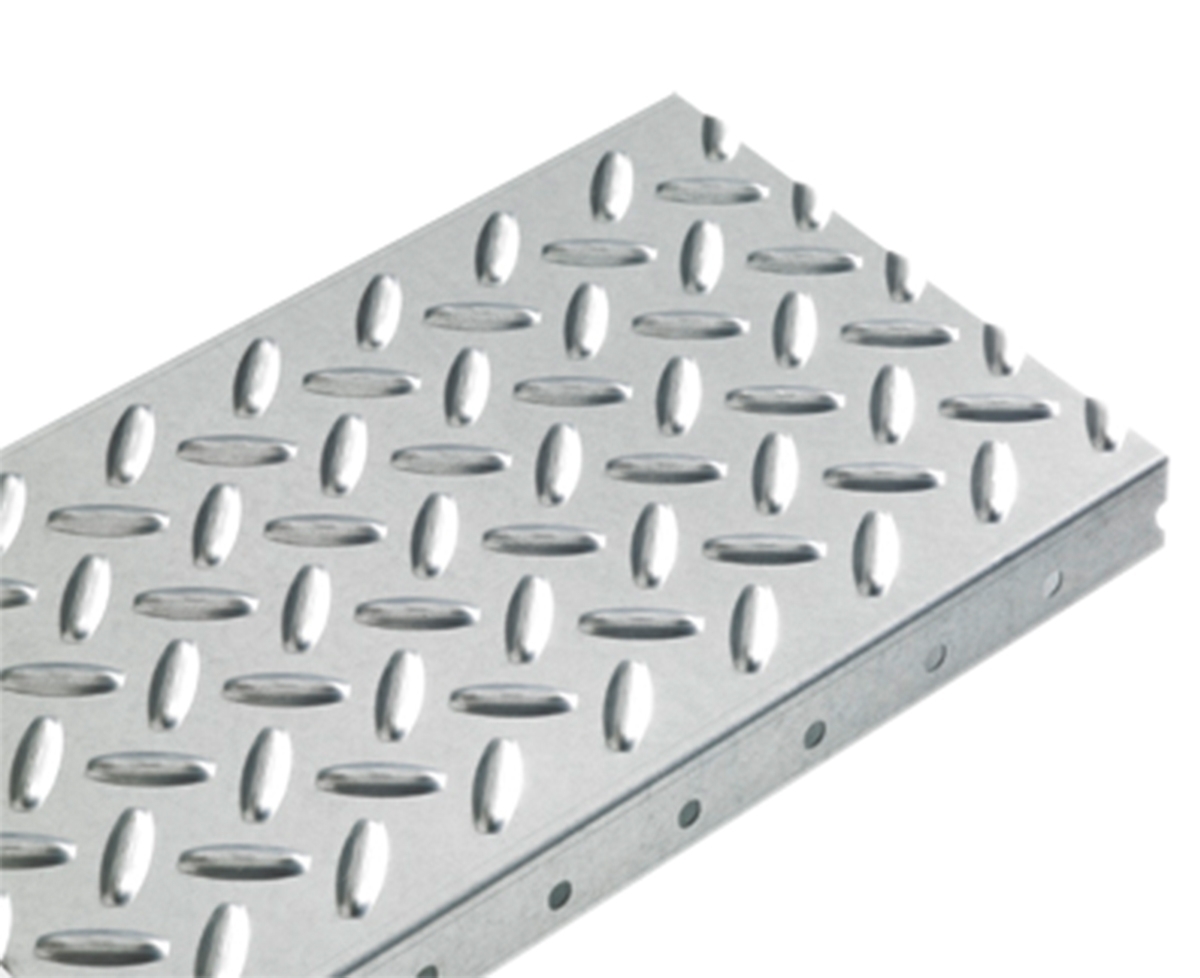

• Type G: Large dimensions (1000 x 270–300 mm) with high slip resistance for maximum grip.

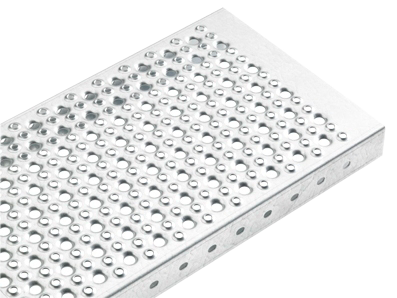

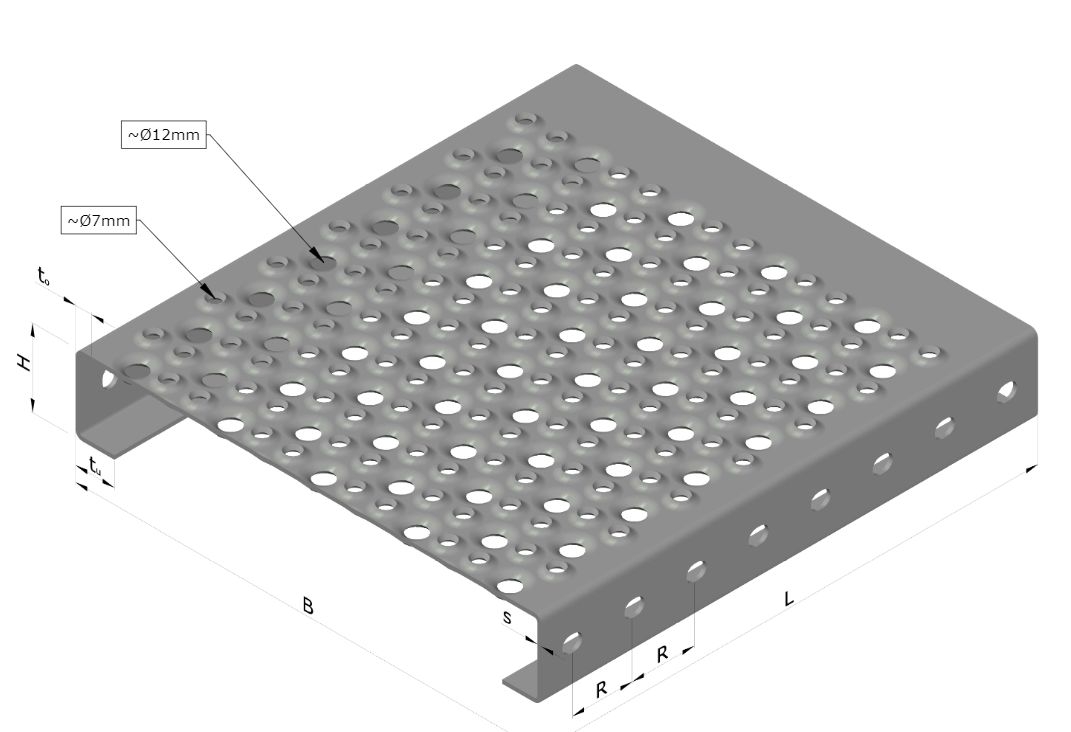

• Type N (small version): Compact dimensions (600–120 x 240–300 mm) for smaller staircases.

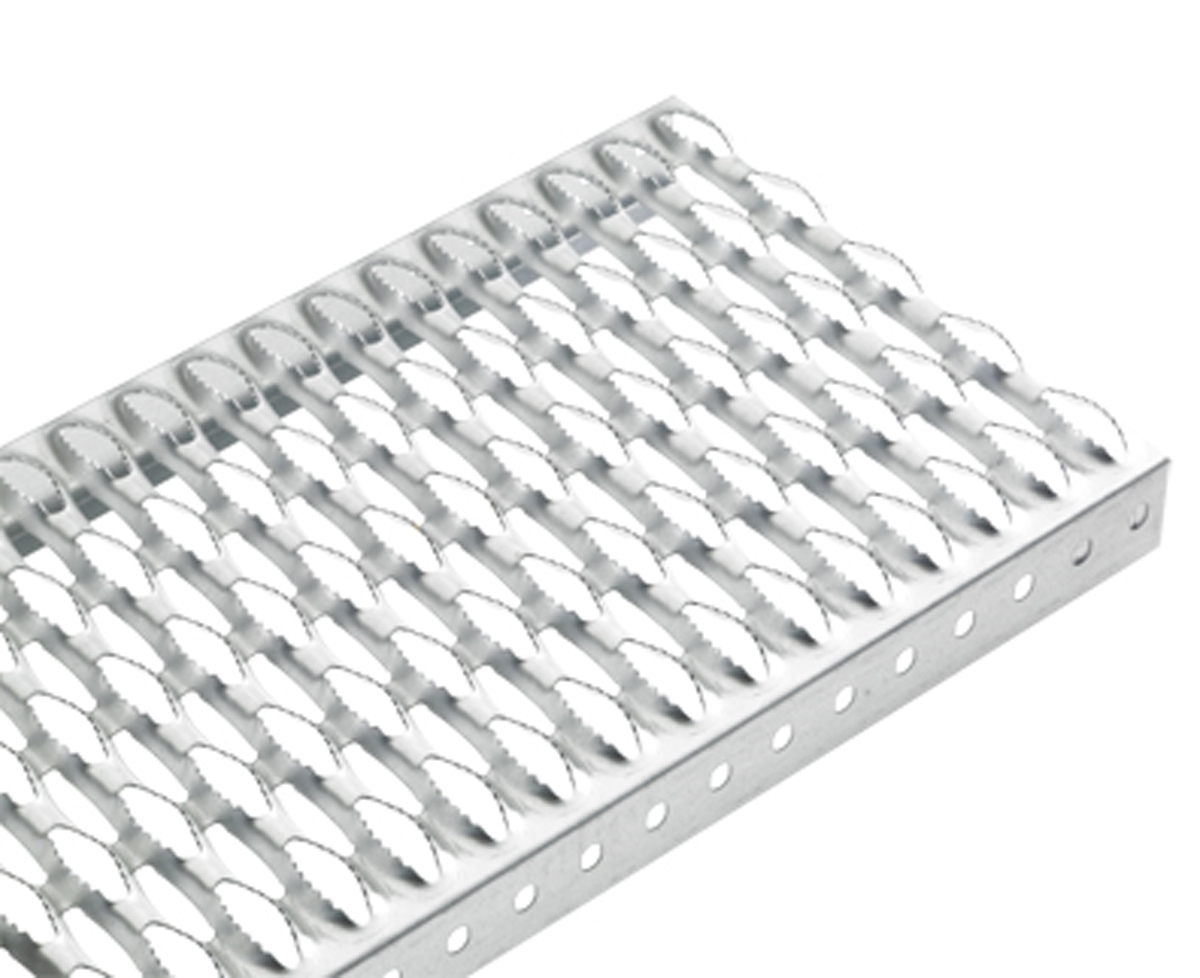

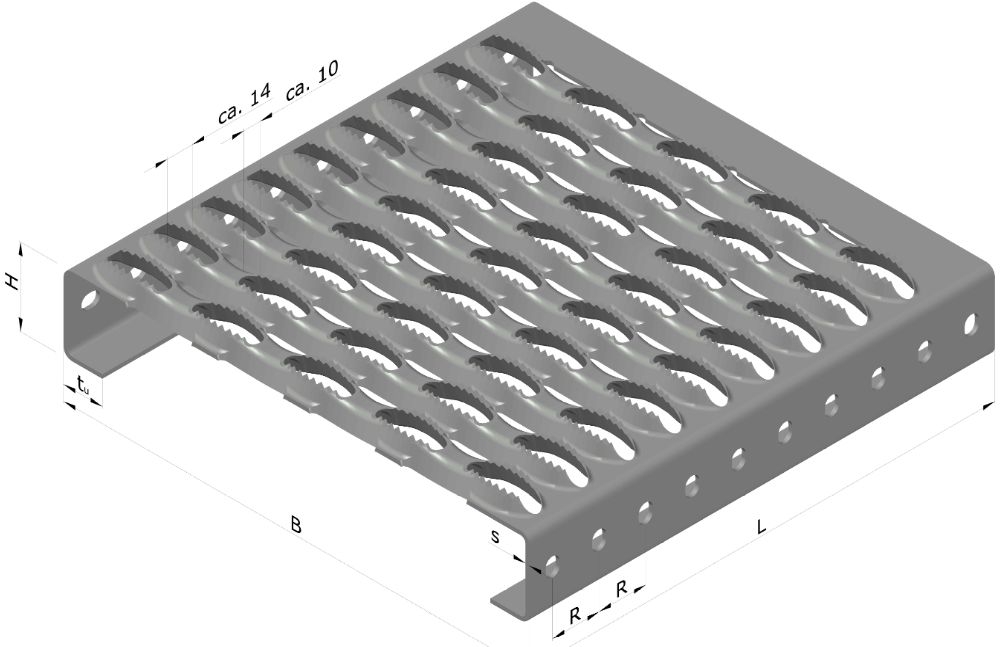

• Type N (large version): Generous dimensions (800–1200 x 240–300 mm) for industrial applications.

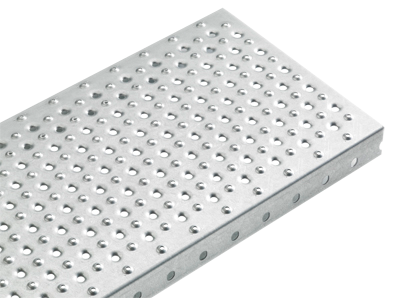

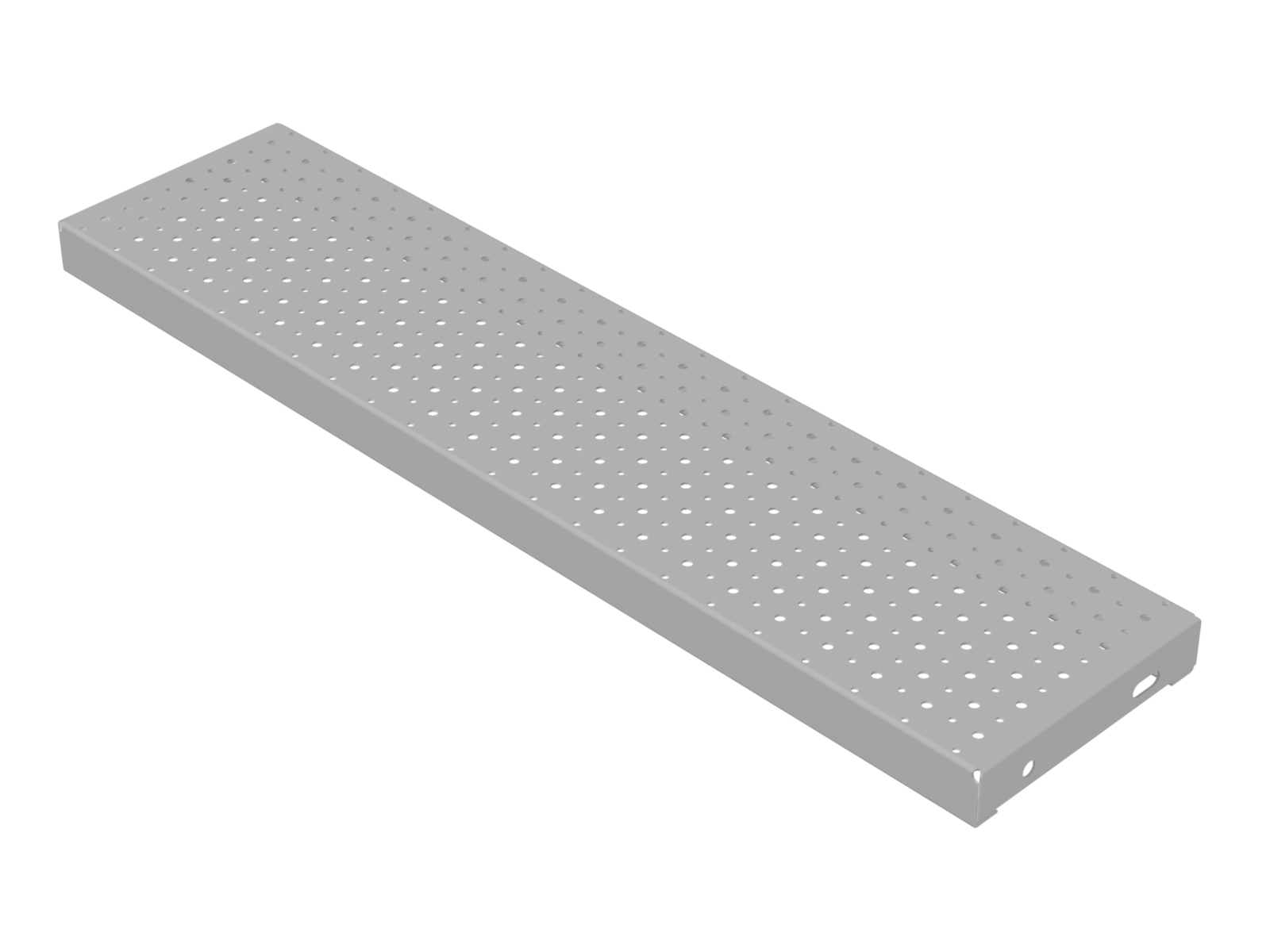

• Type X: Dimensions of 600–1200 x 240 mm, ideal for a wide range of applications with optimised slip resistance.

The models differ significantly in terms of their slip resistance (R10 to R13) and design. This allows customers to tailor their choice perfectly to the specific application.

Advantages of FeNau steel grating steps

FeNau sheet metal grating steps offer a wide range of advantages that set them apart from other products on the market:

• Slip resistance: Depending on the model, our steps offer slip resistance classes ranging from R10 to R13, ensuring maximum safety even in demanding environments such as wet or oily work areas.
• Robust construction: The steps are made of S235JR steel and are hot-dip galvanised, making them corrosion-resistant and durable.
• Wide selection: With four different models, FeNau offers a solution for every requirement – from industrial applications to public areas.
• Adaptation to existing projects: Our sheet metal grating steps are ideal for refurbishments and modernisations, as they are compatible with existing structures.

Applications for sheet metal grating steps

Thanks to their versatility, FeNau’s steel grating steps are suitable for numerous applications:

• Industry and commerce: Ideal for machine access points, maintenance platforms and industrial staircases.
• Public areas: Suitable for staircases in public buildings where high slip resistance and load-bearing capacity are required.
• Outdoor areas: The hot-dip galvanised surface protects the steps from corrosion, making them ideal for outdoor staircases and balcony access.
• Renovation projects: Perfect for modernising existing installations thanks to flexible sizes and designs.

Why FeNau?

FeNau stands for the highest quality and a wide product range tailored to our customers’ needs. Our steel grating steps are manufactured to the latest standards and impress with their safety, versatility and durability. With FeNau, you have a reliable partner for your project – whether it’s a new build, maintenance or refurbishment.

Order steel grating steps from FeNau now

Discover the versatile applications of our steel grating steps and benefit from our many years of experience and expertise. Choose from our four models and tailor your selection to your specific application. Contact us today for a no-obligation consultation or visit our online shop!
