Cantilevered canopy

Modern, transparent, durable: cantilevered glass canopies for stylish entrances

A glass canopy is more than just weather protection: it is an architectural statement that enhances the entrance area, lets in daylight and, at the same time, protects against rain, snow and falling debris. Anyone looking for a glass canopy usually wants precisely this combination: maximum light transmission, clean lines and a high-quality appearance – without bulky structures. Cantilevered glass canopies are particularly in demand, as they do not require visible tie rods and therefore appear extremely ‘light’.

On this page, you will find all the key information you need to make the right choice when selecting a glass canopy: suitable types of glass, typical dimensions, useful accessories, installation guidance and practical tips to ensure your glass canopy not only looks good but also functions reliably and safely – for many years to come.

Why a glass canopy is a good choice

A glass canopy offers several advantages over solid canopies: it looks modern, lets daylight into the entrance area and can be harmoniously integrated into both new builds and renovated existing buildings. Transparency really pays off, particularly with darker façades or narrow house entrances – the entrance area remains open and welcoming.

• Bright entrance area: Glass lets light through and avoids shadowed areas.
• Weather and dirt protection: protection against rain and splash water, less dirt on the door and façade.
• Design upgrade: Clean lines, timeless look, complementing modern doors and façades.
• Quality & durability: High-quality materials and tested systems ensure long-lasting stability.

Cantilevered glass canopies in particular impress with their clean-lined appearance: the load is supported by a slim wall profile, whilst the glass surface appears to ‘float’. This creates a minimalist, high-quality look – ideal if you are looking for a glass canopy that blends discreetly into the architecture.

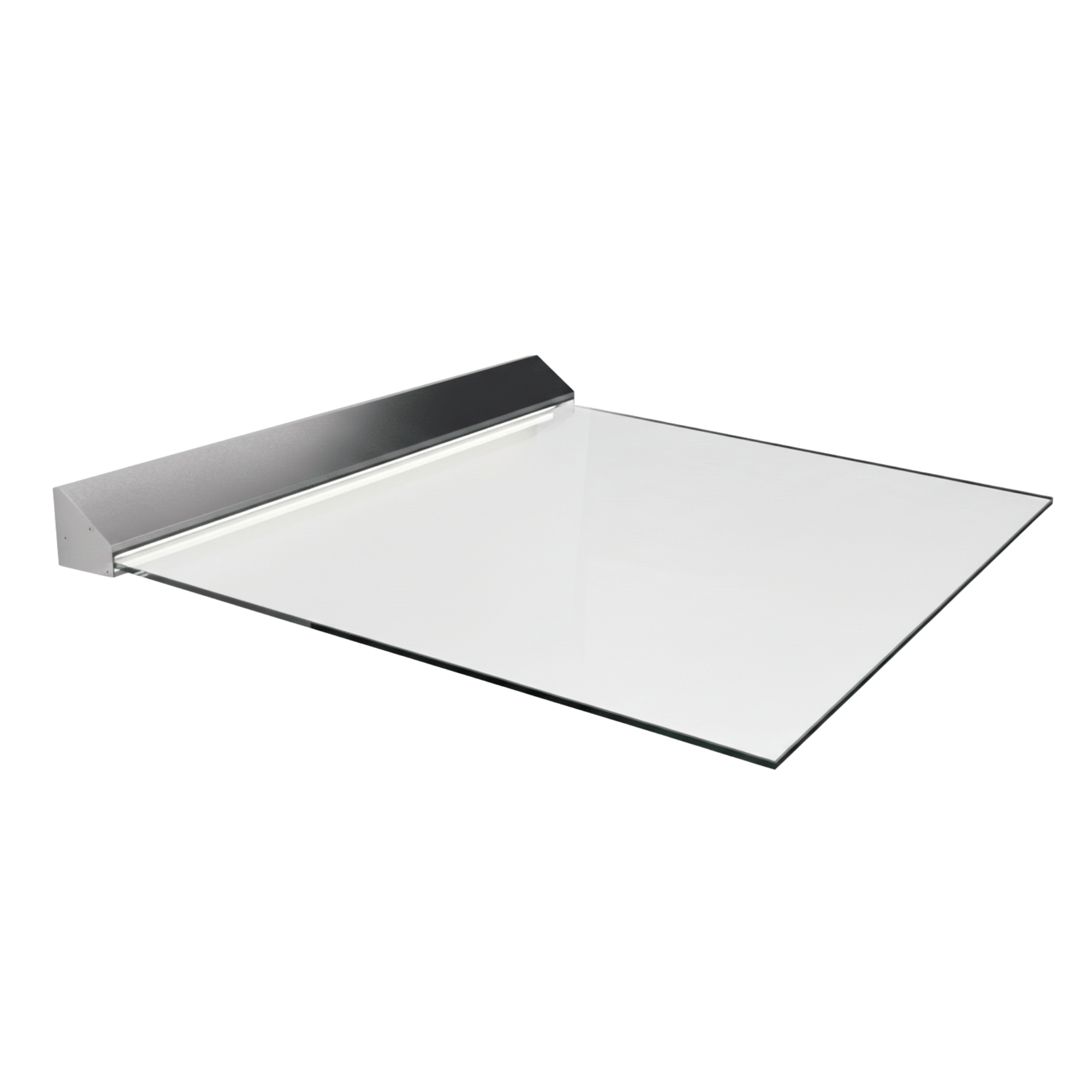

Cantilevered glass canopy: What does that mean?

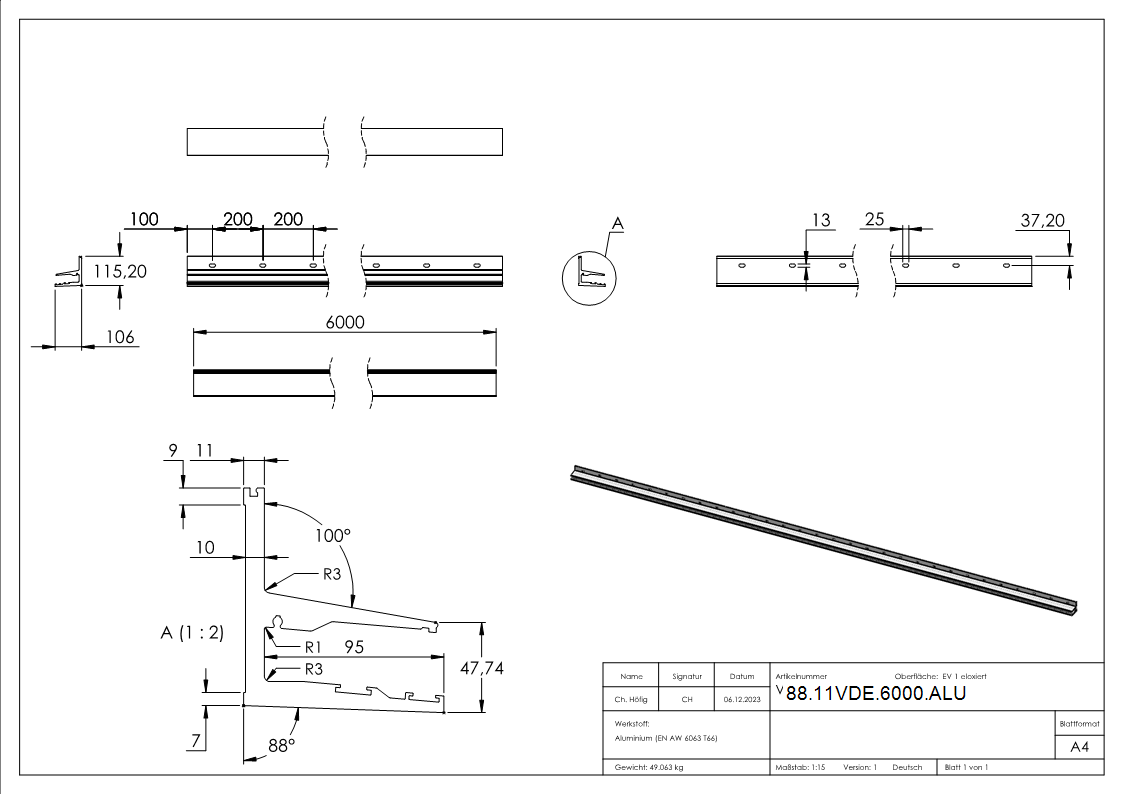

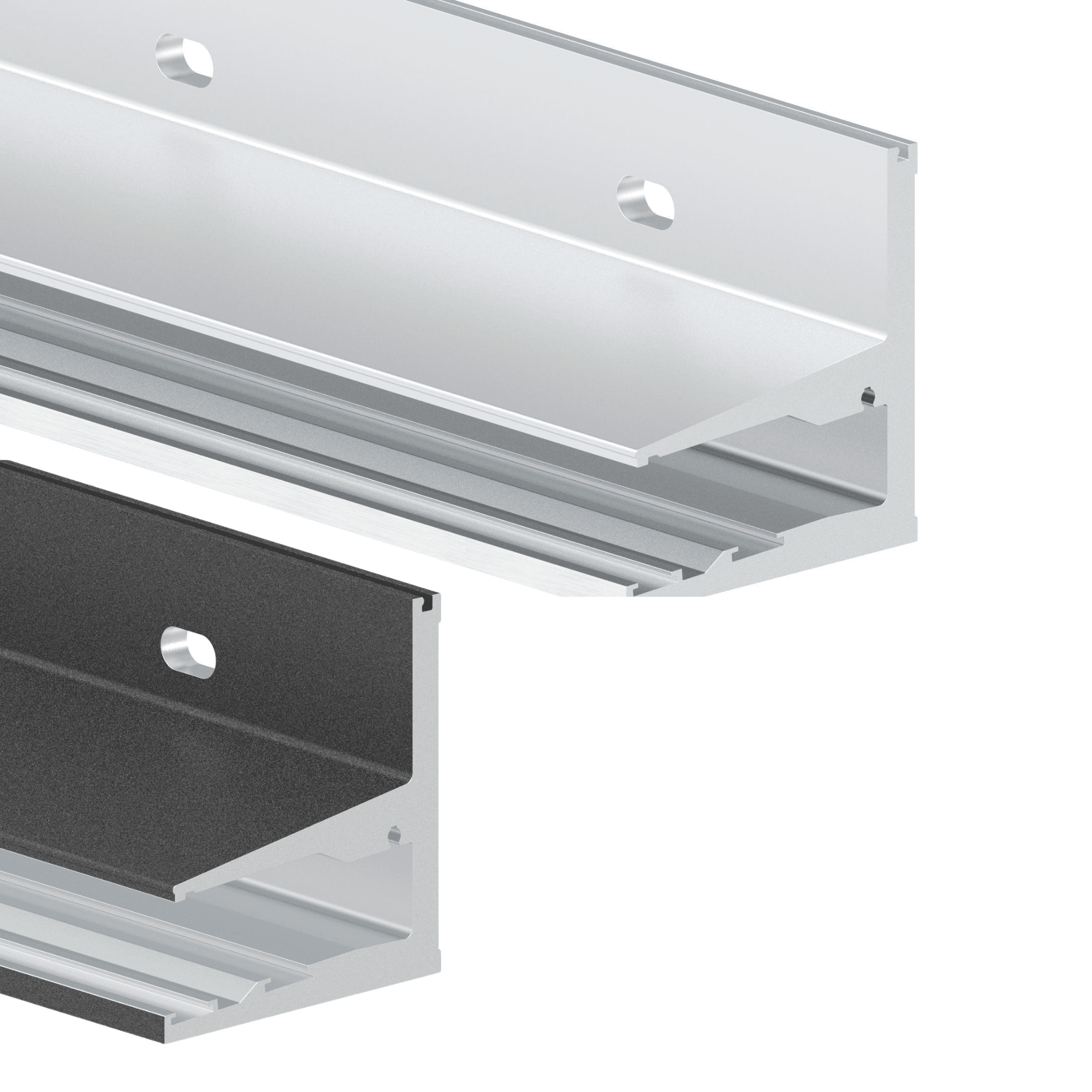

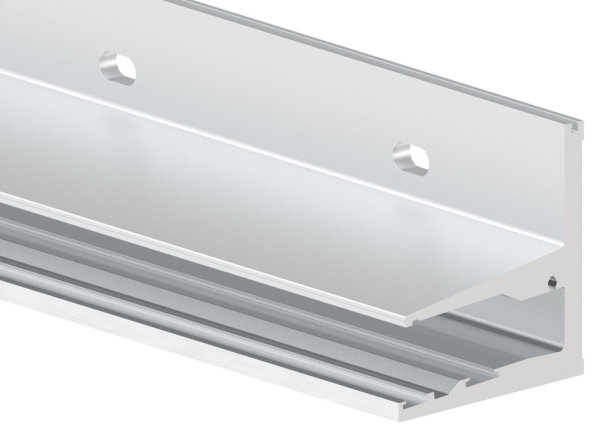

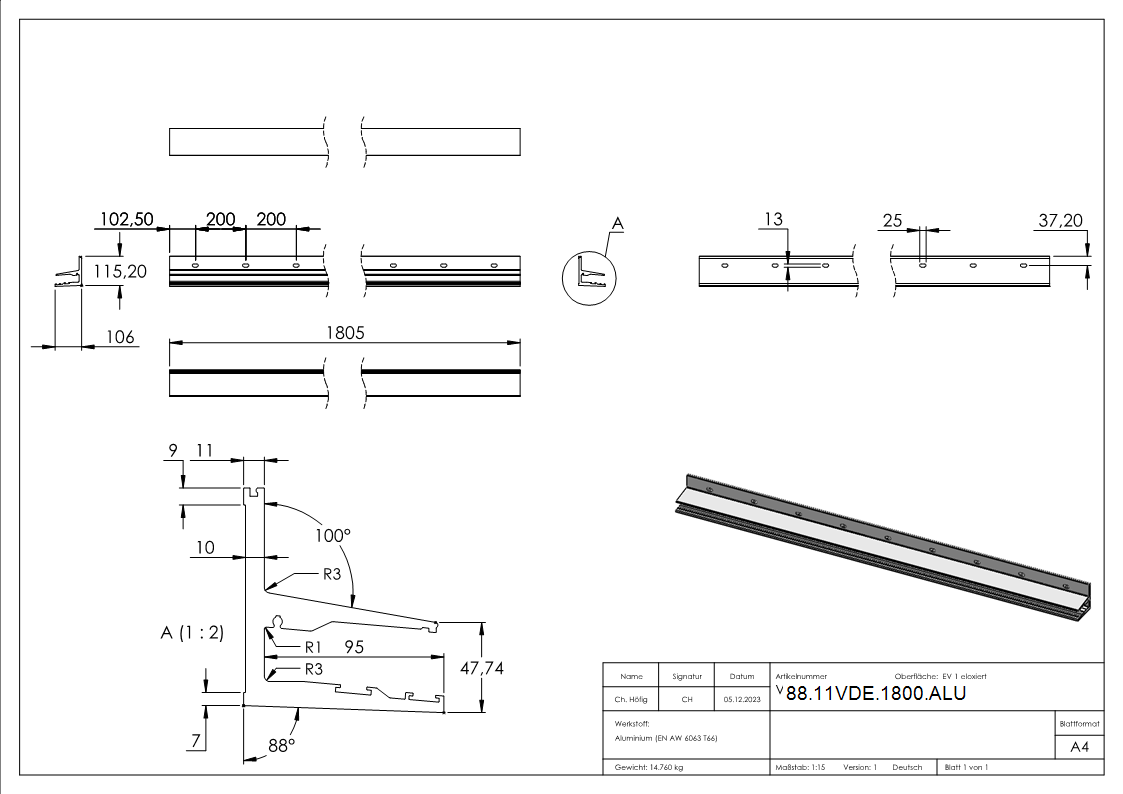

In a cantilevered glass canopy, the glass pane is held against the wall on one side – typically via a continuous profile. Unlike canopies with tie rods or brackets, the view to the front remains unobstructed. The result is a particularly modern, minimalist design.

Important to know: Even though the appearance is light and airy, the construction is technically complex. Crucial factors include the correct choice of glass (type and thickness), the structural design to withstand wind and snow loads, and professional fixing to the respective wall structure. A good glass canopy combines design and safety – without compromise.

Typical dimensions: width, depth and projection

To ensure your glass canopy provides optimum protection, the projection (depth) should be selected so that rain does not drip directly in front of the door and the door area remains as dry as possible. At the same time, the projection must be compatible with the glass thickness and the structural design. For self-supporting systems, overhangs of approx. 500 to 1300 mm are often achievable in practice – depending on the glass structure and load assumptions.

The width is determined by the door situation: a glass canopy should cover at least the width of the door and, ideally, ‘overhang’ slightly to the left and right so that less moisture reaches the door, even in windy conditions. Common widths range from approx. 1400 to 3000 mm (single pane), depending on the system and project.

Practical planning tip

• Single door: A width of 1400–2000 mm is usually sufficient, depending on the desired look.
• Side panel / wide entrance: 2000–3000 mm look harmonious and offer greater protection.
• Multi-panel systems: For large fronts, several panels can be combined (with defined joints).

A slight slope also plays a major role in drainage. Many high-quality systems already incorporate a defined slope into the profile, so that water drains forward in a controlled manner. This improves functionality and reduces the formation of puddles on the glass.

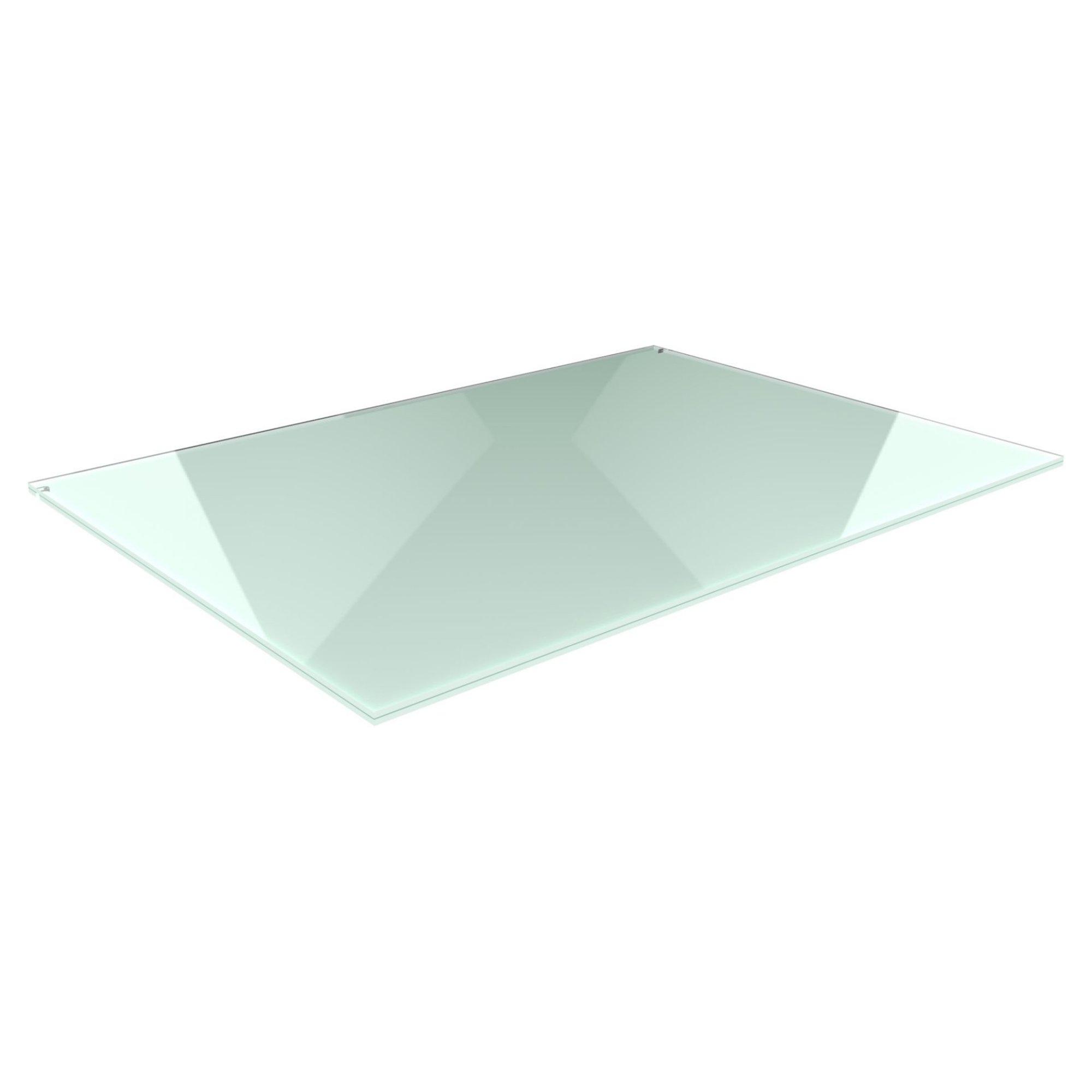

Which types of glass are suitable for a glass canopy?

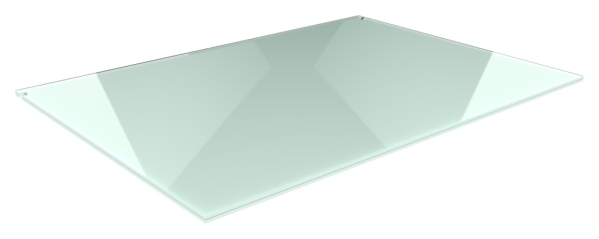

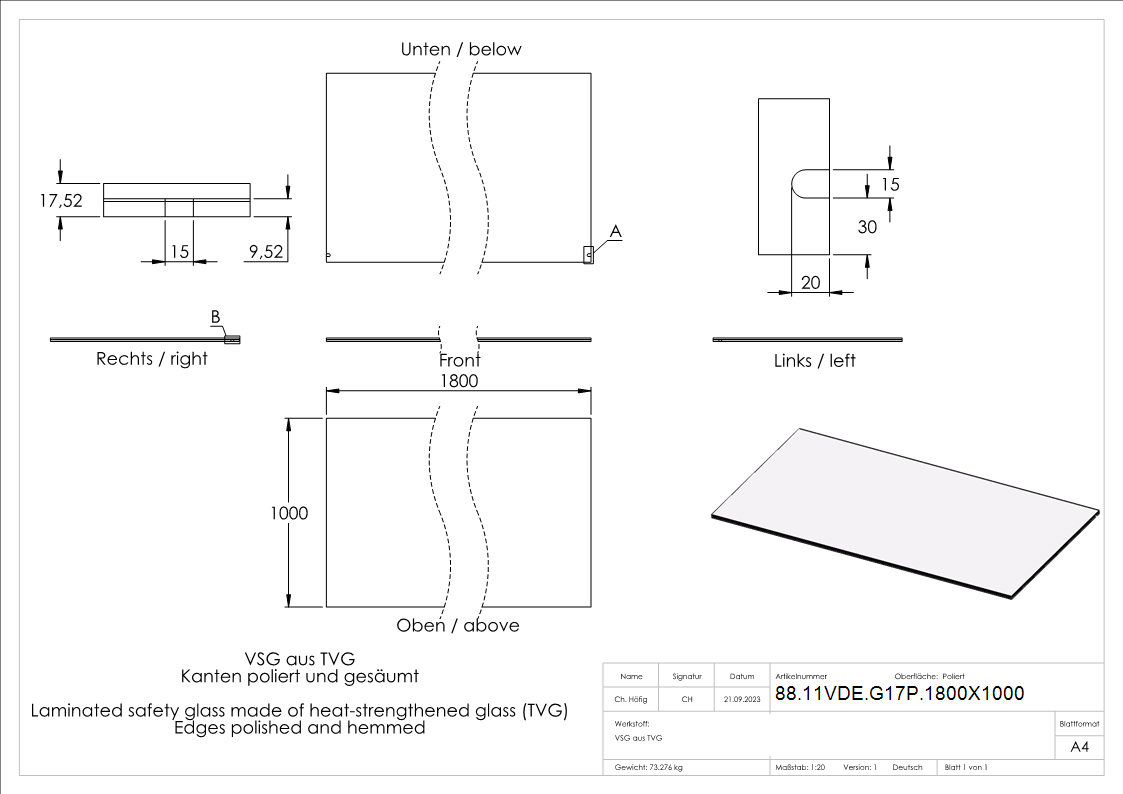

Above all, a glass canopy must be safe. That is why, in the high-end sector, laminated safety glass (LSG) is used – usually made from heat-strengthened glass (HSG). LGB consists of two glass panes permanently bonded together with a film. Should damage occur, the fragments remain adhered to the film. This is a significant safety advantage over standard float glass.

PVB or SGP: The film makes the difference

Two types of film are frequently used in laminated safety glass: PVB (classic standard) or SGP (high-strength interlayer). SGP is stiffer and can – depending on the design – allow for higher load-bearing capacities. Which variant is suitable for your glass canopy depends on the desired projection, the pane size and the local loads.

Standard glass thicknesses

In many applications, glass assemblies such as 17.52 mm or 21.52 mm are used (two panes + interlayer). For larger overhangs and higher loads, the thicker variant is often the appropriate choice. Important: The selection should not be made ‘on a hunch’, but in accordance with system approval and structural analysis.

Appearance: clear glass, white glass and special effects

A glass canopy looks different depending on the quality of the glass. Those who want a particularly “clear” appearance often opt for white glass (reduced green tint). Films in various tints are also available if you wish to achieve a customised look. White glass can also offer advantages for entrances with lighting, as colours appear more neutral.

Snow load, wind & safety: What you should look out for

A glass canopy is constantly exposed to the elements. That is why correct design for snow and wind loads is crucial. Snow loads can vary significantly depending on the region. High-quality systems are designed to cope with even demanding load conditions – with appropriate dimensioning, values of up to 5.5 kN/m² are possible.

For you as a buyer, this means: ensure there is a clear structural basis (e.g. type analysis/project analysis) and that the system is designed for your country or region. The method of fixing to the substrate also plays a major role: concrete, load-bearing masonry, timber or steel each require suitable fixing methods and installation concepts.

Important safety details

• Tested glass structures: Use only approved laminated glass combinations.
• Edge finishing: Cleanly ground and polished edges reduce the risk of injury and enhance quality.

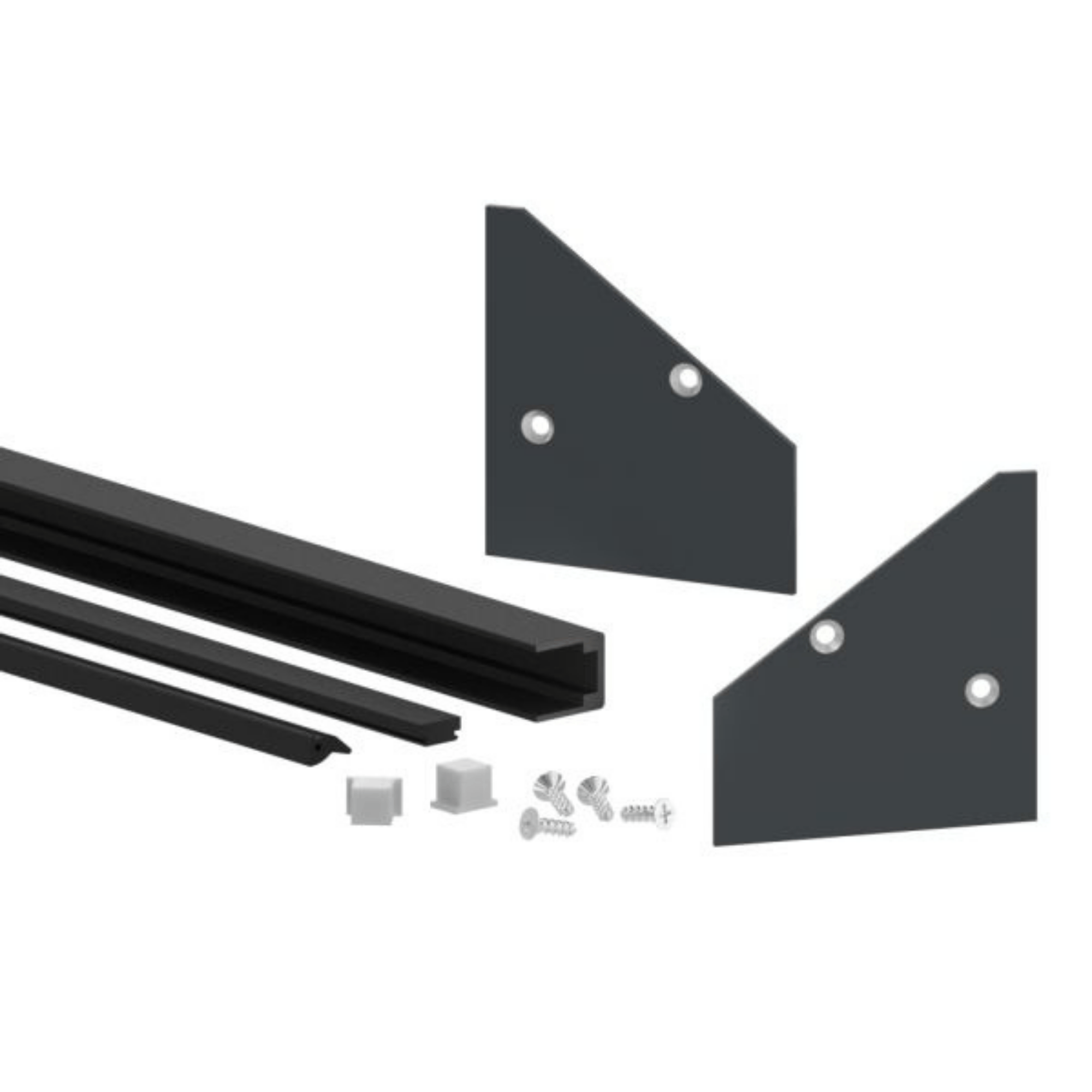

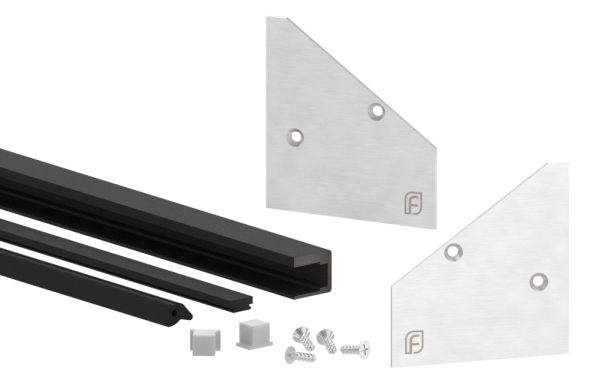

• Panel securing: Mechanical fastenings and system-compatible inserts ensure a secure, long-lasting hold.
• Slope/drainage: Reduces water accumulation and improves suitability for everyday use.

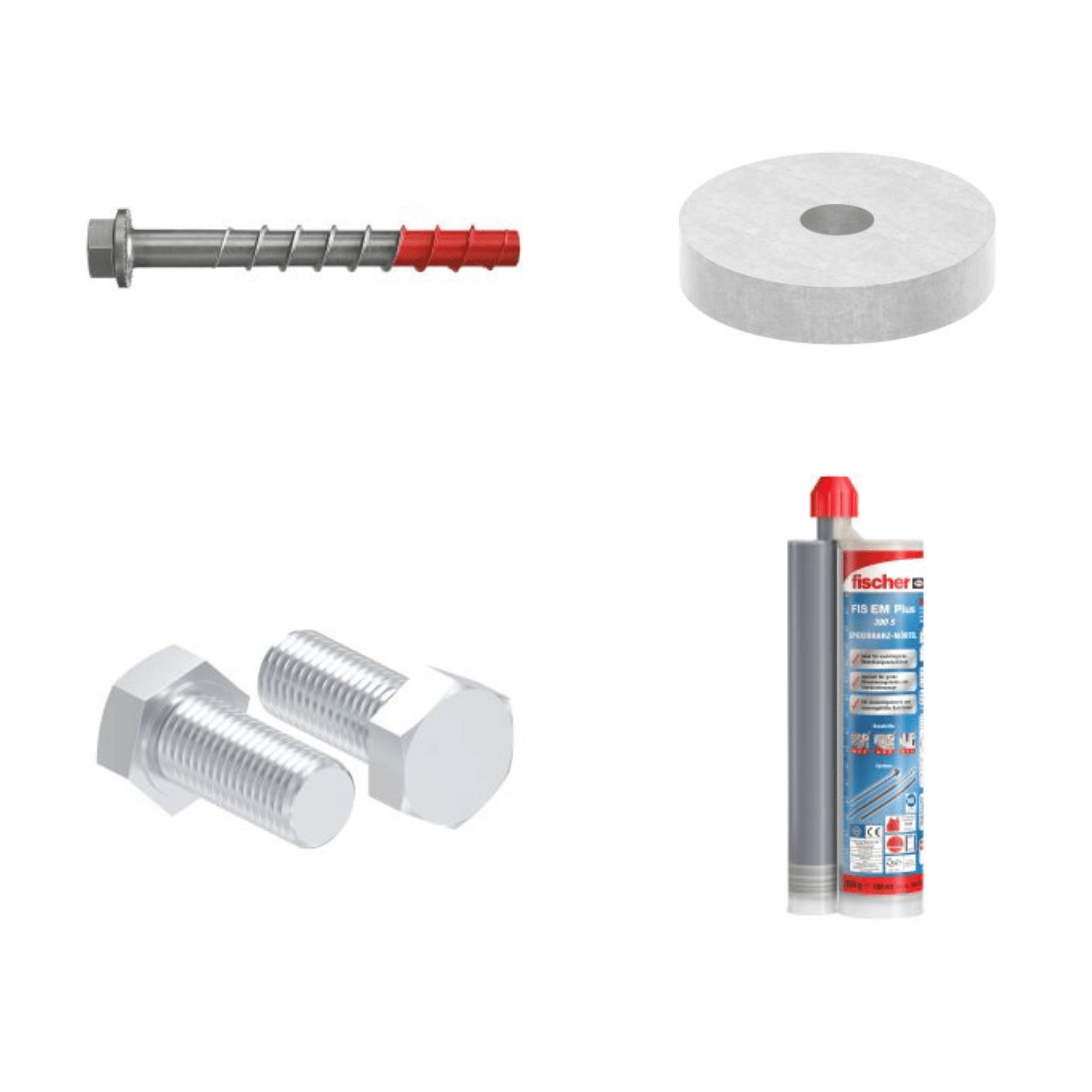

Installation on the substrate: concrete, masonry, timber – and insulated facades

The installation of a glass canopy is a safety-critical step. Ideally, the canopy is fixed to a load-bearing substrate. Depending on the wall construction, different fixing systems and spacing are used. With concrete or load-bearing masonry, installation is usually particularly straightforward.

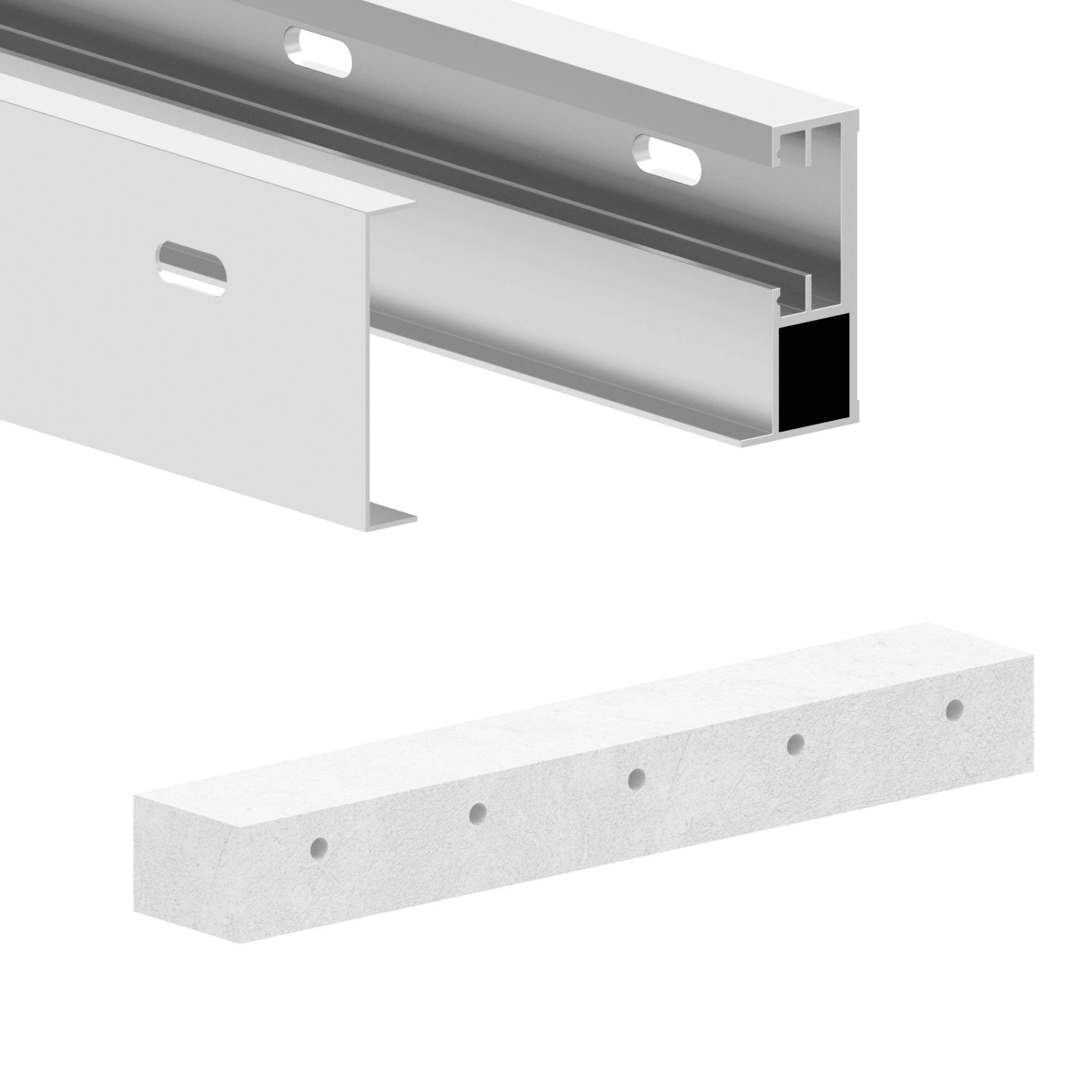

For insulated facades (ETICS), the following applies: the insulation itself does not bear the load. In such cases, special installation concepts are advisable, which safely transfer the loads into the load-bearing substrate whilst simultaneously reducing thermal bridges. Modern solutions utilise compression-resistant insulation elements and modular installation components to ensure the structure remains permanently stable and the facade is not damaged.

Recommendation

If you are unsure whether your wall structure is suitable, clarify the following in advance: substrate material, insulation thickness, fixing depth and any pipes/installations. This saves time, prevents incorrect drilling and ensures that your glass canopy fits perfectly later on.

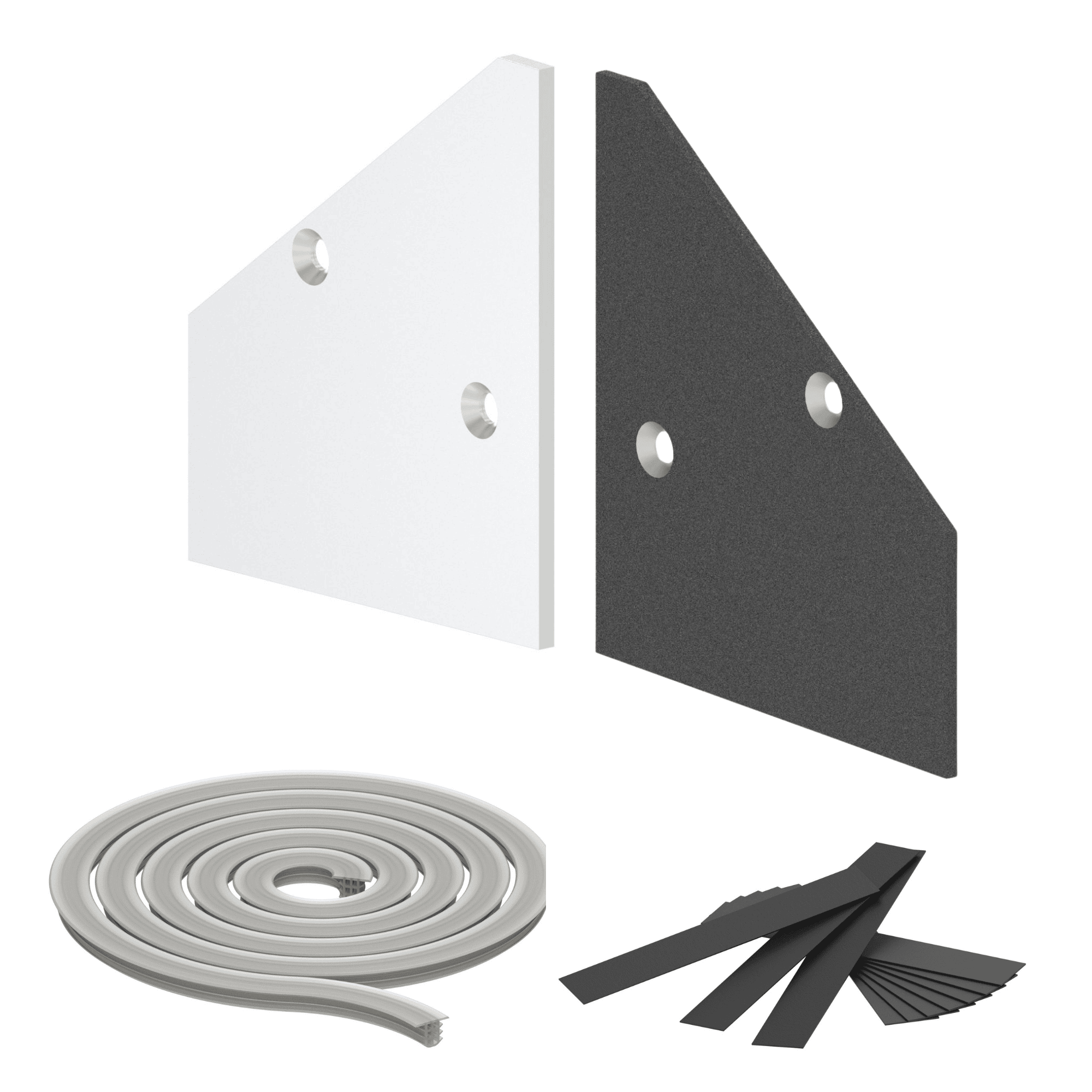

Useful accessories for your glass canopy

Accessories are not just a ‘nice-to-have’, but often the key to a fully successful solution. Depending on the installation situation, the following options may be useful:

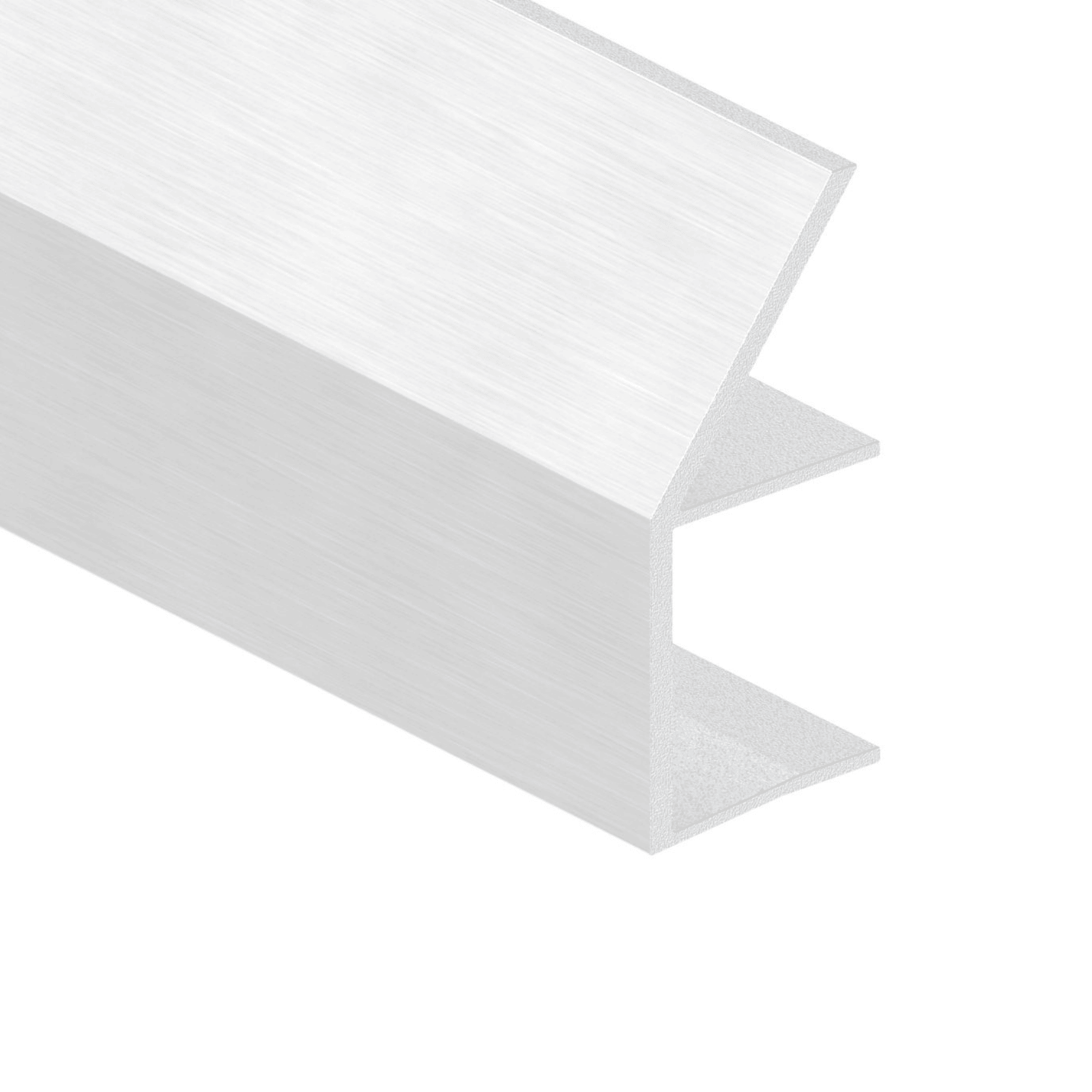

• Gutter / water drainage: For controlled water drainage (e.g. to the side), particularly practical in heavy rainfall.

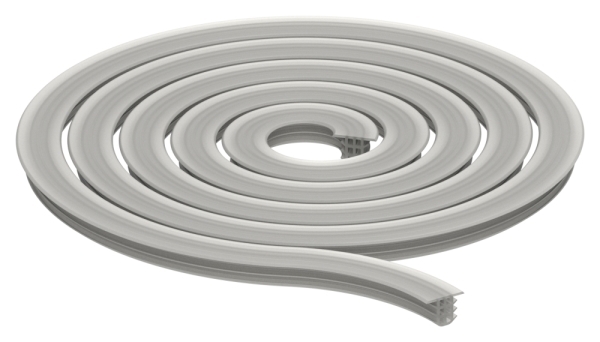

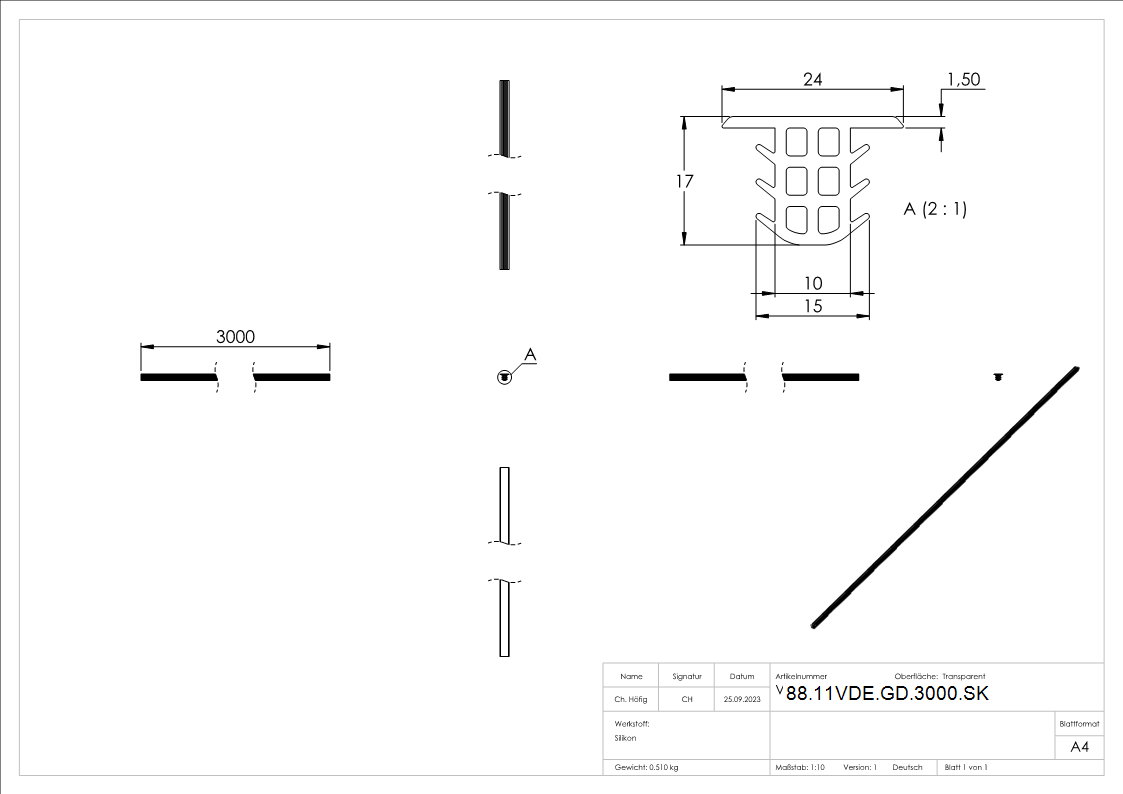

• Sealing solutions: For multi-part installations, sealing profiles or silicone joints ensure clean transitions.
• Spacers / levelling elements: For millimetre-precise alignment in complex installation situations.

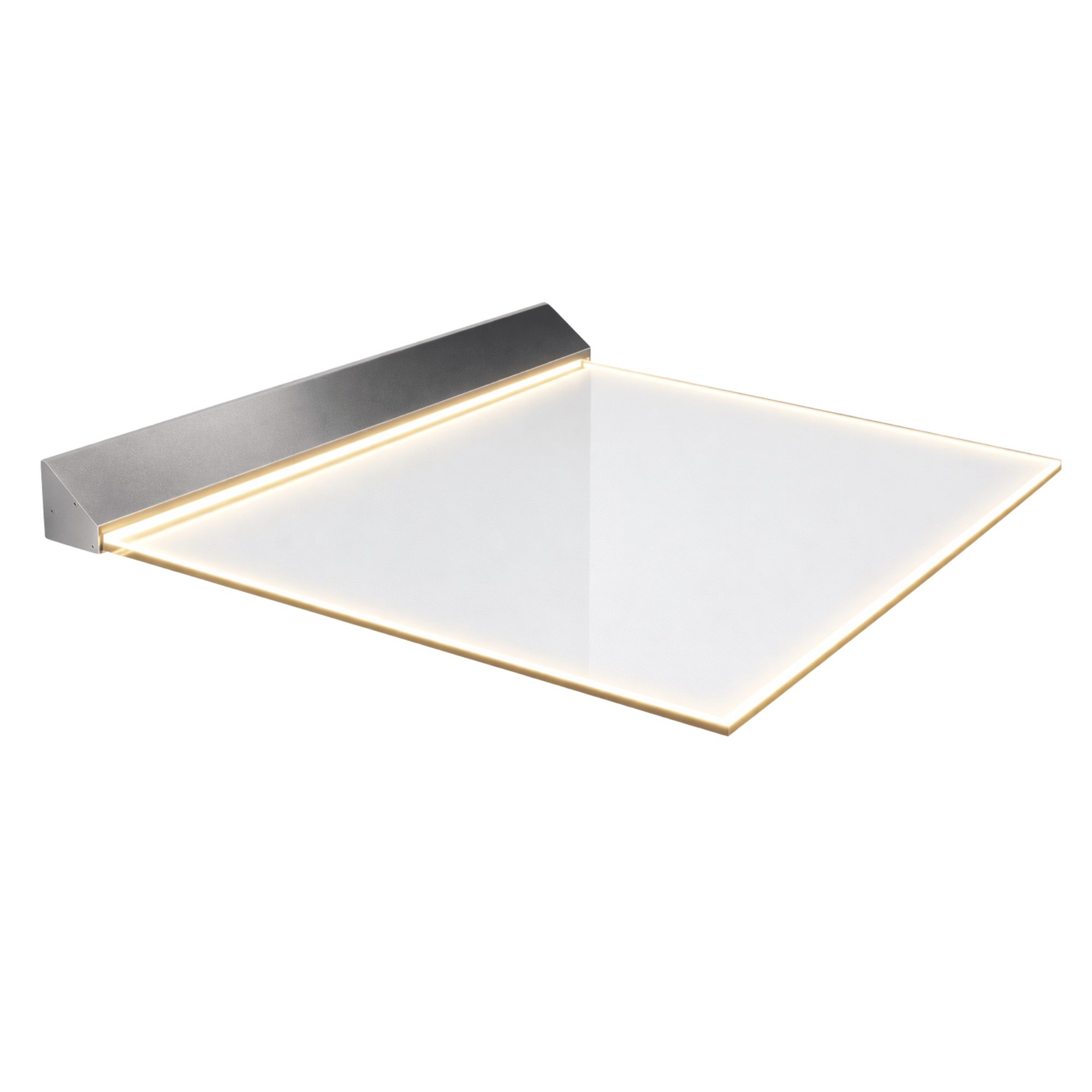

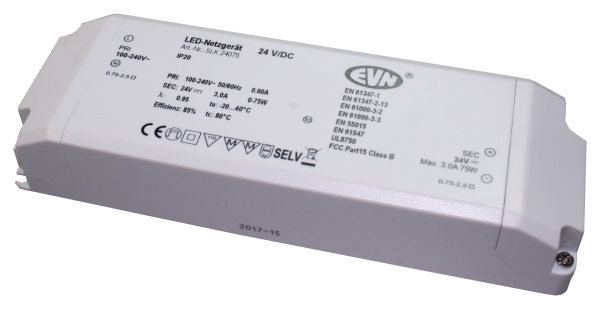

• LED lighting: Highlights the entrance and improves visibility in the evening – ideal in combination with modern front doors.

Straight LED solutions are particularly popular because they turn your glass canopy into an eye-catcher whilst also offering practical benefits. When choosing lighting, ensure suitable protection ratings (e.g. for outdoor areas) and neat integration, so that the look remains minimalist.

Care & cleaning: How to keep your glass canopy looking good for years

A glass canopy is easy to maintain if you follow a few basic rules. Clean the glass surface as needed with clear water and a mild cleaner. Avoid abrasive products that can damage surfaces and seals. Leaves or pollen may accumulate seasonally – regular, gentle cleaning maintains the clear look.

Tip: If your glass canopy is installed near trees, it’s worth carrying out a quick visual check after strong winds. This allows you to spot dirt or deposits at an early stage.

FAQ: Frequently asked questions about glass canopies

How deep should a glass canopy be?

As a rule of thumb: the more exposed the location (wind, driving rain), the greater the overhang should be. Practical overhangs are often between 700 and 1200 mm – depending on system approval and structural design.

Is a cantilevered glass canopy really stable?

Yes, provided the glass structure, system and fixings are compatible. Approved laminated safety glass (LSG) structures and a design capable of withstanding local snow and wind loads are crucial.

What width is suitable for my entrance?

At least the width of the door, preferably with a side overhang. For wide entrances or side sections, 2000–3000 mm look particularly harmonious.

Can I install a glass canopy on an insulated façade?

Yes, using suitable installation methods that transfer the load into the load-bearing substrate and do not compress the insulation. Have the wall structure checked in advance.

Does the glass make noise when it rains?

Rain is audible, but usually not disruptive. Perception depends on the overhang, installation situation and surroundings. An integrated slope also aids water drainage.

Choose the right glass canopy now

Whether minimalist on a new build, elegant on plaster or clinker brick façades, or as a high-quality upgrade for an existing property: A glass canopy perfectly combines design and function. If you are looking for a glass canopy that looks light yet still provides reliable protection, look for tested glass structures, sensible dimensions, suitable drainage and professional installation.

Use the product selection in the shop to find the width and projection that suit your entrance area – and add accessories such as guttering or lighting if required. This creates a solution that works well in everyday life and visibly enhances the entrance area.
