Adjustable glass holder

// Verstellbare Glaspunkthalter für präzise Ausrichtung von Glasflächen.

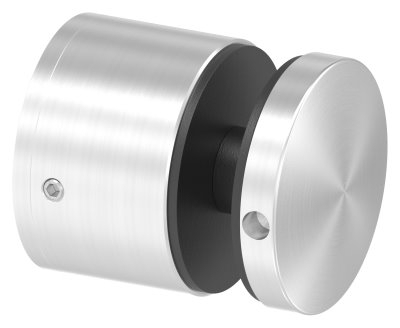

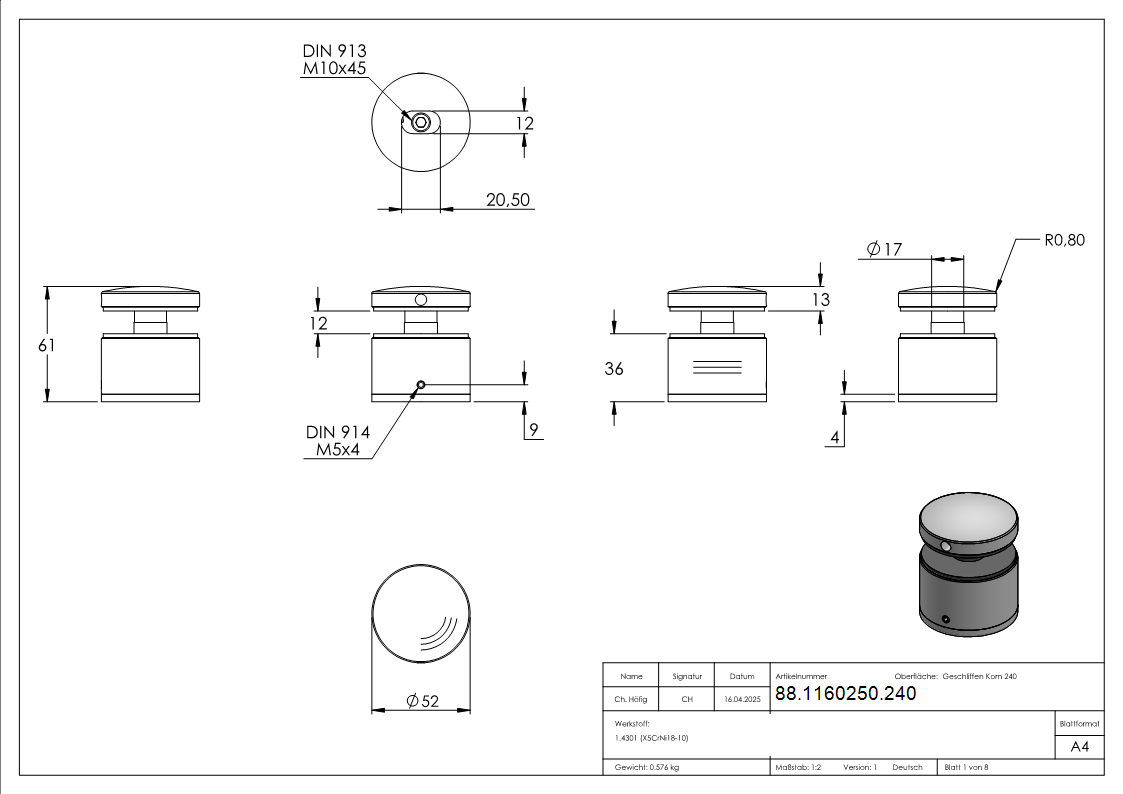

Glaspunkthalter Ø 52 mm- V2A- verstellbarer Wandabstand- Anschluss- Flach mit AbP-88-1160250.240

Stk

88.1160250.240

Glass support bracket, Ø 52 mm, V2A, adjustable wall clearance, connection: flat with AbP

Available, : Lieferzeit 1-2 Werktage

$39.96*

Glaspunkthalter Ø 52 mm- V2A- Anschluss- Flach- mit AbP-10-5211.4

Stk

10.5211.4

Glass support, Ø 52 mm, V2A, connection: flat, with AbP

Available, : Lieferzeit 1-2 Werktage

$48.52*

Glaspunkthalter Ø 52 mm- V4A- verstellbarer Wandabstand- Anschluss- Flach mit AbP-88-1160250.V4A

Stk

88.1160250.V4A

Glass support bracket, Ø 52 mm, V4A, adjustable wall clearance, connection: flat with AbP

Available, : Lieferzeit 1-2 Werktage

$51.74*

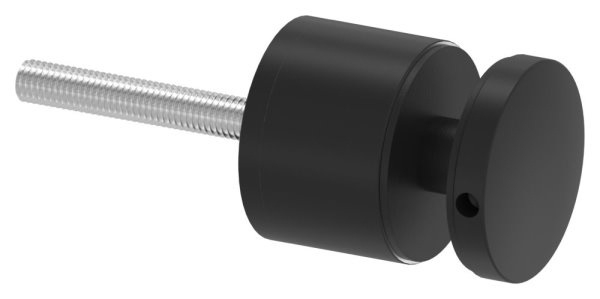

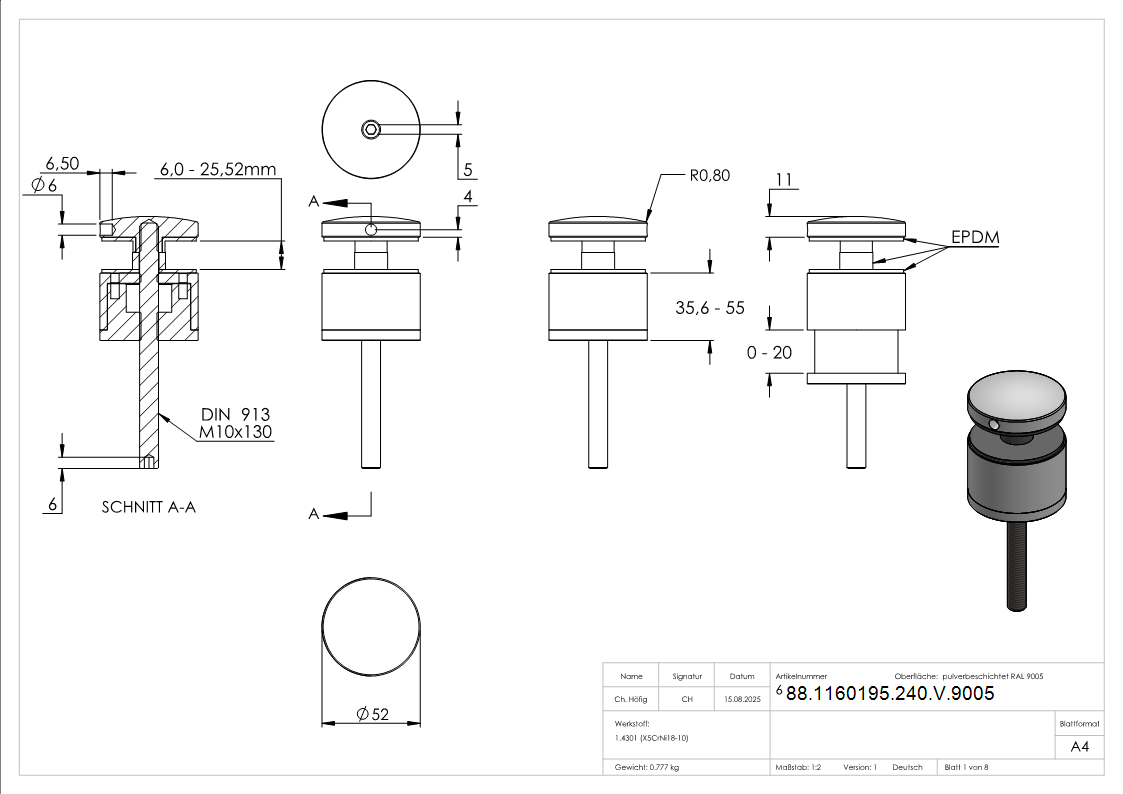

Glaspunkthalter 52mm- flach- verstellbar- V2A- pulverbeschichtet in RAL 9005 schwarz matt mit AbP-88-1160195-240-V.9005

Stk

88.1160195.240.V.9005

Glass support bracket, 52 mm, flat, adjustable, V2A, powder-coated in RAL 9005 matt black with AbP

Available, : Lieferzeit 1-2 Werktage

$45.86*

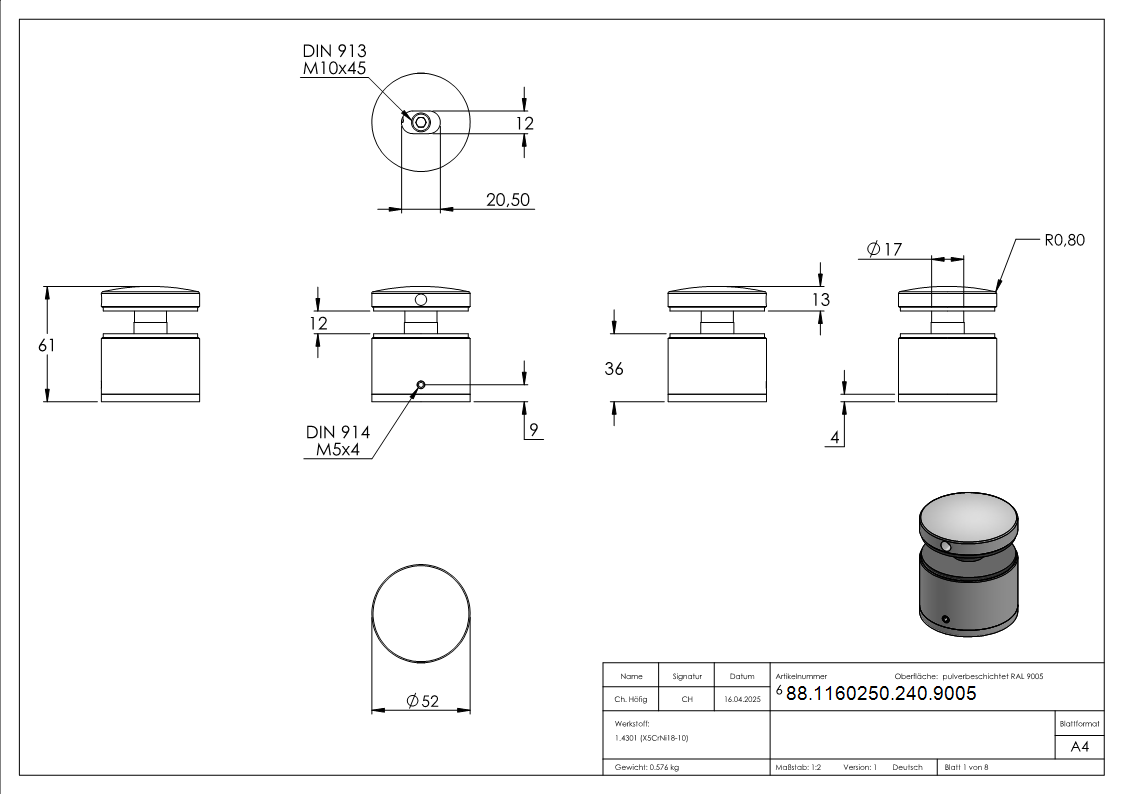

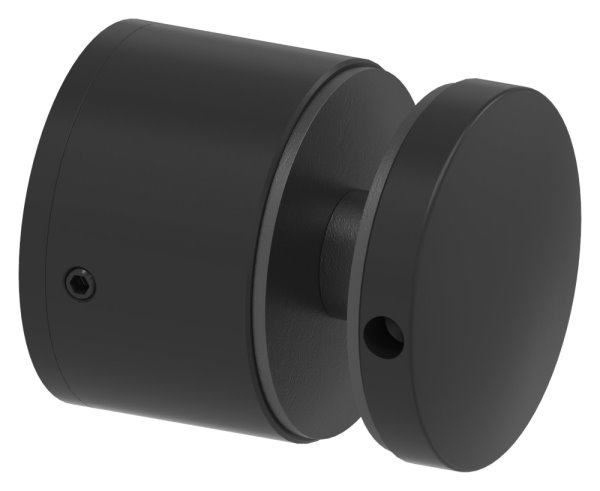

Glaspunkthalter Ø52 mm- V2A verstellbar- pulverbeschichtet in RAL 9005 schwarz matt mit AbP-88-1160250-240.9005

Stk

88.1160250.240.9005

Glass support bracket, Ø52 mm, V2A stainless steel, adjustable, powder-coated in RAL 9005 matt black with AbP

$43.50*

The solution: Adjustable glass point holders with AbP – When the wall isn’t plumb

Every tradesperson knows the problem: everything looks straight on the drawing, but the reality on site is different. Walls are uneven, drill holes aren’t 100% accurate, or the substrate isn’t level. Standard holders reach their limits here.

Our answer is **"The Innovative"**: an adjustable glass point holder specially designed to invisibly compensate for construction tolerances. It’s a lifesaver when you need to install glass quickly, tension-free and in accordance with standards.

🛡️ Flexibility with safety: Includes AbP

At Fenau, adjustable does not mean less stable. On the contrary: this innovative series also comes with a General Building Inspection Certificate (AbP).

This means you are installing a building authority-approved solution for fall protection, which simplifies the approval process whilst offering maximum installation flexibility.

Innovation in detail: What makes this bracket so special

This bracket is more than just a piece of stainless steel. It is a well-designed tool for professionals. Here are the features that make your work easier:

🔄 360° adjustability & slotted hole:
The centrepiece is the integrated slotted hole in the body. You can rotate the bracket 360 degrees and align it precisely. Is the drill hole in the wall slightly off-centre? No problem – simply readjust the bracket until the glass sits perfectly.
📏 Variable wall clearance (36 – 45 mm):
Is the wall bulging or uneven? Using the threaded mechanism, you can adjust the wall clearance continuously between 36.00 mm and 45.00 mm . This allows you to compensate for differences in level without having to improvise with washers.
🖐️ The "third hand": Installation aid with rubber ring:
An ingenious detail for fitters: A special rubber ring on the bracket serves as a support. You can "rest" the heavy glass pane there during installation before screwing it tight. This acts like a third hand and prevents the glass from breaking or getting scratched when positioning it.

Technical data for your planning

Despite the adjustment mechanism, this bracket covers an enormous range of applications:

Clamping range: Flexible for glass thicknesses from 12.00 mm to 25.52 mm (ideal for thick laminated safety glass).
Material: High-quality stainless steel (V2A / V4A) for a durable finish.
Applications: Railings, balustrades and all situations where the substrate is not perfectly level.

Save yourself hassle and costly rework. With Fenau’s adjustable glass point holder (with AbP), you can elegantly compensate for tolerances and deliver a perfect result.
