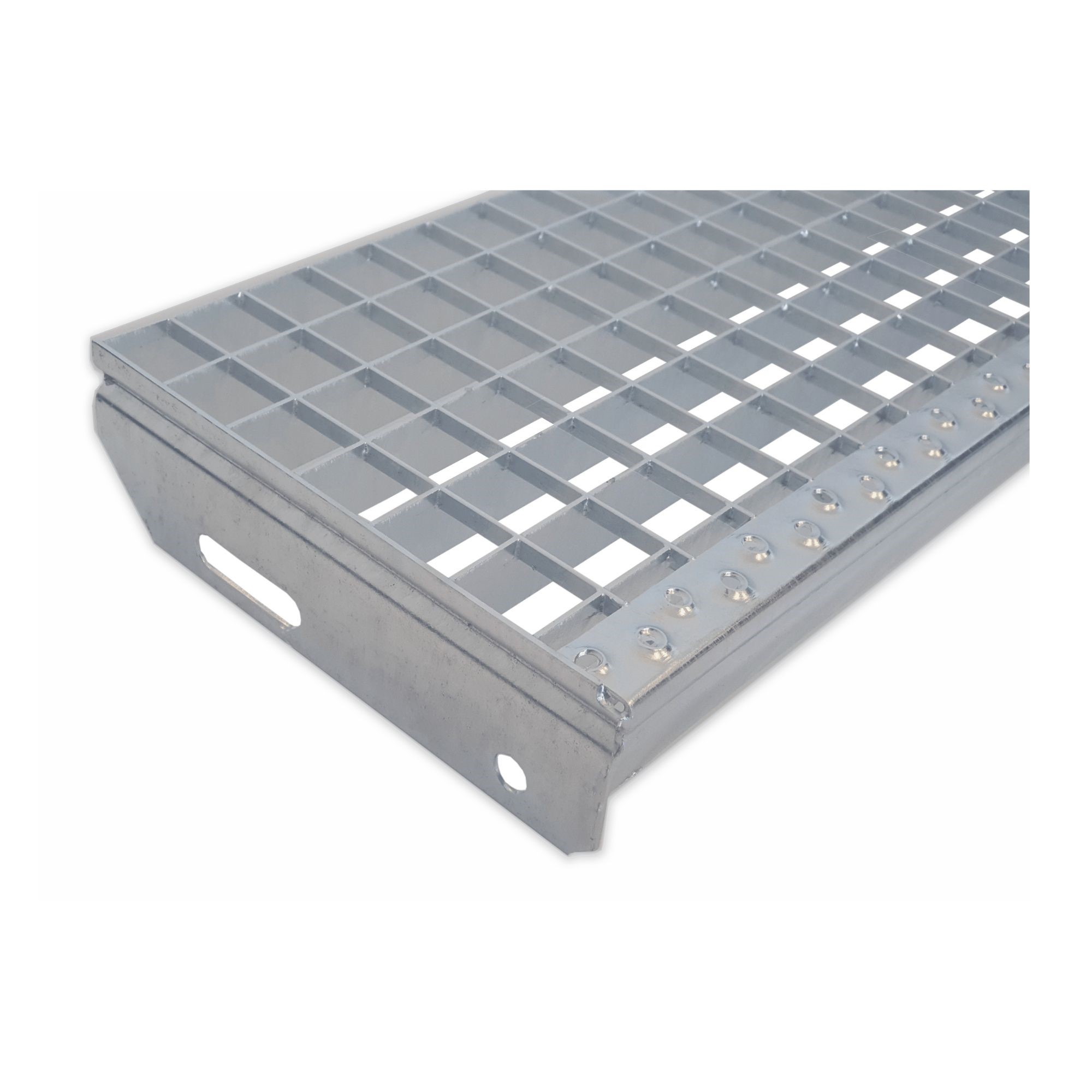

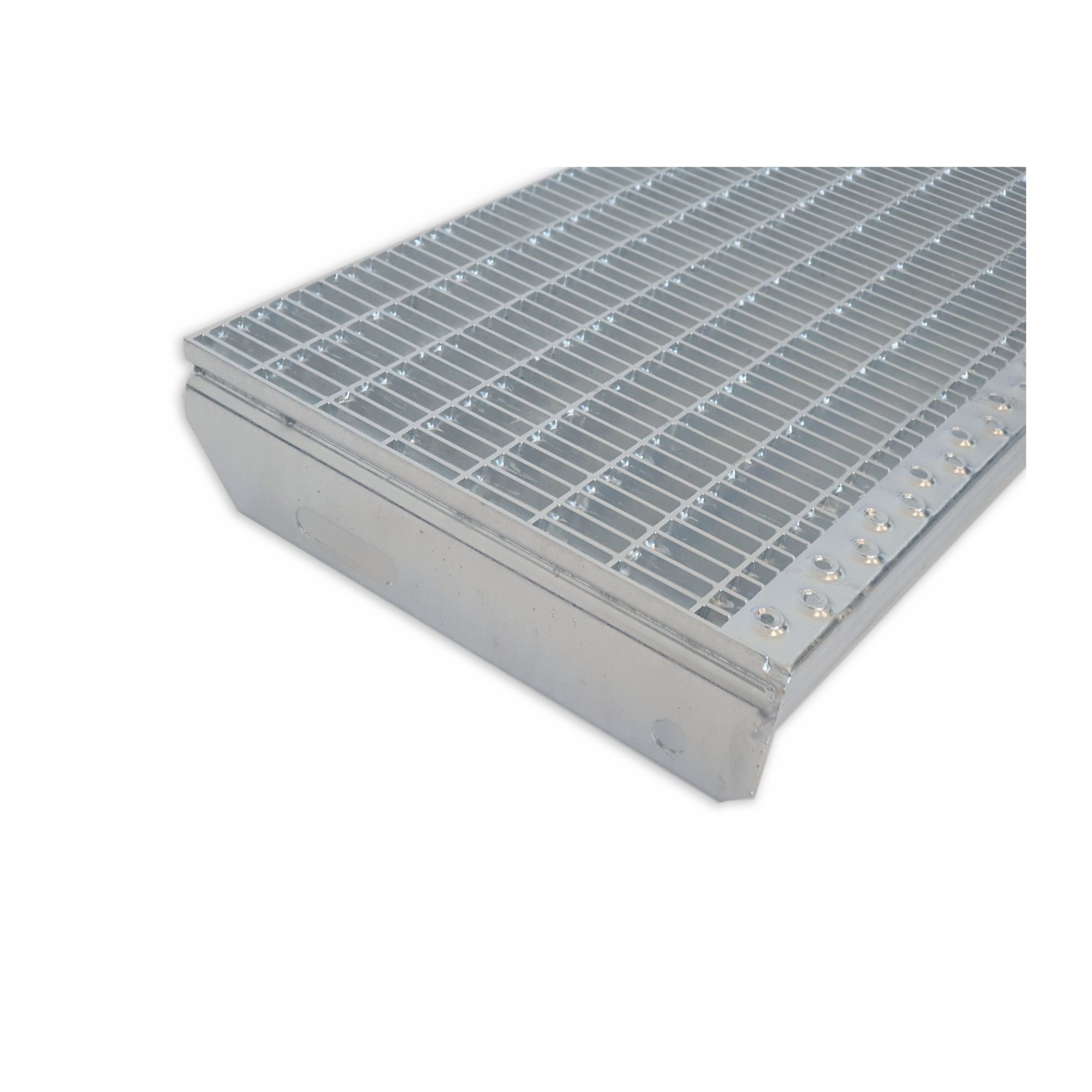

FeNau grating steps – robust, safe and durable
Our grating steps are the ideal solution for industrial, commercial and public applications. Thanks to high-quality S235JR steel and hot-dip galvanising in accordance with DIN EN ISO 1461, they offer maximum corrosion resistance and stability. The support bar running along the long side ensures high load-bearing capacity and safety in daily use.

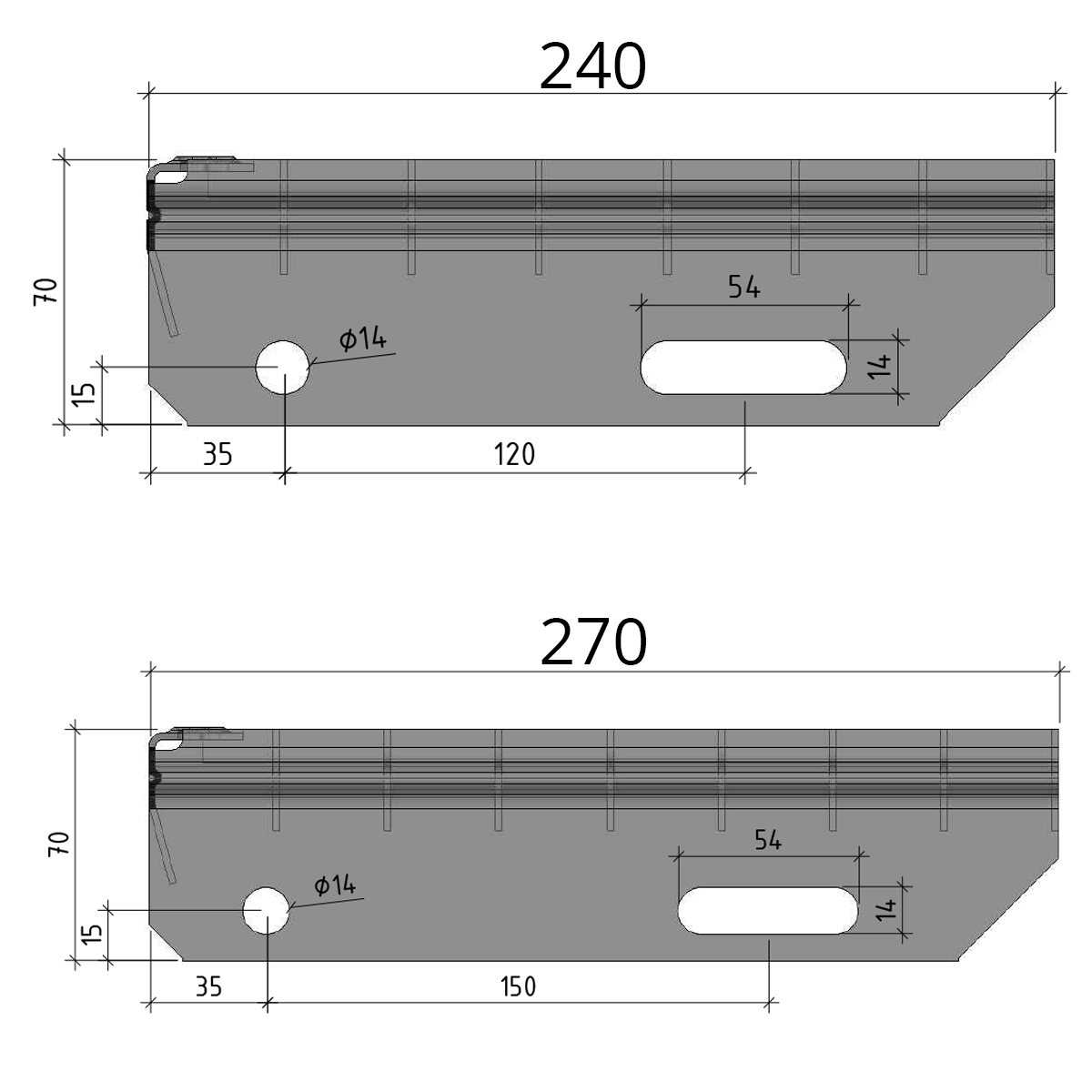

Technical details of the grating steps
- Material: S235JR (St37-2)
- Surface: Hot-dip galvanised in accordance with DIN EN ISO 1461
- Slip resistance: Class R10
- Construction: Support bar along the long side
- Load capacity: 1.5 kN on a 100x100 mm load cube
- Standard: Manufactured in accordance with DIN EN ISO 14122-3
Please note: Galvanising residues in the mesh are a result of the manufacturing process and do not affect functionality.
Advantages and disadvantages of grating steps
Advantages:
- High load-bearing capacity: Resistant to heavy loads and intensive use.
- Slip resistance: Thanks to R10 slip resistance, the steps remain safe even when wet or oily.
- Corrosion resistance: Hot-dip galvanised surface protects against rust and environmental influences.
- Durability: Robust material and high-quality workmanship ensure a long service life.
- Easy to clean: Dirt and water can easily drain away through the open structures.
Disadvantages:
- Visibility downwards: The open construction allows a view through, which can be a disadvantage for some applications.
- Inconvenient with high heels: Narrow heels can get caught in the mesh.
- No complete protection against small objects: Small items could fall through the openings.
Accessories for greater safety and comfort
To prevent objects from falling through or shoes from getting caught, we offer our grating covers as optional accessories. These covers not only improve safety but are also ideal for areas where animals or children are present.
Applications for grating steps
- Industry: Machine access points, maintenance platforms & industrial staircases.
- Commercial: Perfect for warehouses, production facilities & construction projects.
- Public areas: Safe access to facilities & emergency staircases.
- Outdoor areas: Weather-resistant for balconies & external staircases.
Order grating steps from FeNau now
Find the right grating step for your construction project. Contact us for a no-obligation consultation or order directly online – German quality for the highest standards!
