Glass point holder, Ø 62 mm, with AbP – For large surfaces

Glaspunkthalter-Oberteil Ø 62 mm- V2A-10-6200.4OT

Stk

10.6200.4OT

Glass holder top section, Ø 62 mm, V2A

Available, : Lieferzeit 1-2 Werktage

$22.76*

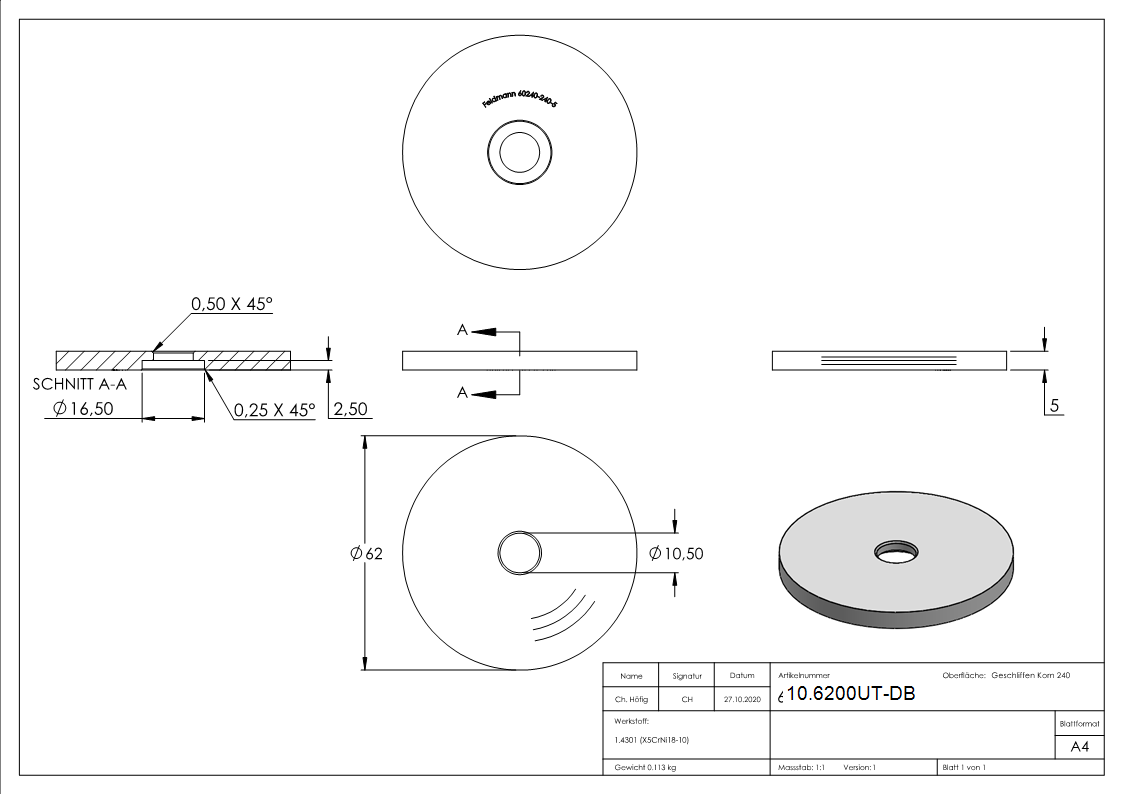

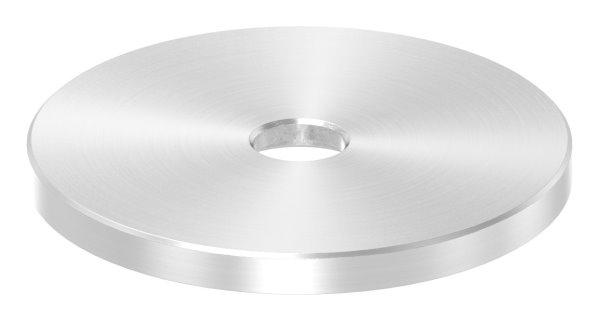

10.6200UT-DB

Glass point holder base, Ø 62 mm, V2A, height: 5 to 50 mm

Available, : Lieferzeit 5-10 Werktage

From $10.94*

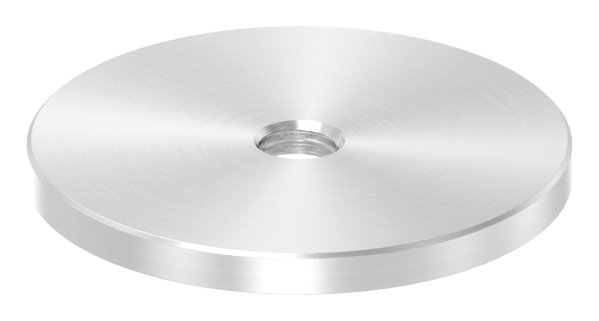

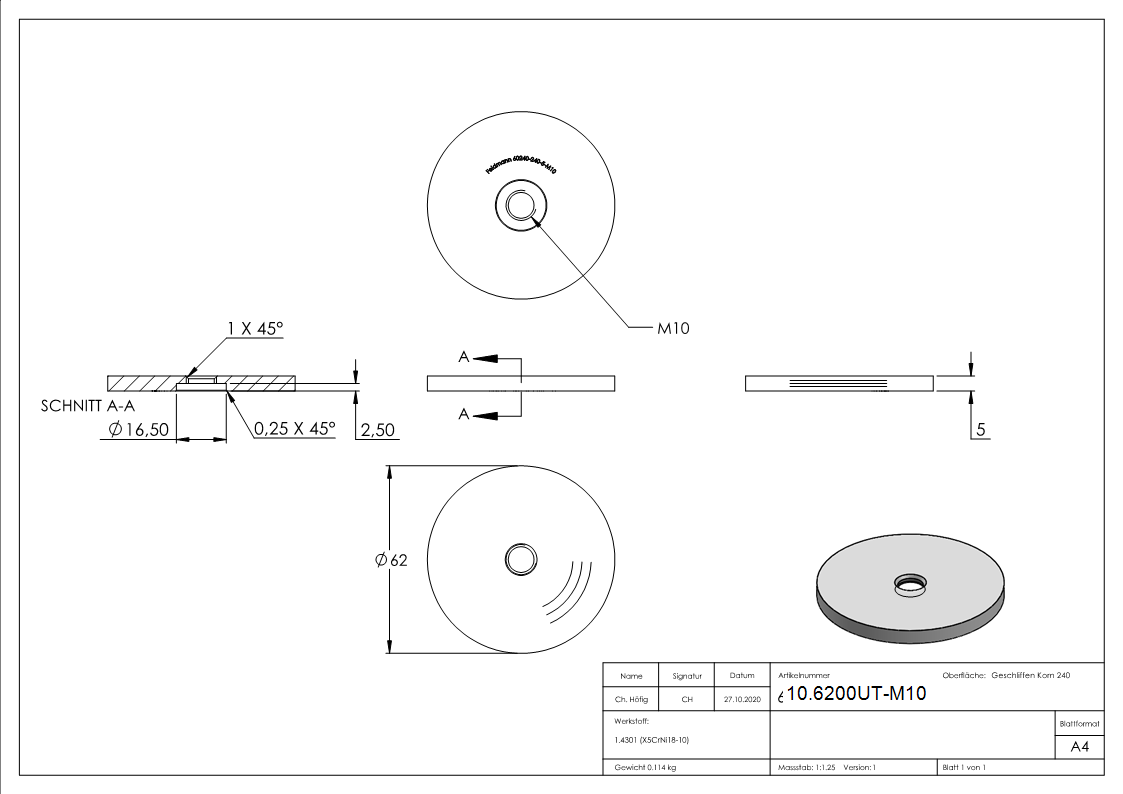

10.6200UT-M10

Glass support base, Ø 62 mm, V2A, height: 5–50 mm, with M10 thread

Available, : Lieferzeit 5-10 Werktage

From $13.06*

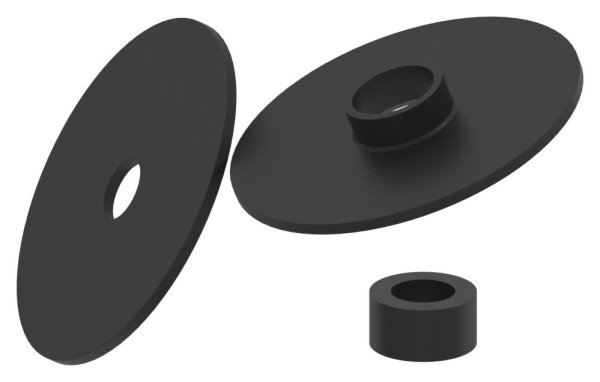

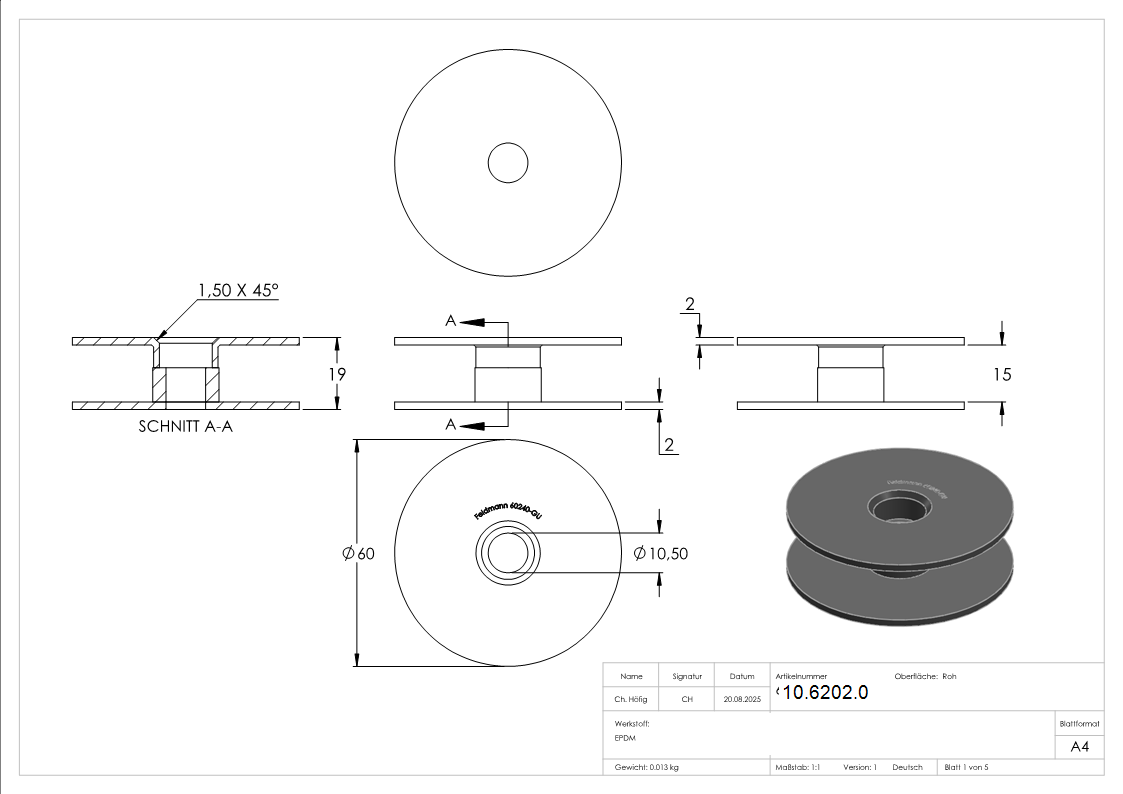

1 Paar Ersatzgummis fuer Glaspunkthalter Ø 62 mm – Gummieinlage - Dichtung-10-6202.0

Stk

10.6202.0

1 pair of replacement rubber inserts for glass holders (Ø 62 mm) – rubber insert & seal

Available, : Lieferzeit 1-2 Werktage

$2.22*

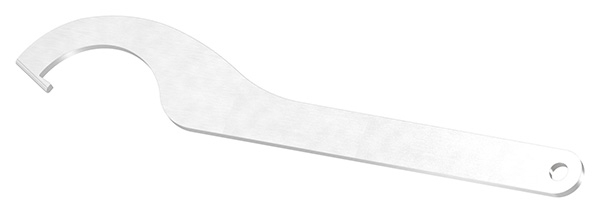

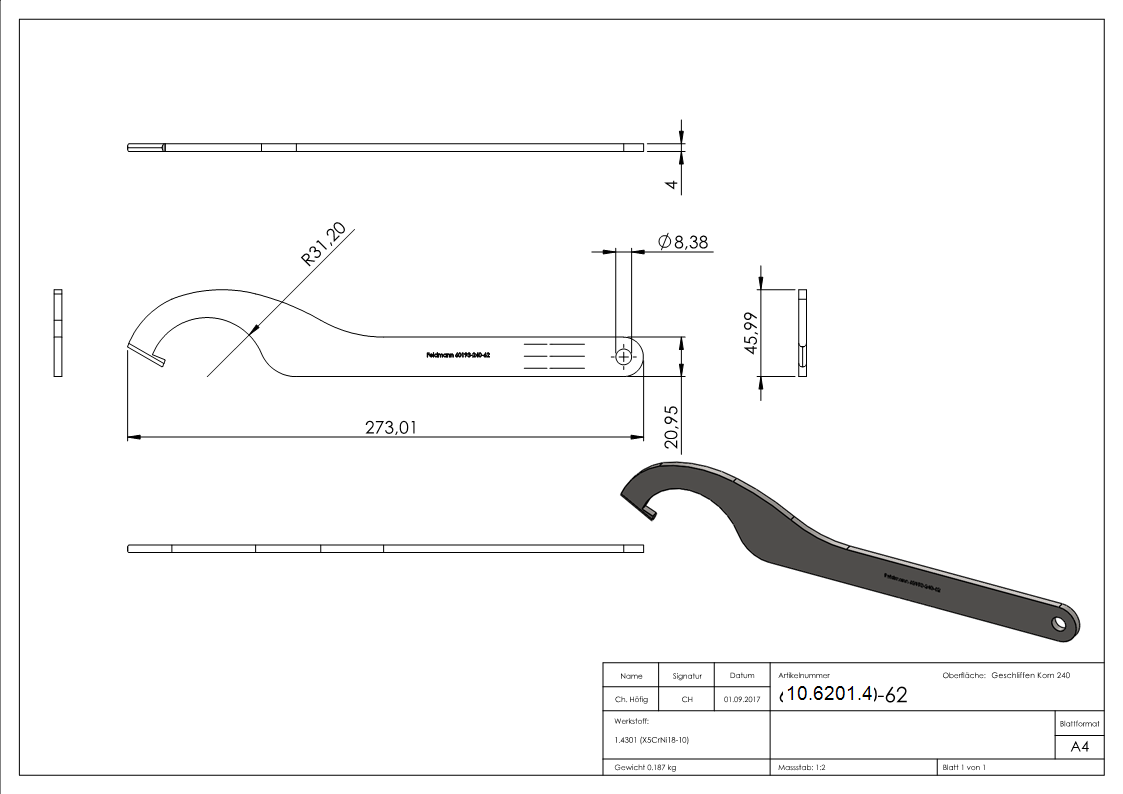

Hakenschluessel fuer Glaspunkthalter Ø 62 mm-10-6201.4

Stk

10.6201.4

Hook wrench for glass point holders, Ø 62 mm

Available, : Lieferzeit 1-2 Werktage

$14.04*

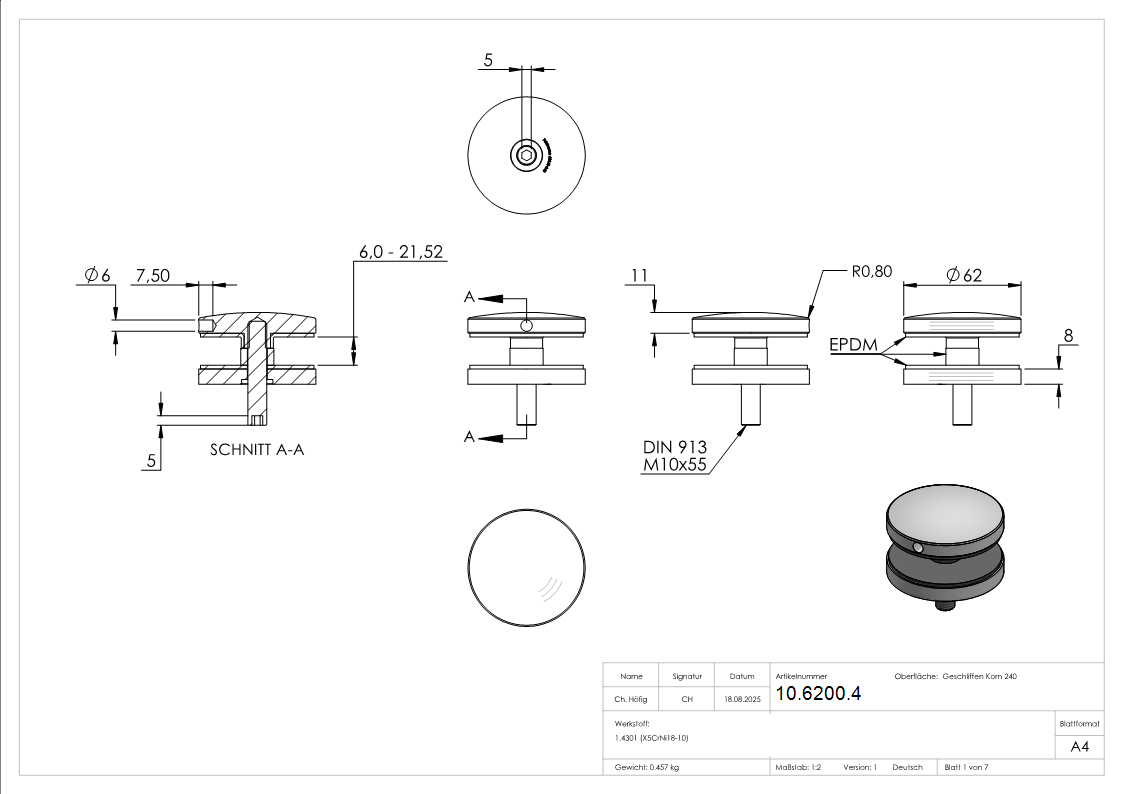

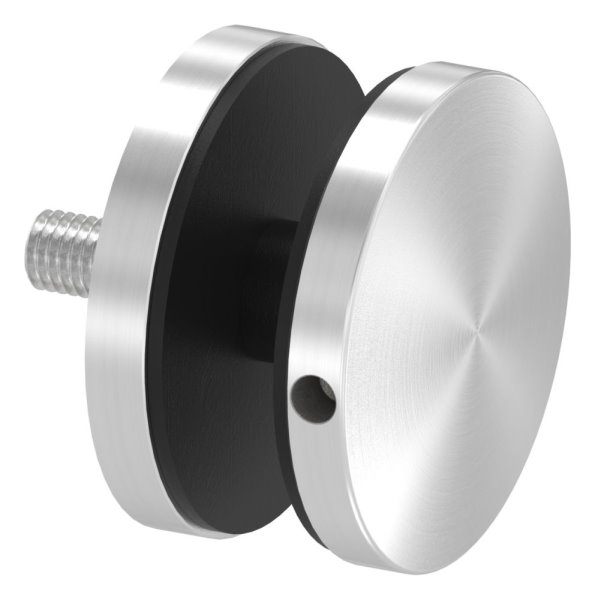

Glaspunkthalter Ø 62 mm- V2A- Anschluss- Flach mit AbP-10-6200.4

Stk

10.6200.4

Glass support, Ø 62 mm, V2A, connection: flat with AbP

Available, : Lieferzeit 1-2 Werktage

$31.90*

Tip

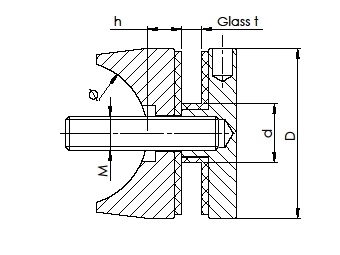

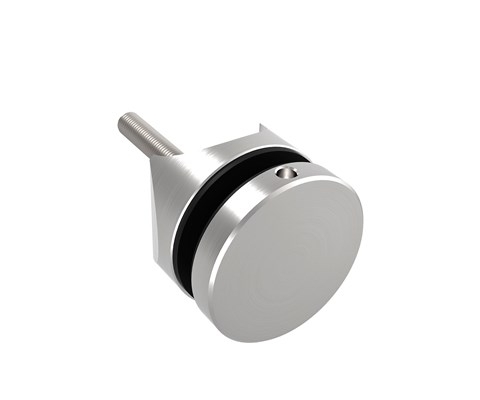

Glaspunkthalter Ø 60 mm- V2A- Anschluss- Rohr Ø 42-4 mm-10-6242-A.4

Stk

10.6242-A.4

Glass support bracket, Ø 60 mm, V2A, connection: pipe Ø 42.4 mm

Available, : Lieferzeit 1-2 Werktage

$28.10*

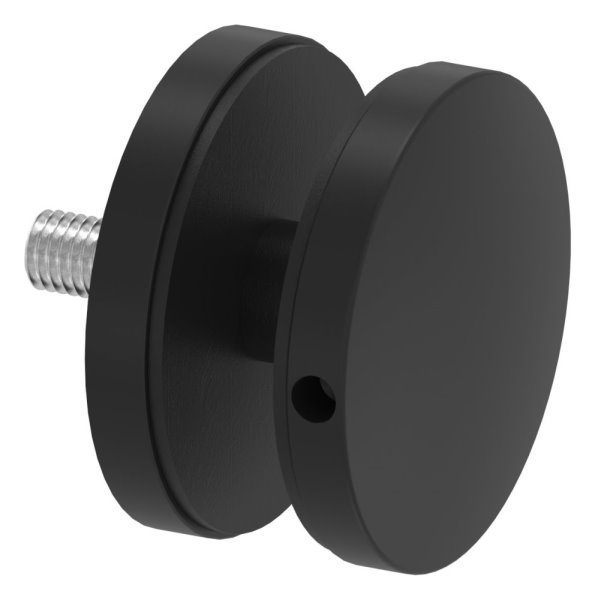

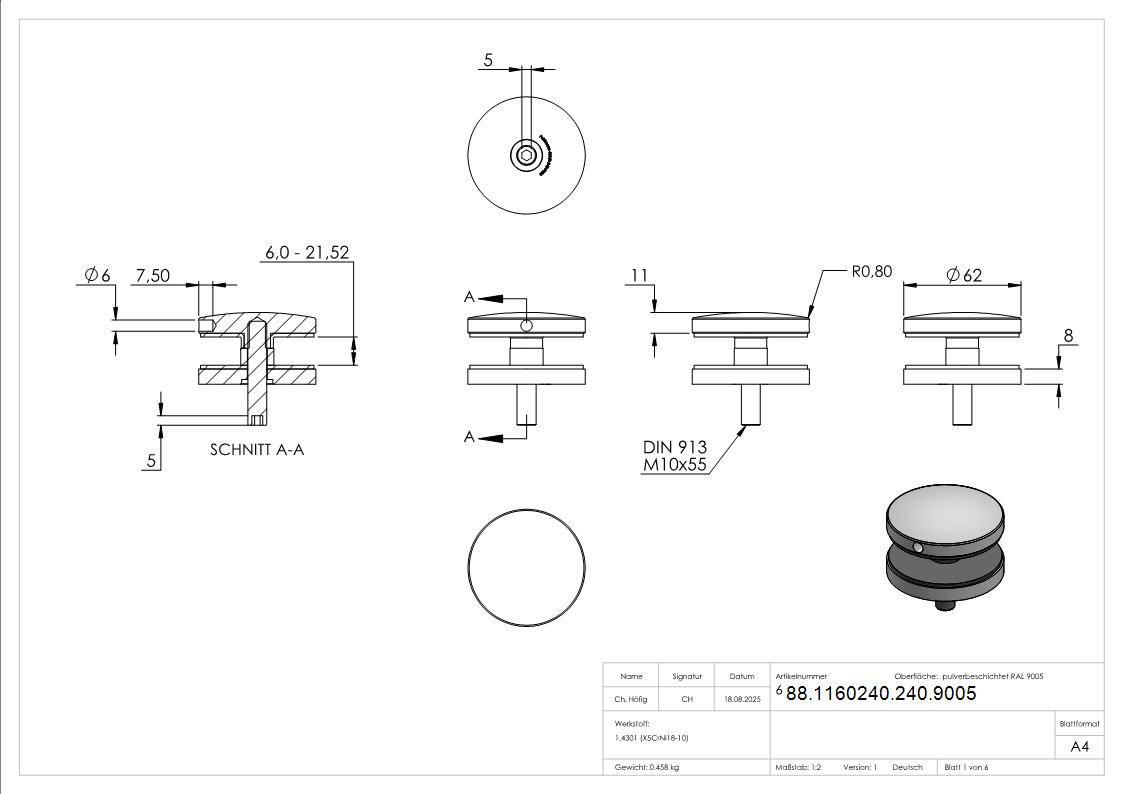

Glaspunkthalter 62mm- Anschluss- flach- V2A- pulverbeschichtet in RAL 9005 schwarz matt mit AbP-88-1160240-240.9005

Stk

88.1160240.240.9005

Glass support bracket 62 mm, connection: flat, V2A, powder-coated in RAL 9005 matt black with AbP

Available, : Lieferzeit 1-2 Werktage

$35.32*

The big one, certified and approved: Ø 62 mm glass point fixings with AbP

When it comes to large spans and heavy loads, the Ø 62 mm glass point holder is your safest choice. It combines immense holding power with certainty regarding building regulations. This holder is specially designed for projects where standard sizes are no longer sufficient – whether due to high wind loads, large glass formats or public safety requirements.

Thanks to the wide contact surface of 62 mm, stress peaks in the glass are minimised. But the most important factor for your planning is the certification.

🛡️ Tested safety: With General Building Inspection Certificate (AbP)

Take no risks during the final inspection. This heavy-duty bracket has an AbP. This is your decisive advantage over untested products:

✔ Save time & money: The test certificate officially confirms suitability for use. You generally avoid the costly and bureaucratic ‘case-by-case approval’ (ZiE) from the building authorities.
✔ Structurally relevant: Perfectly suited for fall protection and applications where DIN 18008 applies.

Applications for the 62 mm anchor

Architects specifically use this diameter when:

Large-scale glass façades or heavy laminated safety glass panes need to be supported.
The design requires striking, visible technology (“industrial look”).
Holes in the glass are larger and need to be securely covered.

👨‍🔧 Expert advice: Calculation for custom configurations

Large-scale projects often require custom wall spacings, for which you will need to use your own threaded rods/pins. Important: When assembling, you must use the specific formula for the 62 mm bracket. Due to the solid construction and rubber components, different clearance dimensions apply here than for smaller brackets.

Here’s how to calculate the minimum length of your threaded pin correctly:

            B + glass thickness - 6.0 mm + allowance 15 mm

            = minimum length of threaded pin

The formula in detail:

B: The dimension of the base body (see technical drawing).
- 6.0 mm: The specific clearance dimension for the Ø 62 mm holder (Important: Not -3 mm as with small holders!).
Allowance 15 mm: Minimum screw-in depth into the base for full load-bearing capacity.

Build big, but build safely. With the Ø 62 mm glass point holder with AbP from Fenau, you can rely on certified quality for the most demanding glass architecture.
