Grating steps

Grating steps – The perfect solution for safe stair treads

A grating step is the ideal choice for safe, durable and heavy-duty stair treads in industrial, commercial and private outdoor areas. It impresses with its high load-bearing capacity, a robust hot-dip galvanised surface and certified slip resistance. Whether for outdoor staircases, escape routes or machine access points – a high-quality grating step offers maximum safety and a long service life.

Why a grating step is the best choice

✅ Slip resistance for maximum safety

A grating step is characterised by its special surface structure, which ensures safe footing. Slip resistance class R11 provides a firm grip, even in difficult conditions such as rain, snow or oily surfaces. This makes it ideal for use in outdoor areas, industrial buildings and escape staircases.

✅ High load-bearing capacity & stability

Our grating steps are tested in accordance with DIN 1055-3 and offer exceptional load-bearing capacity:

• Point load: 2.0 kN on a 50x50 mm load cube
• Distributed load: 5.00 kN/m²

✅ Corrosion protection for long-lasting durability

Each grating step is manufactured from high-quality S235JR (St37-2) steel and hot-dip galvanised in accordance with DIN EN ISO 1461. This coating provides effective protection against rust and ensures that the steps function reliably even under extreme weather conditions.

✅ Quick and easy installation

Thanks to precise drill holes in accordance with DIN 24531, every grating step is easy to install. The side mounting flanges allow for secure bolting, whilst the integrated toe-in edge provides additional stability and makes climbing the stairs easier.

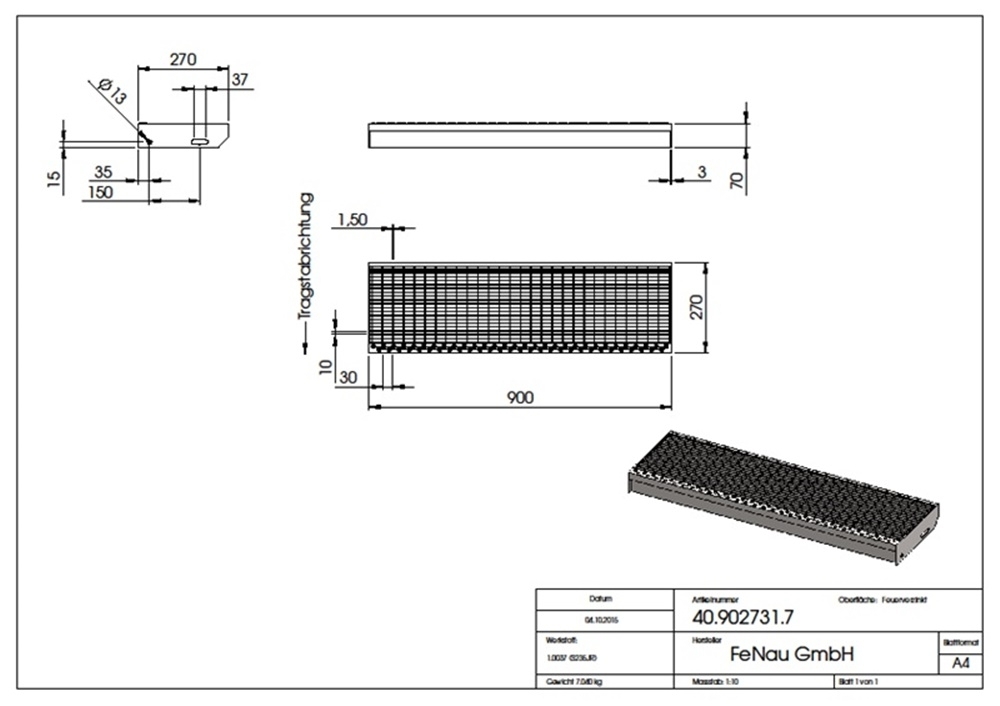

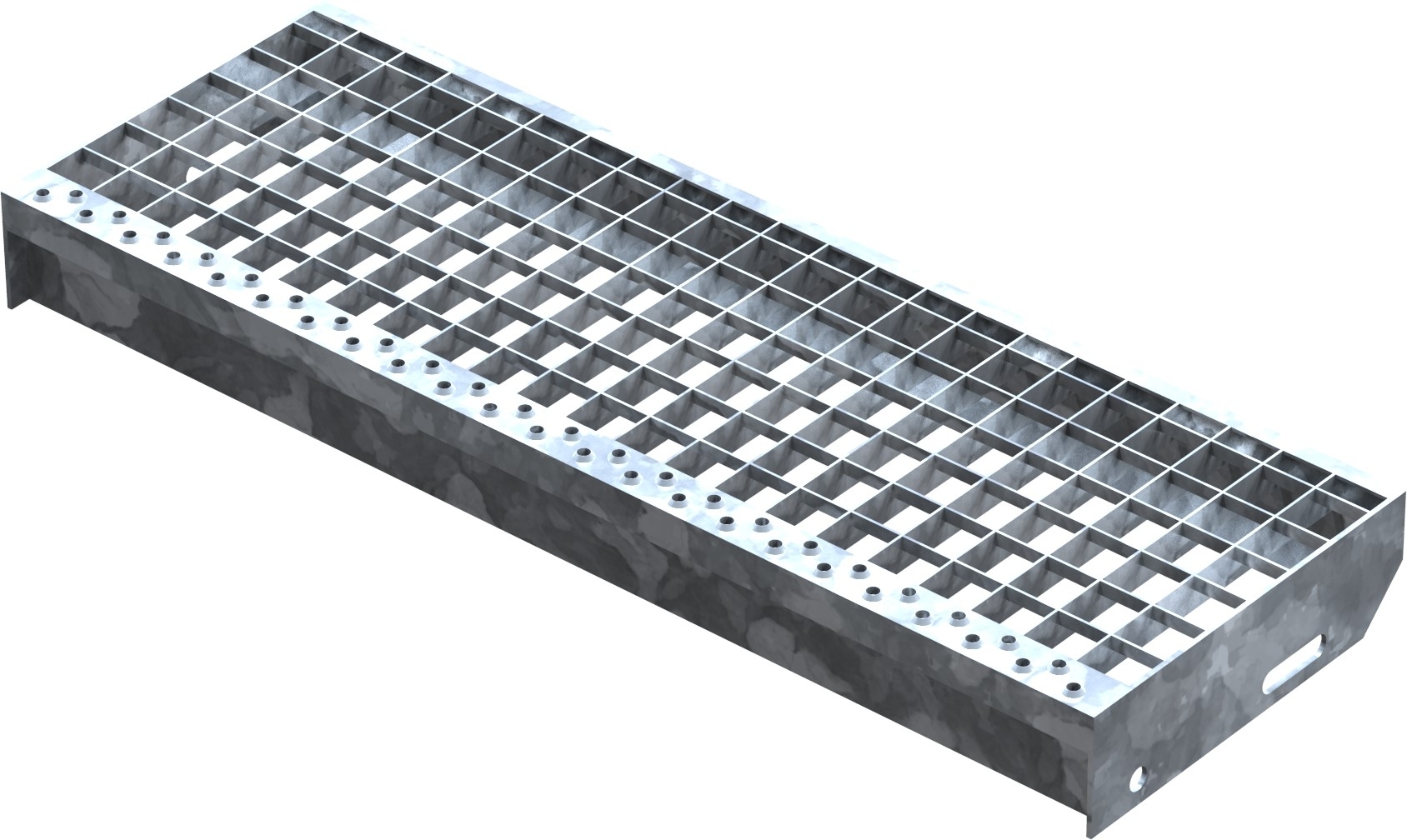

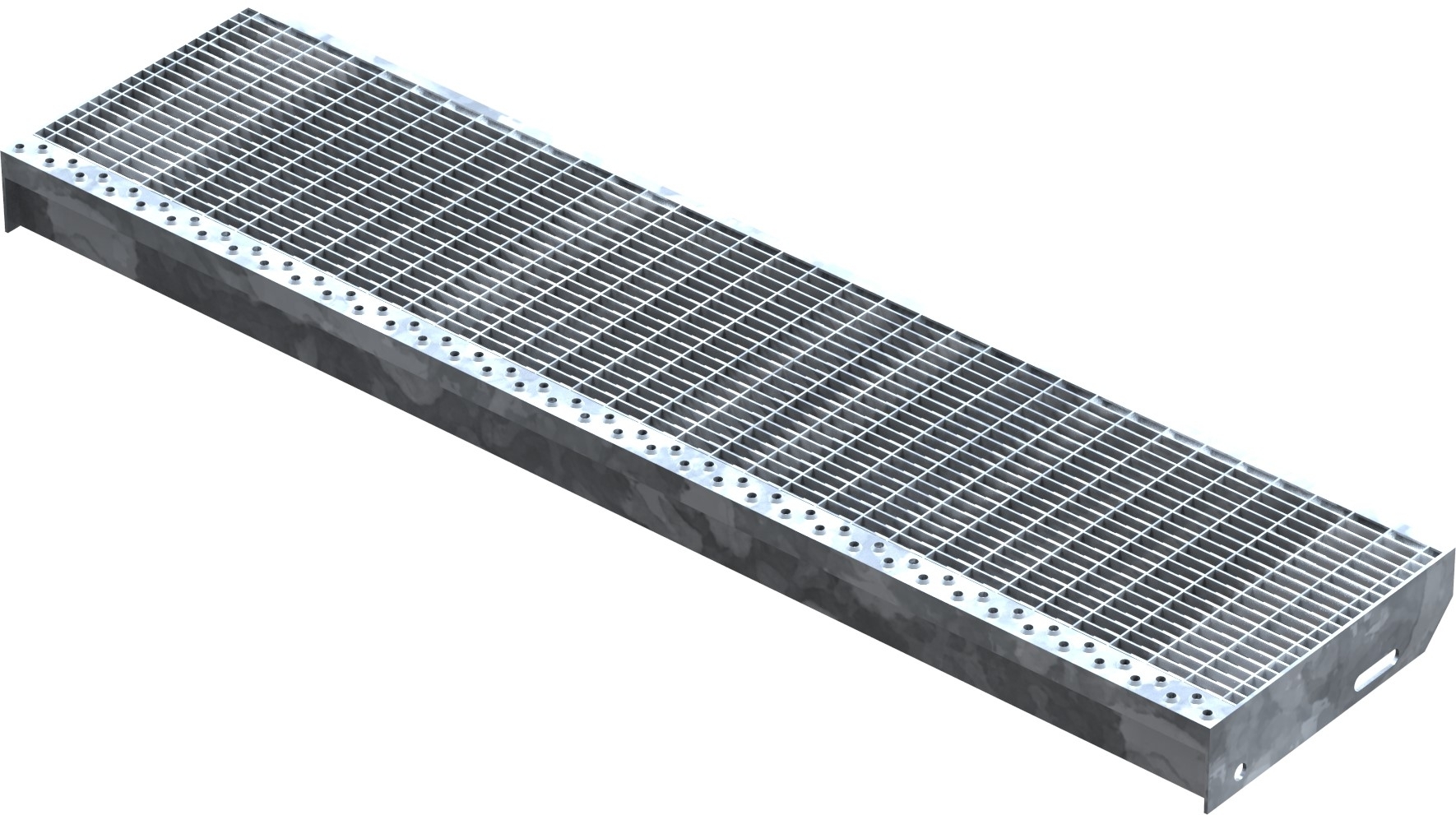

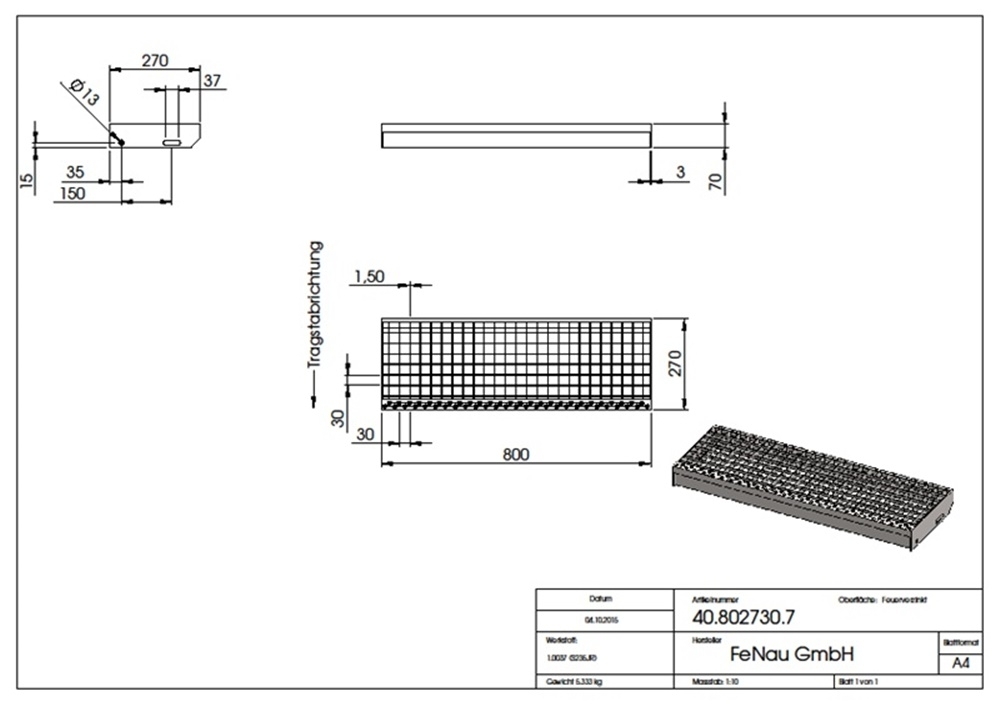

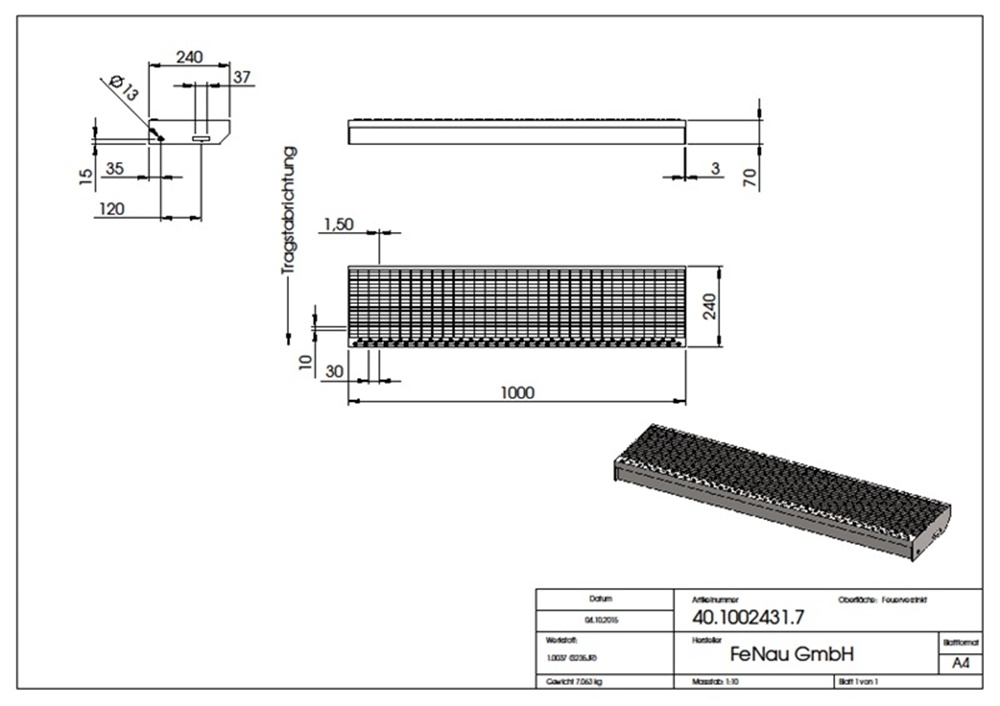

Our grating steps – Available sizes

Dimensions play a crucial role when selecting the right grating step. We offer various standard sizes suitable for most staircase constructions:

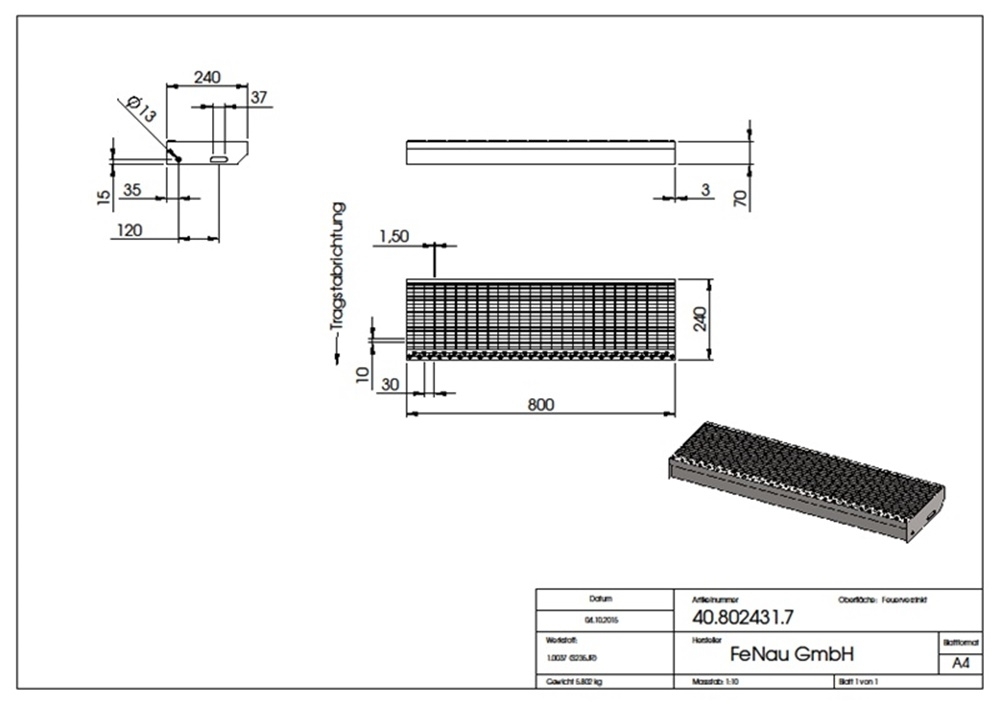

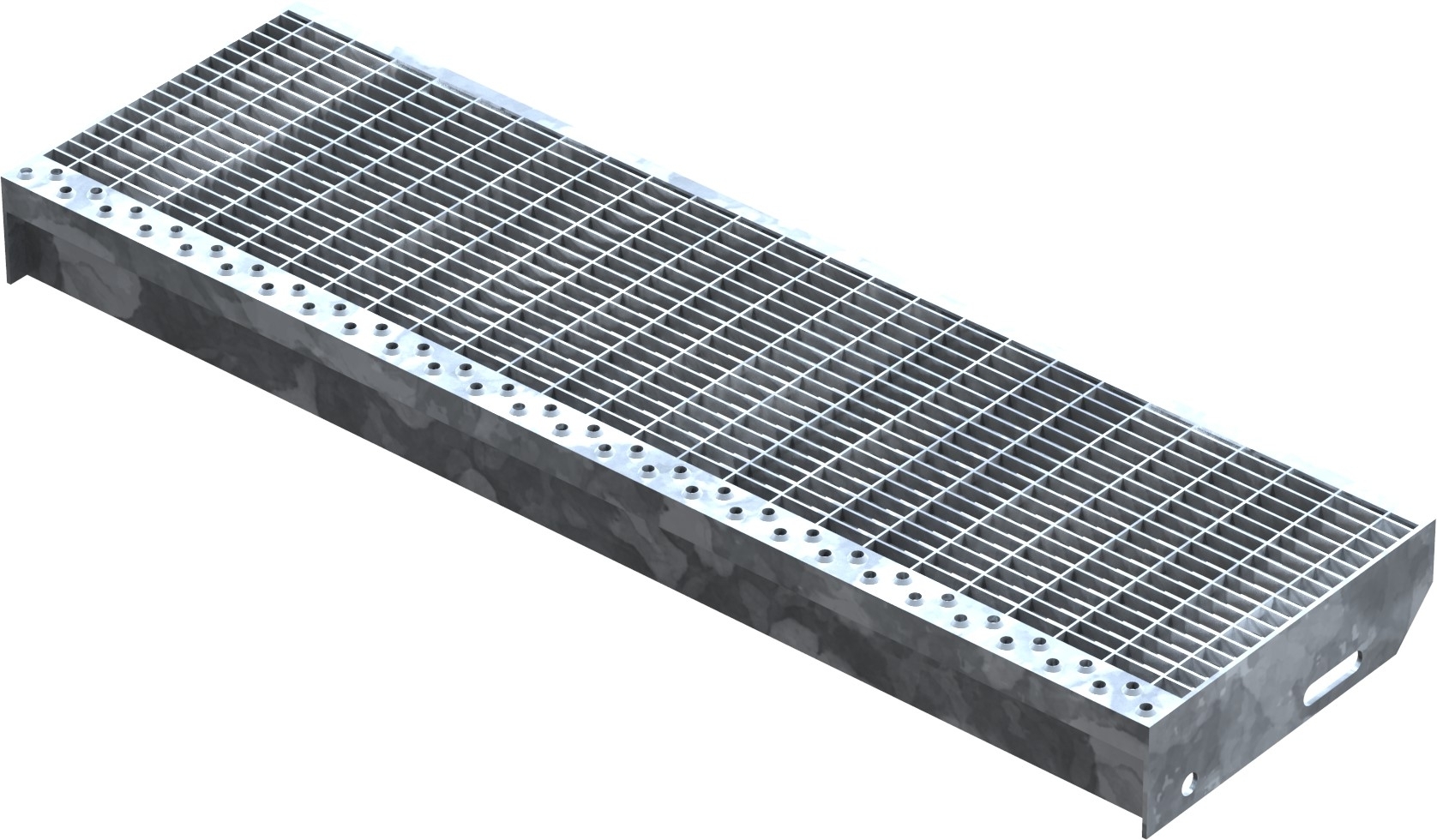

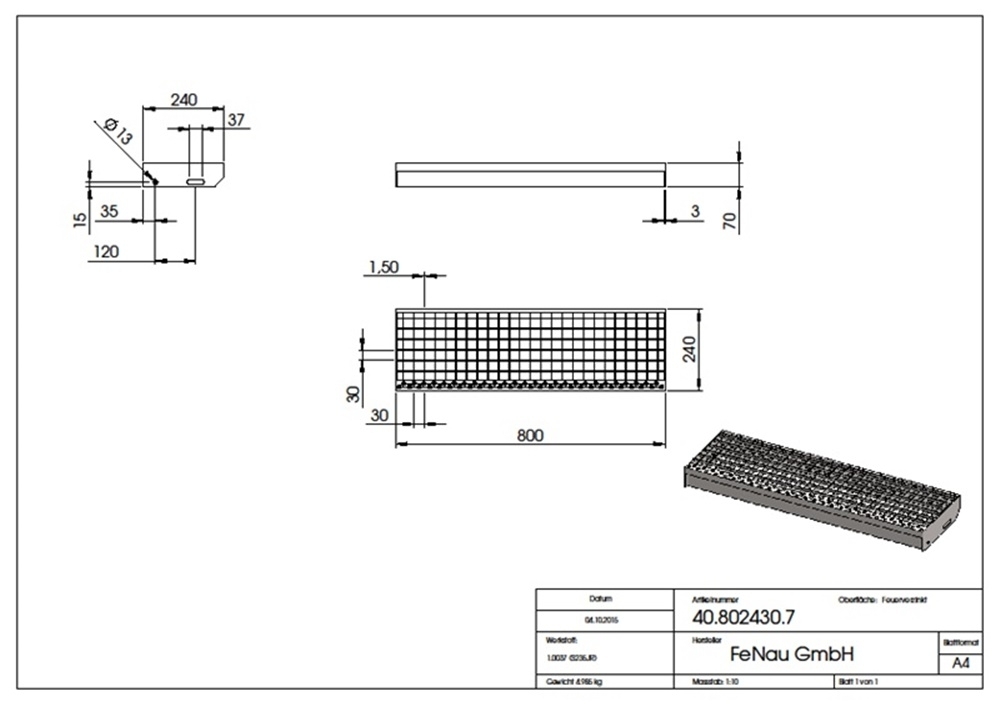

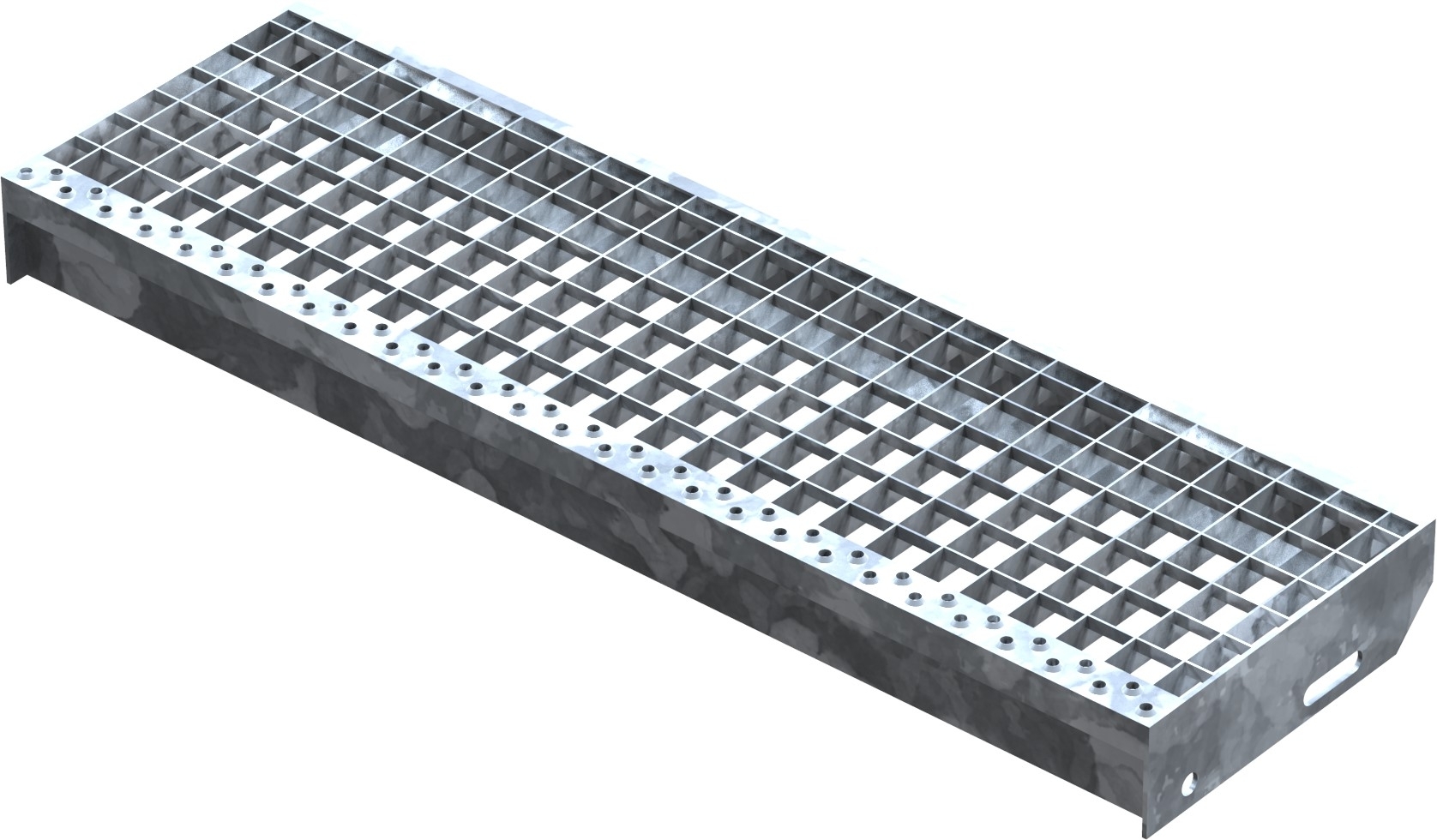

• Grating step 800 x 240 mm – Ideal for compact staircases

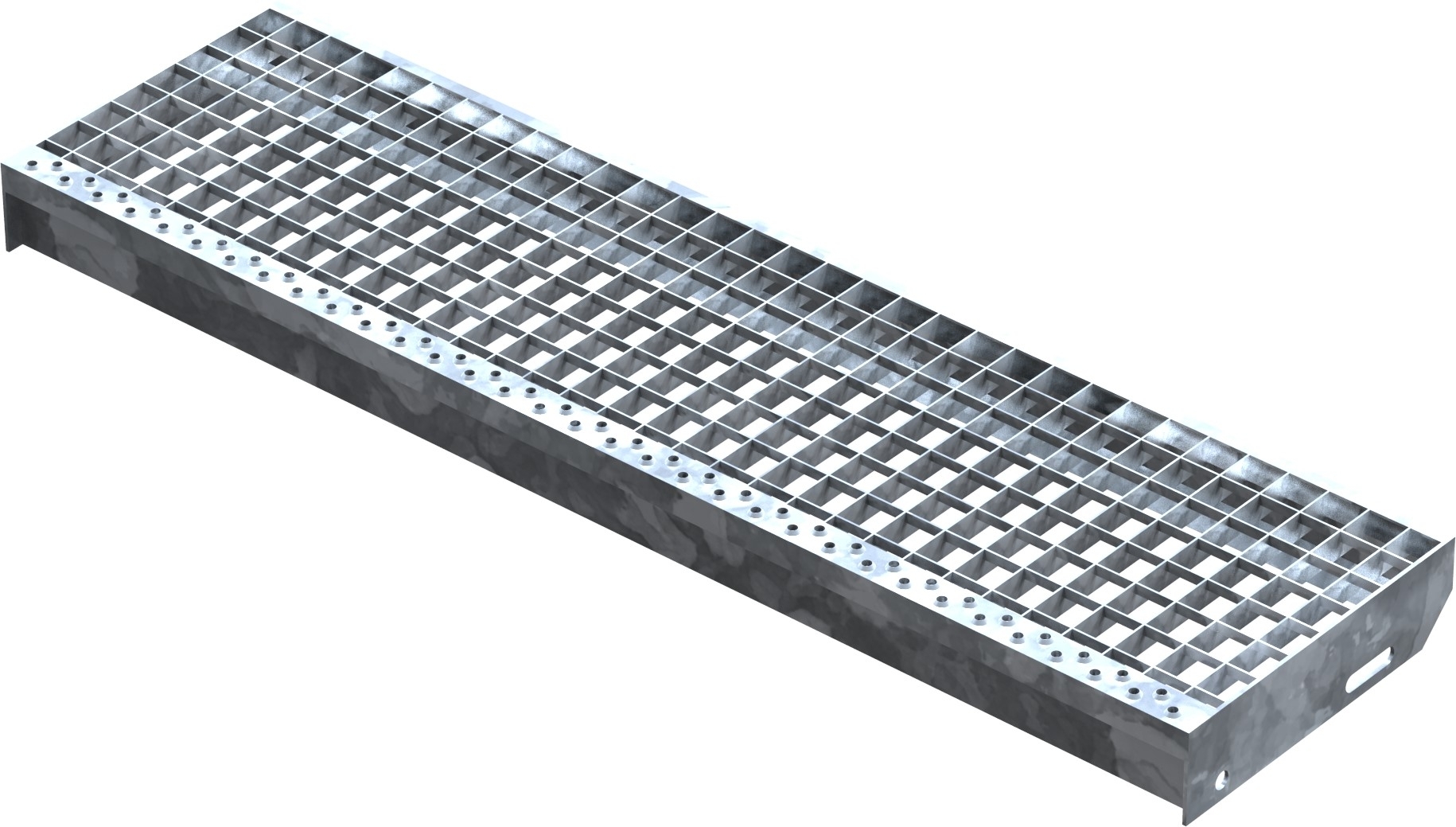

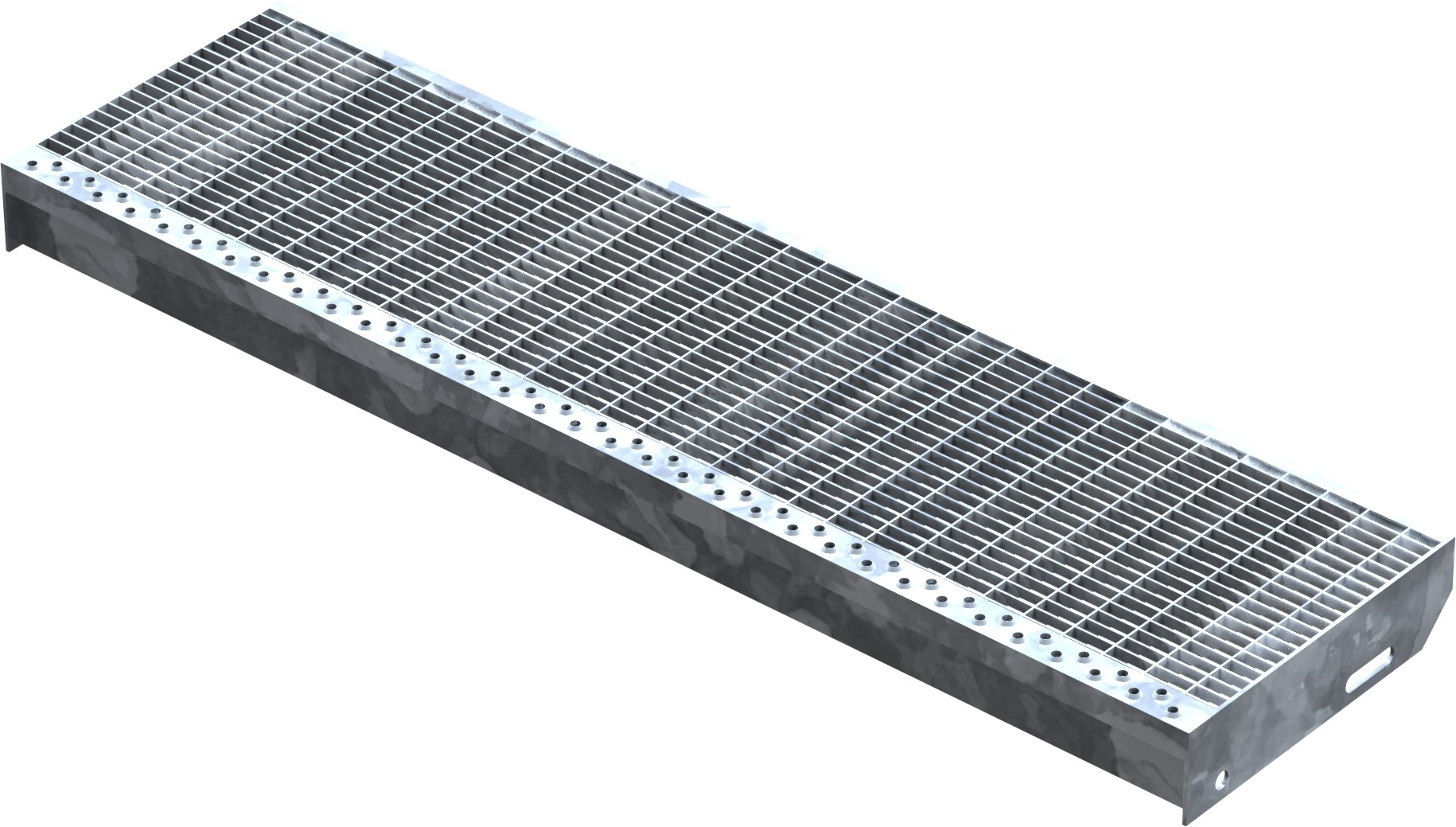

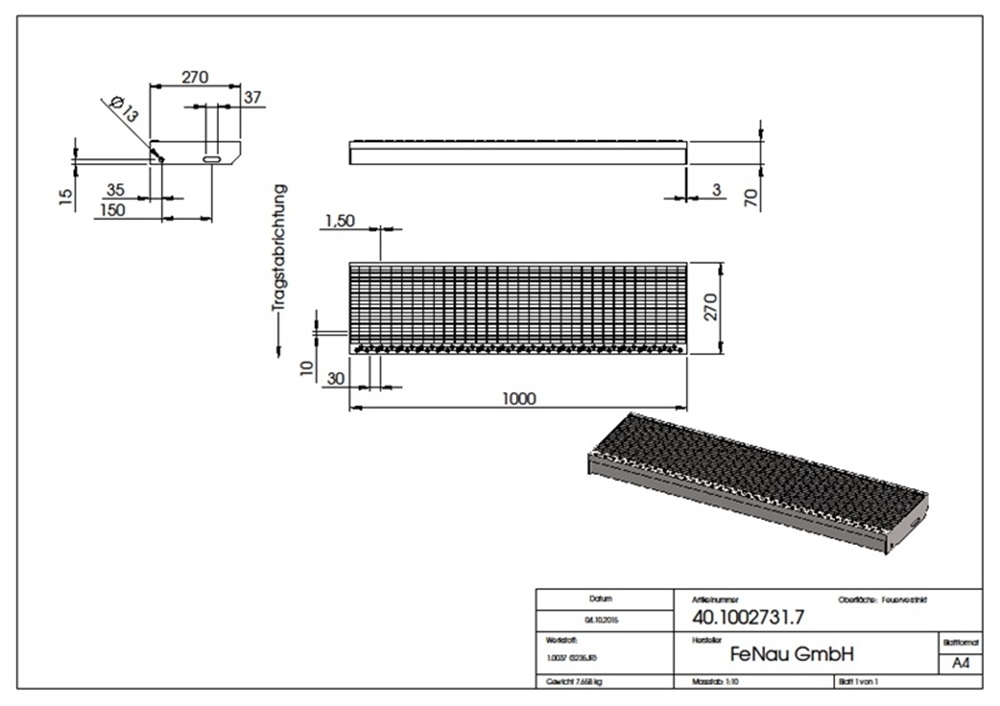

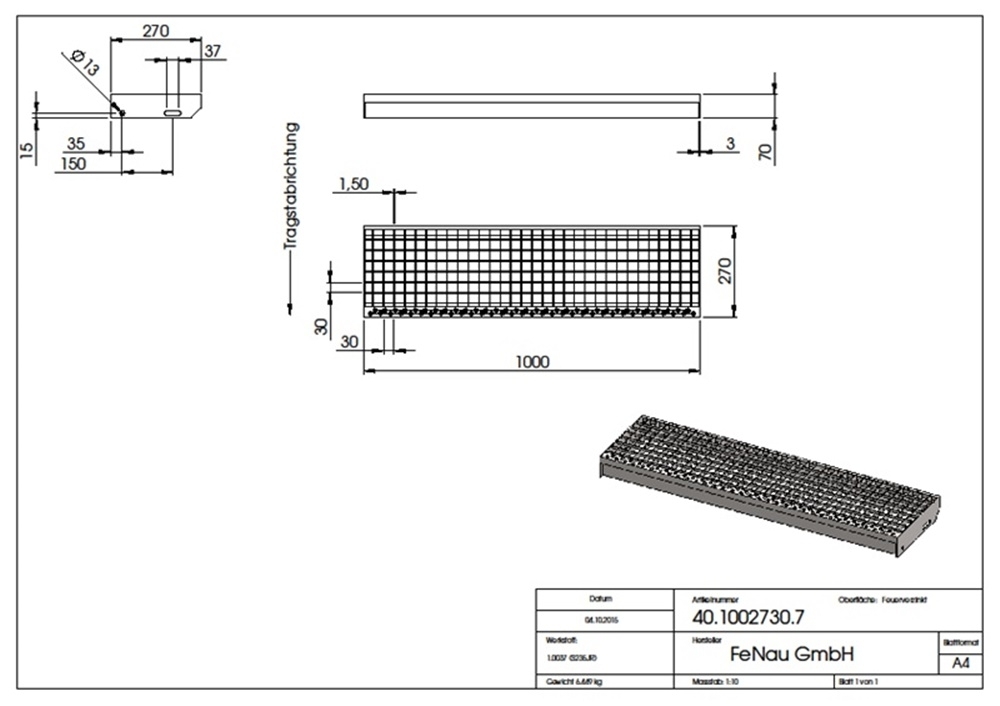

• Grating step 1000 x 270 mm – Perfect for wide staircases

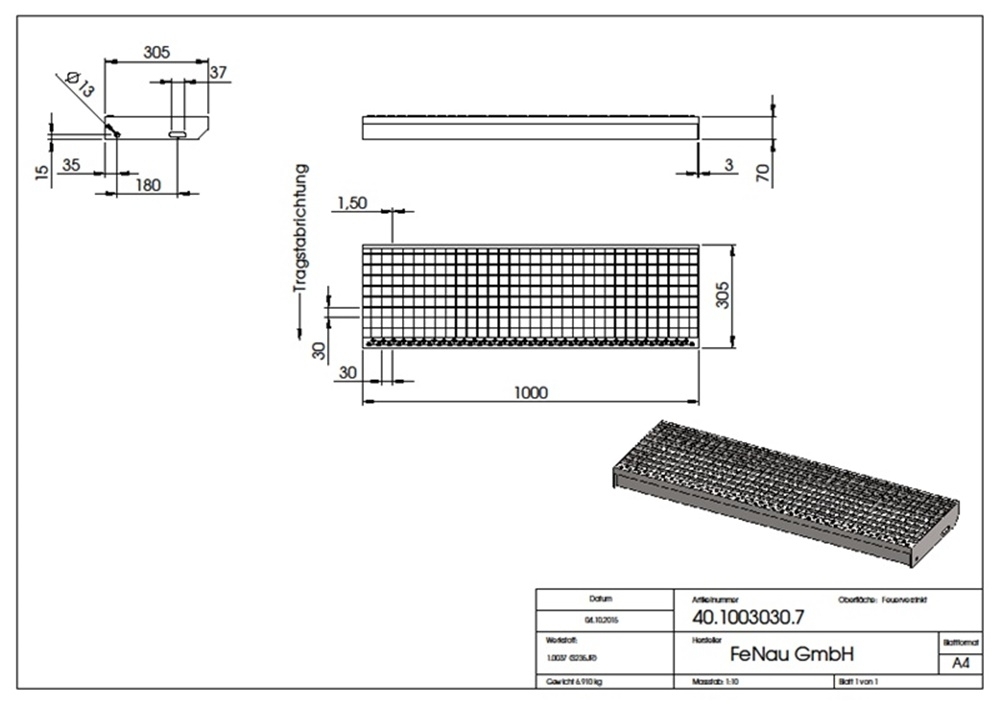

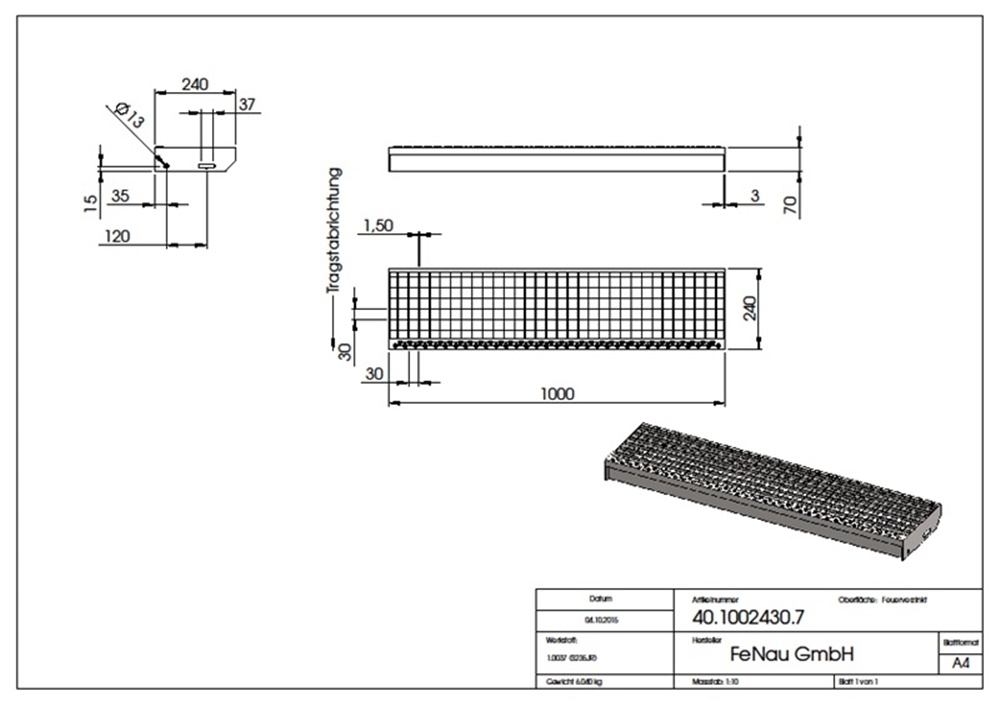

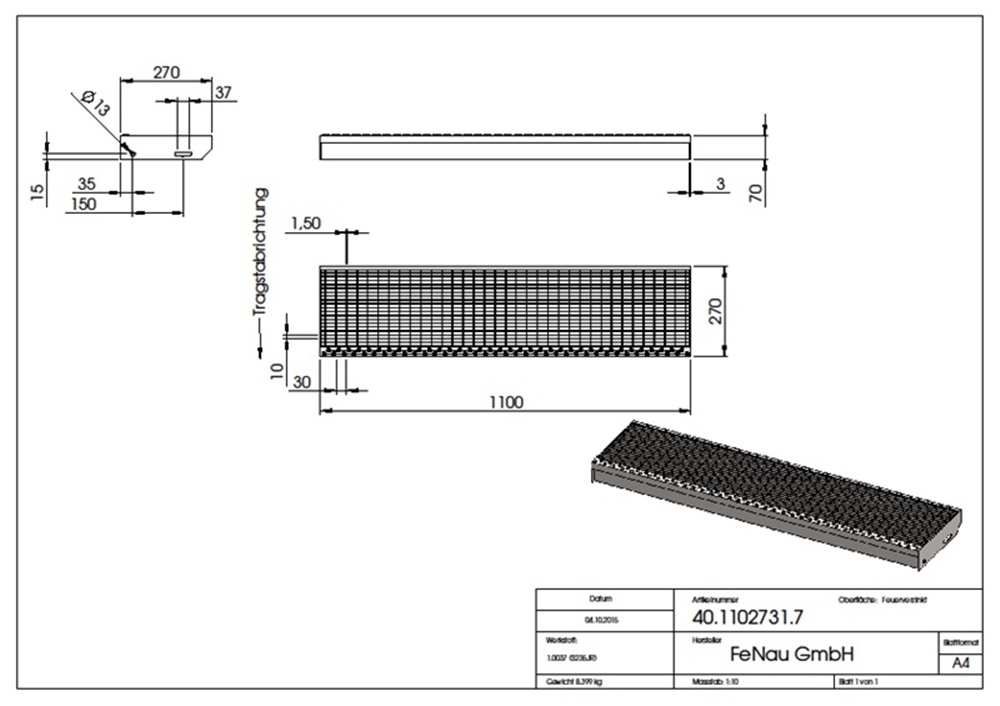

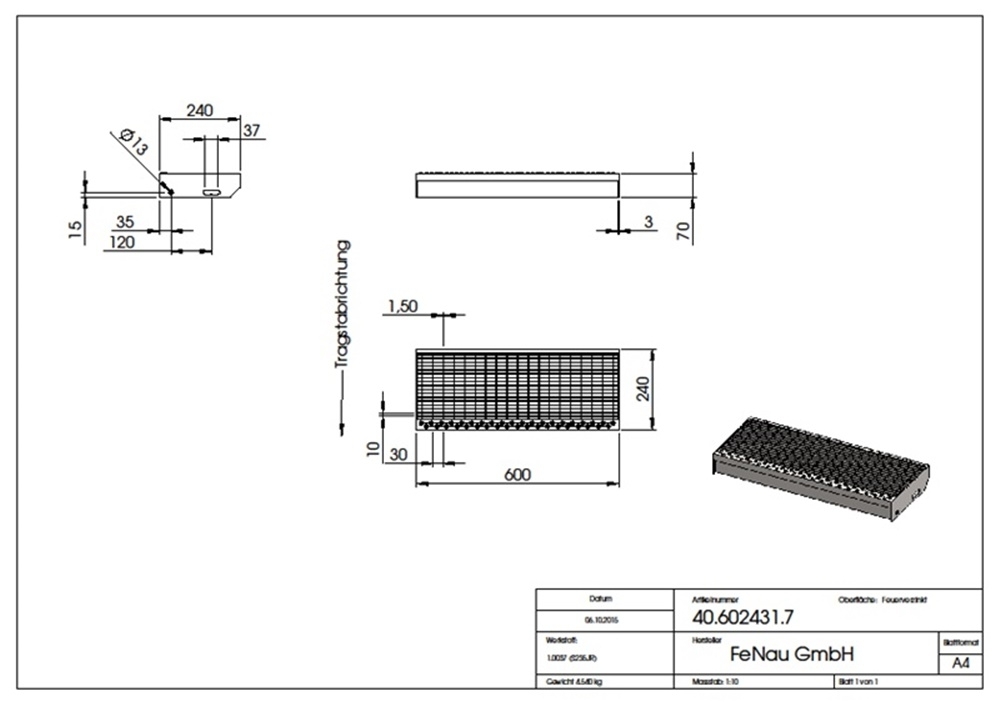

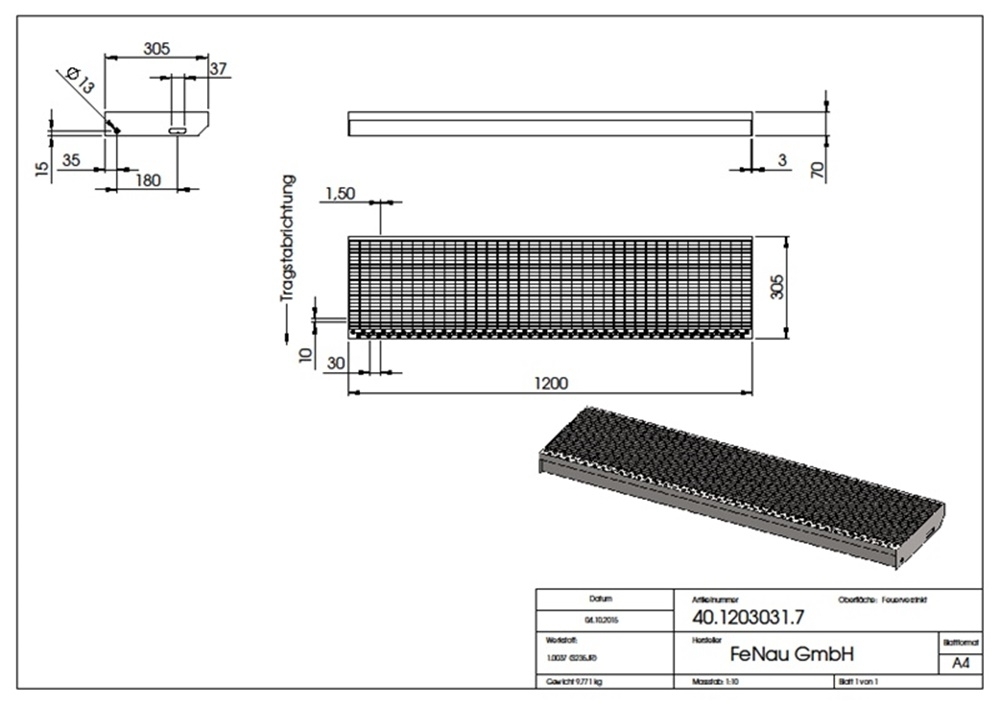

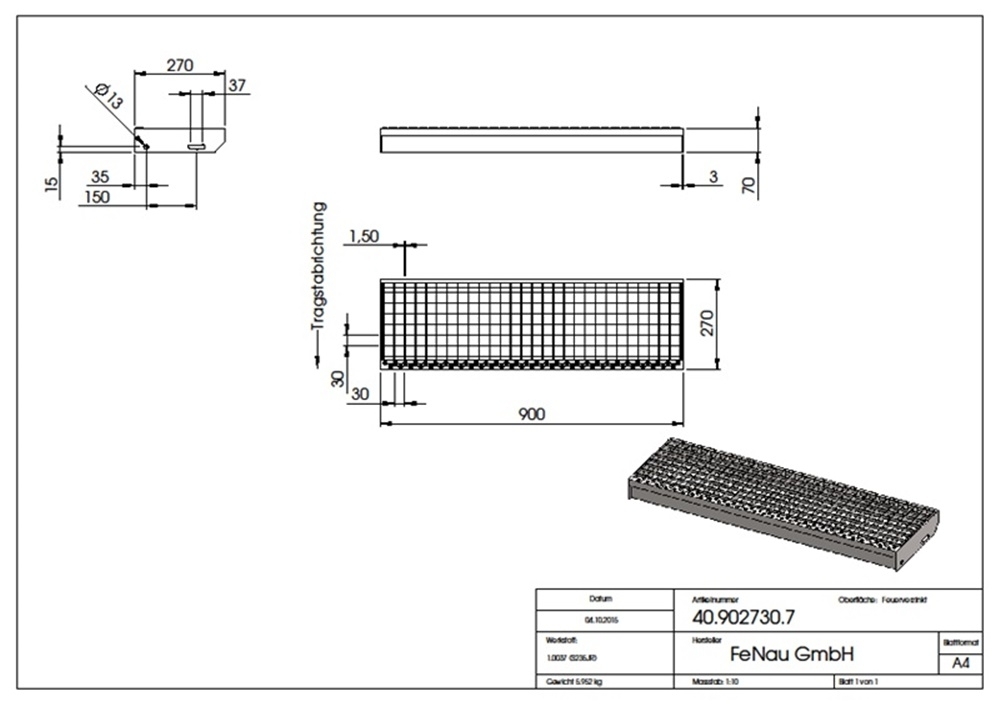

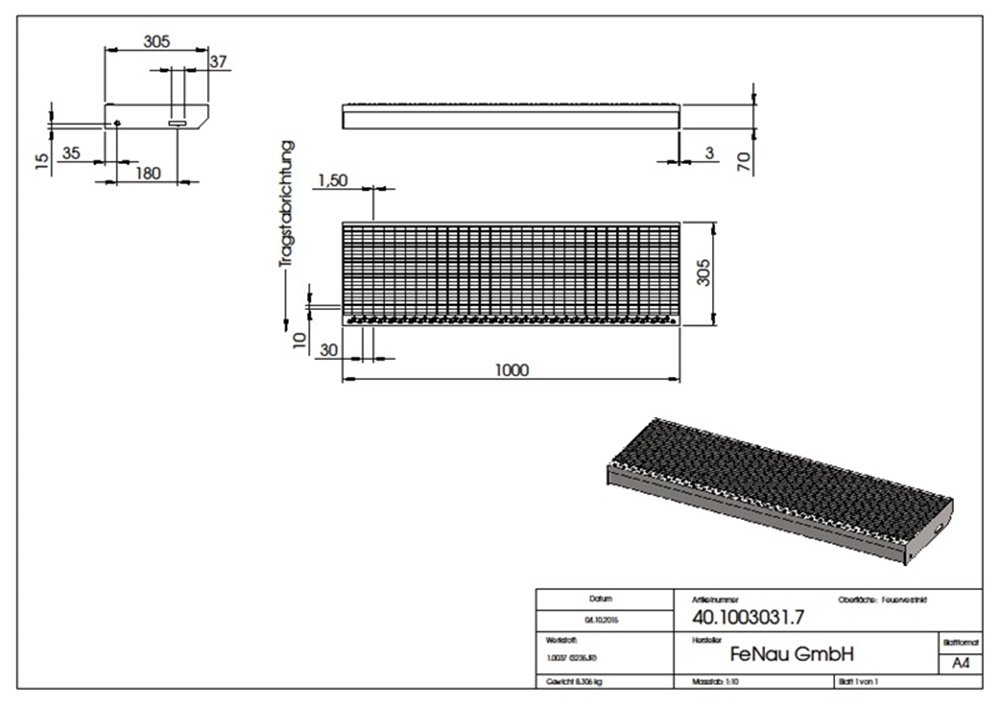

Technical details of our grating steps

• Material: S235JR (St37-2) steel
• Surface: Hot-dip galvanised to DIN EN ISO 1461
• Holes: In accordance with DIN 24531 for easy installation
• Slip resistance: R11 for high safety
• Load capacity: Point load 2.0 kN per 50x50 mm² / Area load 5.00 kN/m²
• Standards: Certified to DIN 1055-3 for maximum safety

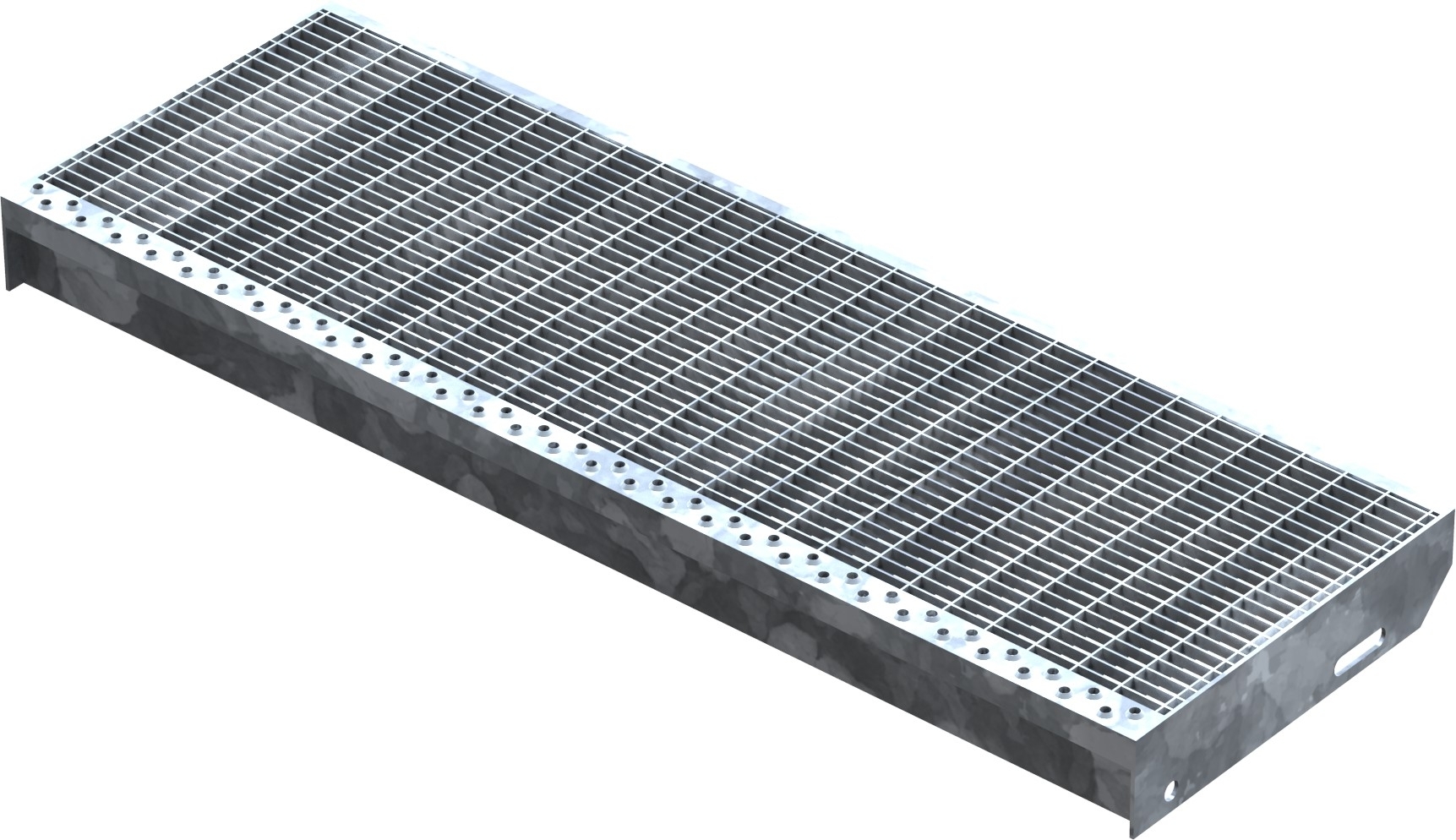

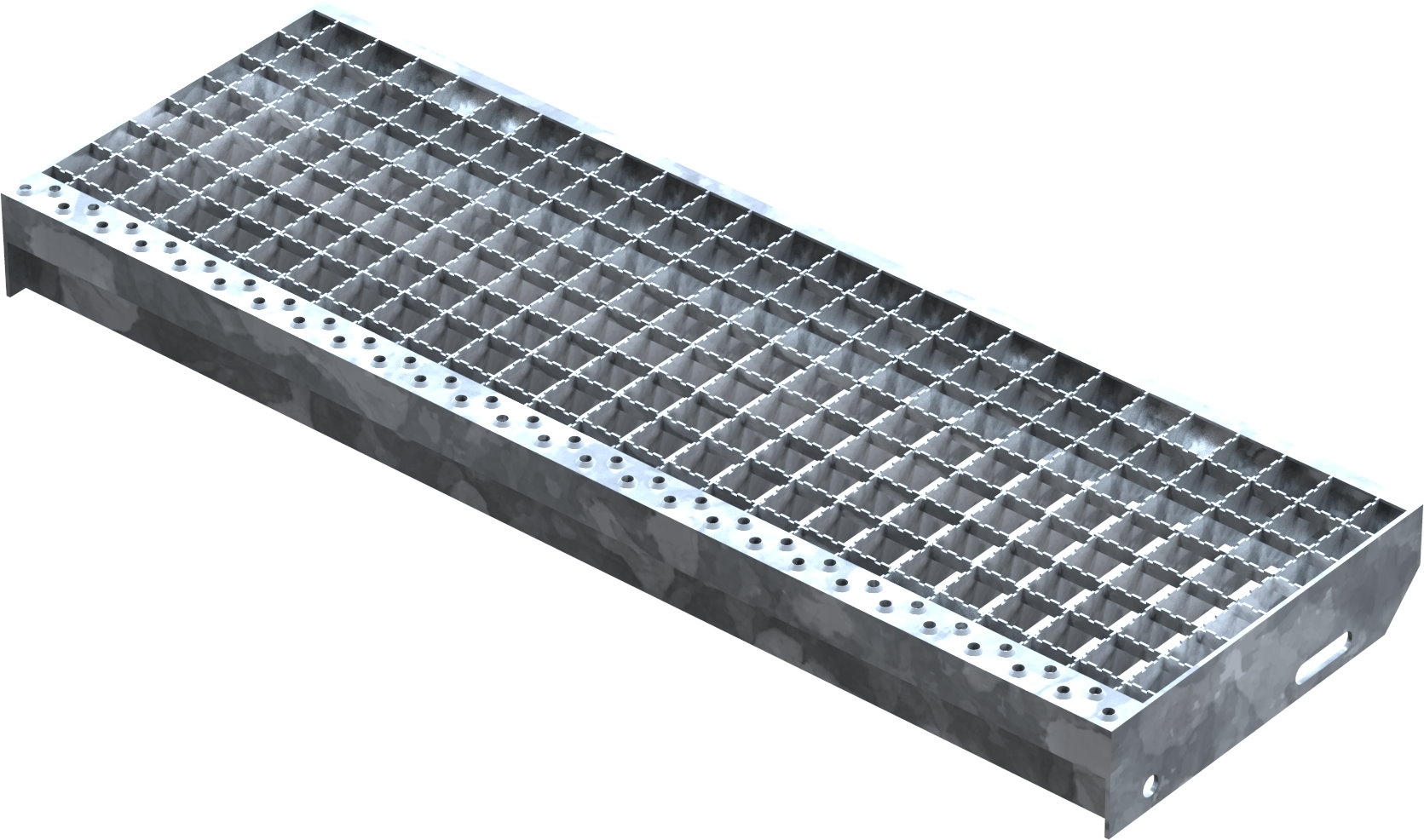

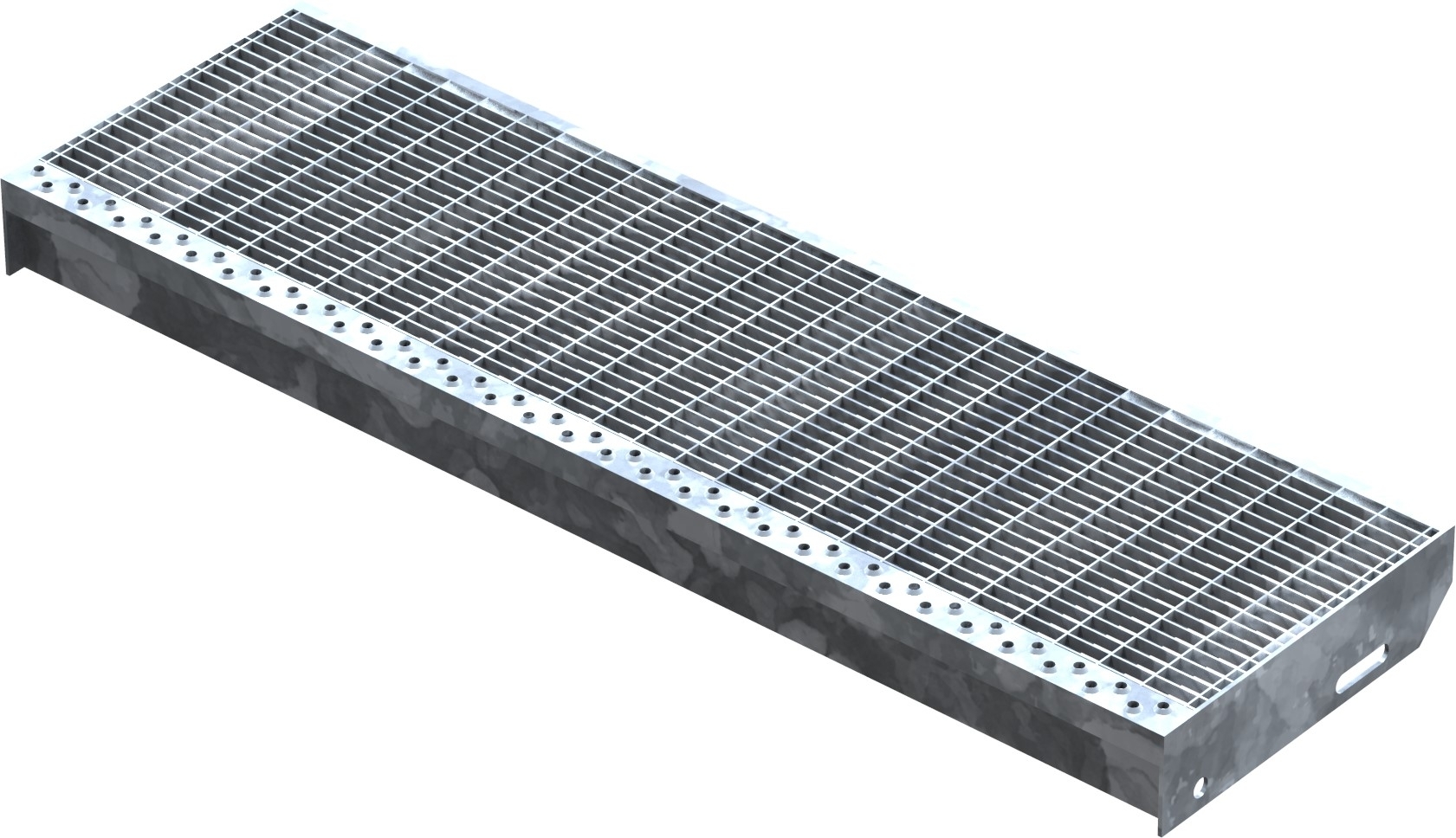

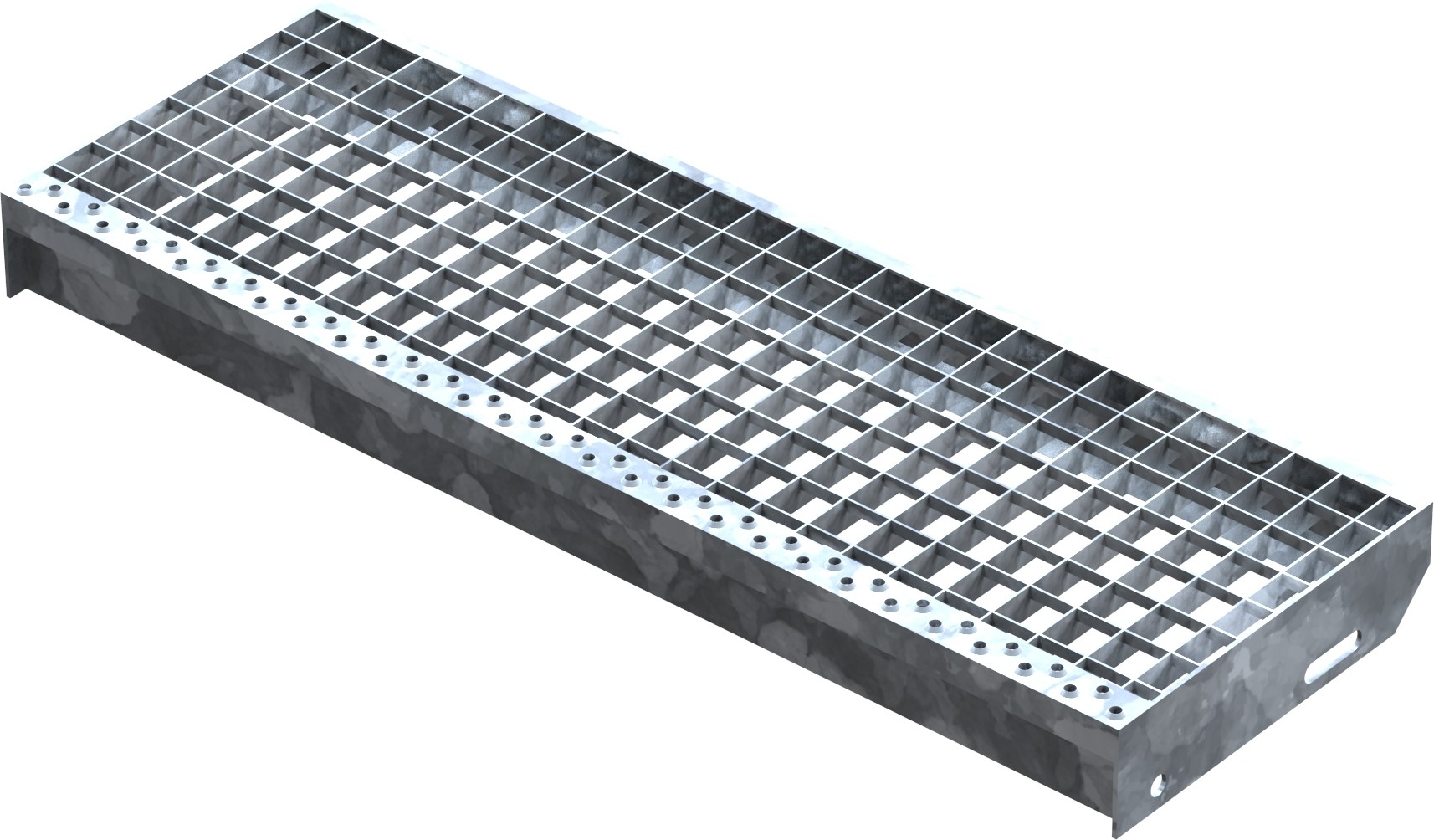

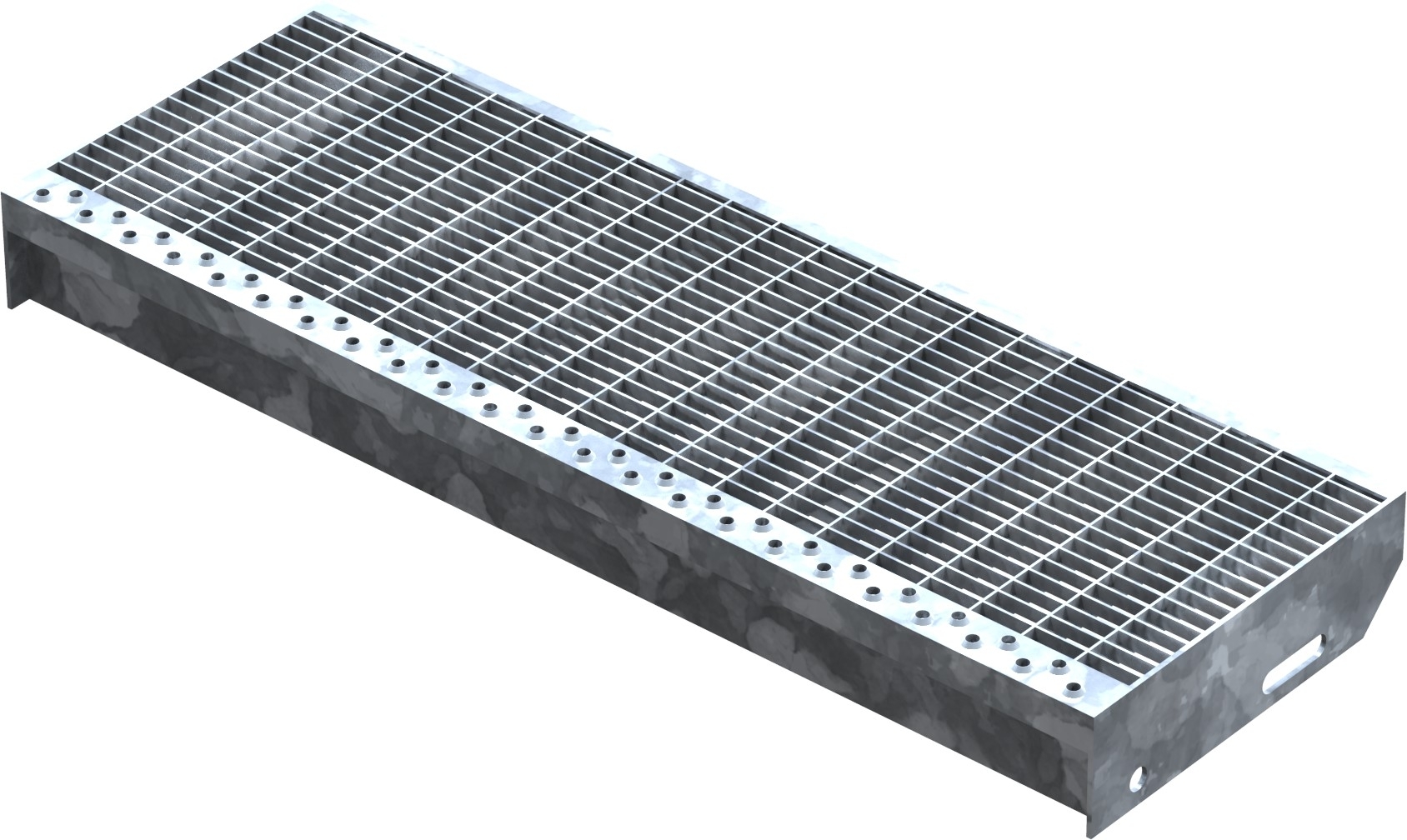

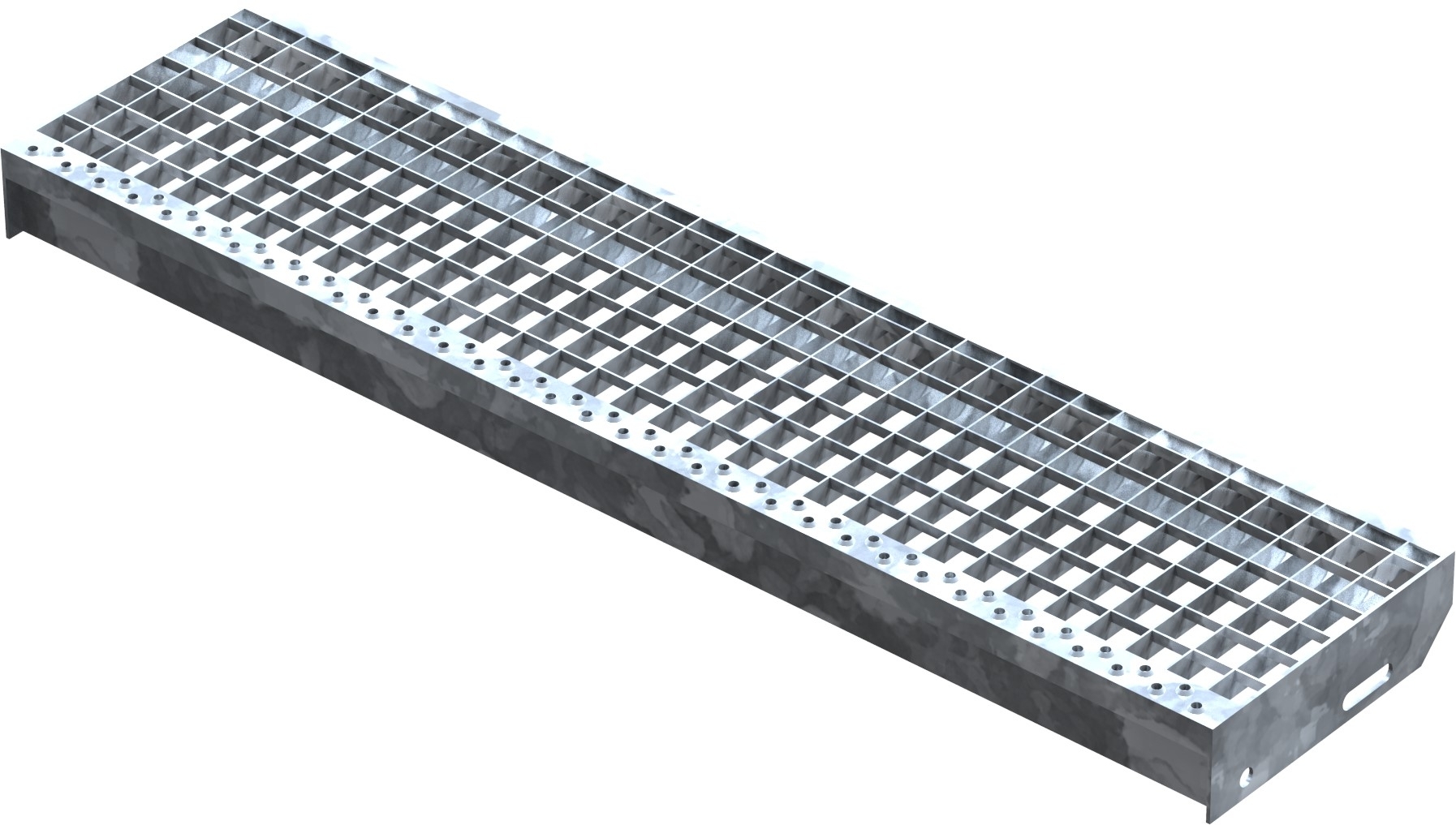

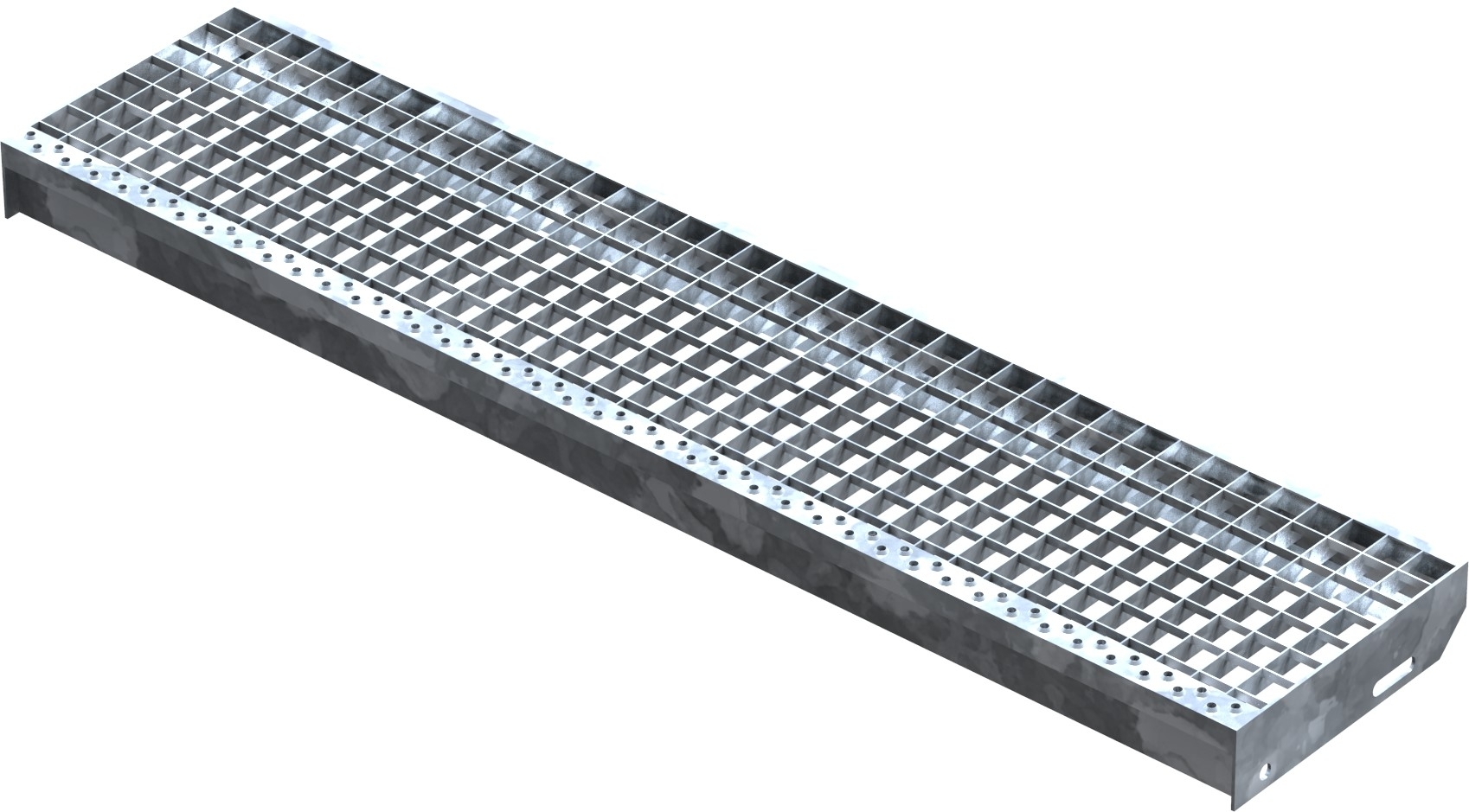

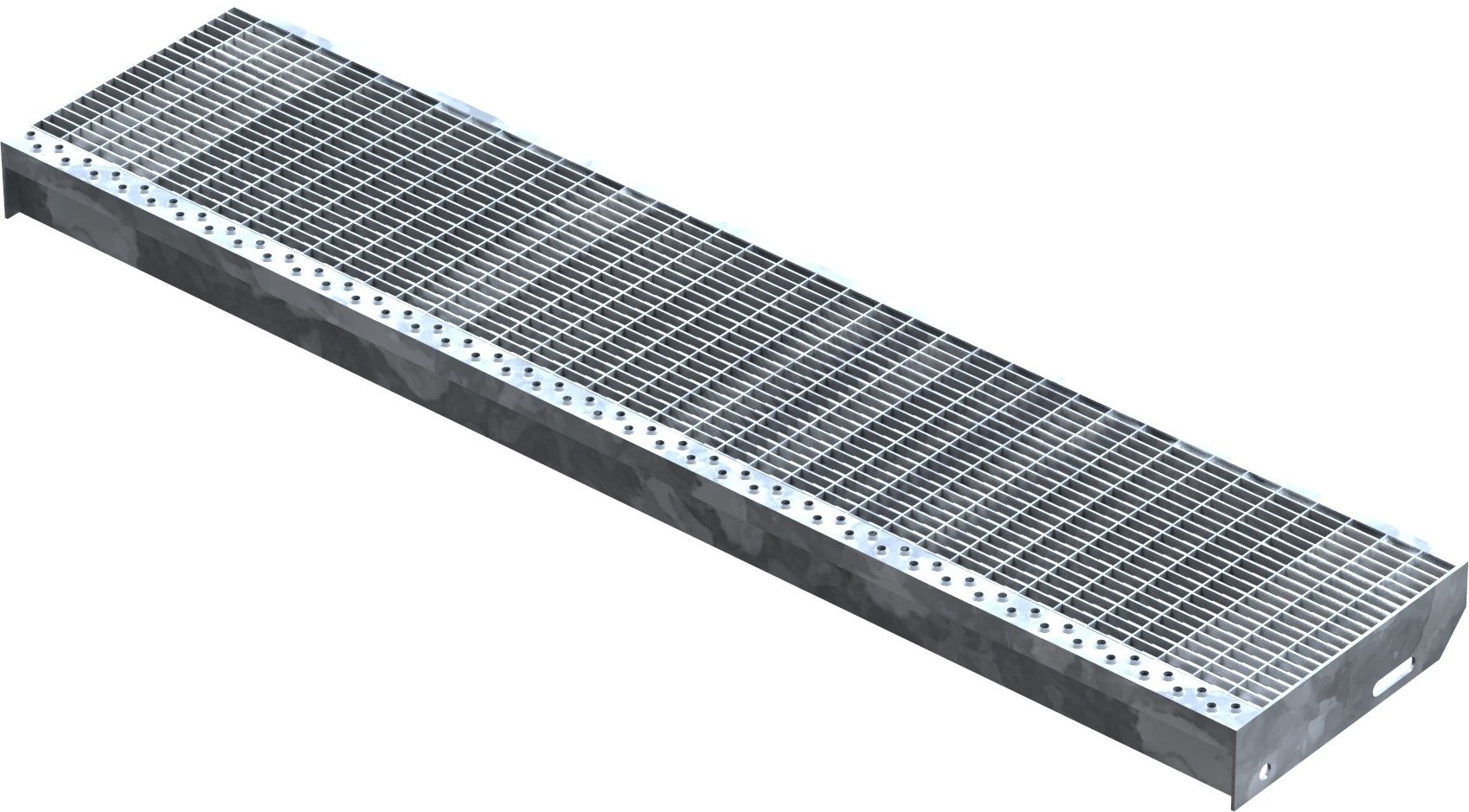

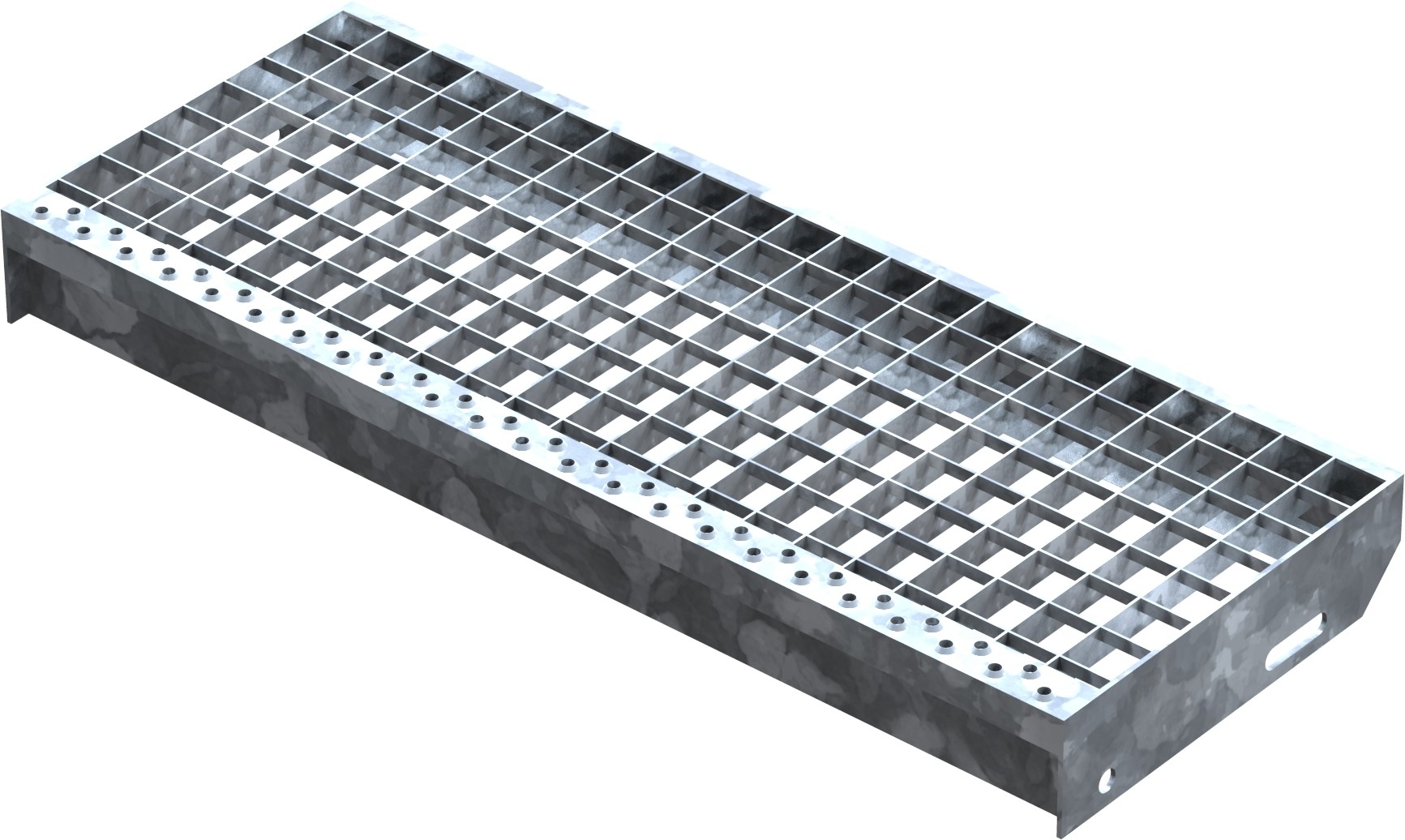

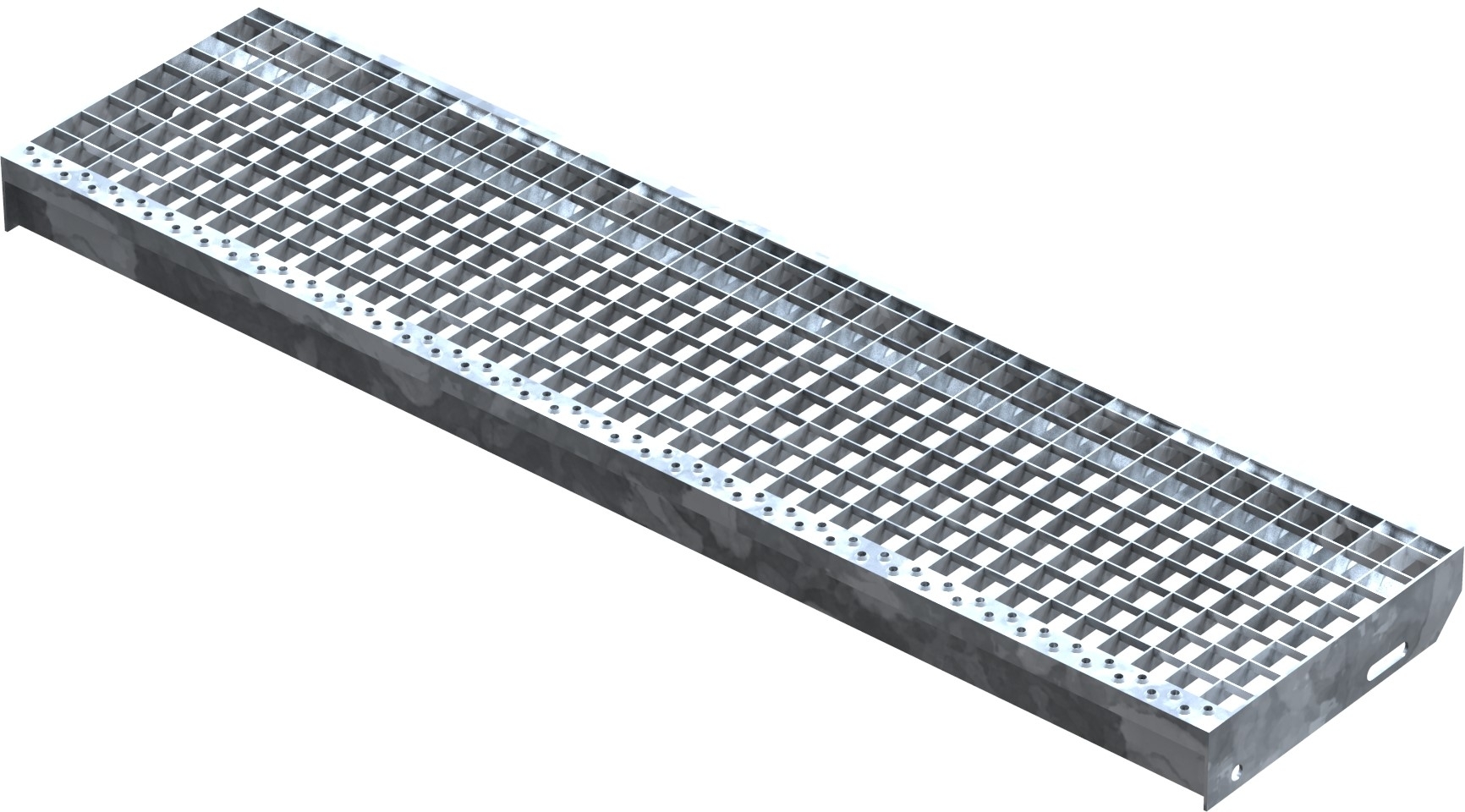

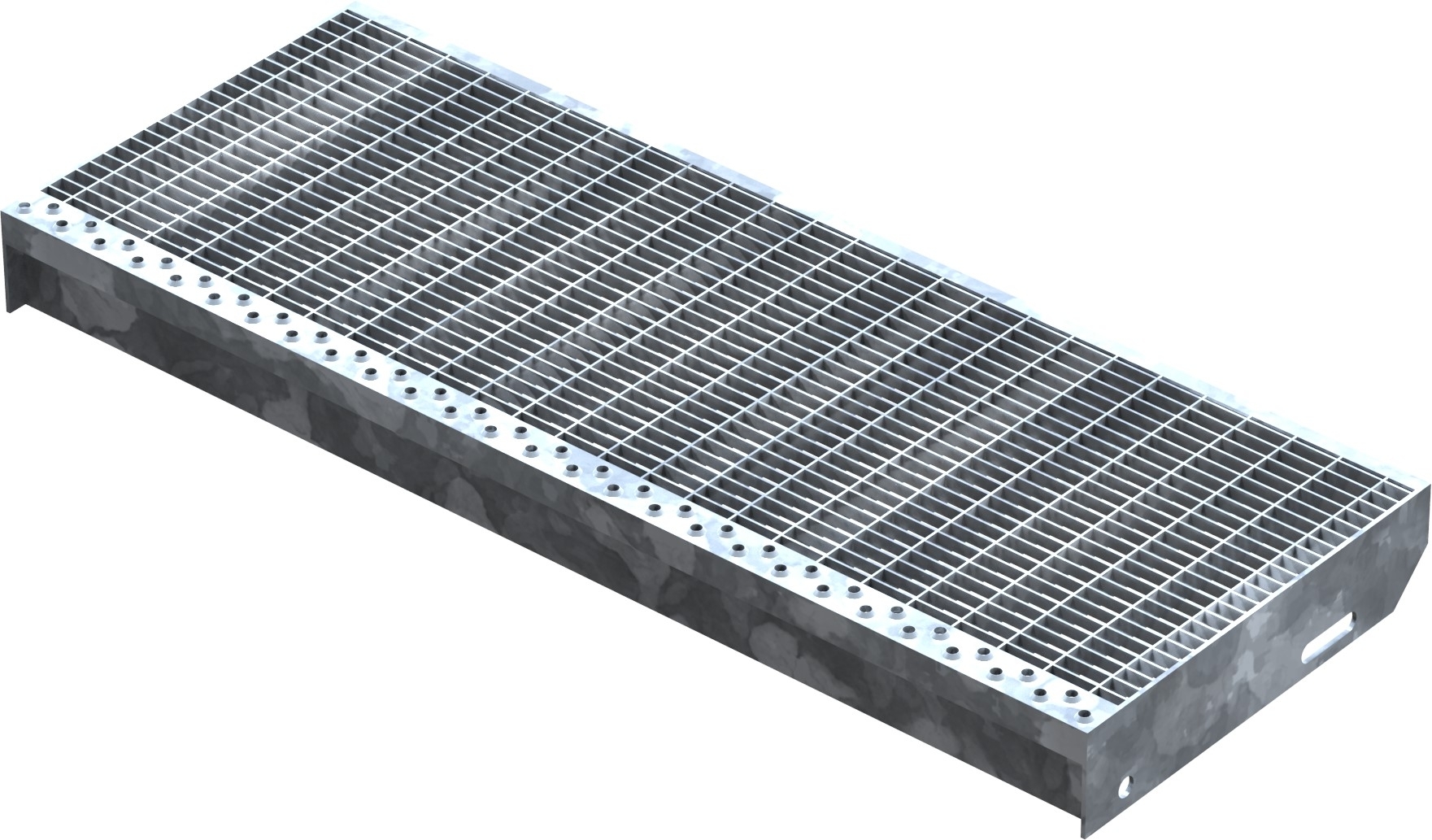

Our available grating steps

Discover our high-quality grating steps in various designs and sizes.

Find out more »

Where are grating steps used?

🏭 Industry and commerce

In production halls, storage areas and workshops, stair treads must withstand heavy loads. A grating step offers maximum stability and safety in these environments.

🚨 Escape staircases & emergency exits

Escape routes must be safe to use under all conditions. Our grating steps comply with DIN 1055-3 standards and are ideal for escape staircases in categories T1 and T2.

🌧️ Outdoor areas & balconies

Thanks to their hot-dip galvanised surface, grating steps are perfectly suited for external staircases, balconies and access routes to buildings.

🛠️ Machine access & maintenance platforms

In many industrial facilities, safe access to machinery and equipment is essential. Our steps comply with the DIN 24531-1 and DIN EN ISO 14122-3 standards for machine access.

Buying grating steps – what to look out for

• Material: Galvanised steel for outdoor use or stainless steel for hygienic applications
• Dimensions: Suitable for the staircase construction – e.g. 800 x 240 mm or 1000 x 270 mm
• Slip resistance: At least R11 for a secure grip
• Installation: Side tabs or drill holes in accordance with DIN 24531 for easy installation

Conclusion: The best grating step for your project

Whether for external staircases, emergency staircases or industrial applications – a high-quality grating step guarantees safety, durability and easy installation.

Order now and benefit from first-class quality! 🚀
