Welded grating steps

// Stufen aus Schweißpressrosten für Treppen, die Belastung locker wegstecken.

Filter products

Filter products

–

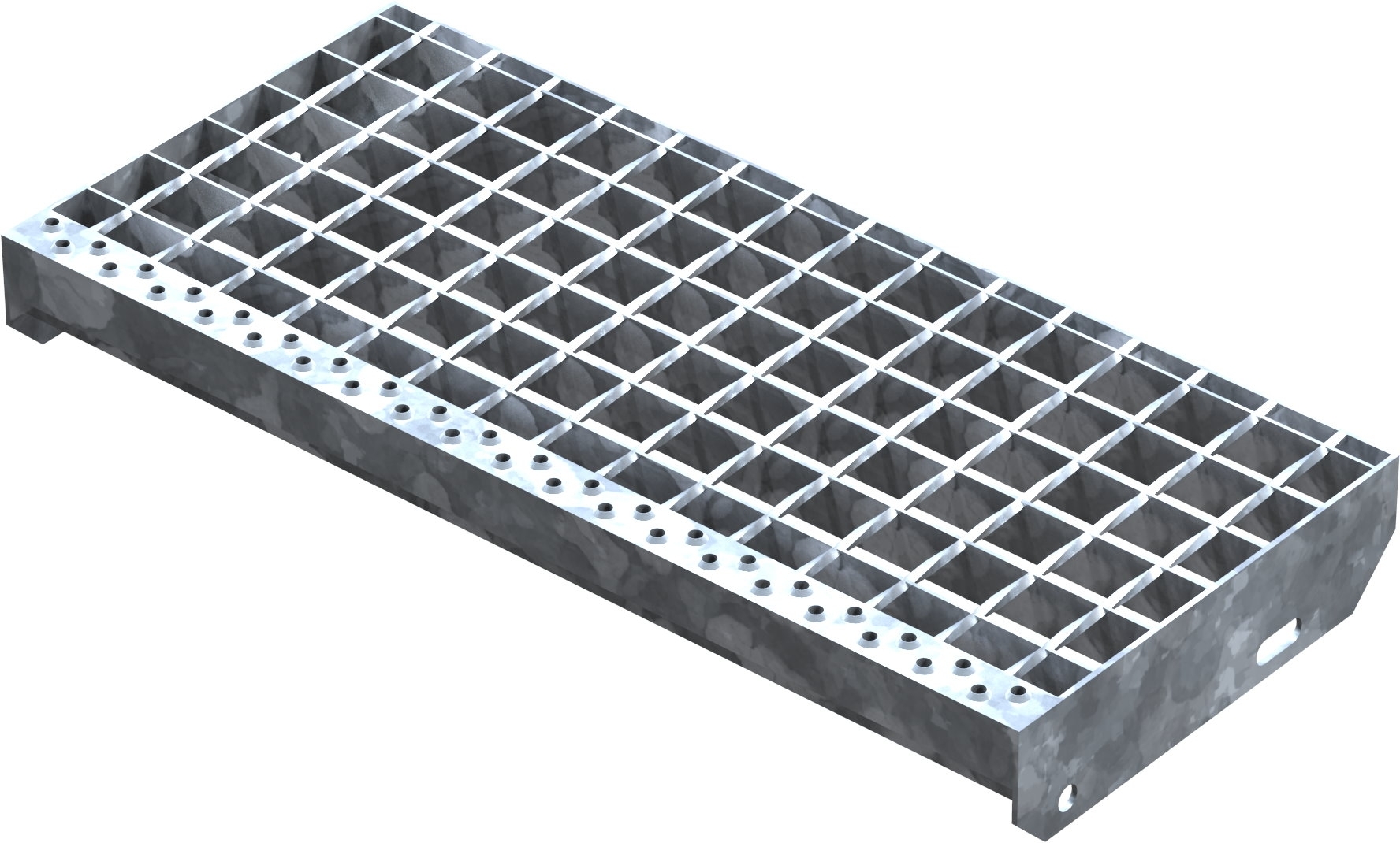

Schweisspressroststufe Metallstufe 600x270 mm Masche 34-38 mm Tragstab 30-2 mm S235JR feuerverzinkt-25-602730302.7 Schweisspressroststufe Metallstufe 600x270 mm Masche 34-38 mm Tragstab 30-2 mm S235JR feuerverzinkt-25-602730302.7
Stk
25.602730302.7
Welded grating step, metal step, 600 x 270 mm, mesh size 34/38 mm, support bar 30/2 mm, S235JR, hot-dip galvanised

Available, : Lieferzeit 1-2 Werktage

$51.08*

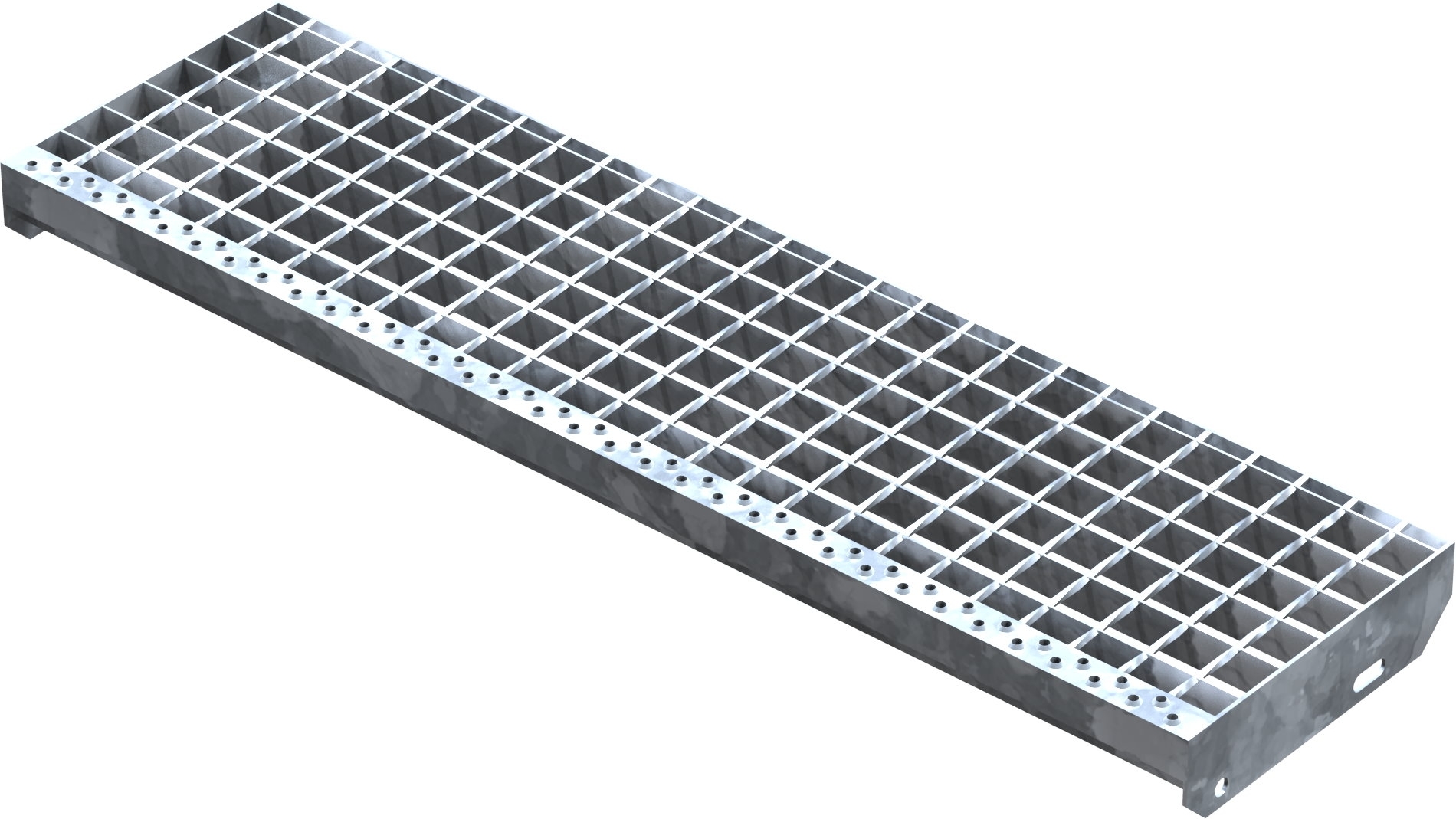

Schweisspressroststufe Metallstufe 1000x270 mm Masche 34-38 mm Tragstab 35-2 mm S235JR feuerverzinkt-25-1002730303.7 Schweisspressroststufe Metallstufe 1000x270 mm Masche 34-38 mm Tragstab 35-2 mm S235JR feuerverzinkt-25-1002730303.7
Stk
25.1002730303.7
Welded grating step, metal step, 1000 x 270 mm, mesh size 34/38 mm, support bar 35/2 mm, S235JR, hot-dip galvanised

Available, : Lieferzeit 1-2 Werktage

$72.28*

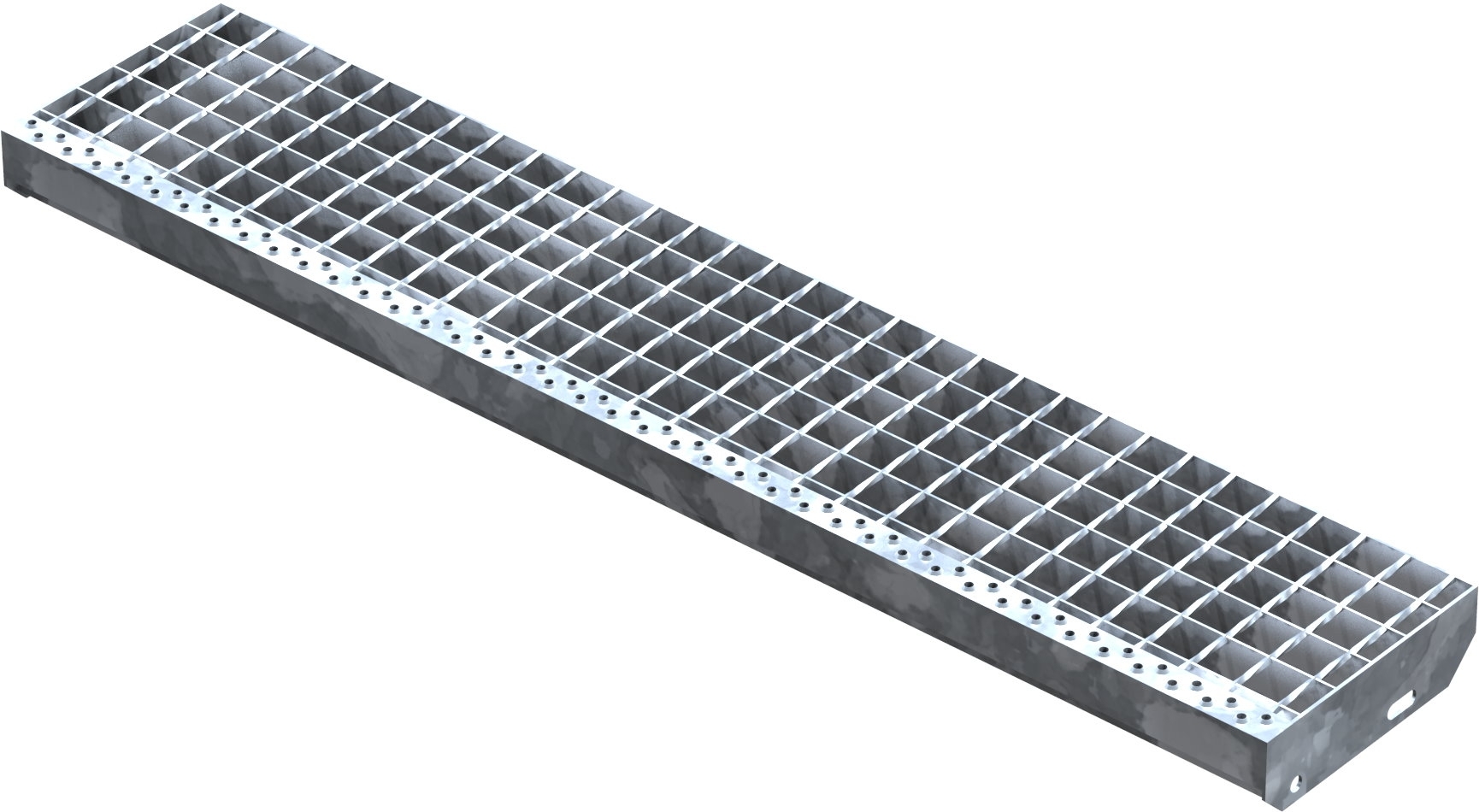

Schweisspressroststufe Metallstufe 1200x240 mm Masche 34-38 mm Tragstab 40-3 mm S235JR feuerverzinkt-25-1202430402.7 Schweisspressroststufe Metallstufe 1200x240 mm Masche 34-38 mm Tragstab 40-3 mm S235JR feuerverzinkt-25-1202430402.7
Stk
25.1202430402.7
Welded grating step, metal step, 1200 x 240 mm, mesh size 34/38 mm, support bar 40/3 mm, S235JR, hot-dip galvanised

Available, : Lieferzeit 1-2 Werktage

$100.86*

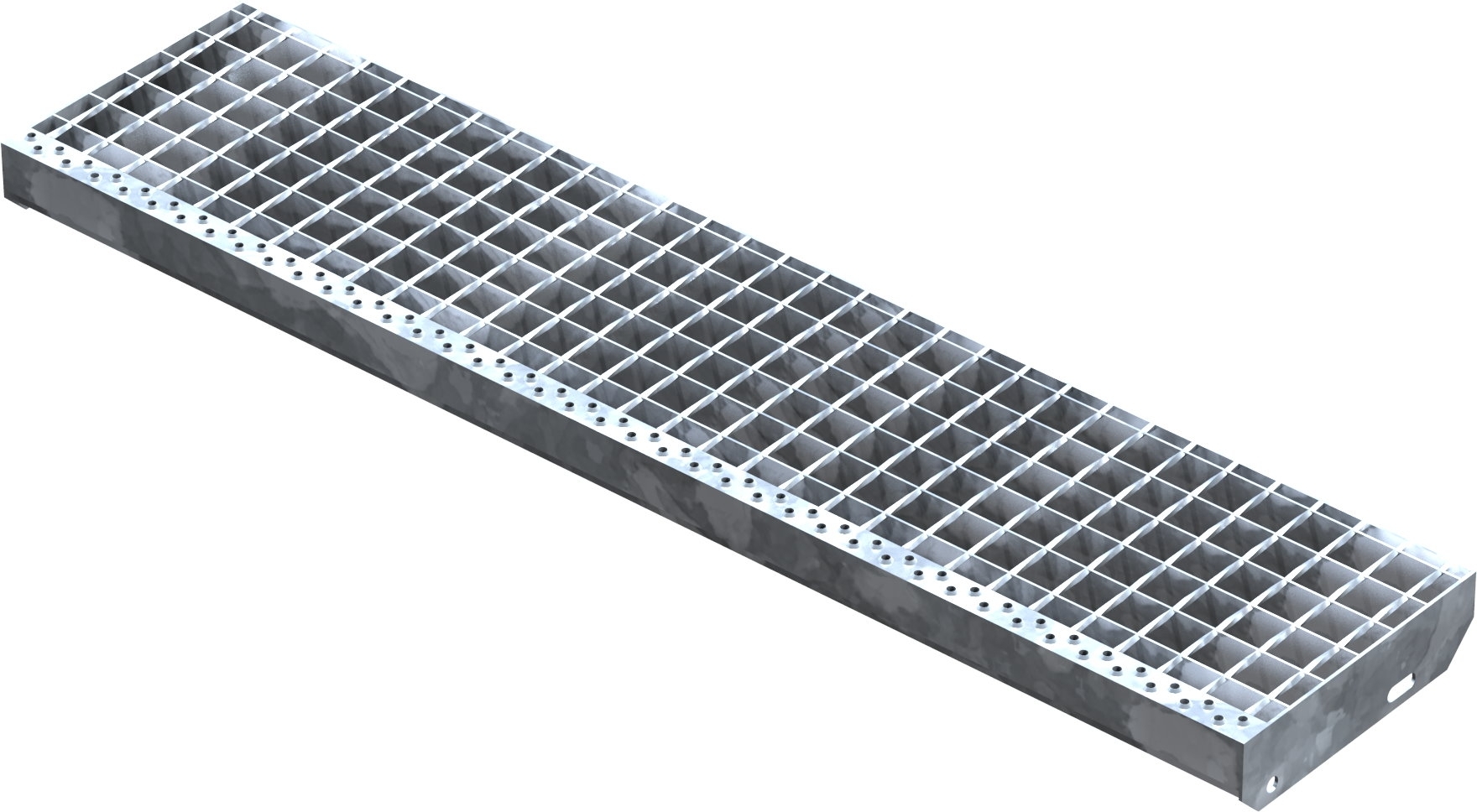

Schweisspressroststufe Metallstufe 1200x270 mm Masche 34-38 mm Tragstab 40-3 mm S235JR feuerverzinkt-25-1202730402.7 Schweisspressroststufe Metallstufe 1200x270 mm Masche 34-38 mm Tragstab 40-3 mm S235JR feuerverzinkt-25-1202730402.7
Stk
25.1202730402.7
Welded grating step, metal step, 1200 x 270 mm, mesh size 34/38 mm, support bar 40/3 mm, S235JR, hot-dip galvanised

Available, : Lieferzeit 1-2 Werktage

$101.58*
Schweisspressroststufe Metallstufe 800x270 mm Masche 34-38 mm Tragstab 30-2 mm S235JR feuerverzinkt-25-802730302.7 Schweisspressroststufe Metallstufe 800x270 mm Masche 34-38 mm Tragstab 30-2 mm S235JR feuerverzinkt-25-802730302.7
Stk
25.802730302.7
Welded grating step, metal step, 800 x 270 mm, mesh size 34/38 mm, support bar 30/2 mm, S235JR, hot-dip galvanised

Available, : Lieferzeit 1-2 Werktage

$55.62*

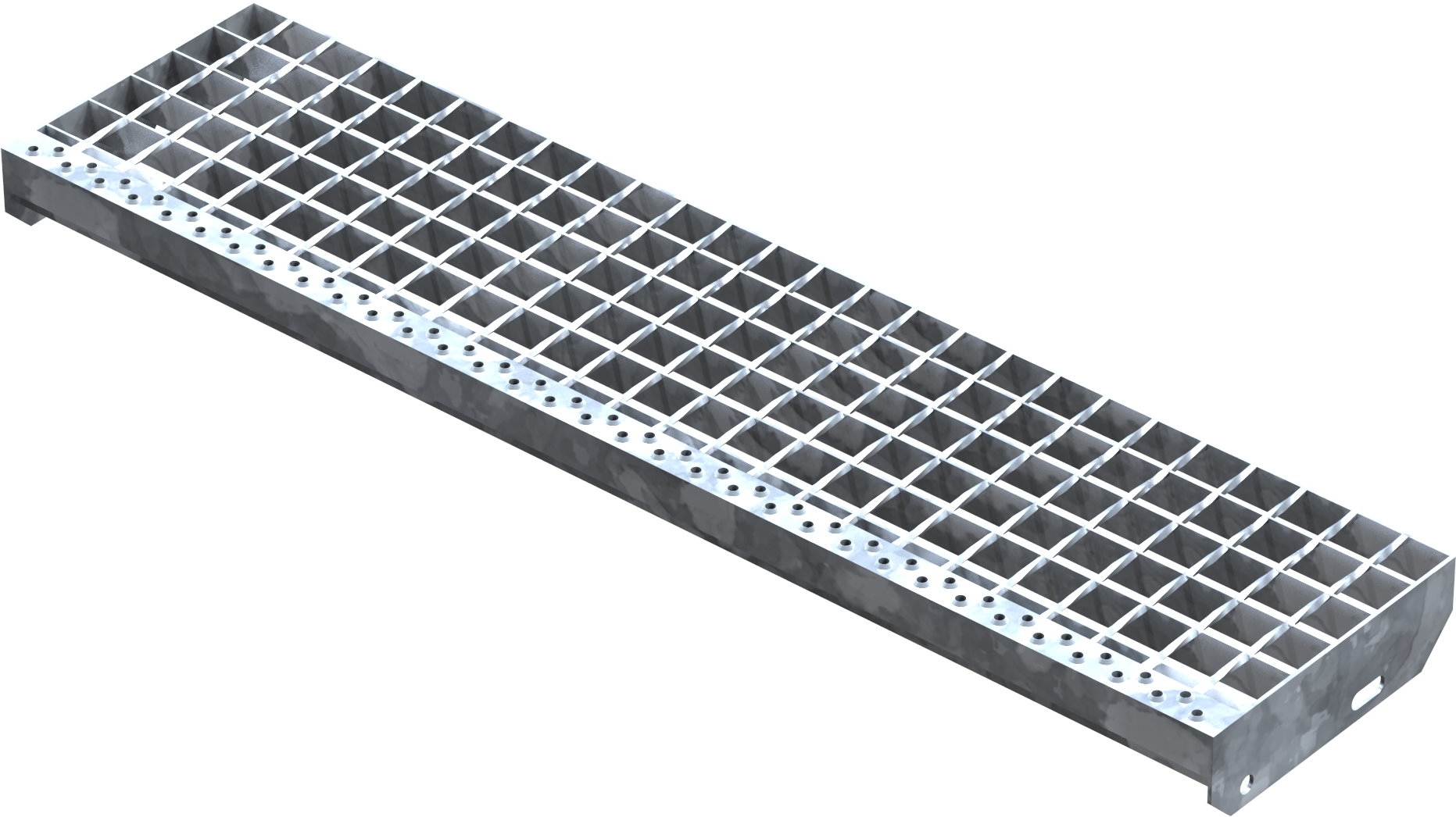

Schweisspressroststufe Metallstufe 1000x240 mm Masche 34-38 mm Tragstab 35-2 mm S235JR feuerverzinkt-25-1002430303.7 Schweisspressroststufe Metallstufe 1000x240 mm Masche 34-38 mm Tragstab 35-2 mm S235JR feuerverzinkt-25-1002430303.7
Stk
25.1002430303.7
Welded grating step, metal step, 1000 x 240 mm, mesh size 34/38 mm, support bar 35/2 mm, S235JR, hot-dip galvanised

Available, : Lieferzeit 1-2 Werktage

$67.74*

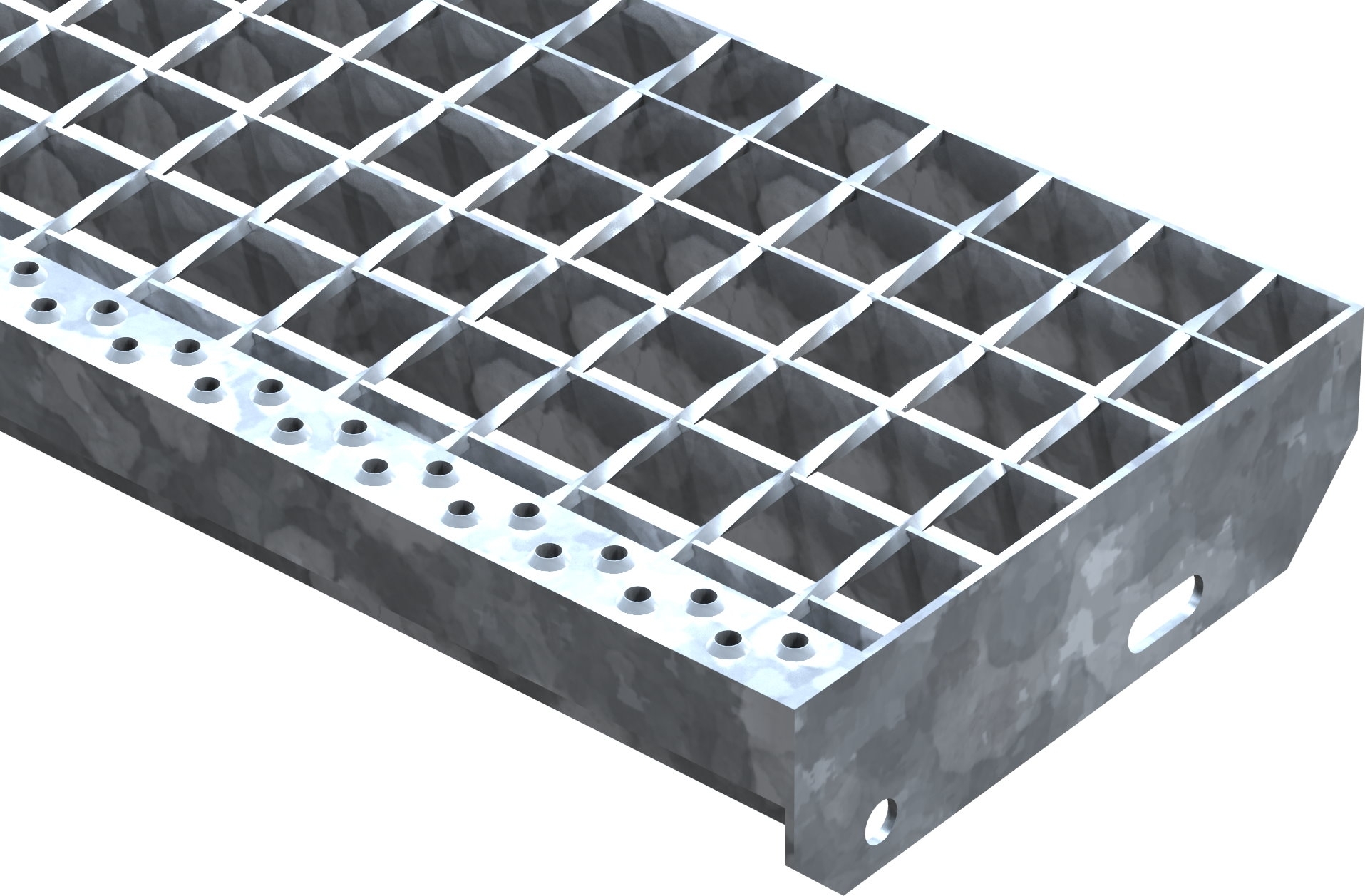

Schweisspressroststufe Metallstufe 800x240 mm Masche 34-38 mm Tragstab 30-2 mm S235JR feuerverzinkt-25-802430302.7 Schweisspressroststufe Metallstufe 800x240 mm Masche 34-38 mm Tragstab 30-2 mm S235JR feuerverzinkt-25-802430302.7
Stk
25.802430302.7
Welded grating step, metal step, 800 x 240 mm, mesh size 34/38 mm, support bar 30/2 mm, S235JR, hot-dip galvanised

Available, : Lieferzeit 1-2 Werktage

$53.96*

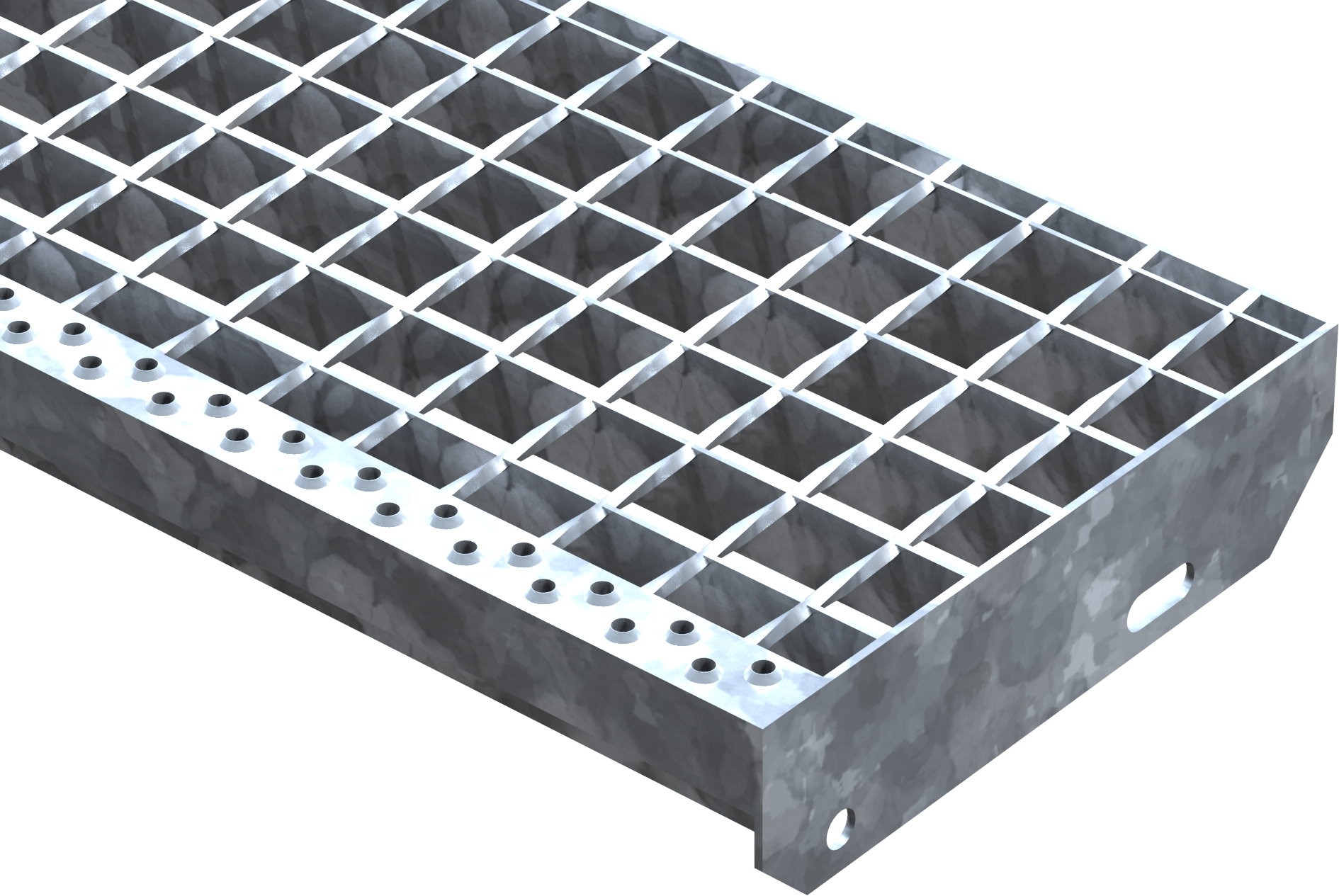

Schweisspressroststufe Metallstufe 900x270 mm Masche 34-38 mm Tragstab 35-2 mm S235JR feuerverzinkt-25-902730302.7 Schweisspressroststufe Metallstufe 900x270 mm Masche 34-38 mm Tragstab 35-2 mm S235JR feuerverzinkt-25-902730302.7
Stk
25.902730302.7
Welded grating step, metal step, 900 x 270 mm, mesh size 34/38 mm, support bar 35/2 mm, S235JR, hot-dip galvanised

Available, : Lieferzeit 1-2 Werktage

$63.66*

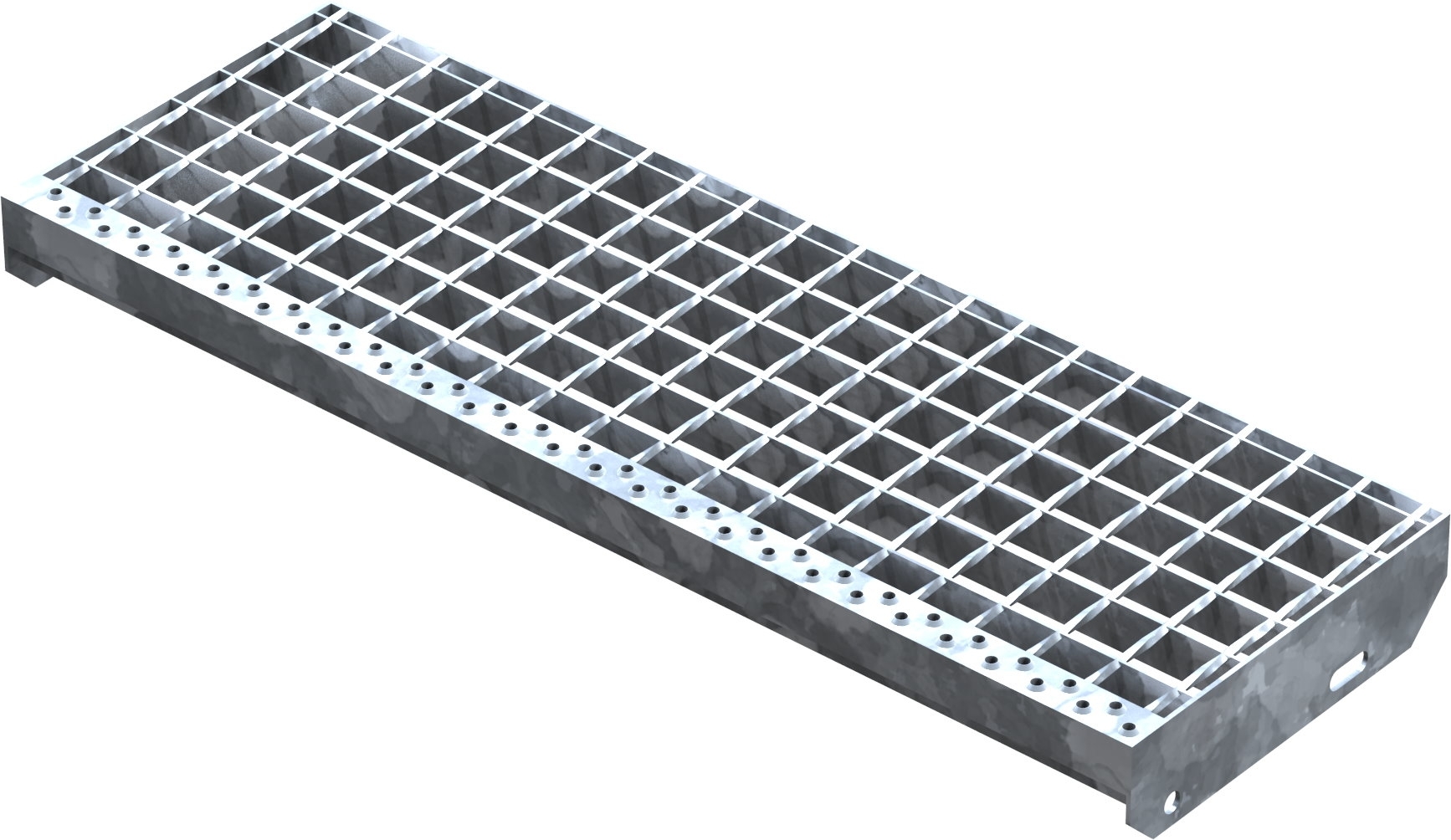

Schweisspressroststufe Metallstufe 700x270 mm Masche 34-38 mm Tragstab 30-2 mm S235JR feuerverzinkt-25-702730302.7 Schweisspressroststufe Metallstufe 700x270 mm Masche 34-38 mm Tragstab 30-2 mm S235JR feuerverzinkt-25-702730302.7
Stk
25.702730302.7
Welded grating step, metal step, 700 x 270 mm, mesh size 34/38 mm, support bar 30/2 mm, S235JR, hot-dip galvanised

Available, : Lieferzeit 1-2 Werktage

$54.60*

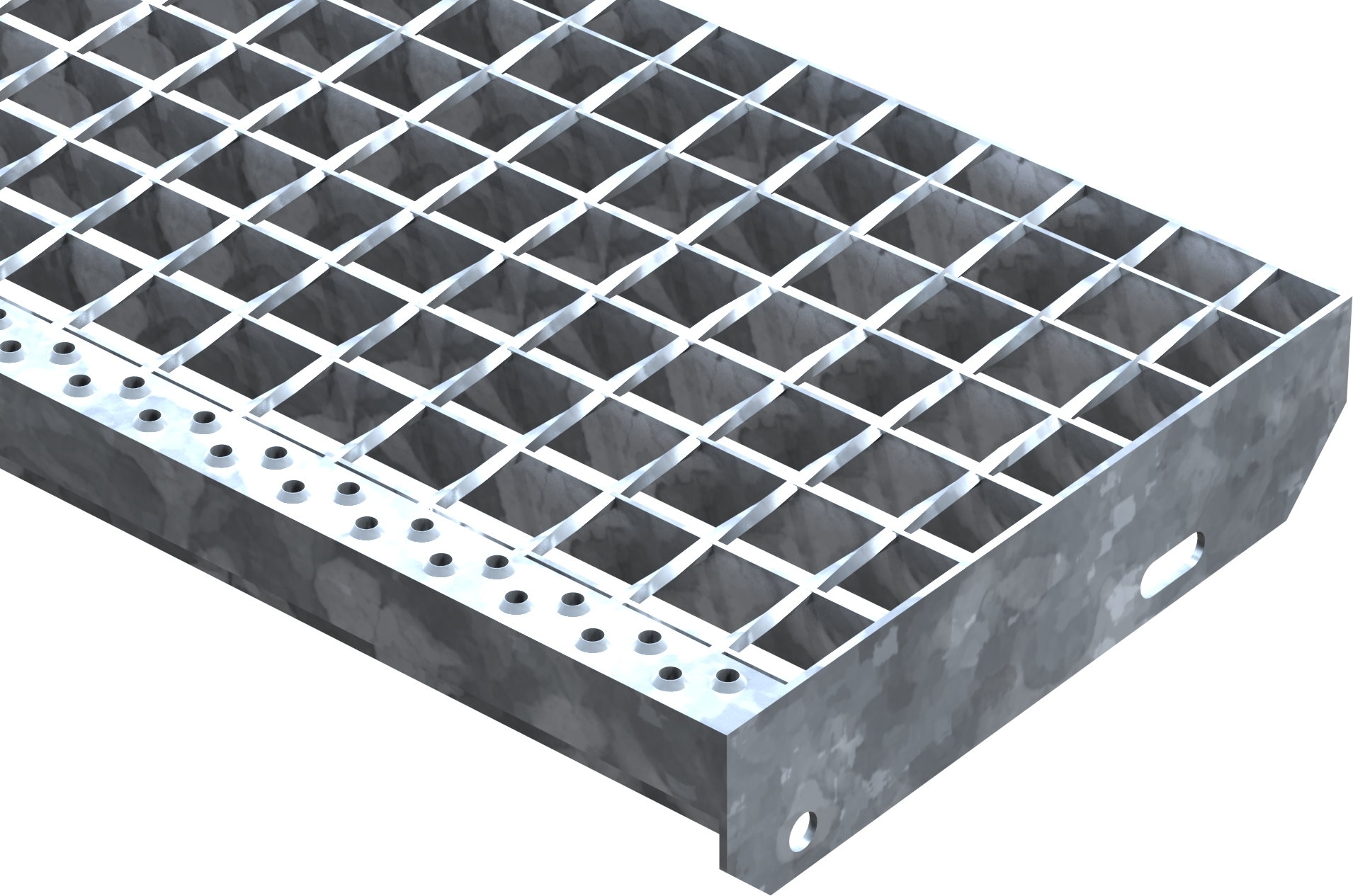

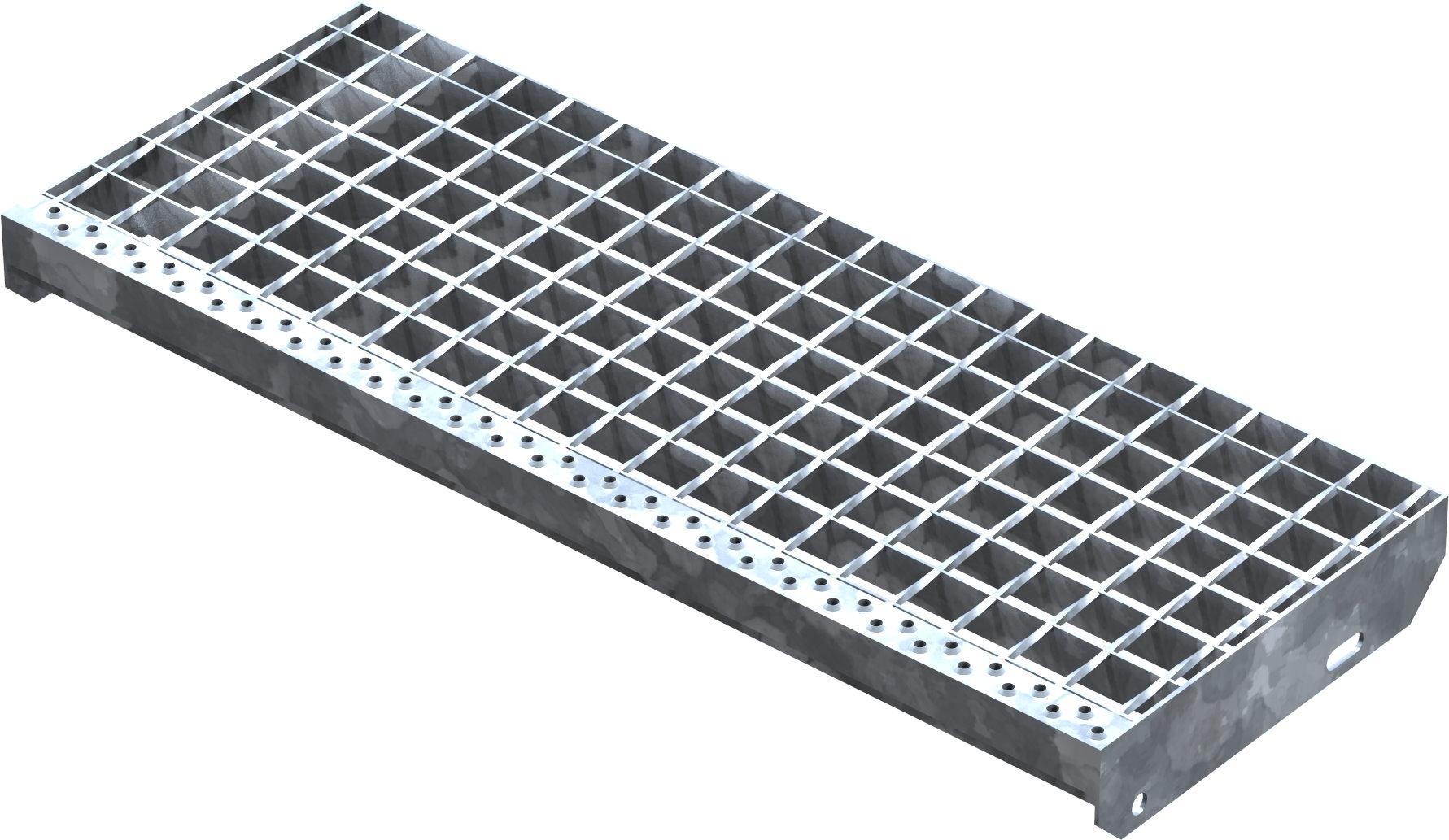

Schweisspressroststufe Metallstufe 800x305 mm Masche 34-38 mm Tragstab 30-3 mm S235JR feuerverzinkt-25-803030302.7 Schweisspressroststufe Metallstufe 800x305 mm Masche 34-38 mm Tragstab 30-3 mm S235JR feuerverzinkt-25-803030302.7
Stk
25.803030302.7
Welded grating step, metal step, 800 x 305 mm, mesh size 34/38 mm, support bar 30/3 mm, S235JR, hot-dip galvanised

Available, : Lieferzeit 1-2 Werktage

$70.38*

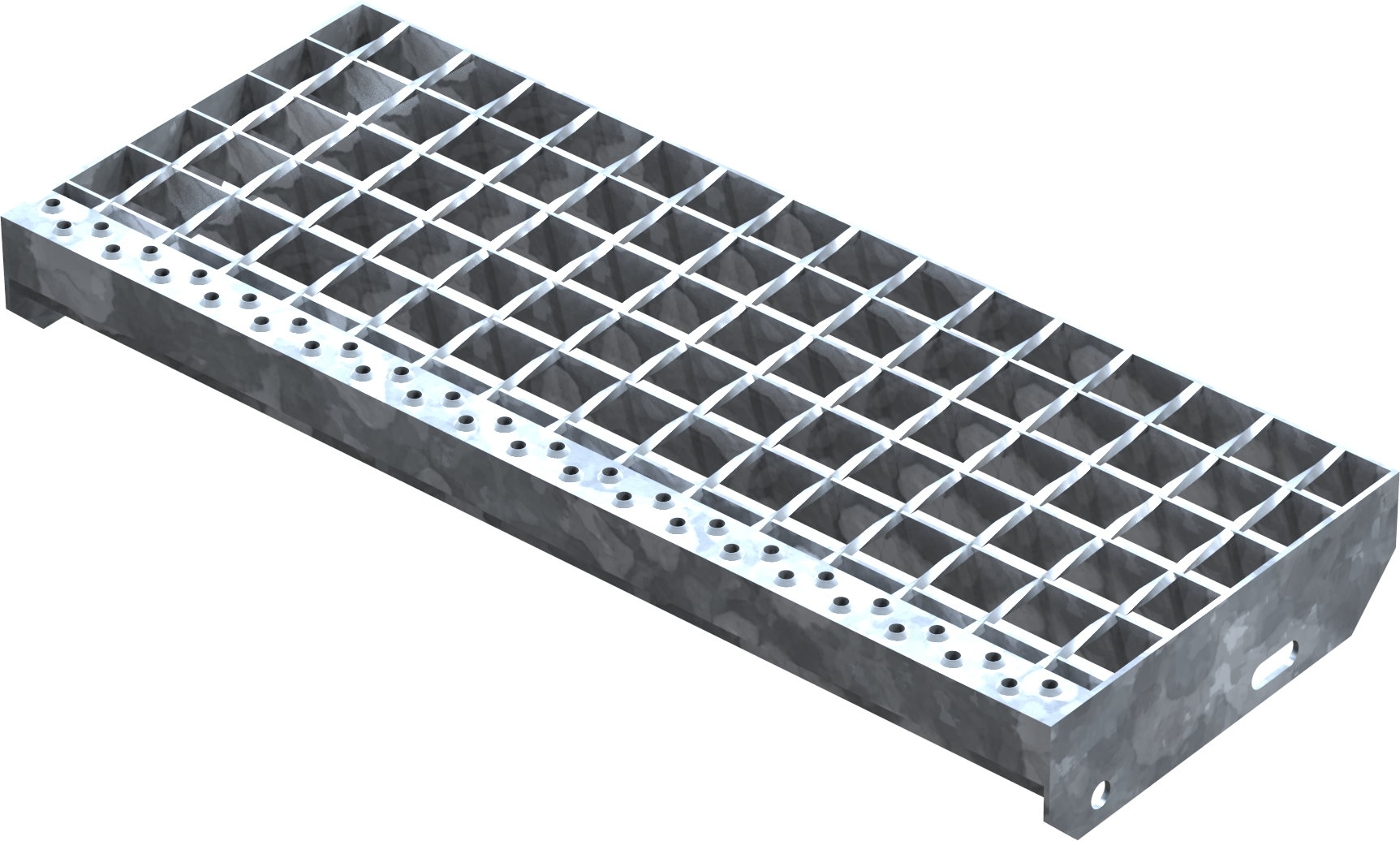

Schweisspressroststufe Metallstufe 600x240 mm Masche 34-38 mm Tragstab 30-2 mm S235JR feuerverzinkt-25-602430302.7 Schweisspressroststufe Metallstufe 600x240 mm Masche 34-38 mm Tragstab 30-2 mm S235JR feuerverzinkt-25-602430302.7
Stk
25.602430302.7
Welded grating step, metal step, 600 x 240 mm, mesh size 34/38 mm, support bar 30/2 mm, S235JR, hot-dip galvanised

Available, : Lieferzeit 1-2 Werktage

$47.50*
Schweisspressroststufe Metallstufe 900x240 mm Masche 34-38 mm Tragstab 35-2 mm S235JR feuerverzinkt-25-902430302.7 Schweisspressroststufe Metallstufe 900x240 mm Masche 34-38 mm Tragstab 35-2 mm S235JR feuerverzinkt-25-902430302.7
Stk
25.902430302.7
Welded grating step, metal step, 900 x 240 mm, mesh size 34/38 mm, support bar 35/2 mm, S235JR, hot-dip galvanised

Available, : Lieferzeit 1-2 Werktage

$58.62*

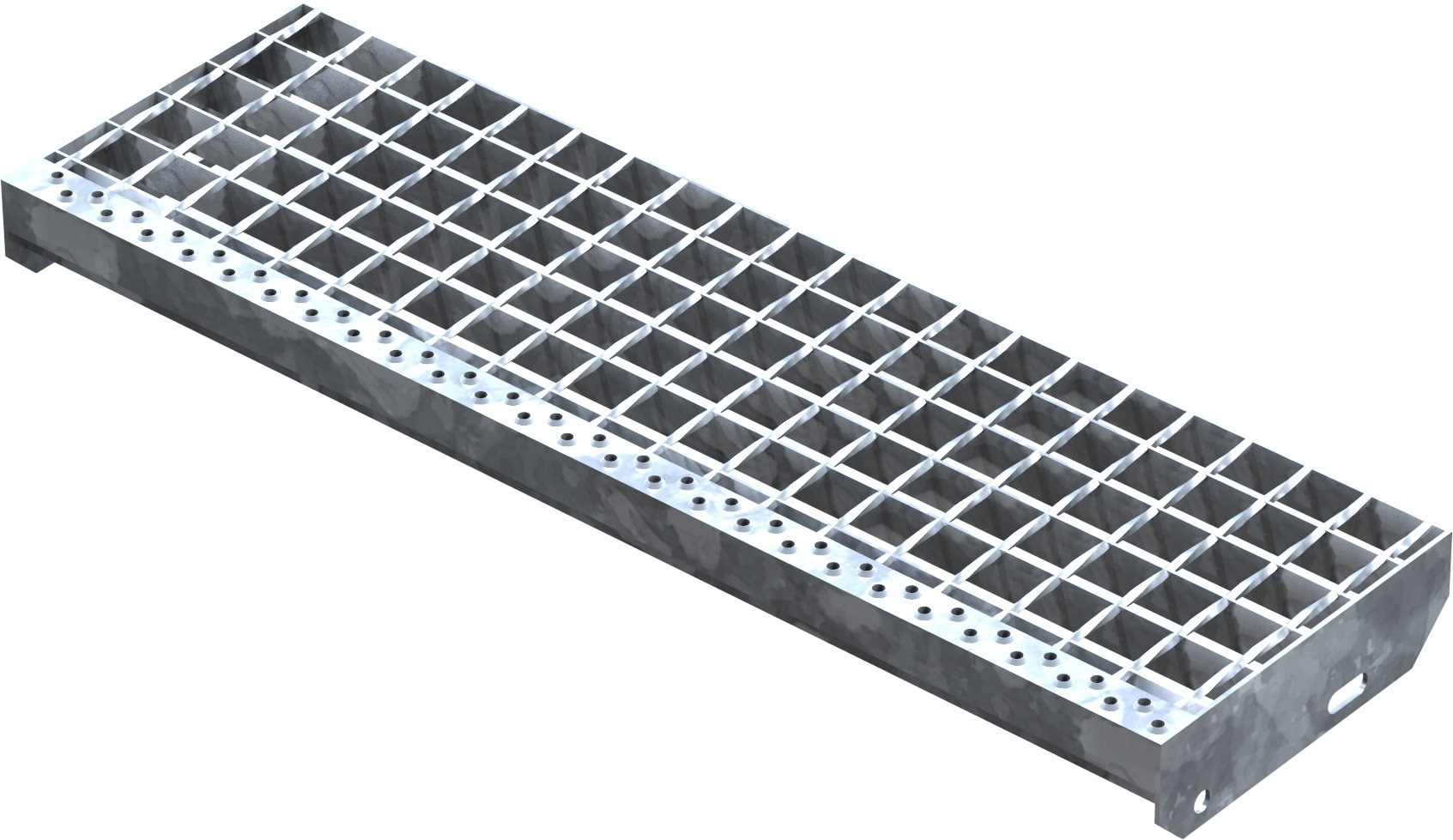

Schweisspressroststufe Metallstufe 700x240 mm Masche 34-38 mm Tragstab 30-2 mm S235JR feuerverzinkt-25-702430302.7 Schweisspressroststufe Metallstufe 700x240 mm Masche 34-38 mm Tragstab 30-2 mm S235JR feuerverzinkt-25-702430302.7
25.702430302.7
Welded grating step, metal step, 700 x 240 mm, mesh size 34/38 mm, support bar 30/2 mm, S235JR, hot-dip galvanised

Available, : Lieferzeit 1-2 Werktage

$52.44*

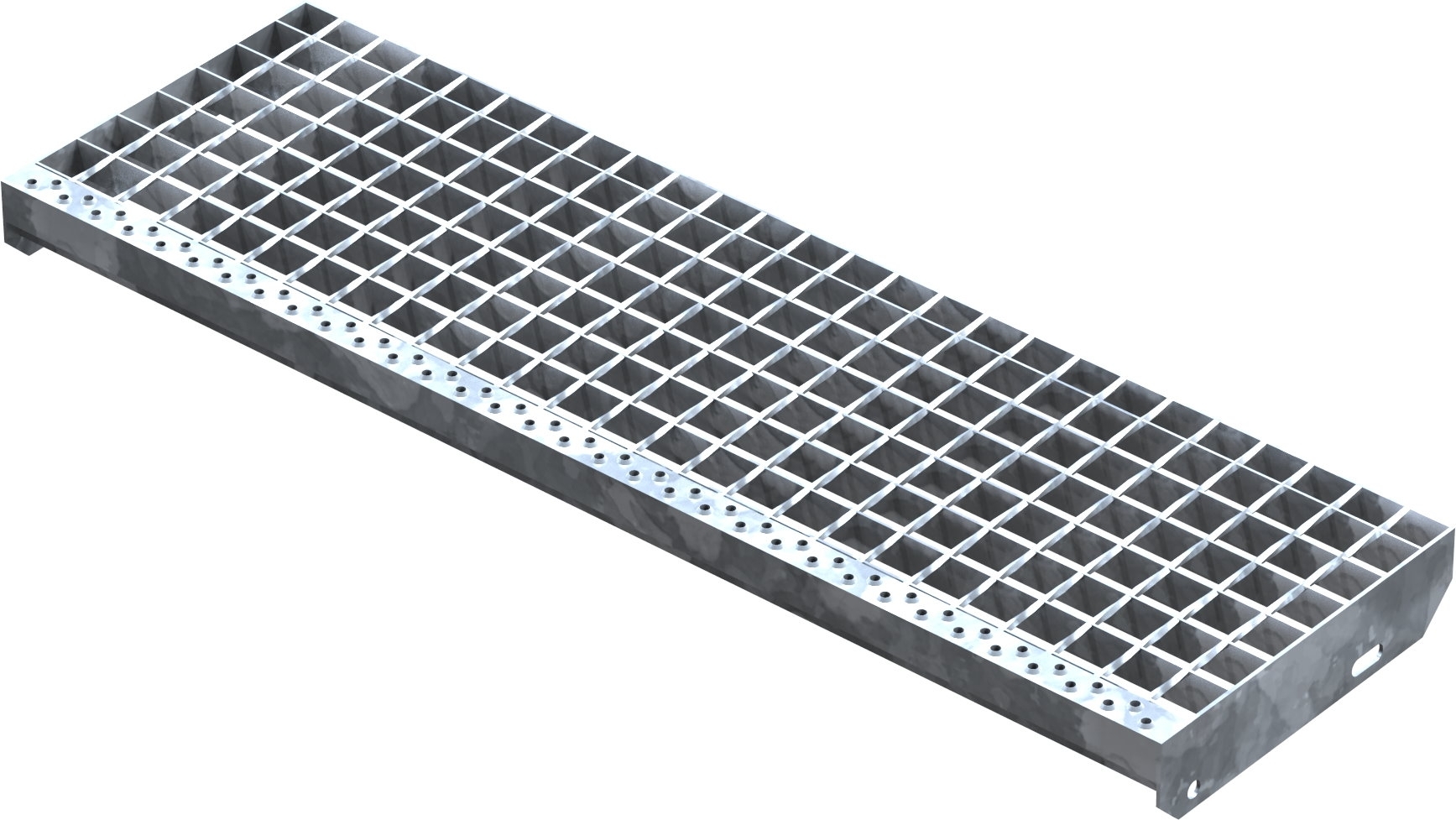

Schweisspressroststufe Metallstufe 1000x305 mm Masche 34-38 mm Tragstab 30-3 mm S235JR feuerverzinkt-25-1003030303.7 Schweisspressroststufe Metallstufe 1000x305 mm Masche 34-38 mm Tragstab 30-3 mm S235JR feuerverzinkt-25-1003030303.7
Stk
25.1003030303.7
Welded grating step, metal step, 1000 x 305 mm, mesh size 34/38 mm, support bar 30/3 mm, S235JR, hot-dip galvanised

Available, : Lieferzeit 1-2 Werktage

$86.48*

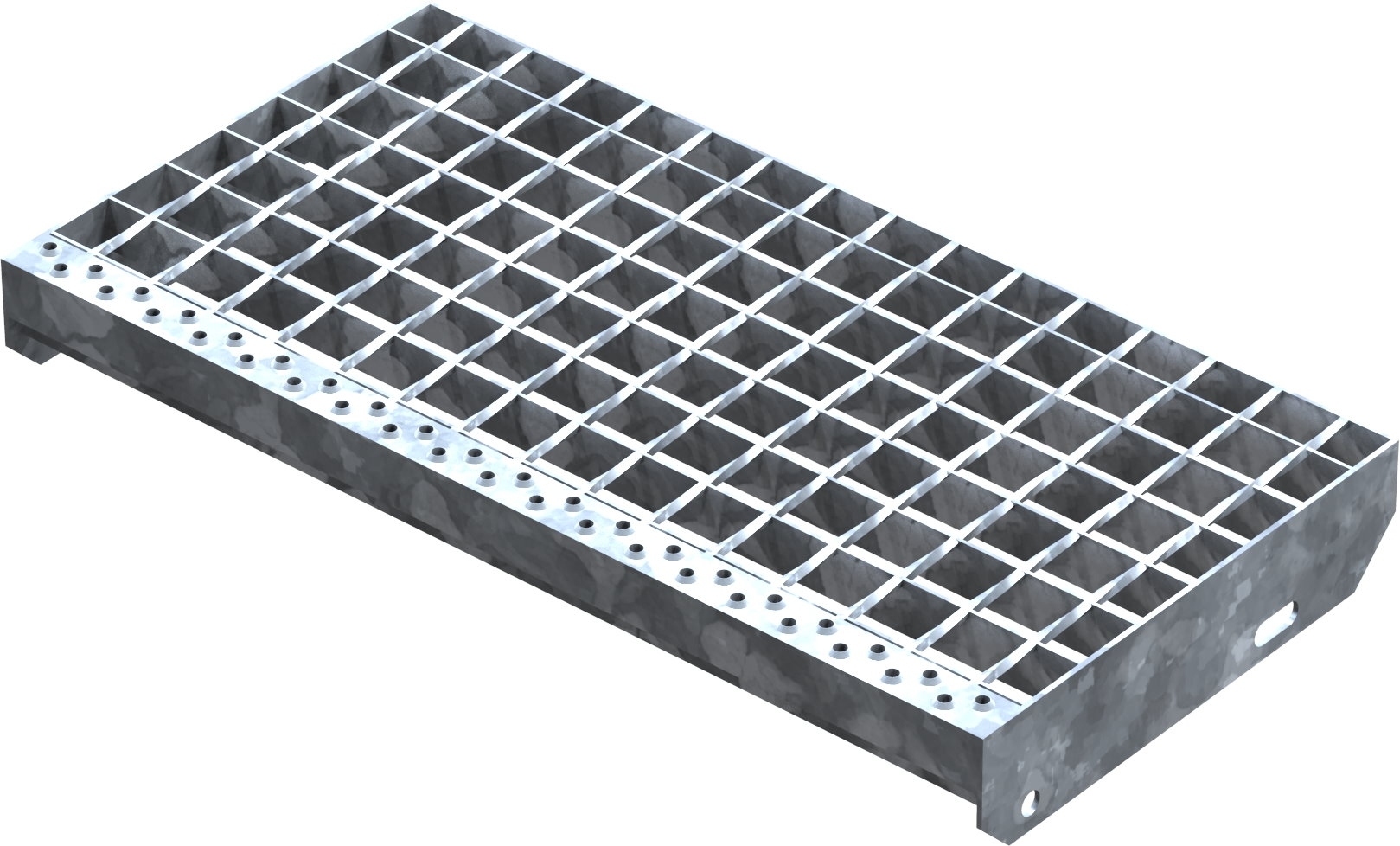

Schweisspressroststufe Metallstufe 600x305 mm Masche 34-38 mm Tragstab 30-2 mm S235JR feuerverzinkt-25-603030302.7 Schweisspressroststufe Metallstufe 600x305 mm Masche 34-38 mm Tragstab 30-2 mm S235JR feuerverzinkt-25-603030302.7
Stk
25.603030302.7
Welded grating step, metal step, 600 x 305 mm, mesh size 34/38 mm, support bar 30/2 mm, S235JR, hot-dip galvanised

Available, : Lieferzeit 1-2 Werktage

$57.10*

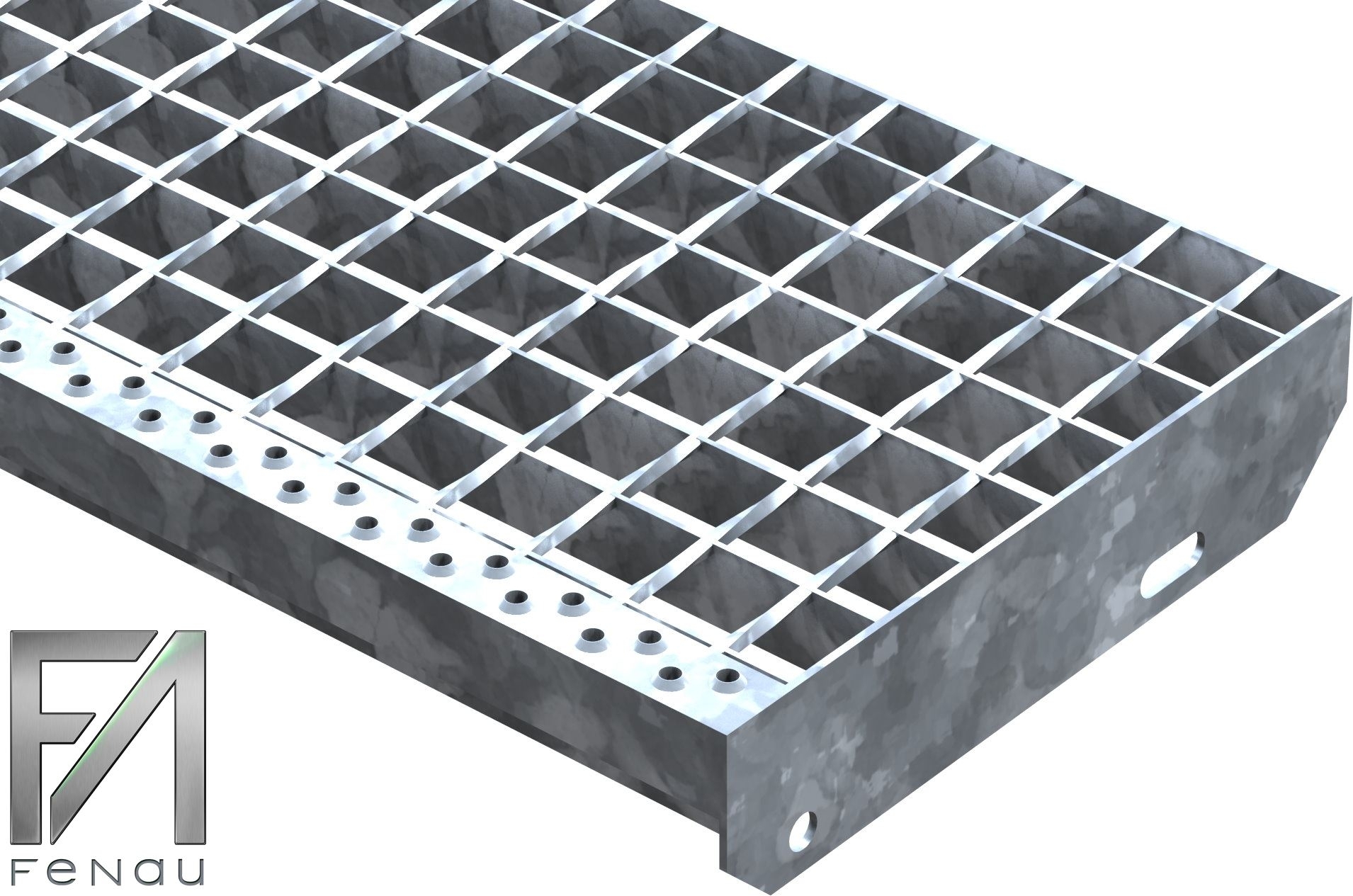

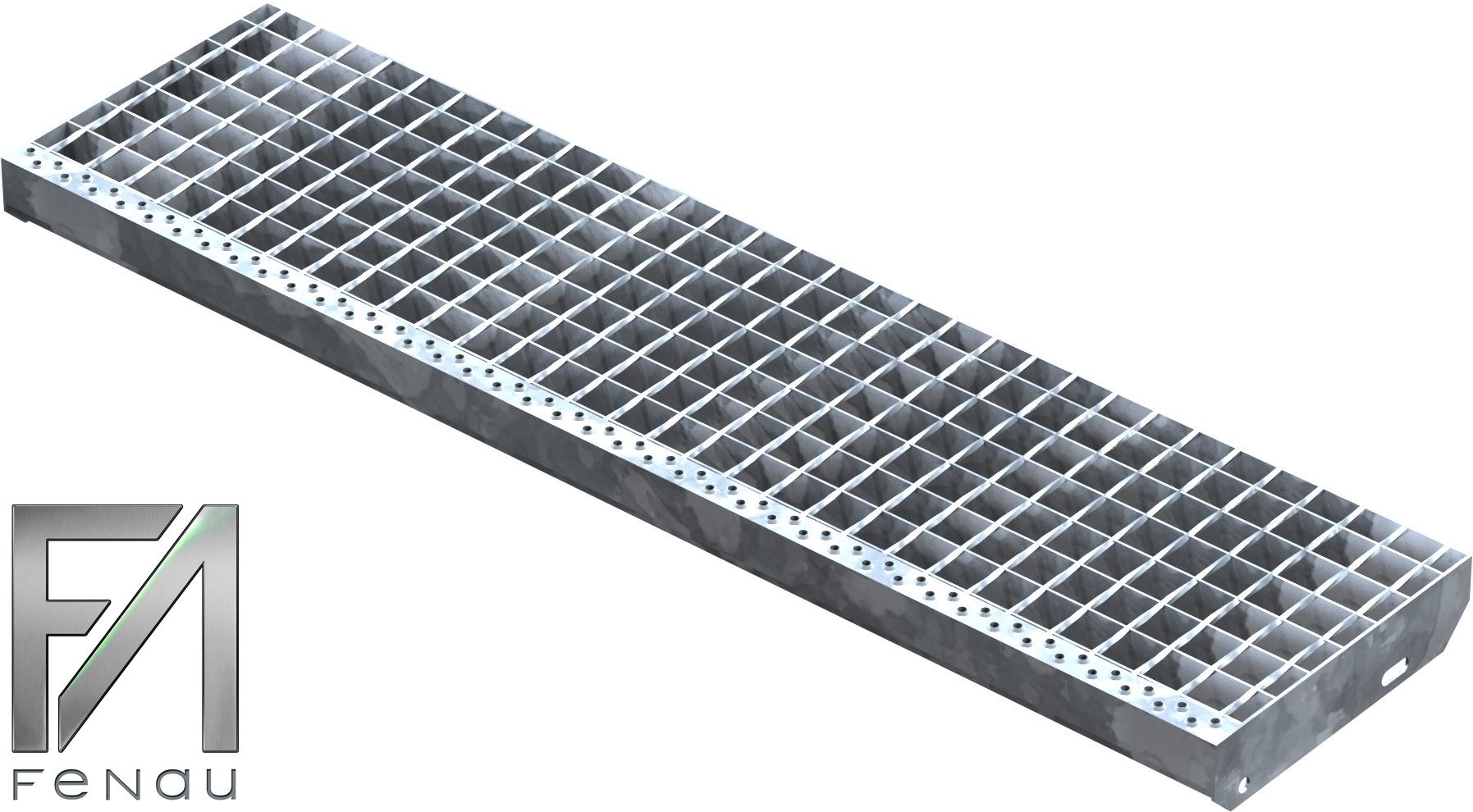

Schweisspressroststufe Metallstufe 1200x305 mm Masche 34-38 mm Tragstab 40-3 mm S235JR feuerverzinkt-25-1203030402.7 Schweisspressroststufe Metallstufe 1200x305 mm Masche 34-38 mm Tragstab 40-3 mm S235JR feuerverzinkt-25-1203030402.7
Stk
25.1203030402.7
Welded grating step, metal step, 1200 x 305 mm, mesh size 34/38 mm, support bar 40/3 mm, S235JR, hot-dip galvanised

Available, : Lieferzeit 1-2 Werktage

$110.62*

Welded press-formed grating steps from FeNau – robust, versatile and precise

Welded press-formed grating steps are a particularly robust variant of classic grating steps and are ideal for maintenance projects or use in existing buildings. In this construction method, the bearing bar and the drilled infill bar are firmly welded together, ensuring exceptional stability. This process, which is frequently used in Eastern European countries, offers advantages in specific applications, which FeNau supports with high quality and local manufacturing.

Technical details of FeNau’s welded press-formed grating steps

FeNau relies on first-class materials and precise manufacturing to meet the high demands placed on welded press-formed grating steps. Here are the key technical specifications:

  • Material: S235JR (St37-2)
  • Surface: Hot-dip galvanised in accordance with DIN EN ISO 1461
  • Construction: Welded support bars and perforated infill bars
  • Load-bearing capacity: Permissible single force of 1.5 kN on a 100 x 100 mm load cube
  • Maximum deflection: 1/300 mm or a maximum of 6 mm in accordance with DIN EN ISO 14122-3
  • Holes: In accordance with DIN 24531
  • Additional features: With flanges and step edge

Advantages of welded press-locked grating steps

FeNau welded press-locked grating steps offer unique advantages that make them the ideal choice for maintenance and refurbishment projects. Here are the key benefits:

  • Stability: The solid welding of the bearing and infill bars ensures maximum stability and even load distribution. This construction is particularly robust and durable.
  • Flexibility: Welded press-formed grating steps are perfectly suited to projects where existing structures need to be modernised or extended.
  • Secure footing: The combination of drilled infill bars and precise welding minimises movement within the structure and offers a high level of slip resistance.
  • Corrosion protection: Thanks to hot-dip galvanising, our steps are excellently protected against rust and the elements.

Differences between welded press-locked grating steps and press-locked grating steps

Whilst welded press-locked grating steps impress with the welding of support and infill bars, press-locked grating steps rely on the pressing process, in which the infill bars are inserted into the support bars under high pressure. The latter are more commonly found in Western countries, whilst welded expanded metal steps are more widespread in Eastern regions. Both variants offer specific advantages, and FeNau is proud to be able to offer both options to meet the requirements of a wide variety of projects.

Applications of welded press-locked grating steps

Thanks to their versatility and robust construction, welded press-formed grating steps are suitable for numerous applications, particularly in areas where stability and durability are required:

  • Maintenance projects: Ideal for the refurbishment or extension of existing staircases and grating structures.
  • Industry and commerce: Perfect for machine access points, maintenance platforms and staircases that must withstand heavy loads.
  • Outdoor areas: Thanks to their hot-dip galvanised finish, the steps withstand the elements and are ideal for external staircases or balcony access.
  • Existing structure projects: For projects where the existing construction requires the use of welded grating steps.

Why FeNau?

FeNau not only offers a wide range of welded press-locked grating steps, but also the ability to develop bespoke solutions for individual projects. Our comprehensive range includes both welded press-formed grating steps and press-formed grating steps, to meet our customers’ requirements. With our focus on quality, precision and local service, we are setting new standards in the manufacture of steel stair treads.

Order welded press-formed grating steps from FeNau now!

Discover the versatility and quality of our welded press-formed grating steps and find the perfect solution for your construction project. Whether for maintenance, new builds or demanding industrial applications – FeNau offers you reliable products and first-class service. Contact us today for a no-obligation consultation!

Welded press-formed grating steps manufacturer – direct from FeNau GmbH

FeNau GmbH is your reliable welded press-locked grating stair treads manufacturer in Germany. Our treads offer maximum stability, slip resistance and durability. Thanks to state-of-the-art resistance welding technology, the support bars and twisted infill bars are permanently welded together – for stair treads that ensure maximum safety even under intensive use.

Why choose welded press-formed grating steps from the manufacturer FeNau GmbH?

  • Direct purchasing without intermediaries – best prices
  • Custom-made to customer specifications or drawings
  • Slip-resistant tread profiles (serrated, perforated, smooth)
  • Corrosion protection through hot-dip galvanising or stainless steel
  • Many years of experience in the manufacture of grating

Frequently asked questions about welded press-formed grating steps

Who is the right contact for welded press-formed grating steps?

If you are looking for an experienced manufacturer of welded press-formed grating steps, FeNau GmbH is your expert partner. We manufacture and supply directly from our factory – quality ‘Made in Germany’.

How are welded press-formed grating steps manufactured?

During production, the bearing bars and twisted infill bars are joined under pressure using the resistance welding process. The steps are then fitted with side stringers and a tread profile. The result: extremely durable and slip-resistant stair treads.

Where can I buy welded grating steps?

Buy your welded press-formed grating steps directly from FeNau GmbH. As a manufacturer, we deliver nationwide and to Switzerland. Orders can be placed conveniently via our online shop or directly by contacting our sales team.

Why choose welded press-locked grating steps over standard grating steps?

The difference lies in the stability: whilst standard pressed gratings are pressed into place, all intersection points on welded pressed grating steps are welded. This makes them significantly more robust, durable and ideally suited for industrial applications.

How much does a welded press-formed grating step cost?

Prices depend on size, material thickness, surface finish and quantity. As the manufacturer, we offer you excellent value for money. Enquire directly with FeNau GmbH – we will provide you with a bespoke quote.

Order now from the welded press-formed grating step manufacturer

Put your trust in FeNau GmbH as an experienced manufacturer of welded press-formed grating steps. We offer personalised advice, fast delivery and the highest quality for your projects. Contact us now for a no-obligation quote or order directly online.
