Welded grating step, metal step, 1000 x 305 mm, mesh size 34/38 mm, support bar 30/3 mm, S235JR, hot-dip galvanised
$86.48*
Available now, delivery time: Lieferzeit 1-2 Werktage
Lagerbestand:
44
Product number:
25.1003030303.7
EAN:
4251412918575
Gewicht:
9 kg
Description
Product information "Welded grating step, metal step, 1000 x 305 mm, mesh size 34/38 mm, support bar 30/3 mm, S235JR, hot-dip galvanised"

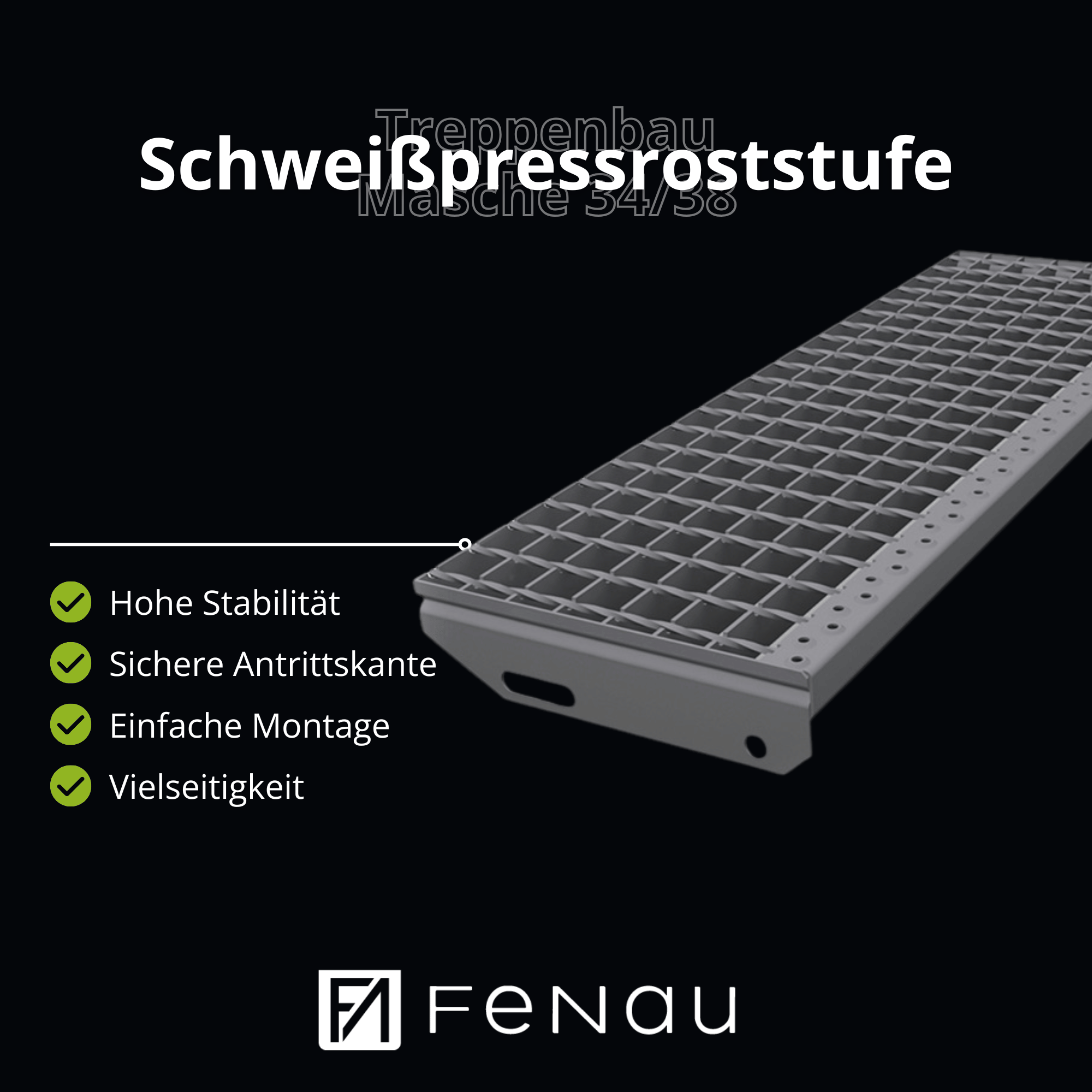

Press-welded grating step | Dimensions: 1000x305 mm, 34/38 mm | S235JR (St37-2)
[ Technical details ] Made from S235JR (St37-2), hot-dip galvanised

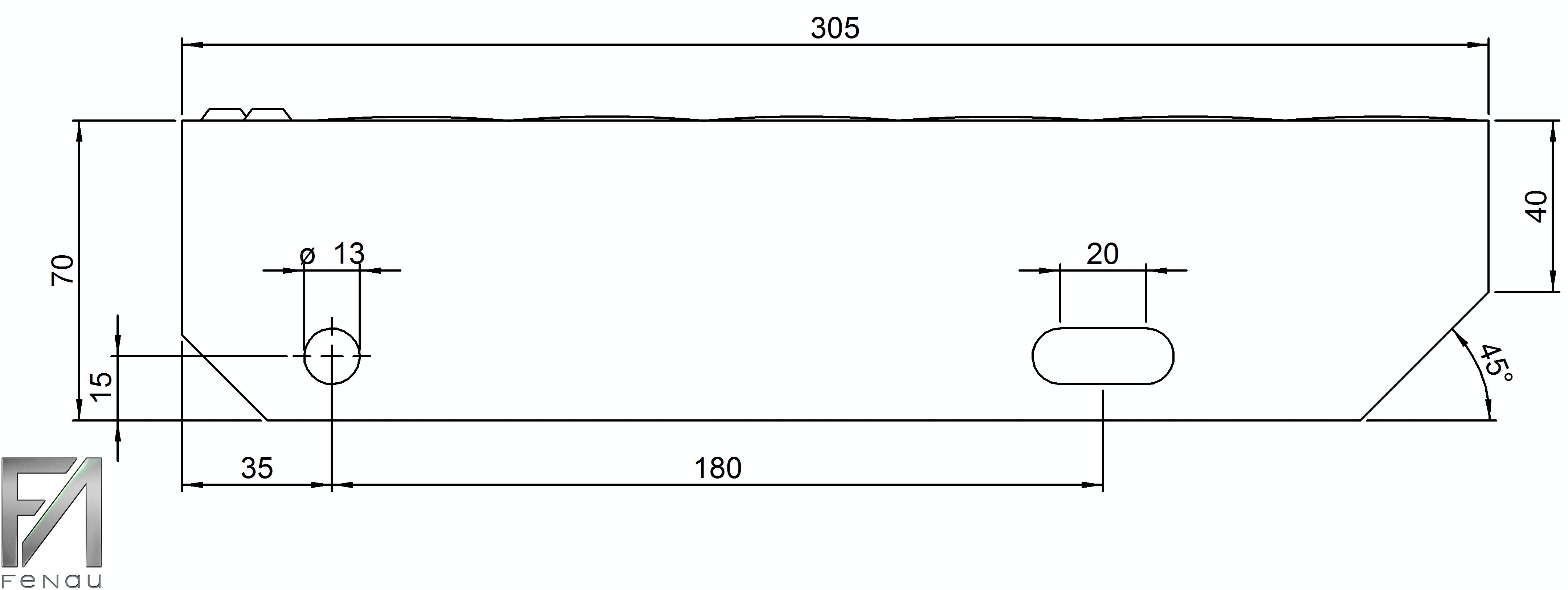

[ Specific details ] Length (main bar direction): 1000 mm, width (cross bar direction): 305 mm; mesh spacing: 34/38 mm; main bar: 30/3 mm

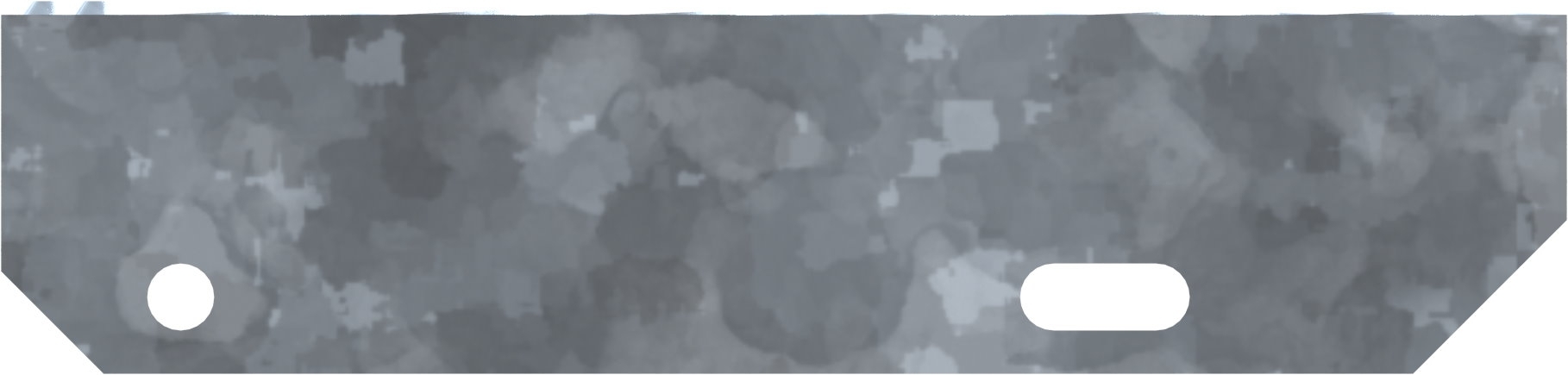

[ Further specific details ] Welded press-formed grating step with drilled cross bars; with flanges and toe edge
[ Certificate ] Drilling in accordance with DIN 24531; Permissible single load 1.5 kN on a 100 x 100 mm load cube with a maximum deflection of 1/300 mm or 6 mm in accordance with DIN EN ISO 14122-3.
Eigenschaften
| Form: | 30/3mm |
|---|---|
| Maschenweite | Steps | Drahtgewebe: | 34/38mm |
| Rutschhemmung | Steps: | R10 |
| Stufenbreite | Steps | Stufenlänge: | 1000mm |
| Stufentiefe | Steps | Auftritt : | 305mm |
