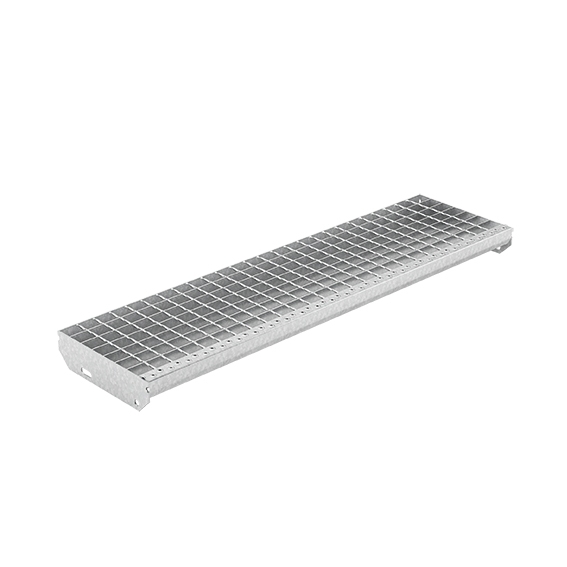

Welded grating step, metal step, 900 x 270 mm, mesh size 34/38 mm, support bar 35/2 mm, S235JR, hot-dip galvanised
Product information "Welded grating step, metal step, 900 x 270 mm, mesh size 34/38 mm, support bar 35/2 mm, S235JR, hot-dip galvanised"
[ Technical details ] Made from S235JR (St37-2), hot-dip galvanised
[ Specific details ] Length (main bar direction): 900 mm; Width (cross bar direction): 270 mm; Mesh spacing: 34/38 mm; Main bar: 30/2 mm

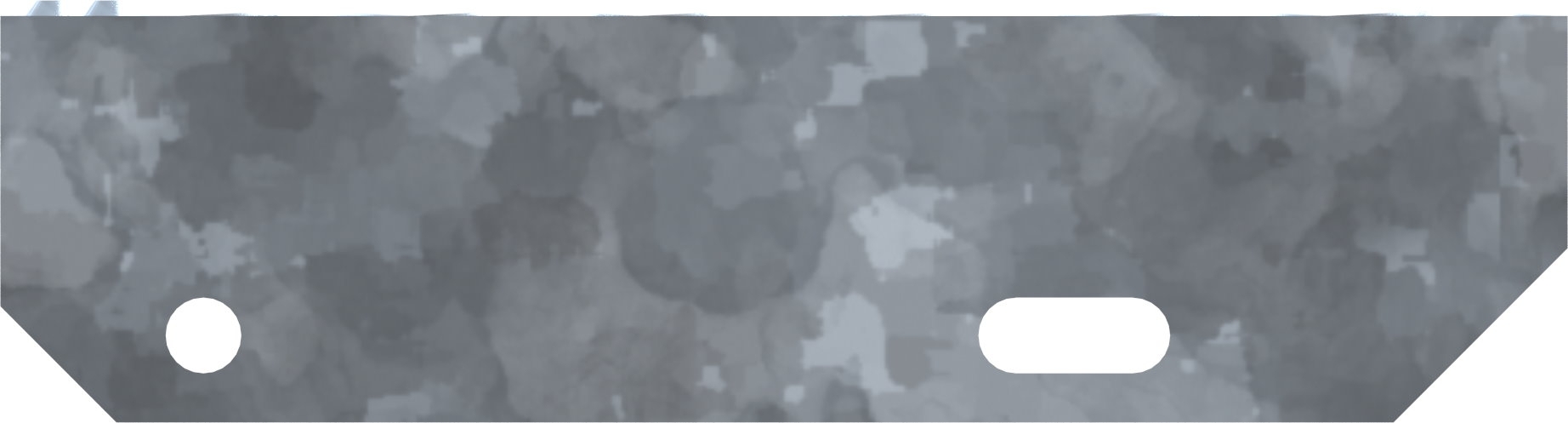

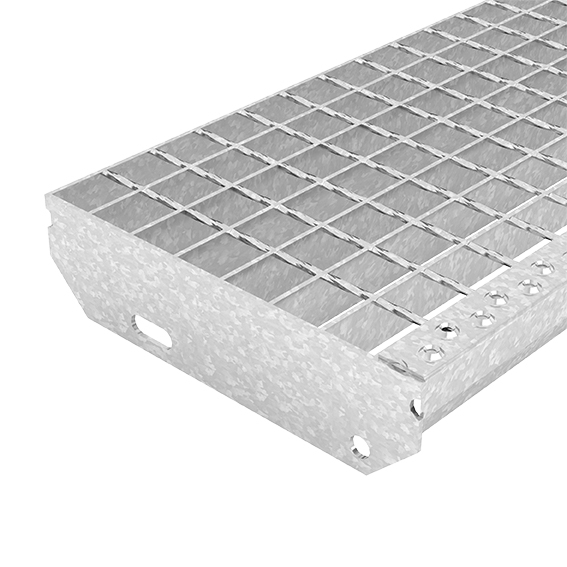

[ Further specific details ] Welded press-formed grating step with drilled cross bars; with flanges and toe edge

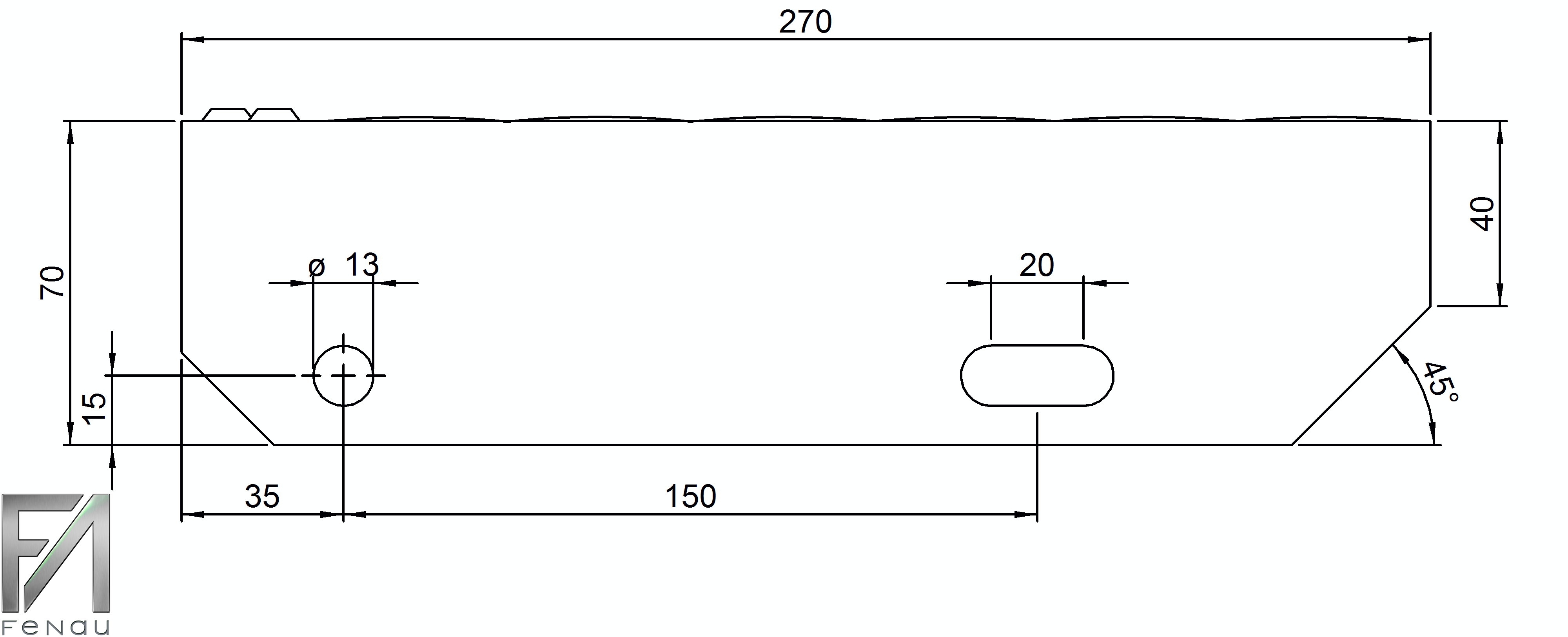

[ Certificate ] Drilling in accordance with DIN 24531; Permissible single force 1.5 kN on a 100 x 100 mm load cube with a maximum deflection of 1/300 mm or 6 mm in accordance with DIN EN ISO 14122-3.
| Form: | 35/2mm |
|---|---|
| Maschenweite | Steps | Drahtgewebe: | 34/38mm |
| Rutschhemmung | Steps: | R10 |
| Stufenbreite | Steps | Stufenlänge: | 900mm |
| Stufentiefe | Steps | Auftritt : | 270mm |
Product safety (GPSR)
Manufacturer / responsible person in the EU: FeNau GmbH, Veit-Stoß-Str. 20, 90579 Langenzenn, Germany · info@fenau.eu · +49 911 97917230
Safety information: metal products may have sharp edges – wear protective gloves. Observe permissible loads and installation instructions; secure components properly before use.
