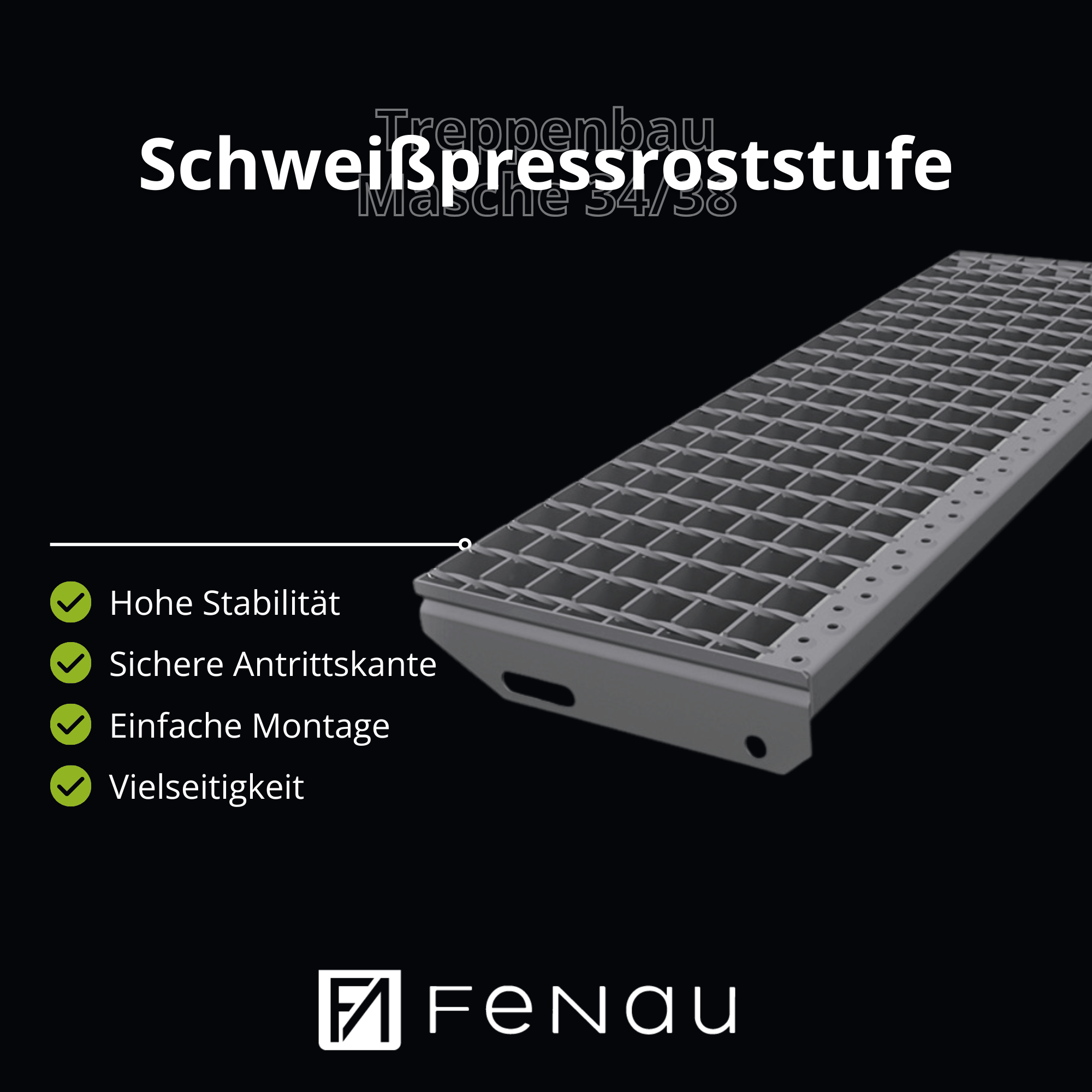

Welded grating step, metal step, 1000 x 240 mm, mesh size 34/38 mm, support bar 35/2 mm, S235JR, hot-dip galvanised
$67.74*
Available now, delivery time: Lieferzeit 1-2 Werktage
Product information "Welded grating step, metal step, 1000 x 240 mm, mesh size 34/38 mm, support bar 35/2 mm, S235JR, hot-dip galvanised"
[ Technical details ] Made from S235JR (St37-2), hot-dip galvanised
[ Specific details ] Length (main bar direction): 1000 mm; Width (cross bar direction): 240 mm; Mesh spacing: 34/38 mm; Main bar: 30/3 mm

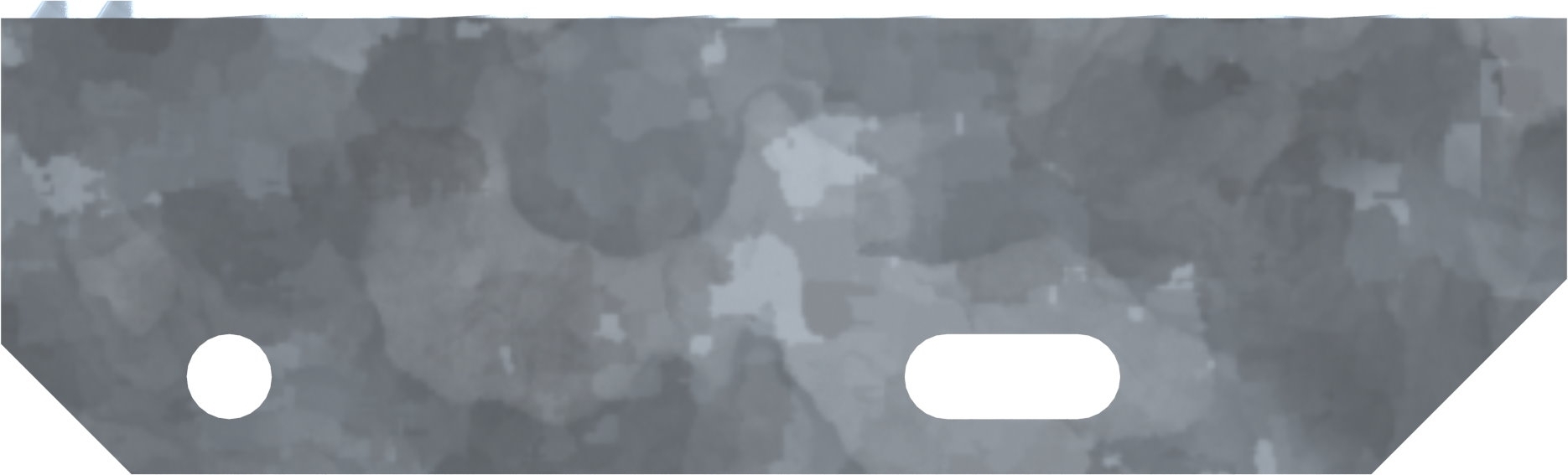

[ Further specific details ] Welded press-locked grating step with drilled cross bars; with flanges and toe edge
[ Certificate ] Hole pattern in accordance with DIN 24531; Permissible single force 1.5 kN on a 100 x 100 mm load cube with a maximum deflection of 1/300 mm or 6 mm in accordance with DIN EN ISO 14122-3.

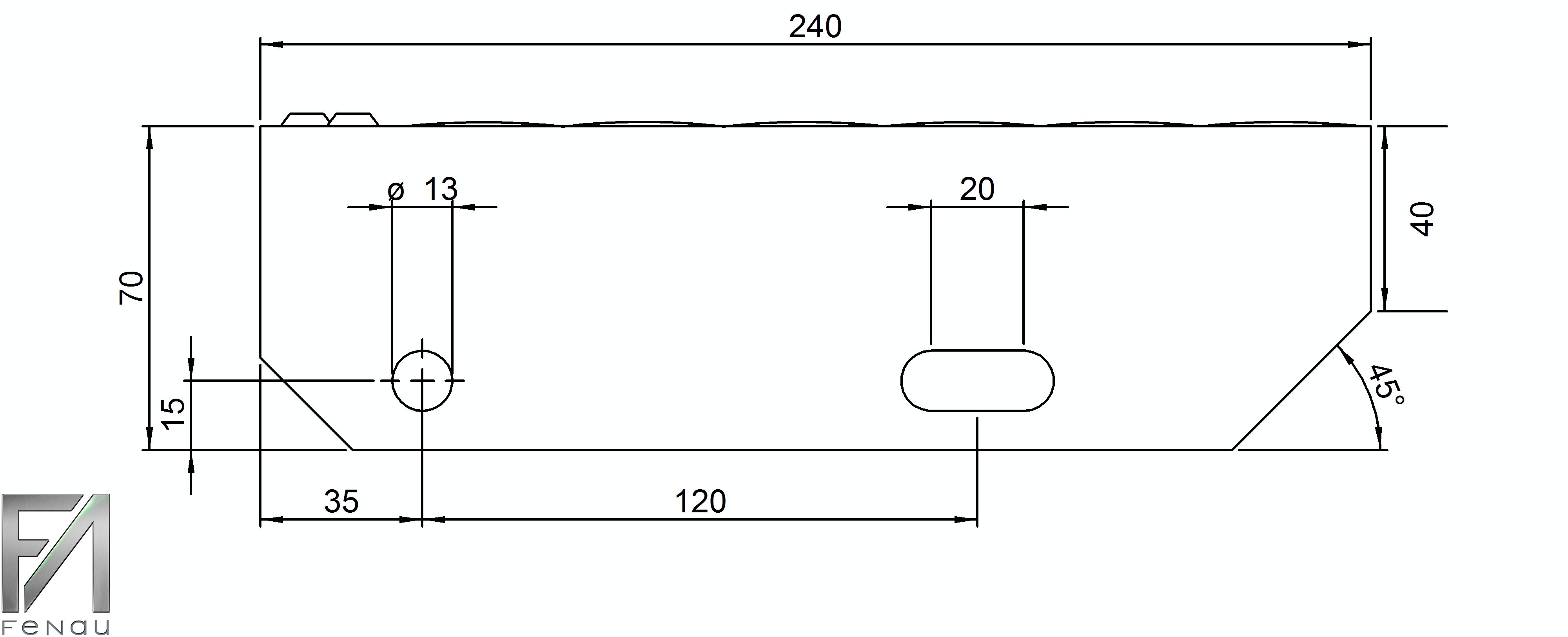

⚙️ Technical data: Hole pattern
The hole pattern is standardised for easy installation. The hole spacing (N) is determined by the selected step width (B).
| Step width (B) | Hole spacing (N) |
|---|---|
| 240 mm | 120 mm |
| 270 mm | 150 mm |
| 305 mm | 180 mm |
| Form: | 35/2mm |
|---|---|
| Maschenweite | Steps | Drahtgewebe: | 34/38mm |
| Rutschhemmung | Steps: | R10 |
| Stufenbreite | Steps | Stufenlänge: | 1000mm |
| Stufentiefe | Steps | Auftritt : | 240mm |
