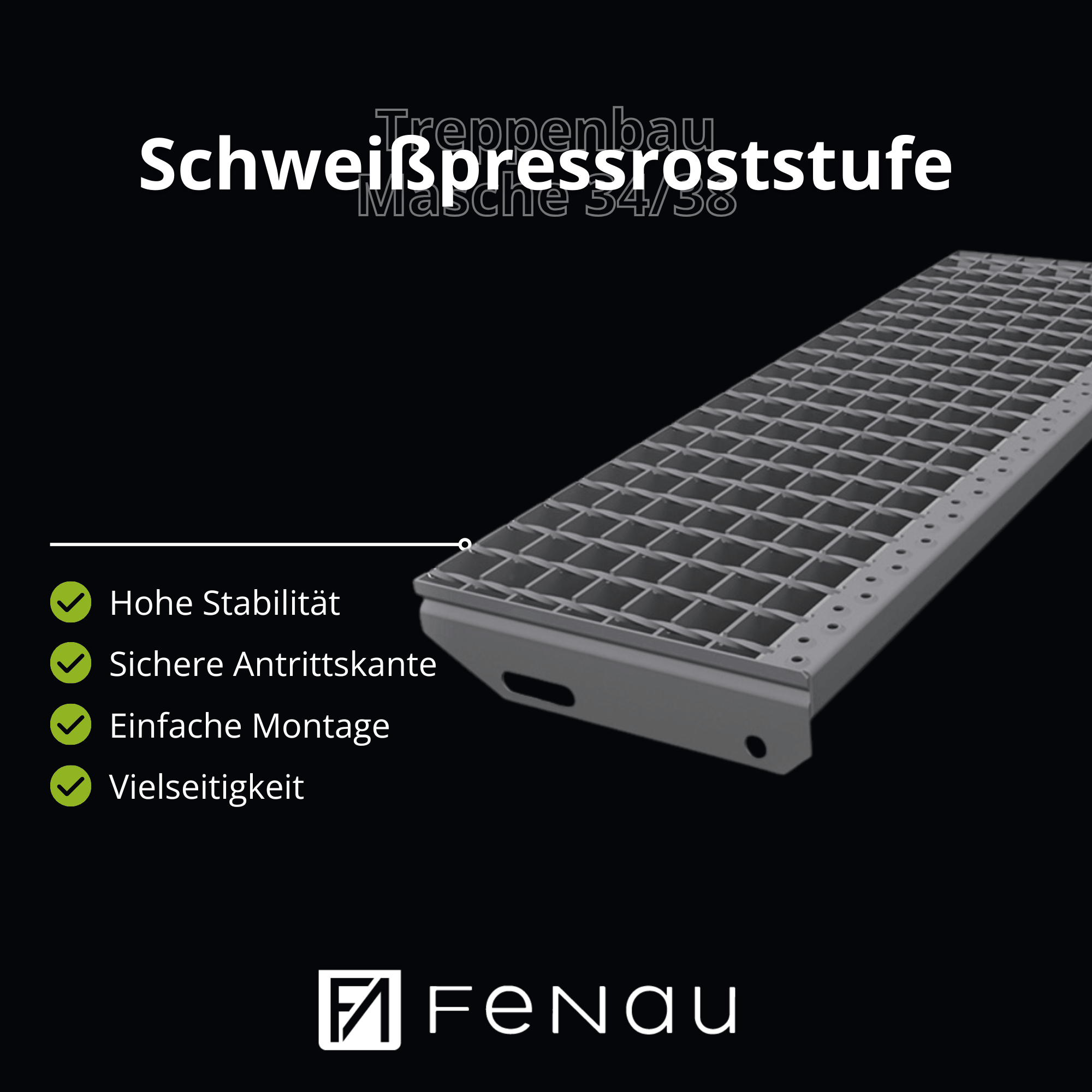

Welded grating step, metal step, 1200 x 240 mm, mesh size 34/38 mm, support bar 40/3 mm, S235JR, hot-dip galvanised
$100.86*
Available now, delivery time: Lieferzeit 1-2 Werktage
Lagerbestand:
48
Product number:
25.1202430402.7
EAN:
4251412918582
Gewicht:
11 kg
Description
Product information "Welded grating step, metal step, 1200 x 240 mm, mesh size 34/38 mm, support bar 40/3 mm, S235JR, hot-dip galvanised"
Press-welded grating step | Dimensions: 1200x240 mm, 34/38 mm | S235JR (St37-2)
[ Technical details ] Made from S235JR (St37-2), hot-dip galvanised
[ Specific details ] Length (main bar direction): 1200 mm; Width (cross bar direction): 240 mm; Mesh spacing: 34/38 mm; Main bar: 40/2 mm

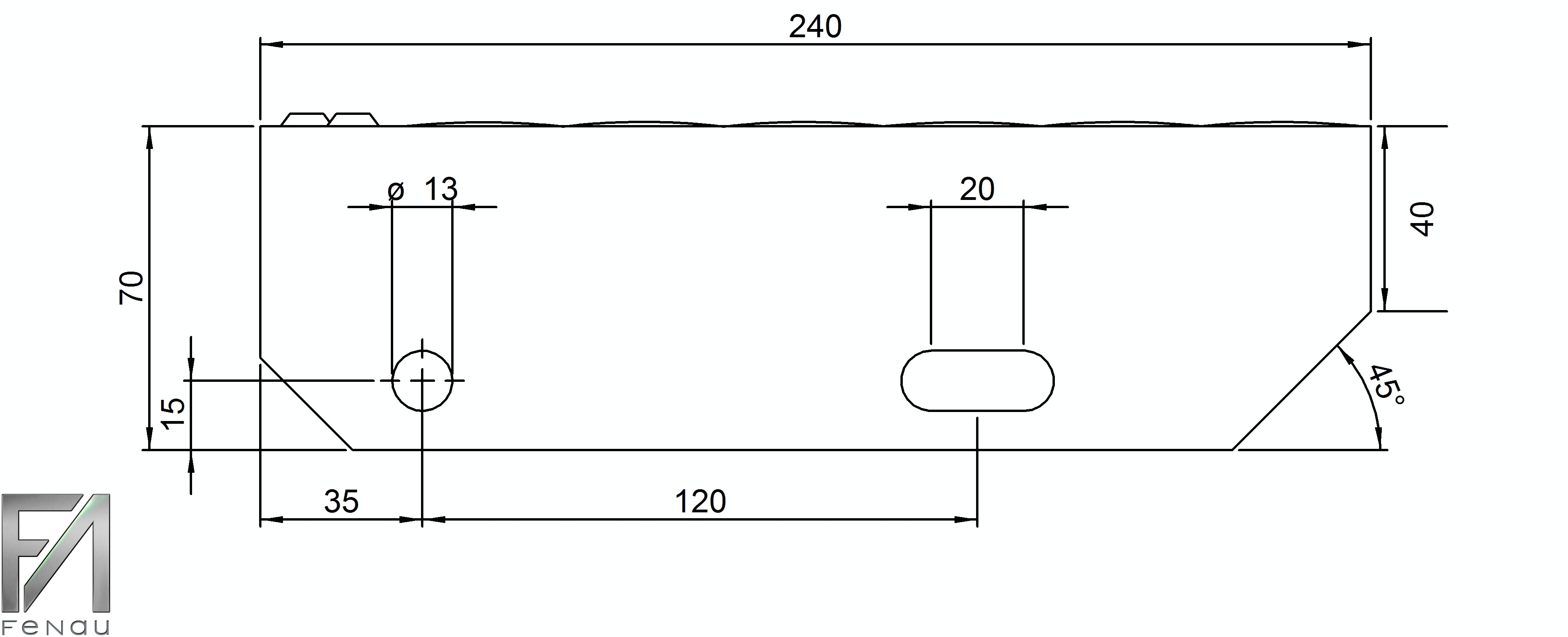

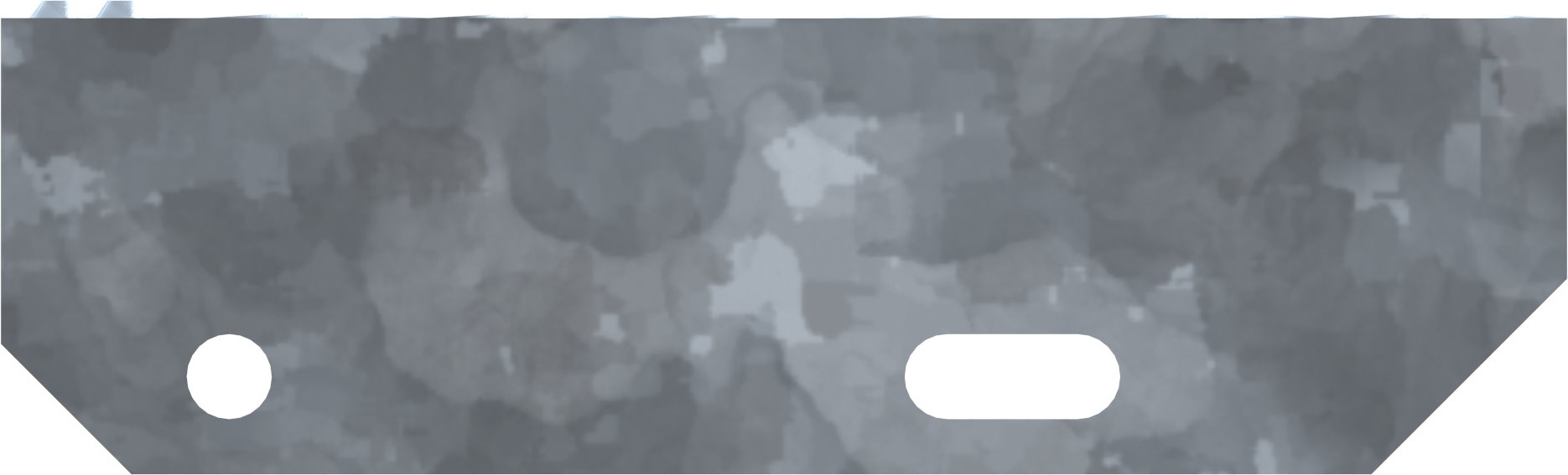

[ Further specific details ] Welded press-locked grating step with drilled cross bars; with flanges and toe edge
[ Certificate ] Drilling in accordance with DIN 24531; Permissible single force 1.5 kN on a 100 x 100 mm load cube with a maximum deflection of 1/300 mm or 6 mm in accordance with DIN EN ISO 14122-3.
Eigenschaften
| Form: | 40/3mm |
|---|---|
| Maschenweite | Steps | Drahtgewebe: | 34/38mm |
| Rutschhemmung | Steps: | R10 |
| Stufenbreite | Steps | Stufenlänge: | 1200mm |
| Stufentiefe | Steps | Auftritt : | 240mm |
