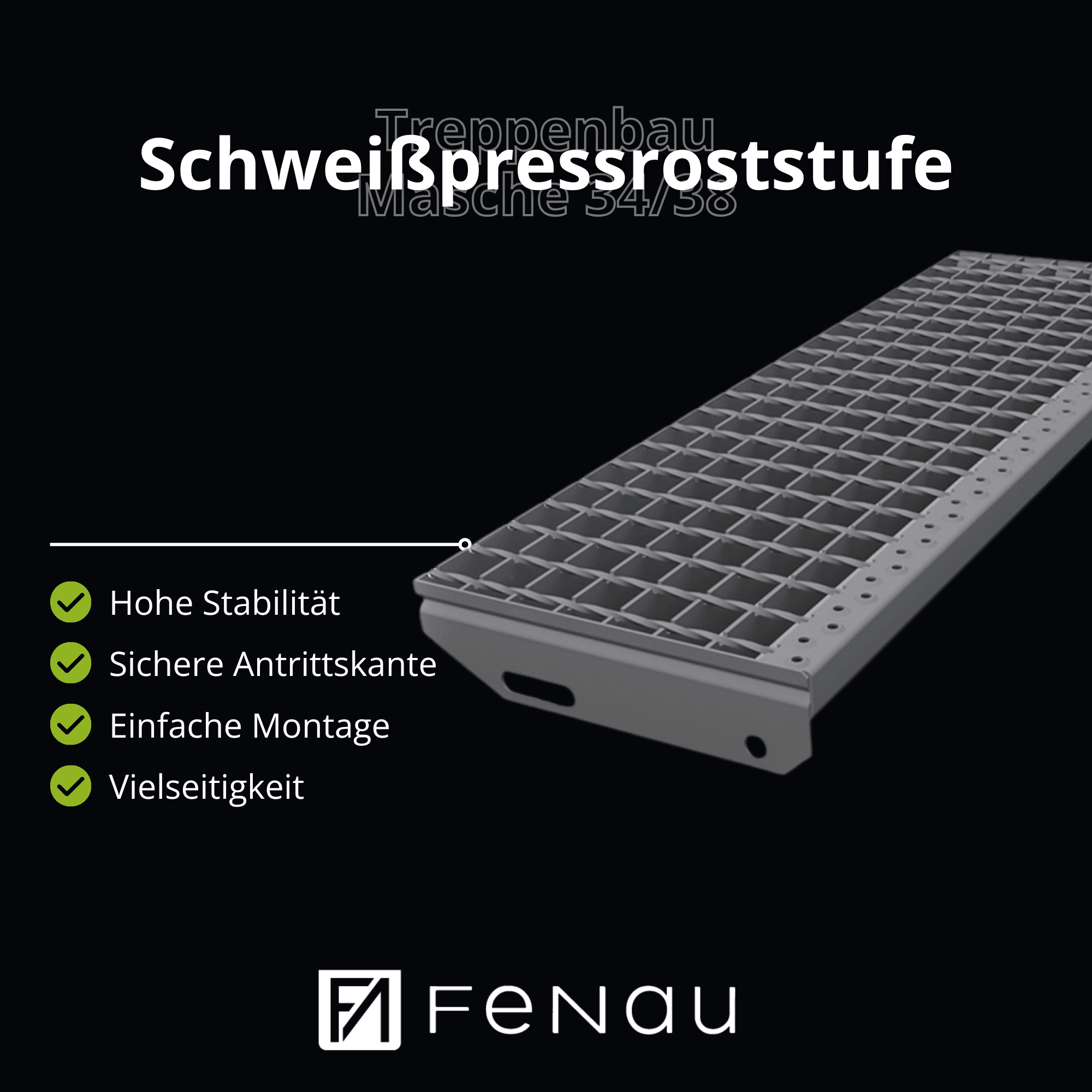

Welded grating step, metal step, 800 x 270 mm, mesh size 34/38 mm, support bar 30/2 mm, S235JR, hot-dip galvanised
$55.62*
Available now, delivery time: Lieferzeit 1-2 Werktage
Lagerbestand:
81
Product number:
25.802730302.7
EAN:
4251412918537
Gewicht:
6 kg
Description
Product information "Welded grating step, metal step, 800 x 270 mm, mesh size 34/38 mm, support bar 30/2 mm, S235JR, hot-dip galvanised"
Press-welded grating step | Dimensions: 800x270 mm, 34/38 mm | S235JR (St37-2)
[ Technical details ] Made from S235JR (St37-2), hot-dip galvanised
[ Specific details ] Length (main bar direction): 800 mm; Width (cross bar direction): 270 mm; Mesh spacing: 34/38 mm; Main bar: 30/2 mm

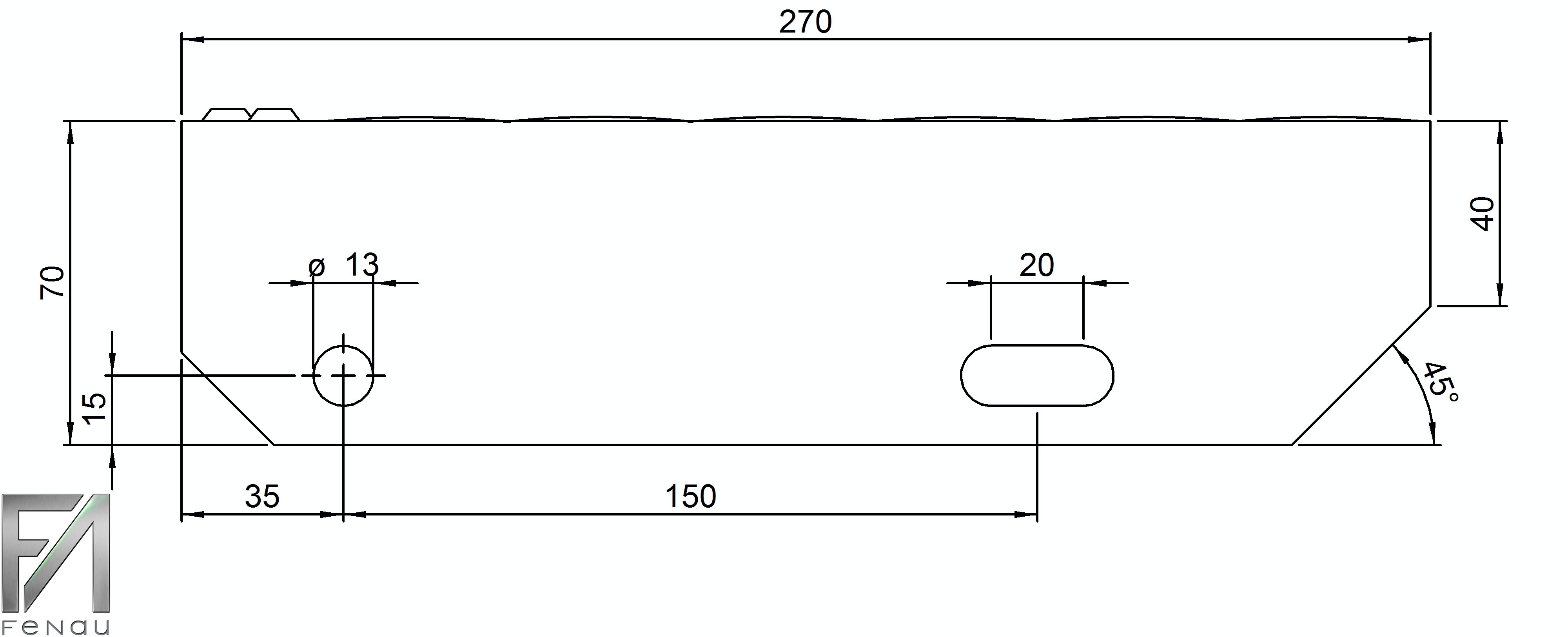

[ Further specific details ] Welded press-locked grating step with drilled cross bars; with flanges and toe-edge
[ Certificate ] Drilling in accordance with DIN 24531; Permissible single load 1.5 kN on a 100 x 100 mm load cube with a maximum deflection of 1/300 mm or 6 mm in accordance with DIN EN ISO 14122-3.
Eigenschaften
| Form: | 30/2mm |
|---|---|
| Maschenweite | Steps | Drahtgewebe: | 34/38mm |
| Rutschhemmung | Steps: | R10 |
| Stufenbreite | Steps | Stufenlänge: | 800mm |
| Stufentiefe | Steps | Auftritt : | 270mm |
