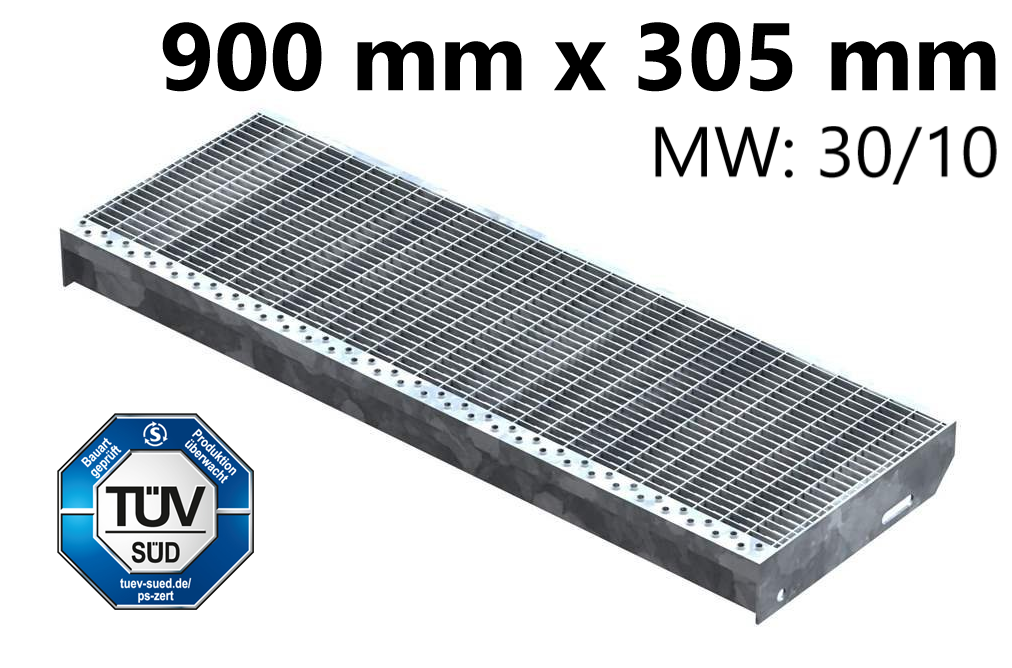

Grating stair tread, dimensions: 900 x 305 mm, 30/10 mm S235JR (St37-2), hot-dip galvanised

Skip the photo gallery
Gitterroststufe Treppenstufe Masse- 900x305 mm 30-10 mm S235JR -St37-2- im Vollbad feuerverzinkt-40-903031.7
Gitterroststufe Treppenstufe Masse- 900x305 mm 30-10 mm S235JR -St37-2- im Vollbad feuerverzinkt-40-903031.7
Gitterroststufe Treppenstufe Masse- 900x305 mm 30-10 mm S235JR -St37-2- im Vollbad feuerverzinkt-40-903031.7
Gitterroststufe Treppenstufe Masse- 900x305 mm 30-10 mm S235JR -St37-2- im Vollbad feuerverzinkt-40-903031.7
Gitterroststufe Treppenstufe Masse- 900x305 mm 30-10 mm S235JR -St37-2- im Vollbad feuerverzinkt-40-903031.7
Gitterroststufe Treppenstufe Masse- 900x305 mm 30-10 mm S235JR -St37-2- im Vollbad feuerverzinkt-40-903031.7
Gitterroststufe Treppenstufe Masse- 900x305 mm 30-10 mm S235JR -St37-2- im Vollbad feuerverzinkt-40-903031.7
Gitterroststufe Treppenstufe Masse- 900x305 mm 30-10 mm S235JR -St37-2- im Vollbad feuerverzinkt-40-903031.7
Gitterroststufe Treppenstufe Masse- 900x305 mm 30-10 mm S235JR -St37-2- im Vollbad feuerverzinkt-40-903031.7
Gitterroststufe Treppenstufe Masse- 900x305 mm 30-10 mm S235JR -St37-2- im Vollbad feuerverzinkt-40-903031.7
Gitterroststufe Treppenstufe Masse- 900x305 mm 30-10 mm S235JR -St37-2- im Vollbad feuerverzinkt-40-903031.7
Gitterroststufe Treppenstufe Masse- 900x305 mm 30-10 mm S235JR -St37-2- im Vollbad feuerverzinkt-40-903031.7

$93.80*

Prices include VAT, plus delivery charges

Available now, delivery time: Lieferzeit 1-2 Werktage

Stk
Lagerbestand: 61
Product number: 40.903031.7
EAN: 4251412918025
Gewicht: 7.45 kg
20,000 items in stock
CAD data available after login
Over 200,000 satisfied customers
Worldwide delivery
Description

Product information "Grating stair tread, dimensions: 900 x 305 mm, 30/10 mm S235JR (St37-2), hot-dip galvanised"

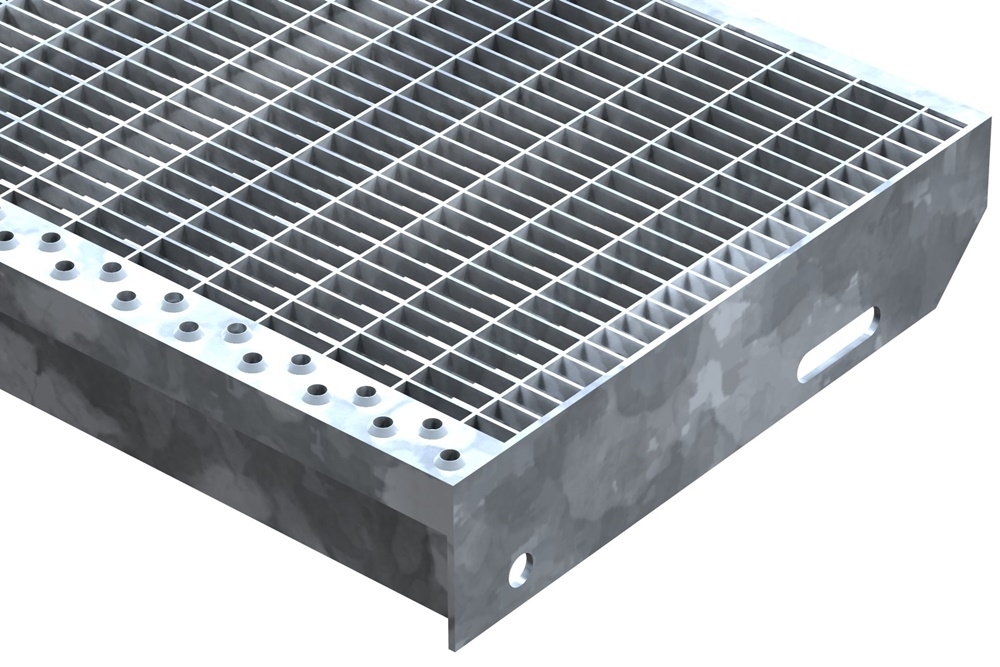

XSL grating step | Dimensions: 900 x 305 mm, 30/10 mm | S235JR (St37-2), hot-dip galvanised in accordance with DIN EN ISO 1461

[ Technical details ] Made from S235JR (St37-2), hot-dip galvanised in accordance with DIN EN ISO 1461
[ Specific details ] Depth (longitudinal bar direction): 305 mm; Width (transverse bar direction): 900 mm; Mesh size: 30/10 mm; Support bar: 20/1.5 mm

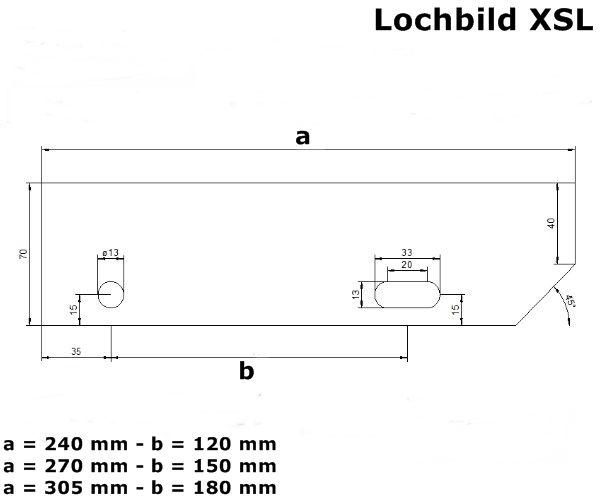

[ Further specific details ] Slip resistance class: R11; with flanges and nosing; hole pattern in accordance with DIN 24531
[ Certificate ] Load capacity in accordance with DIN 1055-3: 2.0 kN on a 50x50 mm² load cube or 5.00 kN/m²; Suitable for escape staircases in accordance with DIN 1055-3 (categories T1 and T2)
[ Application note ] Note: Due to hot-dip galvanising, galvanising residues may remain in the mesh!; Suitable for access to industrial and machinery facilities in accordance with DIN 24531-1 or DIN EN ISO 14122-22

Eigenschaften
Breite: 900mm
Maschenweite | Steps | Drahtgewebe: 30/10mm
Rutschhemmung | Steps: R11
Stufenbreite | Steps | Stufenlänge: 900mm
Stufentiefe | Steps | Auftritt : 305mm
Skip the product gallery

Accessories

Sicherheitsketten fuer Gitterroste fuer MW 30-30 30-10 34-38 mm aus Stahl- feuerverzinkt- 1 Paar-26-S-KETTE-M.7 Sicherheitsketten fuer Gitterroste fuer MW 30-30 30-10 34-38 mm aus Stahl- feuerverzinkt- 1 Paar-26-S-KETTE-M.7
Stk
26.S-KETTE-M.7
Safety chains for grating, suitable for MW 30/30, 30/10 and 34/38 mm, made of steel, hot-dip galvanised, 1 pair
Safety chains | 1 pair | for grating with 30/30 mm mesh, and more | made from St37, hot-dip galvanised [ Technical details ] made from St37, hot-dip galvanised [ Specific details ] consisting of two chains, each 800 mm long, with mounting brackets, screws and wall plugs [ Further specific details ] for mesh sizes: 30/30 mm | 34/38 mm | 30/10 mm

Available, : Lieferzeit 1-2 Werktage

$17.96*
1 Paar Sicherheitsketten fuer Gitterroste MW 30-10 mm aus St37- feuerverzinkt-26-S-KETTE3010.7 1 Paar Sicherheitsketten fuer Gitterroste MW 30-10 mm aus St37- feuerverzinkt-26-S-KETTE3010.7
Paar
26.S-KETTE3010.7
1 pair of safety chains for MW 30/10 mm grating made from St37 steel, hot-dip galvanised
Safety chains | 1 pair | for grating with mesh size 30/10 mm | made of St37, hot-dip galvanised [ Technical details ] made of St37, hot-dip galvanised [ Specific details ] consisting of two chains, each 700 mm long, with mounting brackets, fixing brackets, screws, dowels and split pins [ Further specific details ] for mesh size: 30/10 mm

Available, : Lieferzeit 1-2 Werktage

$31.40*
Oberteil fuer MW 30-10 mit Bohrung fuer M8 aus St37- feuerverzinkt-26-OBERTEIL3010.7
Stk
26.OBERTEIL3010.7
Top section for MW 30/10 with M8 hole, made from St37 steel, hot-dip galvanised
Top section / grating clamp | for MW 30/10 mm | made from S235JR / ST37 – hot-dip galvanised [ Technical details ] made from S235JR / ST37 - hot-dip galvanised [ Specific details ] is tensioned over 2 infill bars; max. infill bar spacing 12 mm; with hole for M8 screw

Available, : Lieferzeit 1-2 Werktage

$0.86*
Schraubenset fuer Gitterroststufen M12x30 mm aus St37- feuerverzinkt-13-M1230SET.7
Stk
13.M1230SET.7
Set of bolts for grating steps, M12x30 mm, made of St37 steel, hot-dip galvanised
Screw set for grating steps | with M12x30 mm hexagon head screw | made from St37, hot-dip galvanised [ Technical details ] made of St37, hot-dip galvanised [ Specific details ] comprising: 1 x hexagon bolt M12x30 mm; 1 x hexagon nut M12; 2 x washers

Available, : Lieferzeit 1-2 Werktage

$4.76*
