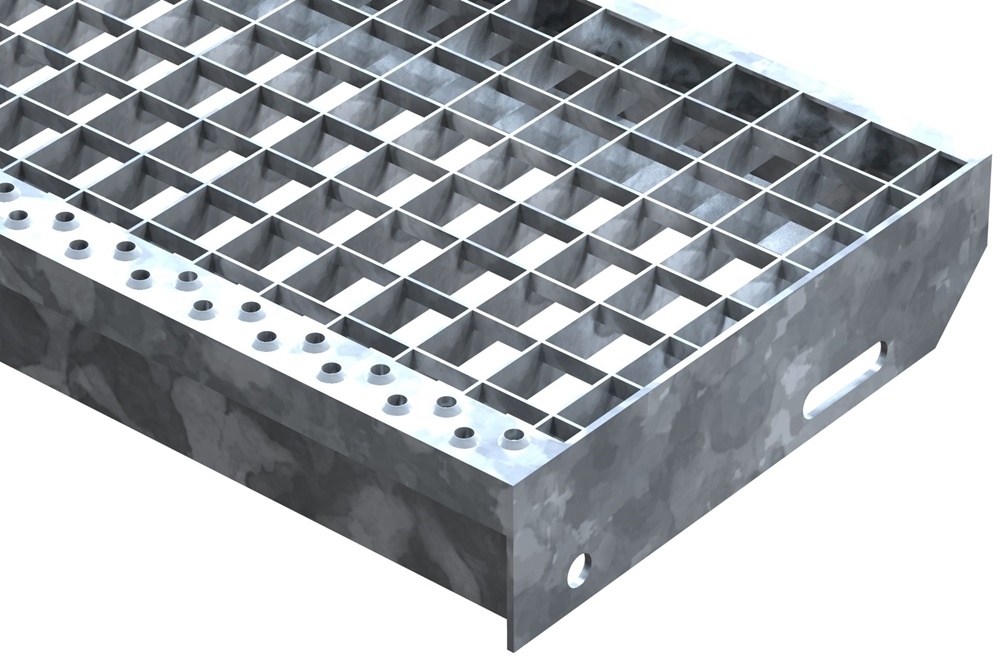

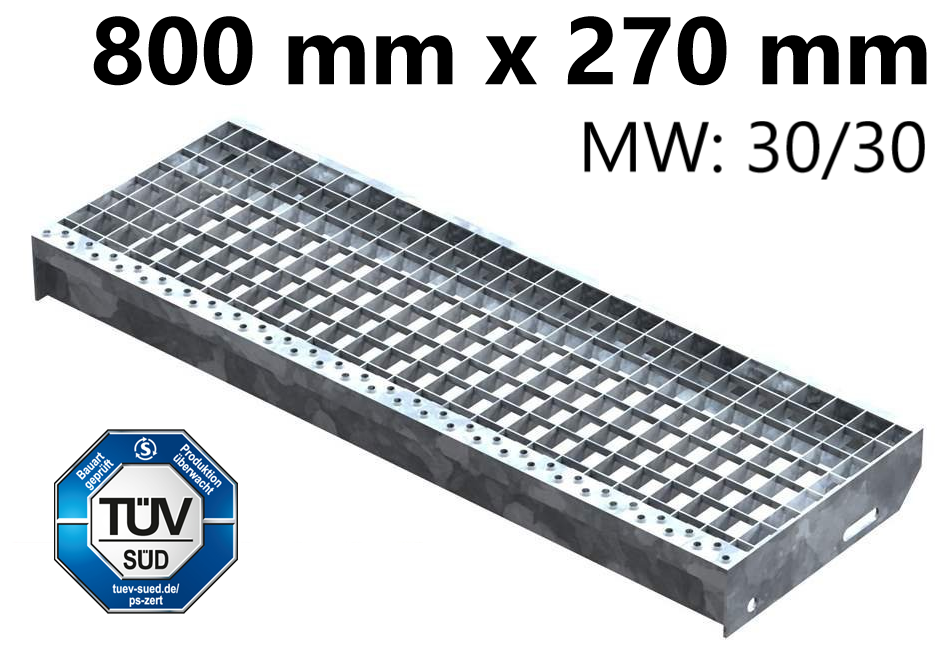

Grating stair tread, dimensions: 800 x 270 mm, 30/30 mm, S235JR (St37-2), hot-dip galvanised

Skip the photo gallery
Gitterroststufe Treppenstufe Masse- 800x270 mm 30-30 mm S235JR -St37-2- im Vollbad feuerverzinkt-40-802730.7
Gitterroststufe Treppenstufe Masse- 800x270 mm 30-30 mm S235JR -St37-2- im Vollbad feuerverzinkt-40-802730.7
Gitterroststufe Treppenstufe Masse- 800x270 mm 30-30 mm S235JR -St37-2- im Vollbad feuerverzinkt-40-802730.7
Gitterroststufe Treppenstufe Masse- 800x270 mm 30-30 mm S235JR -St37-2- im Vollbad feuerverzinkt-40-802730.7
Gitterroststufe Treppenstufe Masse- 800x270 mm 30-30 mm S235JR -St37-2- im Vollbad feuerverzinkt-40-802730.7
Gitterroststufe Treppenstufe Masse- 800x270 mm 30-30 mm S235JR -St37-2- im Vollbad feuerverzinkt-40-802730.7
Gitterroststufe Treppenstufe Masse- 800x270 mm 30-30 mm S235JR -St37-2- im Vollbad feuerverzinkt-40-802730.7
Gitterroststufe Treppenstufe Masse- 800x270 mm 30-30 mm S235JR -St37-2- im Vollbad feuerverzinkt-40-802730.7
Gitterroststufe Treppenstufe Masse- 800x270 mm 30-30 mm S235JR -St37-2- im Vollbad feuerverzinkt-40-802730.7
Gitterroststufe Treppenstufe Masse- 800x270 mm 30-30 mm S235JR -St37-2- im Vollbad feuerverzinkt-40-802730.7
Gitterroststufe Treppenstufe Masse- 800x270 mm 30-30 mm S235JR -St37-2- im Vollbad feuerverzinkt-40-802730.7
Gitterroststufe Treppenstufe Masse- 800x270 mm 30-30 mm S235JR -St37-2- im Vollbad feuerverzinkt-40-802730.7

$63.60*

Prices include VAT, plus delivery charges

Available now, delivery time: Lieferzeit 1-2 Werktage

Stk
Lagerbestand: 162
Product number: 40.802730.7
EAN: 4251412917936
Gewicht: 4.91 kg
20,000 items in stock
CAD data available after login
Over 200,000 satisfied customers
Worldwide delivery
Description

Product information "Grating stair tread, dimensions: 800 x 270 mm, 30/30 mm, S235JR (St37-2), hot-dip galvanised"

XSL grating step | Dimensions: 800 x 270 mm, 30/30 mm | S235JR (St37-2), hot-dip galvanised in accordance with DIN EN ISO 1461

[ Technical details ] Made from S235JR (St37-2), hot-dip galvanised in accordance with DIN EN ISO 1461
[ Specific details ] Depth (support bar direction): 270 mm; Width (cross bar direction): 800 mm; Mesh size: 30/30 mm; Support bar: 20/1.5 mm

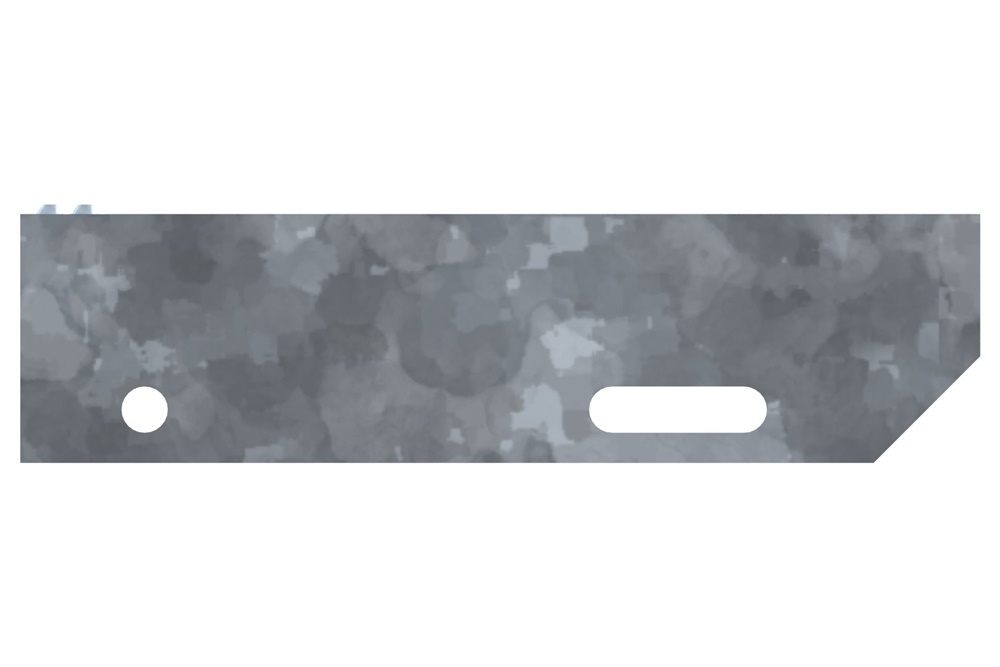

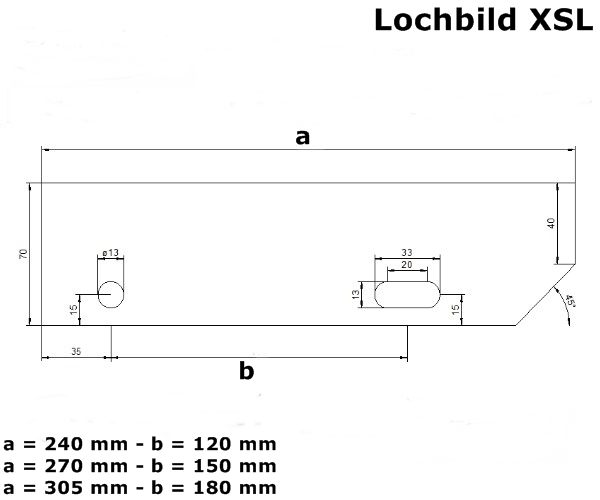

[ Further specific details ] Slip resistance class: R11; with flanges and toe-up edge; drilling in accordance with DIN 24531
[ Certificate ] Load capacity in accordance with DIN 1055-3: 2.0 kN on a 50x50 mm² load cube or 5.00 kN/m²; Suitable for escape staircases in accordance with DIN 1055-3 (categories T1 and T2)
[ Application note ] Note: Due to hot-dip galvanising, galvanising residues may remain in the mesh!; Suitable for access to industrial and machinery installations in accordance with DIN 24531-1 or DIN EN ISO 14122-13

Eigenschaften
Breite: 800mm
Maschenweite | Steps | Drahtgewebe: 30/30mm
Rutschhemmung | Steps: R11
Stufenbreite | Steps | Stufenlänge: 800mm
Stufentiefe | Steps | Auftritt : 270mm
Skip the product gallery

Accessories

Sicherheitsketten fuer Gitterroste fuer MW 30-30 30-10 34-38 mm aus Stahl- feuerverzinkt- 1 Paar-26-S-KETTE-M.7 Sicherheitsketten fuer Gitterroste fuer MW 30-30 30-10 34-38 mm aus Stahl- feuerverzinkt- 1 Paar-26-S-KETTE-M.7
Stk
26.S-KETTE-M.7
Safety chains for grating, suitable for MW 30/30, 30/10 and 34/38 mm, made of steel, hot-dip galvanised, 1 pair
Safety chains | 1 pair | for grating with 30/30 mm mesh, and more | made from St37, hot-dip galvanised [ Technical details ] made from St37, hot-dip galvanised [ Specific details ] consisting of two chains, each 800 mm long, with mounting brackets, screws and wall plugs [ Further specific details ] for mesh sizes: 30/30 mm | 34/38 mm | 30/10 mm

Available, : Lieferzeit 1-2 Werktage

$17.96*
1 Paar Sicherheitsketten fuer Gitterroste MW 30-30 mm aus St37 feuerverzinkt-26-S-KETTE.7 1 Paar Sicherheitsketten fuer Gitterroste MW 30-30 mm aus St37 feuerverzinkt-26-S-KETTE.7
Paar
26.S-KETTE.7
1 pair of safety chains for MW 30/30 mm grating made from St37 hot-dip galvanised steel
Safety chains | 1 pair | for grating with 30/30 mm mesh, and more | made from St37, hot-dip galvanised [ Technical details ] made from St37, hot-dip galvanised [ Specific details ] consisting of two chains, each 700 mm long, with mounting brackets, mounting brackets, split pins, screws and dowels [ Further specific details ] for mesh sizes: 20/20 – 20/50 mm | 30/20 – 30/60 mm | 40/30 – 40/60 mm

Available, : Lieferzeit 1-2 Werktage

$29.92*
Schwalbenlasche MW 30-30 mm Stahl- feuerverzinkt-26-SCHWALBEN.7 Schwalbenlasche MW 30-30 mm Stahl- feuerverzinkt-26-SCHWALBEN.7
Stk
26.SCHWALBEN.7
Swallow-tail bracket, 30/30 mm, steel, hot-dip galvanised
Swallow-tail bracket | loose | for MW 30/30 mm | made from S235JR / ST37 – hot-dip galvanised [ Technical details ] made from S235JR / ST37 - hot-dip galvanised [ Specific details ] Standard top section for 33/34 mm spacing; minimum crossbar spacing 27 mm; use of M8 hexagon head bolts – DIN 933 for assembly [ further specific details ] crossbar thickness for 33.33 mm crossbar spacing: 2 to 4 mm; crossbar thickness for 34.33 mm crossbar spacing: 2 to 5 mm

Available, : Lieferzeit 1-2 Werktage

$0.86*
Schraubenset fuer Gitterroststufen M12x30 mm aus St37- feuerverzinkt-13-M1230SET.7
Stk
13.M1230SET.7
Set of bolts for grating steps, M12x30 mm, made of St37 steel, hot-dip galvanised
Screw set for grating steps | with M12x30 mm hexagon head screw | made from St37, hot-dip galvanised [ Technical details ] made of St37, hot-dip galvanised [ Specific details ] comprising: 1 x hexagon bolt M12x30 mm; 1 x hexagon nut M12; 2 x washers

Available, : Lieferzeit 1-2 Werktage

$4.76*
