Glass clamp ABZ 65x45x28 mm, flat, ZAMAK | die-cast zinc, for 10.76 mm laminated safety glass, No | without retaining pin
Anschluss:
Flach
Glasklemme AbZ Sicherungsstift:
Nein | Ohne Sicherungsstift
Gummi:
für 10,76 mm VSG Glas
Werkstoff:
ZAMAK | Zinkdruckguss
$11.48*
Available now, delivery time: Lieferzeit 1-2 Werktage
Lagerbestand:
1960
Product number:
10.MODELL32.1.4.11.1
EAN:
4251412971600
Gewicht:
0.29 kg
Description
Product information "Glass clamp ABZ 65x45x28 mm, flat, ZAMAK | die-cast zinc, for 10.76 mm laminated safety glass, No | without retaining pin"
High-quality products for indoor and outdoor use | With general building approval!

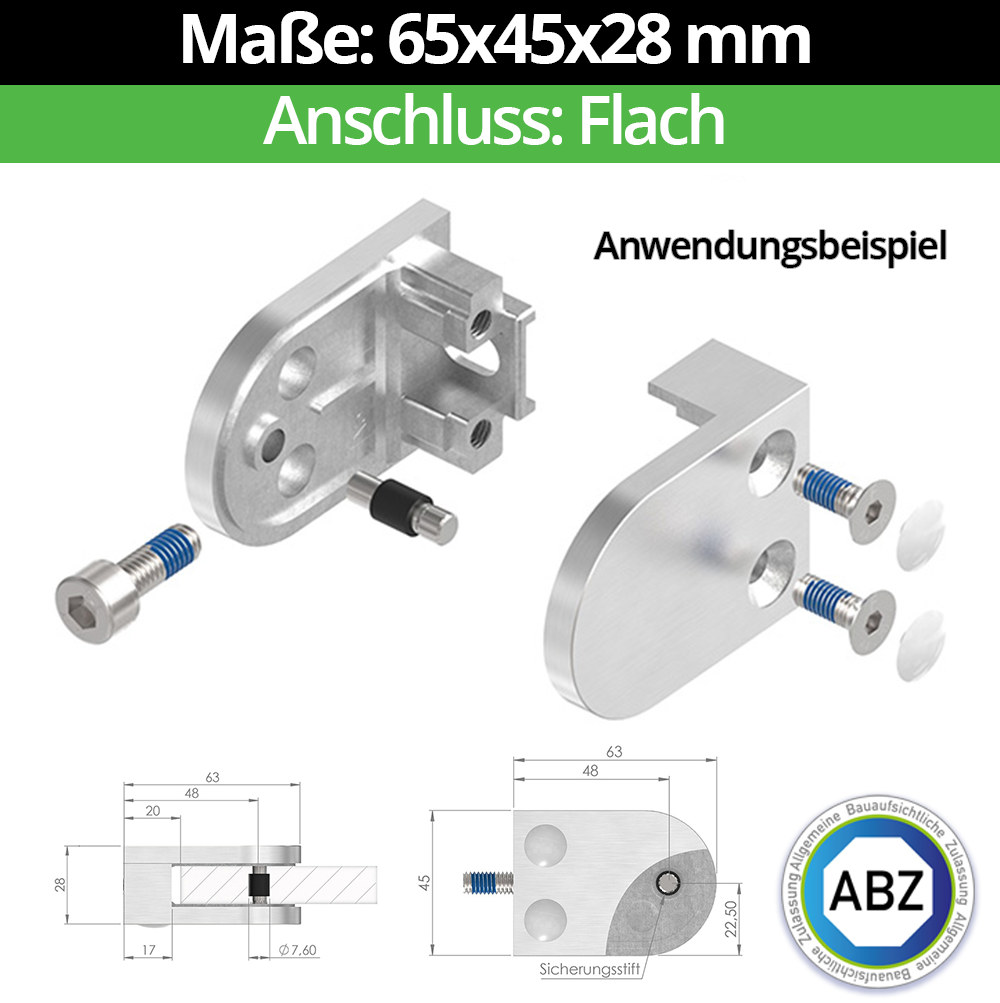

Glass clamp 63x45x28 mm AbZ for flat connection | Ø 33.7 mm | Ø 42.4 mm | Ø 48.3 mm | Ø 60.3 mm Made from V2A stainless steel | V4A | Die-cast zinc | Stainless steel finishModel 32 AbZ Dimensions: 63x45x28 mm With general building approval , including M8 x 20 fixing screw, M6 x 16 clamping screws and cover plates Suitable for indoor and outdoor use
Eigenschaften
| Form: | Ø Rund |
|---|
