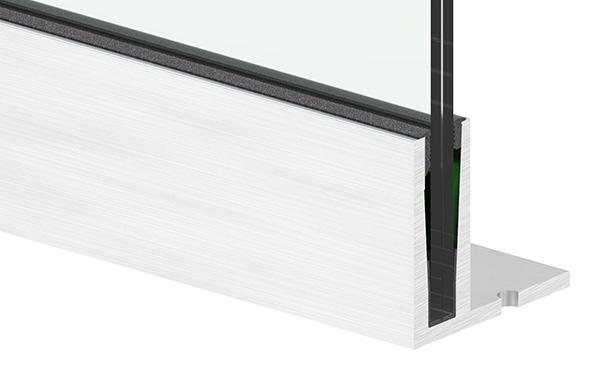

Aluminium profile | SOLID | Length: 6000 mm | Surface-mounted | Aluminium

FeNau Ltd

$1,787.12*

Prices include VAT, plus delivery charges

Stk

Product number: 12.2207.6

EAN: 4251412940620

Länge: 6000 mm

Gewicht: 54.8 kg

20,000 items in stock

CAD data available after login

Over 200,000 satisfied customers

Worldwide delivery

Product information "Aluminium profile | SOLID | Length: 6000 mm | Surface-mounted | Aluminium"

Aluminium profile | SOLID | Length: 6000 mm | Surface-mounted | Aluminium

[ Technical details ] Stainless steel finish, anodised E4/EV1, 20 µm coating thickness
[ Specific details ] For glass: 12.76–21.52 mm; Length: 6000 mm; for rail load: 0.5–3.0 kN; maximum glass height: 1100 mm; for pitches up to max. 41°
[ further specific details ] Class 20 DIN 17611 for external use; profile weight per running metre: 9.14 kg
[ Certificate] A structural analysis and a building authority test certificate are available for

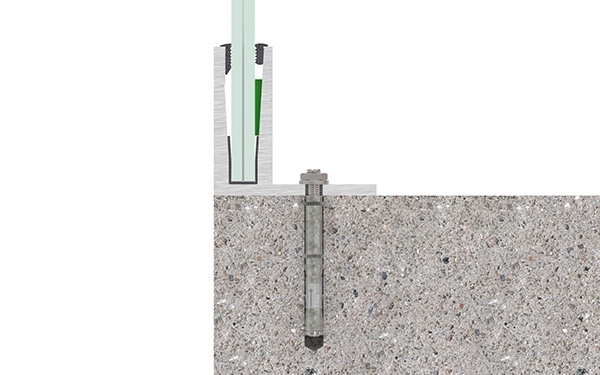

this profile[ Application ] Installation is carried out using the drill holes in the profile

Länge:	6000 mm
Versand Gurtmasspflichtig:	Nein

Accessories

Gummiset fuer Aluprofil 20-76-21-52mm-88-1180502-GU.6M

Stk

88.1180502.GU.6M

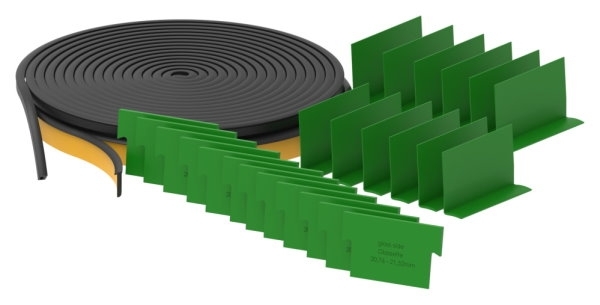

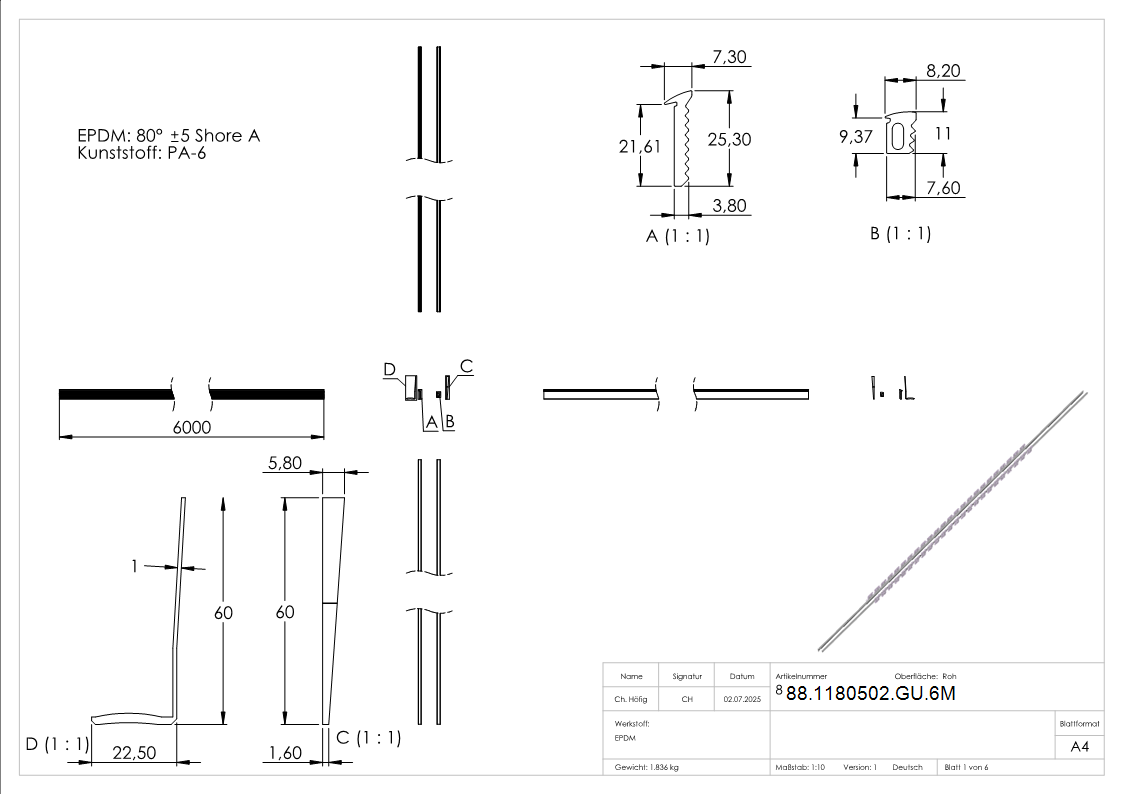

Rubber set for aluminium profiles 20.76–21.52 mm

Rubber set for 6 metres of aluminium profile, for glass thicknesses: 20.76–21.52 mm, comprising: 20 rubber spacers, 24 wedges (green), and 6 running metres each of end seal.

Available, : Lieferzeit 1-2 Werktage

$239.78*

Gummiset - fuer Glas- 12-76-13-52 mm - Laenge- 3000 mm-12-2220.0

Stk

12.2220.0

Rubber seal set | for glass: 12.76–13.52 mm | Length: 3000 mm

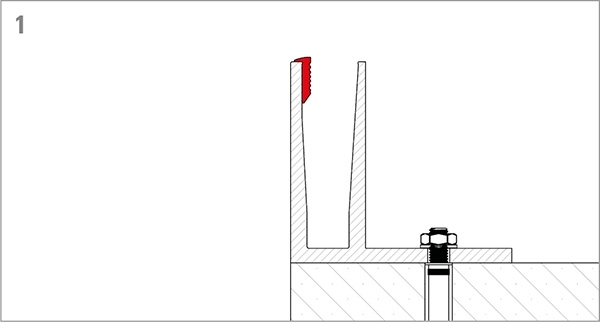

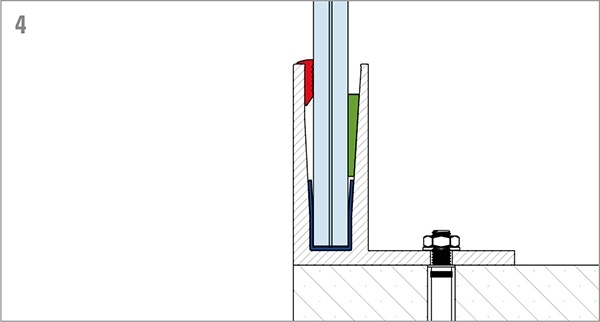

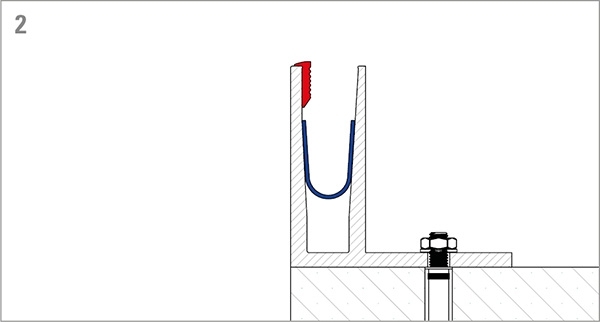

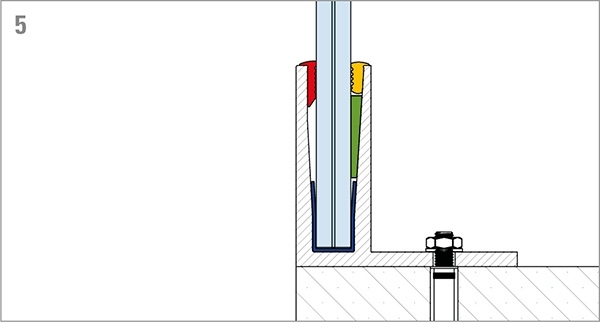

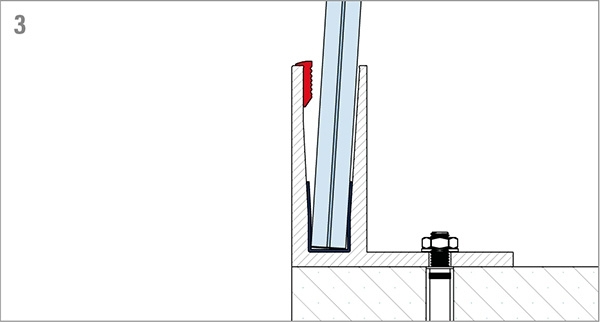

Rubber set | for glass: 12.76–13.52 mm | Length: 3000 mm[ Specific details ] Length: 3000 mm; for glass thickness: 12.76–13.52 mm; 10x rubber spacers; 12x wedges (colour = red)[ Application ] Place the rubber spacers on the profile to the appropriate length or according to the number of panes. Then position the pane (as you do so, the rubber spacers are automatically pressed into the aluminium profile in a ‘U’ shape) and insert the thin end seal into the profile, securing it by pressing the pane against it. Now align the pane using the wedges and, to finish, insert the thicker end seals between the glass and the profile.

Available, : Lieferzeit 1-2 Werktage

$124.12*

Gummiset - fuer Glas- 16-76-17-52 mm - Laenge- 6000 mm-12-2221.6

Stk

12.2221.6

Rubber seal set | for glass: 16.76–17.52 mm | Length: 6000 mm

Rubber set | for glass: 16.76–17.52 mm | Length: 6000 mm[ Specific details ] Length: 6000 mm; for glass thickness: 16.76–17.52 mm; 20x rubber spacers; 24x wedges (colour = yellow)[ Application ] Place the rubber spacers on the profile to the appropriate length or according to the number of panes. Then position the pane (as you do so, the rubber spacers are automatically pressed into the aluminium profile in a ‘U’ shape) and insert the thin end seal into the profile, securing it by pressing the pane against it. Now align the pane using the wedges and, to finish, insert the thicker end seals between the glass and the profile.

Available, : Lieferzeit 1-2 Werktage

$239.78*

Endkappe - fuer Ganzglasgelaender - Masse- 118-5x46-5x1-5 mm - Aluminium-12-3067.6

Stk

12.3067.6

End cap | for all-glass balustrades | Dimensions: 118.5 x 46.5 x 1.5 mm | Aluminium

End cap | for all-glass balustrades | Dimensions: 118.5 x 46.5 x 1.5 mm | Aluminium[ Technical details ] Stainless steel finish, anodised E4/EV1[ Specific details ] Dimension A: 118.5 mm; Dimension B: 46.5 mm; Dimension C: 1.5 mm[ Application ] Adhere to the side of the aluminium profile

Available, : Lieferzeit 1-2 Werktage

$18.00*

Gummiset - fuer Glas- 20-76-21-52 mm - Laenge- 3000 mm-12-2222.6

Stk

12.2222.6

Rubber seal set | for glass: 20.76–21.52 mm | Length: 3000 mm

Rubber set | for glass: 20.76–21.52 mm | Length: 3000 mm[ Specific details ] Length: 3000 mm; for glass thickness: 20.76–21.52 mm; 20x rubber spacers; 24x wedges (colour = yellow)[ Application ] Place the rubber spacers on the profile to the appropriate length or according to the number of panes. Then position the pane (as you position it, the rubber spacers are automatically pressed into the aluminium profile in a ‘U’ shape) and insert the thin end seal into the profile, securing it by pressing the pane against it. Now align the pane using the wedges and, to finish, insert the thicker end seals between the glass and the profile.

Available, : Lieferzeit 1-2 Werktage

$97.32*

Abdichtkeil - fuer Alu-Profil - Laenge- 1000 mm-12-2224.1000

Stk

12.2224.1000

Sealing wedge | for aluminium profile | Length: 1000 mm

Sealing wedge | for aluminium profile | Width: 1000 mm[ Specific details ] Length: 1000 mm[ Application ] For covering all-glass balustrades, e.g. on staircases

Available, : Lieferzeit 1-2 Werktage

$50.76*

Endkappe - fuer Ganzglasgelaender - fuer Schraege bis 41° - Masse- 157x46-5x1-5 mm - Aluminium-12-3065.6

Stk

12.3065.6

End cap | for all-glass balustrades | for slopes up to 41° | Dimensions: 157 x 46.5 x 1.5 mm | Aluminium

End cap | for all-glass balustrades | for slopes up to 41° | Dimensions: 157 x 46.5 x 1.5 mm | Aluminium[ Technical details ] Stainless steel finish, anodised E4/EV1[ Specific details ] For slopes: 41°; Dimension A: 157 mm; Dimension B: 46.5 mm; Dimension C: 1.5 mm[ Application ] Adhere to the side of the aluminium profile

Available, : Lieferzeit 1-2 Werktage

$21.02*

Abdichtkeil - fuer Alu-Profil - Staerke- 10 mm-12-2224.0

Stk

12.2224.0

Sealing wedge | for aluminium profile | Thickness: 10 mm

Sealing wedge | for aluminium profiles | Thickness: 10 mm[ Specific details ] Thickness: 10 mm[ Application ] For sealing the gap between pane joints

Available, : Lieferzeit 1-2 Werktage

$4.90*

Abdichtkeil - fuer Alu-Profil - Staerke- 4 mm-12-2223.0

Stk

12.2223.0

Sealing wedge | for aluminium profile | Thickness: 4 mm

Sealing wedge | for aluminium profiles | Thickness: 4 mm[ Specific details ] Thickness: 4 mm[ Application ] For sealing the gap between pane joints

Available, : Lieferzeit 1-2 Werktage

$4.04*

Montagewerkzeug - fuer Ganzglasgelaender-12-4050.0

Stk

12.4050.0

Installation tool | for all-glass balustrades

Installation tool | for all-glass balustrades [ Application ] for driving in wedges; removing wedges; fitting the end seal

Available, : Lieferzeit 1-2 Werktage

$79.40*
