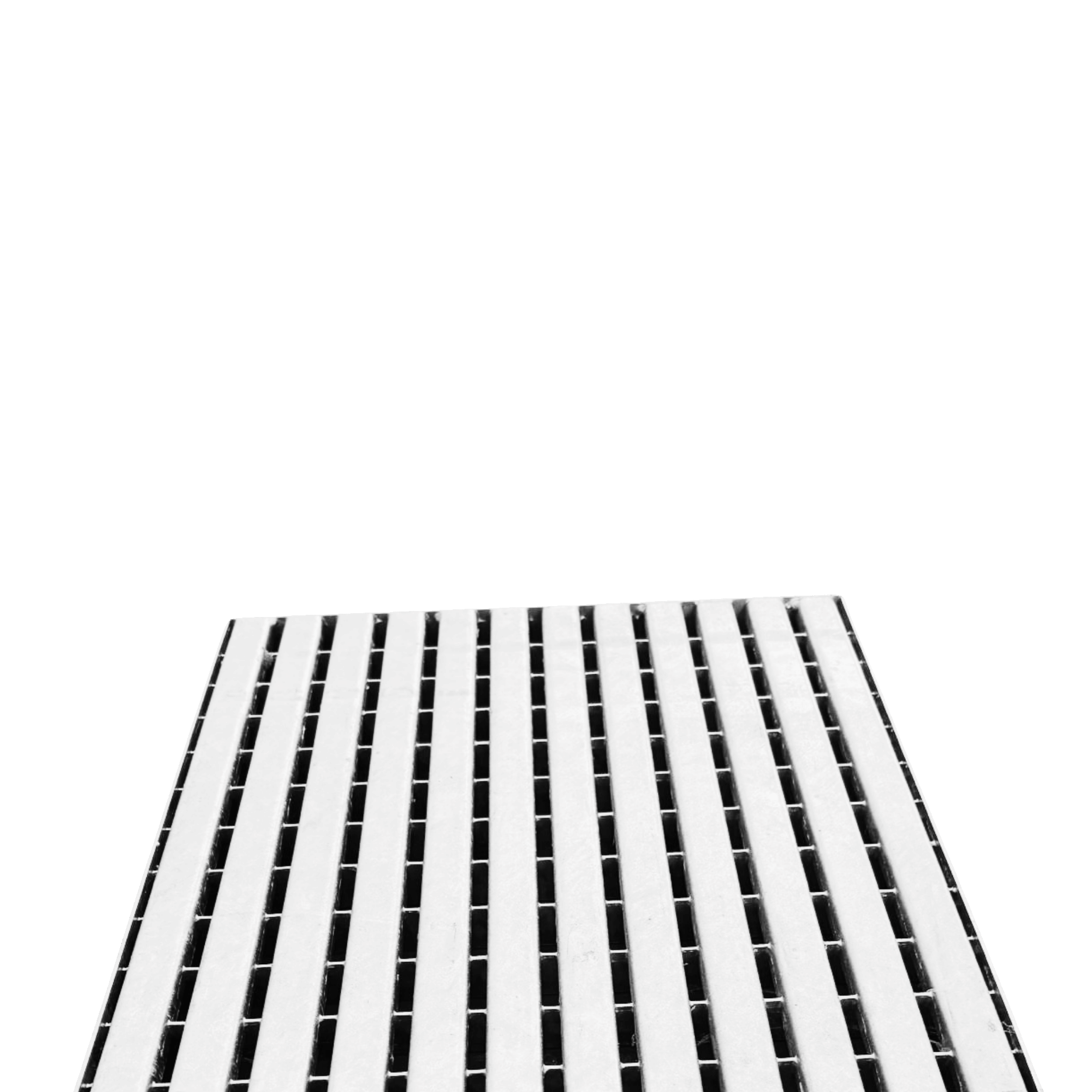

Boat jetty grating dimensions: 490 x 990 x 25 mm, hot-dip galvanised
$183.18*
Available now, delivery time: Lieferzeit 1-2 Werktage
Product information "Boat jetty grating dimensions: 490 x 990 x 25 mm, hot-dip galvanised"
Made from S235JR (St37-2), hot-dip galvanised
with flat bar edging
Length (support bar direction): 490 mm
Width (filler or U-profile direction): 990 mm
Grating height: 25 mm
Support bar (height/material thickness): 25/2 mm
Weight: 11.36 kg
Point load on 100 mm² load cube 1.67 kN (167 kg)
Product note: Hot-dip galvanising is intended for corrosion protection and is not a surface finishing process. Due to the nature of the process, irregularities may occur in the zinc coating.
Galvanising in accordance with DIN EN ISO 1461
| Höhe: | 25 mm |
|---|---|
| Länge: | 490 mm |
| Versand Gurtmasspflichtig: | Nein |
| Breite: | 990 mm |
