Handrail bracket with clip rosette; handrail for welding, V2A
$8.92*
Available now, delivery time: Lieferzeit 1-2 Werktage
Lagerbestand:
6050
Product number:
11.2079-A.4
EAN:
4067014019868
Gewicht:
0.24 kg
Description
Product information "Handrail bracket with clip rosette; handrail for welding, V2A"

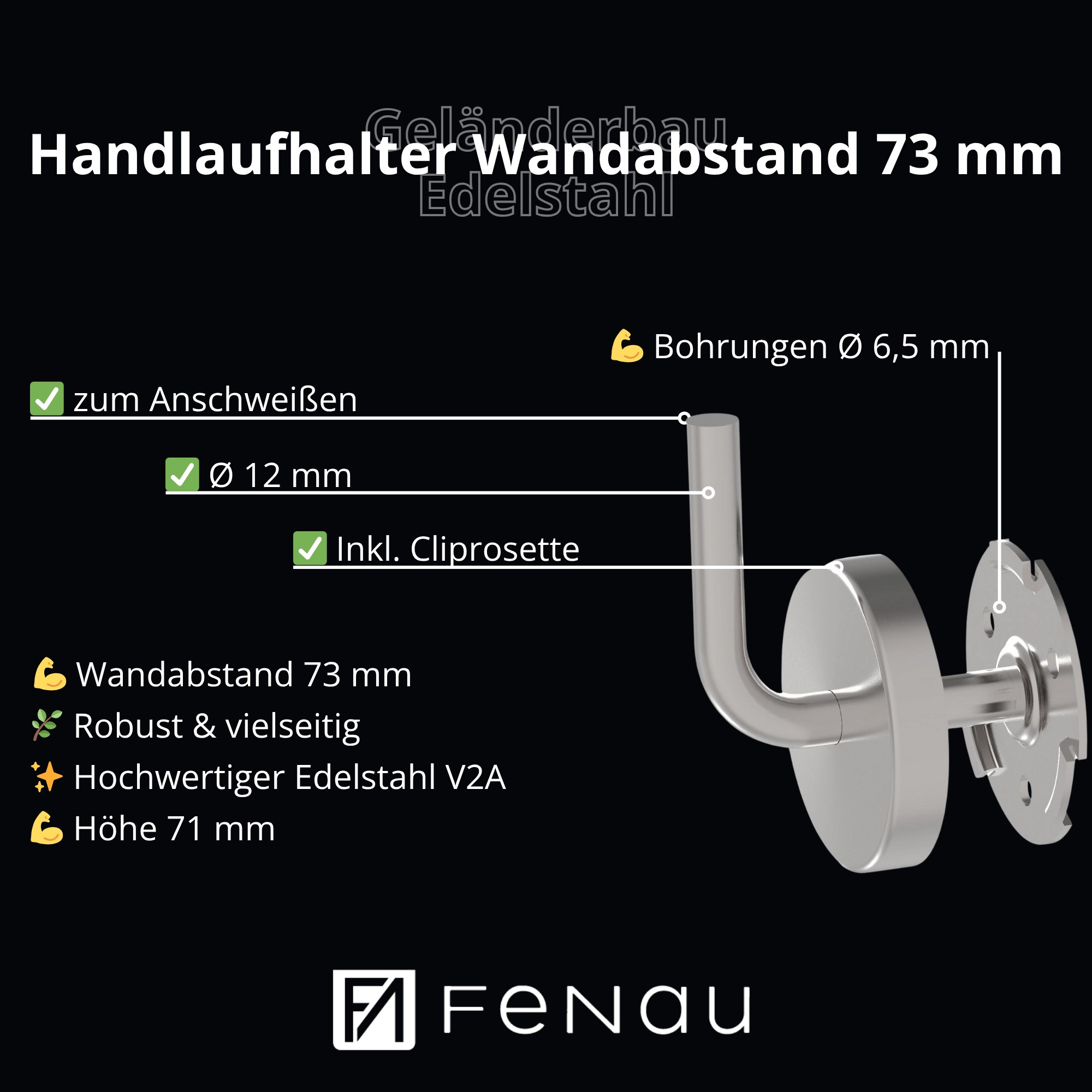

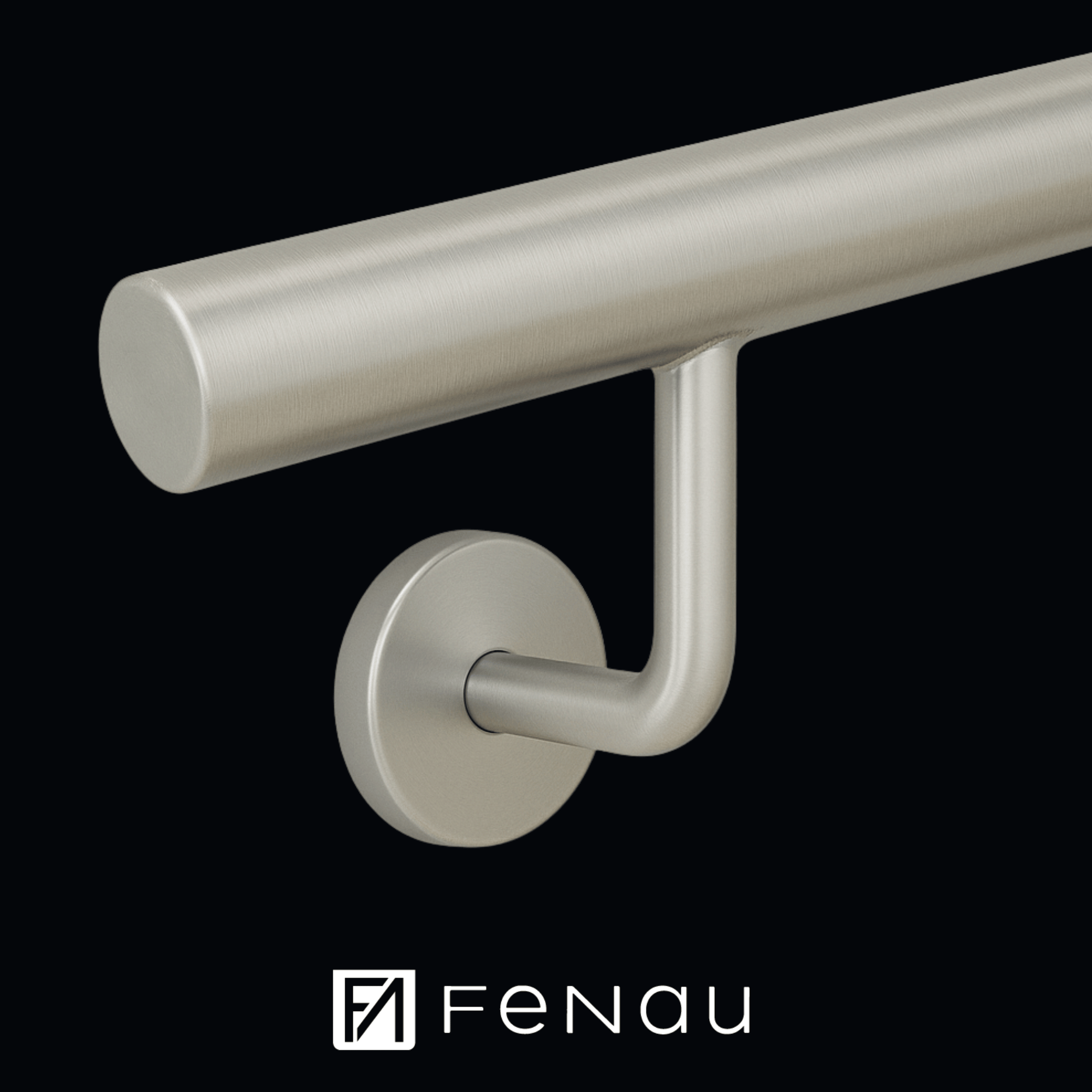

Handrail bracket with clip rosette – for welding | V2A stainless steel
High-quality handrail bracket made from V2A stainless steel (1.4301 / AISI 304), ideal for modern balustrade systems. The bracket is fitted with a practical clip rosette and is designed to be welded to the handrail – sturdy, durable and elegantly designed.
Product details:
- Material: V2A stainless steel / 1.4301 / AISI 304
- Surface: Matt stainless steel (polished)
- Installation: For welding
- Clip rosette: Ø 70 mm, height 14 mm, thickness 2.0 mm, with 3 holes (⌀ 6.5 mm)
- Bracket: Round bar Ø 12 mm, permanently welded to the disc
Dimensions:
- Distance from wall (dimension b, centre): 73 mm
- Height to handrail support (dimension H, centre): 71 mm
Ideal for use indoors and in covered outdoor areas. The Cliprosette ensures a neat finish for wall mounting and an aesthetically pleasing overall appearance.
Eigenschaften
| Form: | inkl. Abdeckrosette |
|---|---|
| Wandabstand Mitte-Handlauf: | 73 mm |
| Werkstoff: | V2A (1.4301) |
| Ø Für Rohr | Ø Außendurchmesser | Ø Anschluss: | Schweißen |
