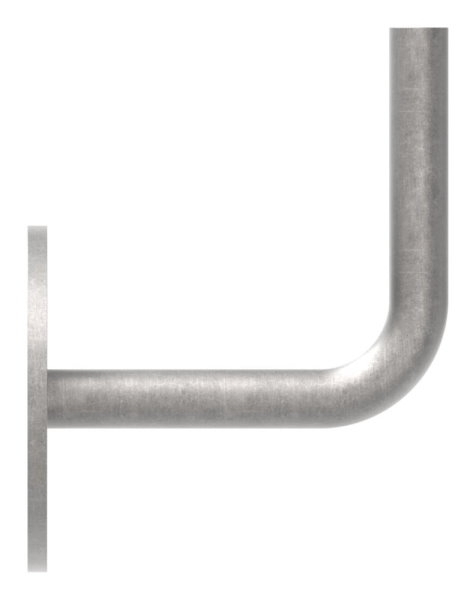

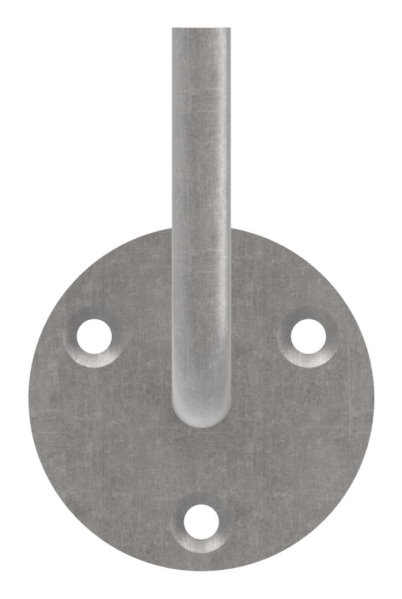

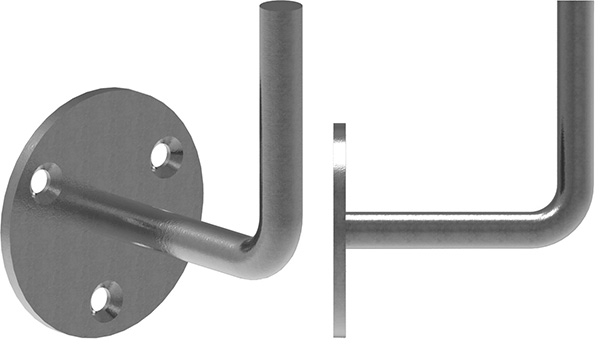

Handrail bracket | with 70x4 mm flange | for welding | S235JR steel, untreated
$8.06*
Available now, delivery time: Lieferzeit 1-2 Werktage
Lagerbestand:
2862
Product number:
30.1418.8
EAN:
4251412945120
Gewicht:
0.24 kg
Description
Product information "Handrail bracket | with 70x4 mm flange | for welding | S235JR steel, untreated"
Handrail bracket | with 70x4 mm flange | for welding | S235JR steel, untreated
[ Technical details ] S235JR steel, raw
[ Specific details ] with 3 countersunk holes, bracket and disc welded together, for welding on, raw steel

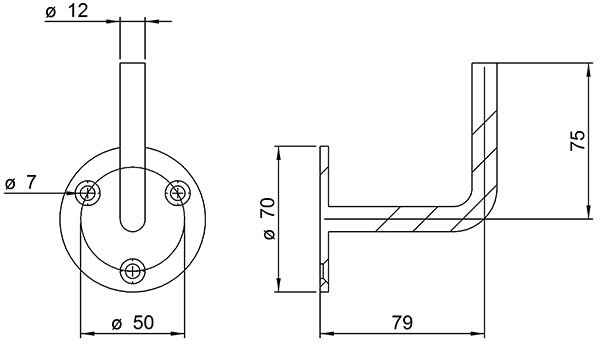

[ Further specific details ] Disc: 70 x 4 mm with 3 countersunk holes Ø 7 mm; Bracket: 12 mm; bracket welded to disc; distance from wall to centre of bracket: approx. 79 mm
[ Application ] Position the handrail bracket at the desired location and secure it using suitable screws (not included)
Eigenschaften
| Anzahl Bohrungen: | 3 gesenkt |
|---|---|
| Bohrung Ø in mm: | 7 mm |
| Wandabstand Mitte-Handlauf: | 79 mm |
| Werkstoff: | S235JR (ST37), roh |
