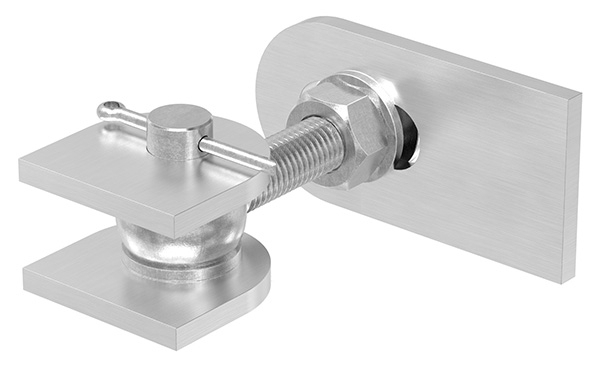

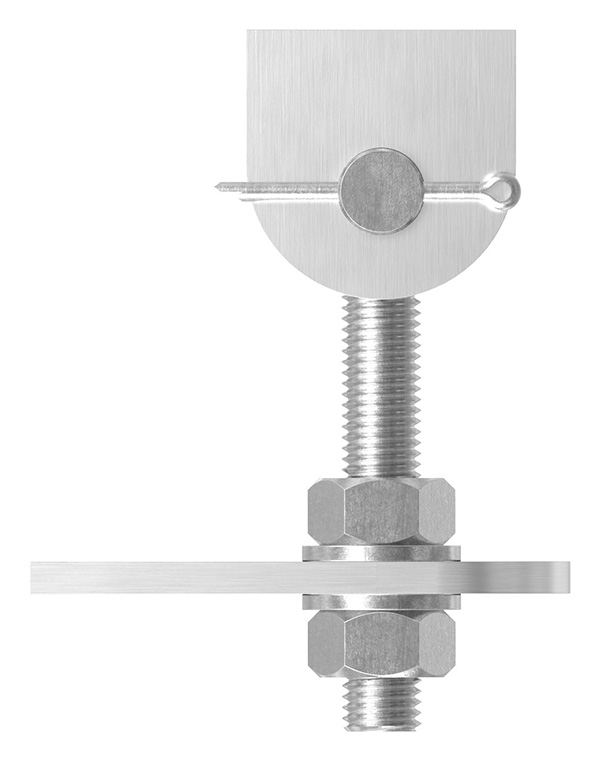

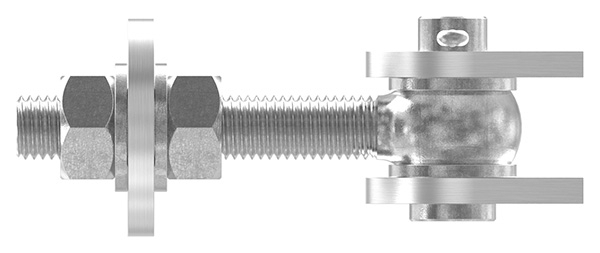

Door hinge | M16 | 180° | adjustable | V2A
FeNau Ltd
$66.50*
Available now, delivery time: Lieferzeit 1-2 Werktage
Lagerbestand:
221
Product number:
11.3591.4
EAN:
4251412910548
Gewicht:
0.84 kg
Description
Product information "Door hinge | M16 | 180° | adjustable | V2A"
Door hinge | M16 | 180° | adjustable | V2A
[ Technical details ] Made of AISI 304 or 1.4301 stainless steel – 240-grit finish

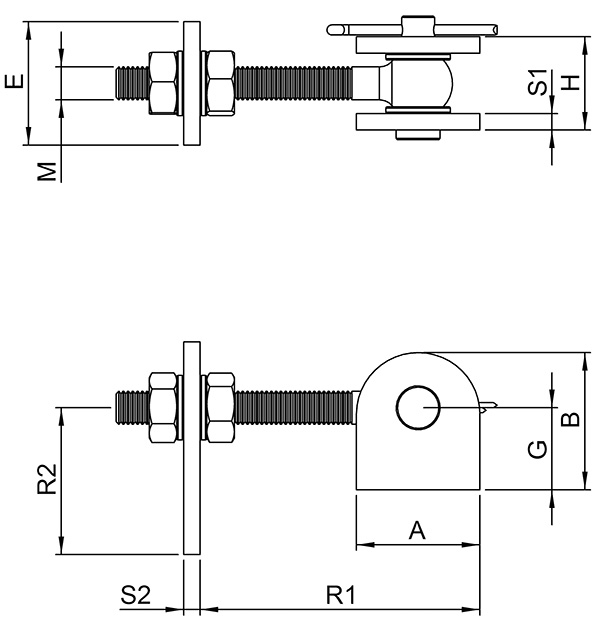

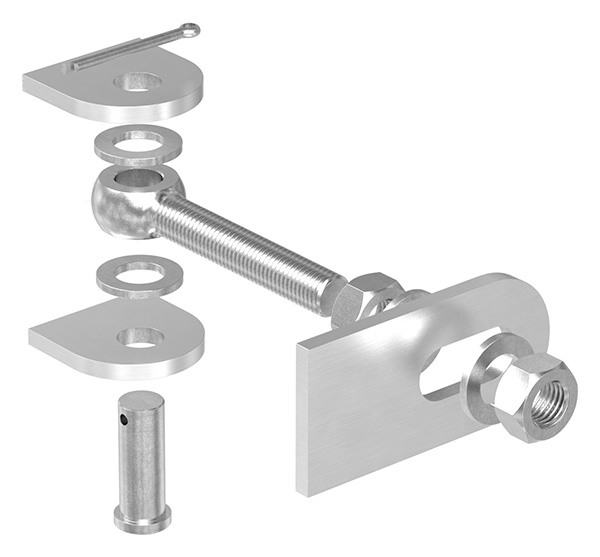

[ Specific details ] Bolt with split pin; Dimension 1: 50 mm; Dimension 2: 50 mm; Dimension 3: 30 mm; Dimension 4: 6 mm; Dimension 5: 50 mm; Dimension 6: 35 mm; Dimension 7: 24 mm; Diameter: 16 mm; Dimension V1: 53–77 mm; Dimension V2: 40–110 mm; M: M16
Eigenschaften
| Gewinde : | M16 |
|---|---|
| Versand Gurtmasspflichtig: | Nein |
| Werkstoff: | V2A |
