Door hinge | M20 | 180° | adjustable | V2A
FeNau Ltd
$81.18*
Available now, delivery time: Lieferzeit 1-2 Werktage
Lagerbestand:
65
Product number:
11.3592.4
EAN:
4251412910555
Gewicht:
1.7 kg
Description
Product information "Door hinge | M20 | 180° | adjustable | V2A"

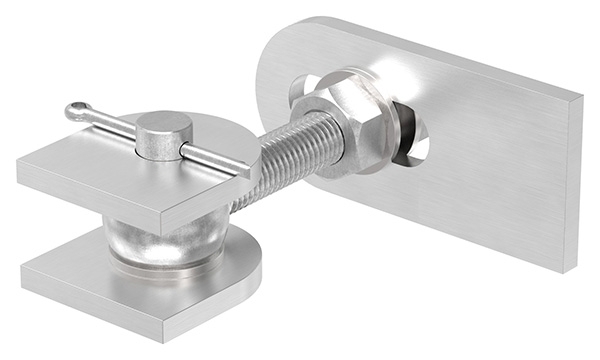

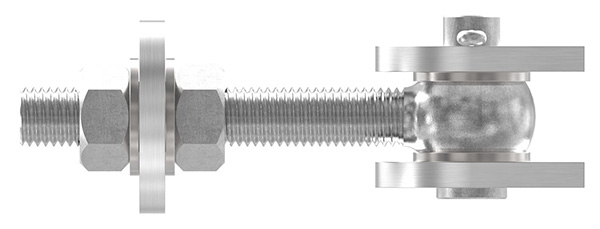

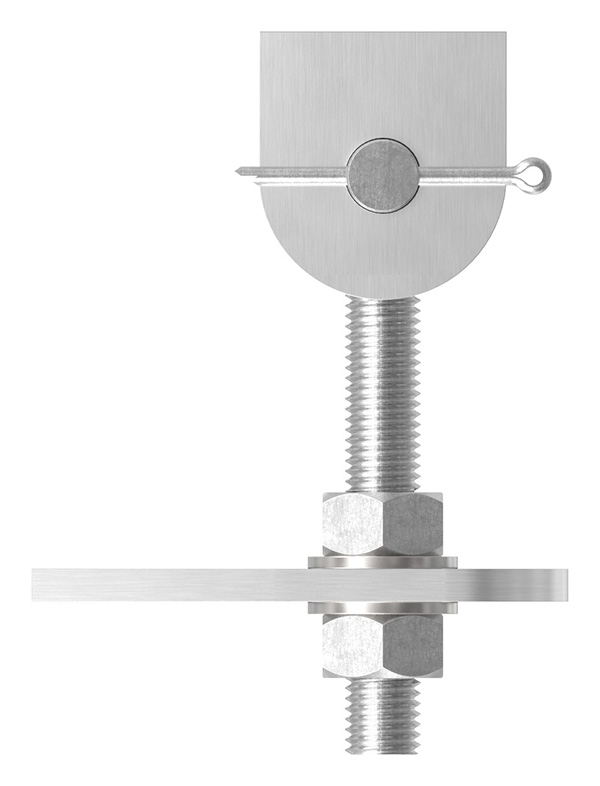

Door hinge | M20 | 180° | adjustable | V2A
[ Technical details ] Made of AISI 304 or 1.4301 stainless steel – 240-grit finish

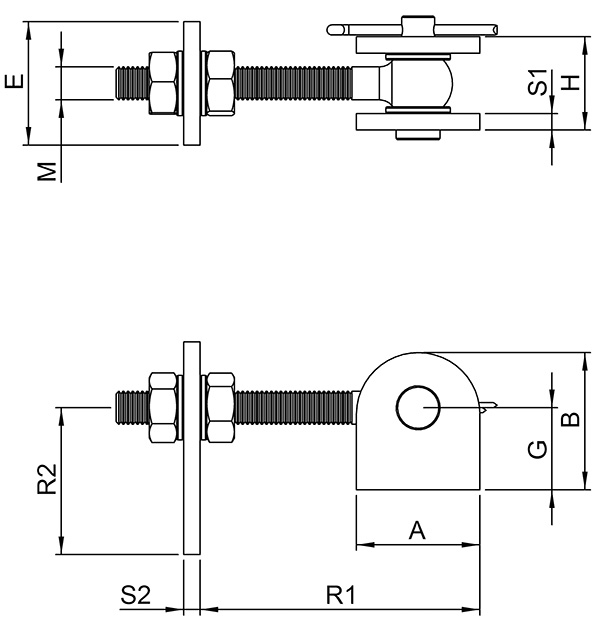

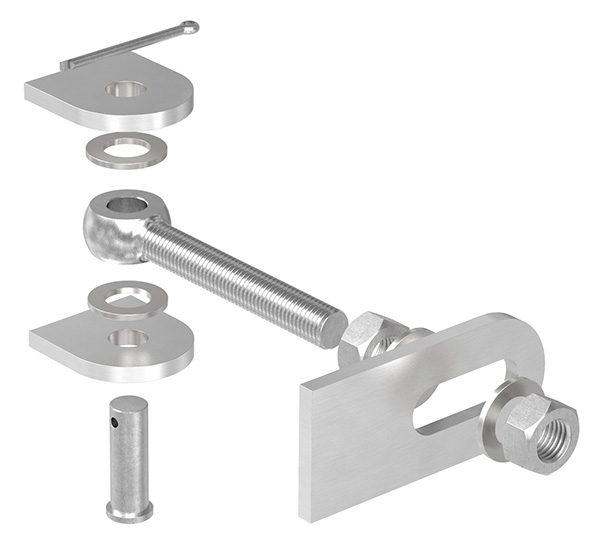

[ Specific details ] Bolt with split pin; Dimension 1: 60 mm; Dimension 2: 65 mm; Dimension 3: 35 mm; Dimension 4: 8 mm; Dimension 5: 60 mm; Dimension 6: 45 mm; Dimension 7: 30 mm; Diameter: 18 mm; Dimension V1: 65–105 mm; Dimension V2: 50–110 mm; Dimension M: M20
Eigenschaften
| Gewinde : | M20 |
|---|---|
| Versand Gurtmasspflichtig: | Nein |
| Werkstoff: | V2A |
