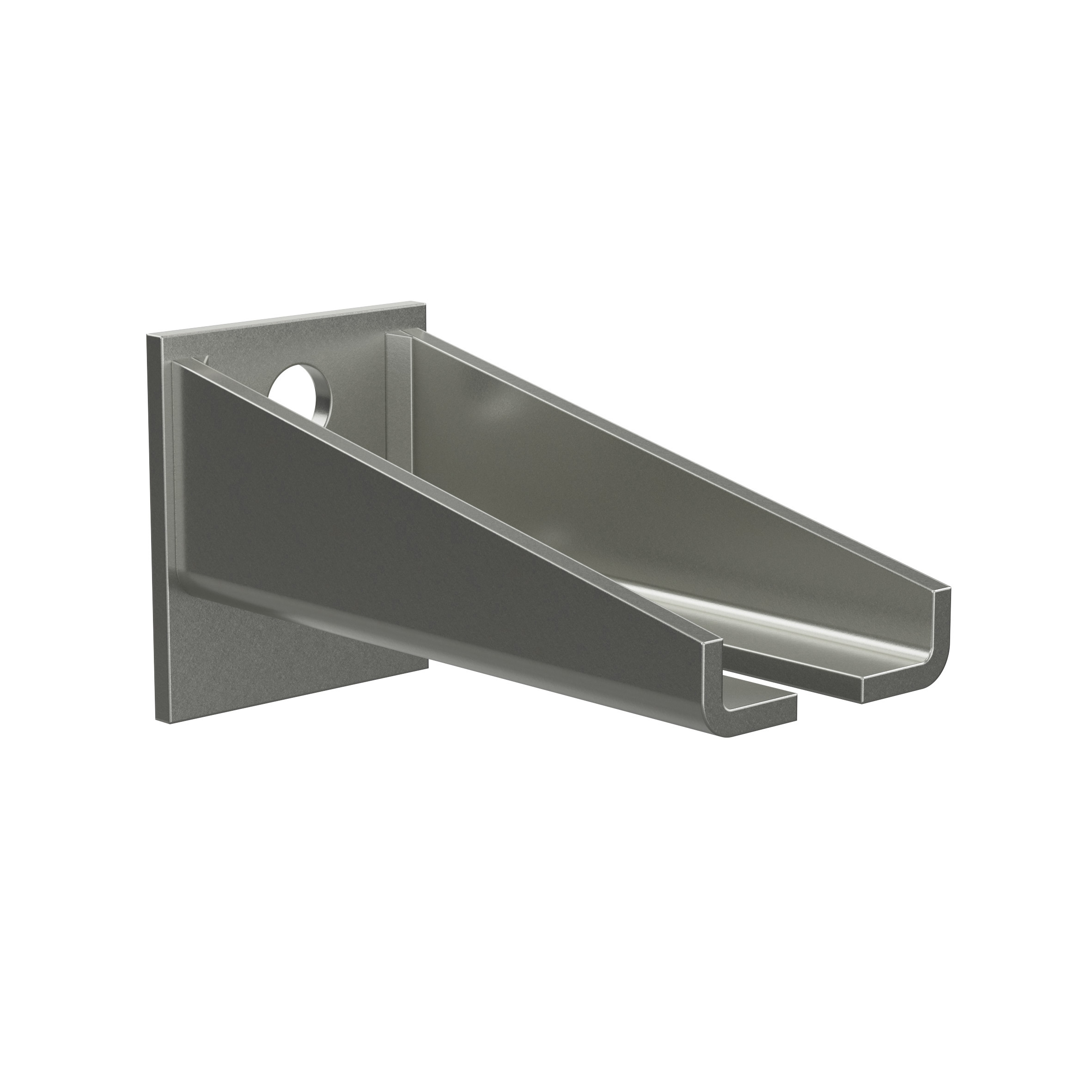

Double bracket, sizes 1 and 2, for two sets of rails MEA 10335410
FeNau Ltd
$23.20*
Available now, delivery time: Lieferzeit 1-2 Werktage
Stock:
1015
Product number:
60.0207.7
EAN:
4001990130575
Weight:
0.83 kg
Description
Product information "Double bracket, sizes 1 and 2, for two sets of rails MEA 10335410"
Double bracket, sizes 1 and 2, for two MEA 10335410 rail runs
made of S235JR steel, electro-galvanised

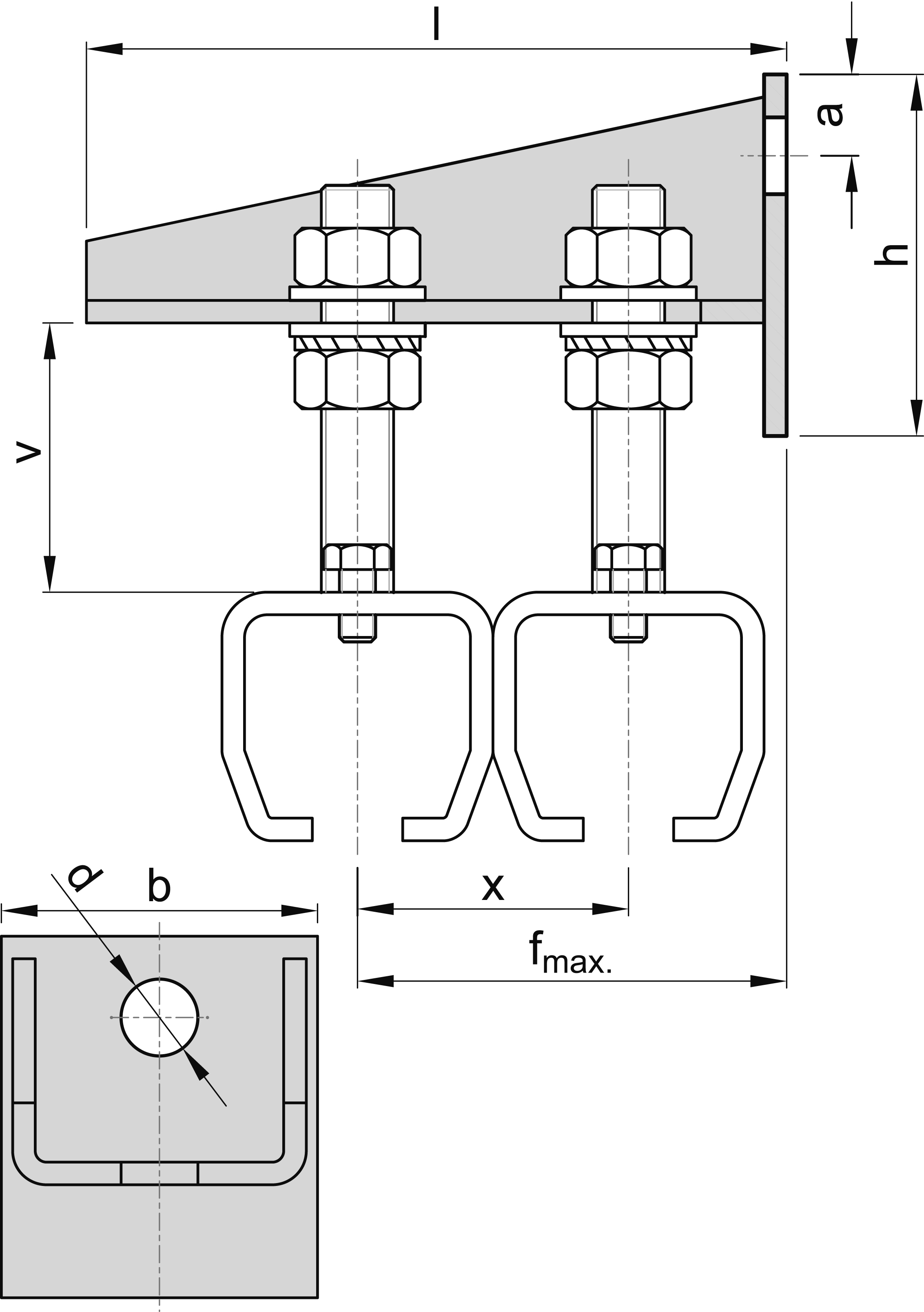

Length l: 155 mm
Shank Ø b: 70 mm
Dimension a: 18 mm
Dimension d: 17 mm
Dimension f max: 140 mm
Dimension v: 30–70 mm
Dimension h: 80 mm
Dimension x, Size 1: 50–110 mm
Dimension x, Size 2: 60–100 mm
Product features
| Bohrung Ø in mm: | 17 |
|---|---|
| Form: | Doppelkonsole |
| Höhe: | 80 mm |
| Länge: | 155 mm |
| Oberfläche: | galvanisch verzinkt |
| Werkstoff: | Stahl |
| Breite: | 70 mm |
