Glass clamp AbZ 55x65x37.5 mm, Ø 60.3 mm, for 11.52 mm laminated safety glass, locking pin (12 mm bore), No | Without locking base
Anschluss:
Ø 60,3 mm
Glasklemme AbZ Sicherungsboden:
Nein | Ohne Sicherungsboden
Glasklemme AbZ Sicherungsstift:
Sicherungsstift (Bohrung 12 mm)
Gummi:
für 11,52 mm VSG Glas
$38.44*
Available now, delivery time: Lieferzeit 1-2 Werktage
Stock:
134
Product number:
10.MODELL35.60.12.3.1
EAN:
4251412985492
Weight:
0.54 kg
Description
Product information "Glass clamp AbZ 55x65x37.5 mm, Ø 60.3 mm, for 11.52 mm laminated safety glass, locking pin (12 mm bore), No | Without locking base"

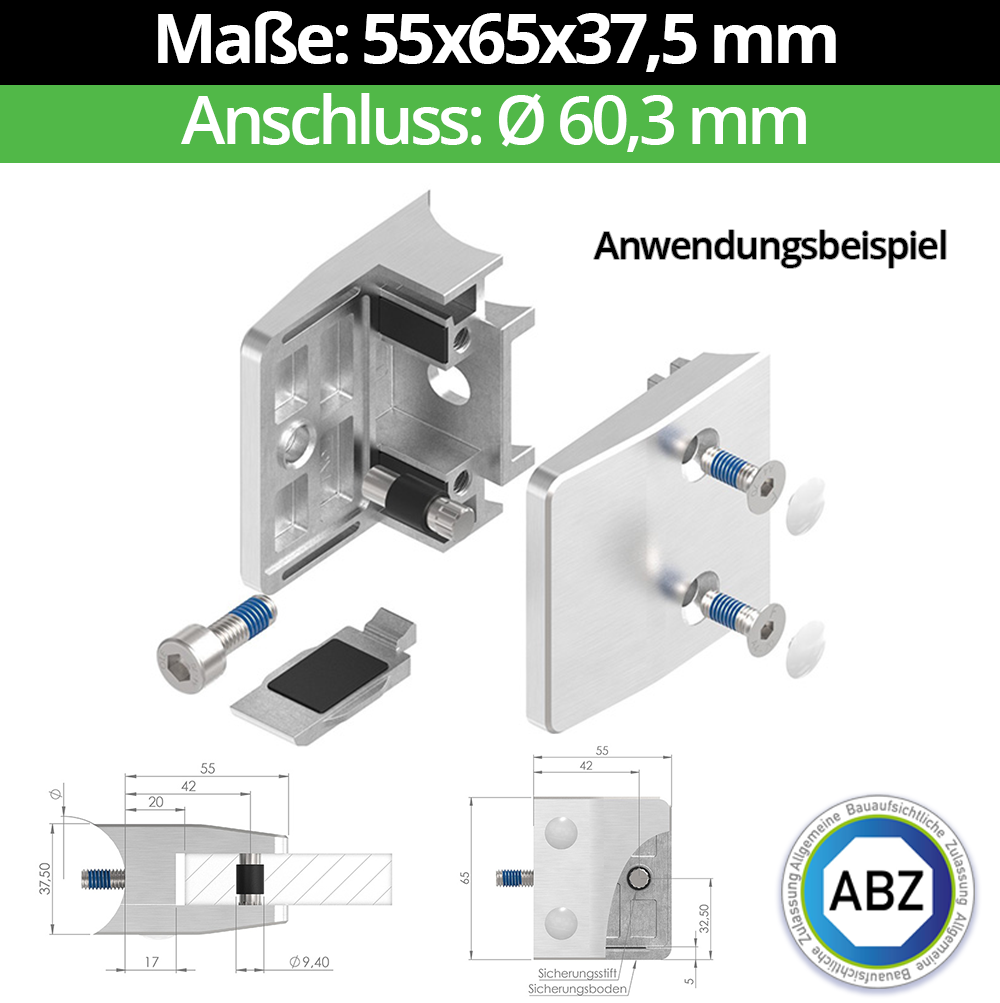

Glass clamp 55x65x37.5 mm AbZ for connection ⌂ Flat | Ø 42.4 mm | Ø 48.3 mm | 60.3 mm
Made of stainless steel 1.4301/V2A/AISI 304
Model 34 AbZ / square
Dimensions: 55x65x37.5 mm
With general building approval
Includes fixing screw M8 x 20, clamping screws M6 x 16 and cover plates
Suitable for indoor and outdoor use
