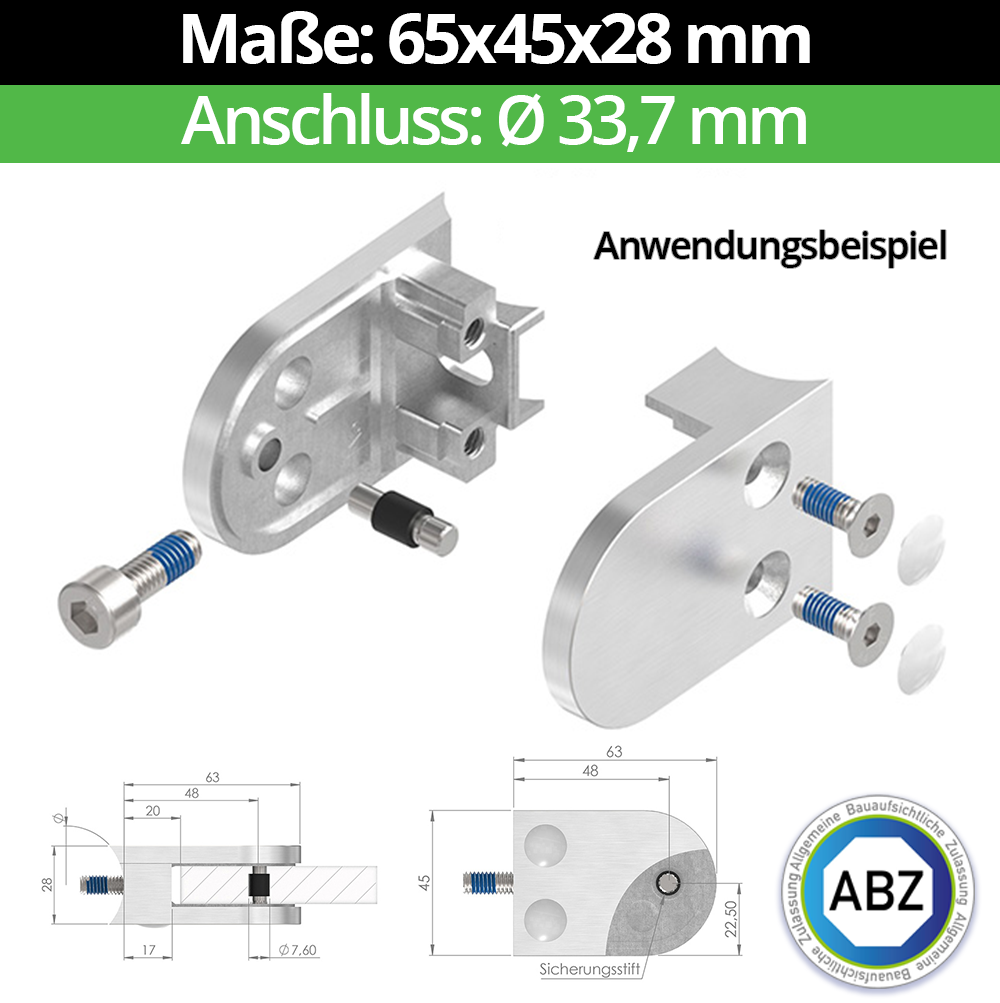

Glass clamp ABZ 65x45x28 mm, Ø 33.7 mm, V4A | AISI 316 | 1.4401/04, for 10.76 mm laminated safety glass, No | Without retaining pin
Anschluss:
Ø 33,7 mm
Glasklemme AbZ Sicherungsstift:
Nein | Ohne Sicherungsstift
Gummi:
für 10,76 mm VSG Glas
Werkstoff:
V4A | AISI 316 | 1.4401/04
$21.32*
Available now, delivery time: Lieferzeit 1-2 Werktage
Stock:
150
Product number:
10.MODELL32.33.2.11.1
EAN:
4251412972263
Weight:
0.31 kg
Description
Product information "Glass clamp ABZ 65x45x28 mm, Ø 33.7 mm, V4A | AISI 316 | 1.4401/04, for 10.76 mm laminated safety glass, No | Without retaining pin"
High-quality products for indoor and outdoor use | With general building approval!
Glass clamp 63x45x28 mm AbZ for flat connection | Ø 33.7 mm | Ø 42.4 mm | Ø 48.3 mm | Ø 60.3 mm Made from V2A stainless steel | V4A | Die-cast zinc | Stainless steel finishModel 32 AbZ Dimensions: 63x45x28 mm With general building approval , including M8 x 20 fixing screw, M6 x 16 clamping screws and cover plates Suitable for indoor and outdoor use
Product features
| Form: | Ø Rund |
|---|
