Glass clamp | Dimensions: 40 x 28 x 17.4 mm | Connection Ø 42.4 mm | V4A
Anschluss:
Ø 42,4 mm
Werkstoff:
V4A | AISI 316 | 1.4401/04
FeNau Ltd
Product number:
10.2042.1
EAN:
4251412921391
Weight:
0.08 kg
Description
Product information "Glass clamp | Dimensions: 40 x 28 x 17.4 mm | Connection Ø 42.4 mm | V4A"
Glass clamp | Dimensions: 40x28x17.4 mm | Connection Ø 42.4 mm | V4A
Made of stainless steel 1.4401/04/V4A/AISI 316
Model 20 / semi-circular

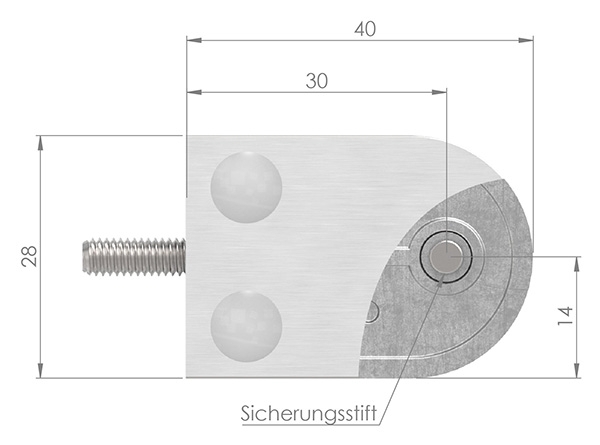

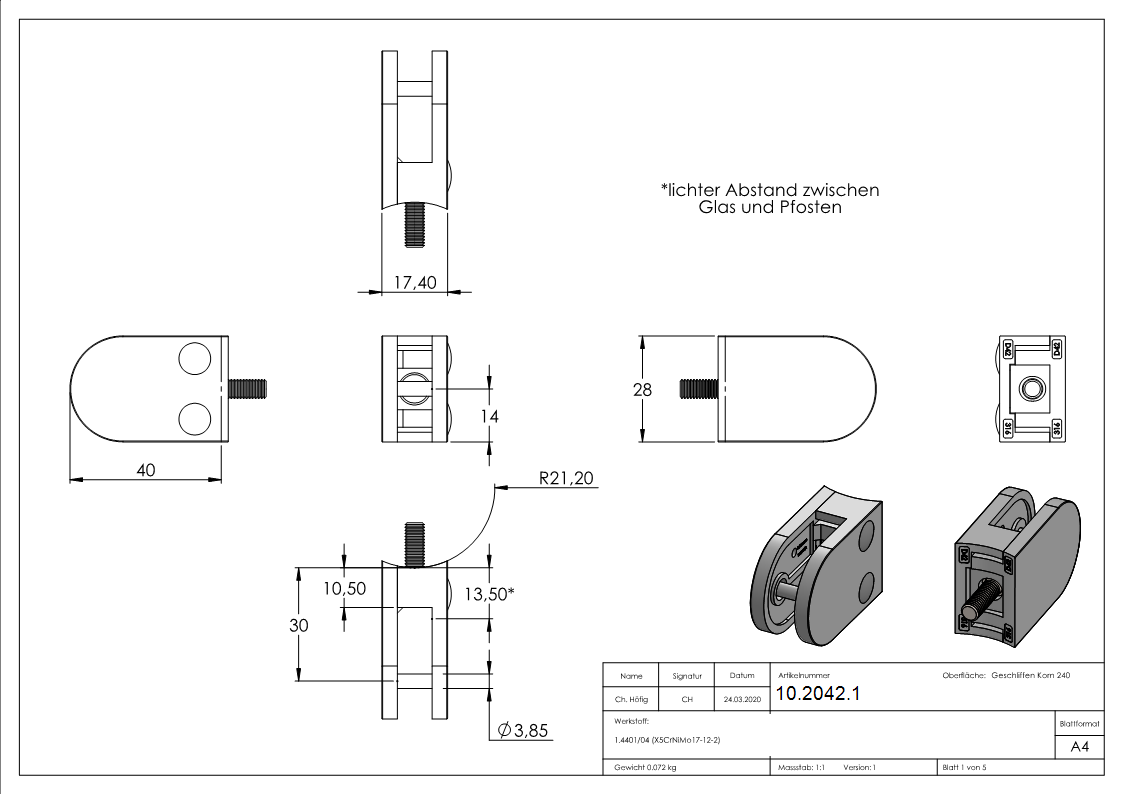

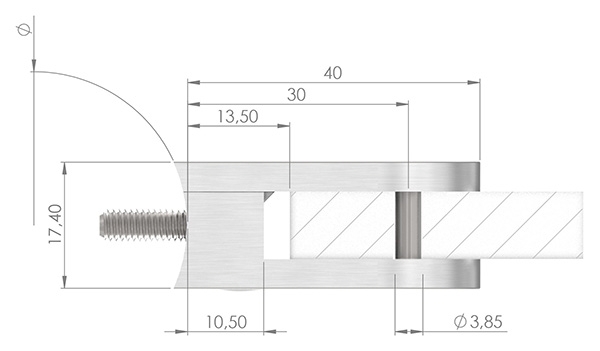

Dimensions: 40x28x17.4 mm
for connection Ø 42.4 mm

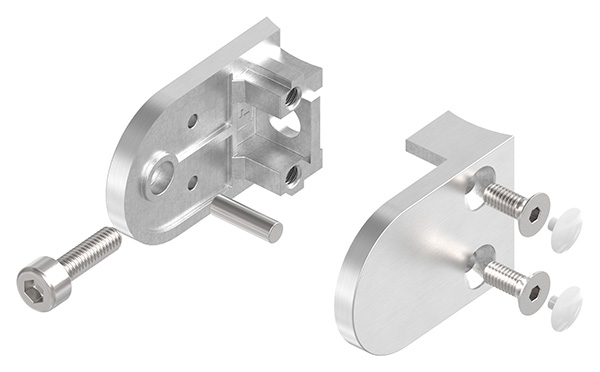

incl. fixing screw M5 x 18, clamping screws M4 x 10, locking pin and cover plate
Skip the product gallery
$9.38*
Accessories
10.5308.4.2.4
Panel holder, retaining base, disc retainer for glass Ø 42.4 mm, V4A
Safety base for fall protectionThe pane retainer is designed to prevent suspended glass panes from falling and can even be retrofitted. Thissecures the glass pane against falling!Mounting hole: For M6 countersunk head screw (V2A / AISI 304)
Variants from $7.22*
Available, : Lieferzeit 5-10 Werktage
