Handrail bracket | 128x110 mm | for welding | S235JR steel, untreated
$20.58*
Available now, delivery time: Lieferzeit 1-2 Werktage
Lagerbestand:
4
Product number:
30.1411.8
EAN:
4251412945052
Gewicht:
0.6 kg
Description
Product information "Handrail bracket | 128x110 mm | for welding | S235JR steel, untreated"

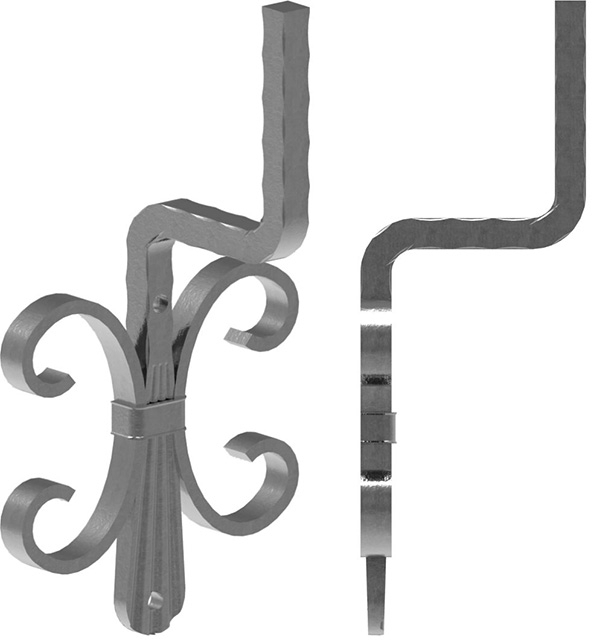

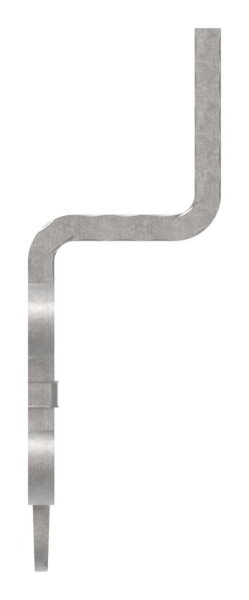

Handrail bracket | 128x110 mm | for welding | S235JR steel, untreated
[ Technical details ] S235JR steel, raw
[ Specific details ] with 2 holes, bracket welded to flange, for welding, raw steel

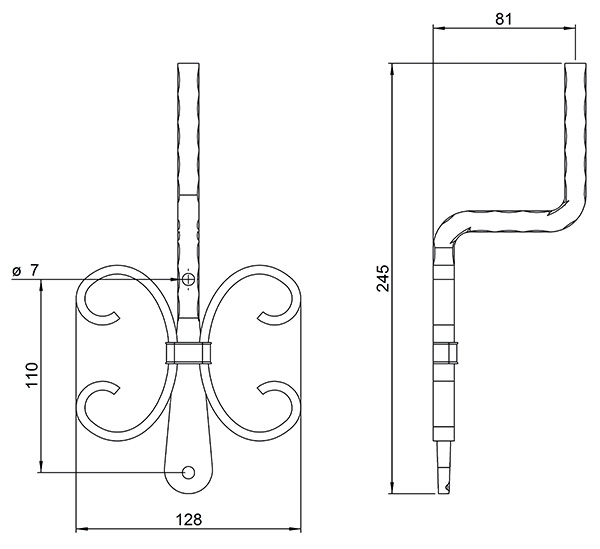

[ Further specific details ] Flange: 128 x 110 mm with 2 holes Ø 7 mm; Bracket: 12 x 12 mm; bracket welded to disc; distance from wall to centre of bracket: 81 mm
[ Application ] Position the handrail bracket at the desired location and secure it using suitable screws (not included)
Eigenschaften
| Anzahl Bohrungen: | 2 |
|---|---|
| Bohrung Ø in mm: | 7 mm |
| Wandabstand Mitte-Handlauf: | 81 mm |
| Werkstoff: | S235JR (ST37), roh |
