Handrail bracket with 70 x 5 mm flange, for welding, V4A
FeNau Ltd
$23.38*
Available now, delivery time: Lieferzeit 1-2 Werktage
Stock:
10
Product number:
11.2606-B.1
Weight:
0.29 kg
Description
Product information "Handrail bracket with 70 x 5 mm flange, for welding, V4A"

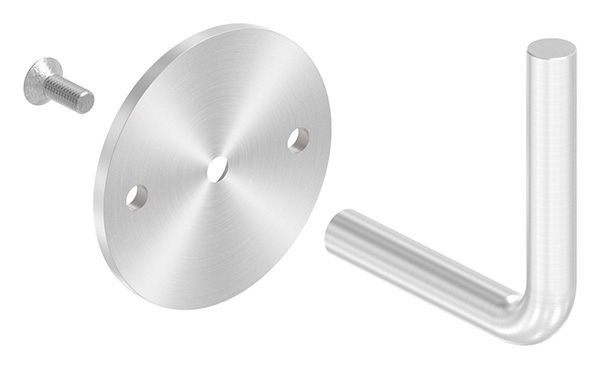

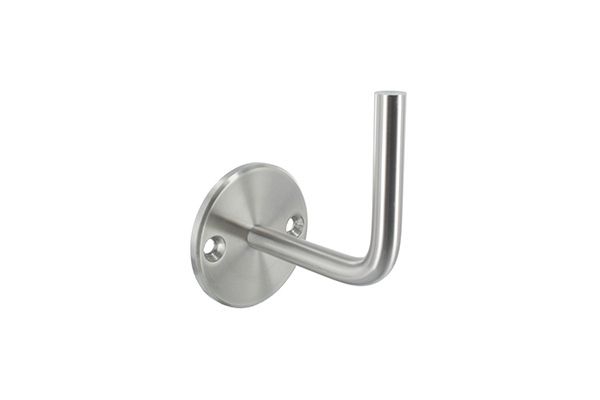

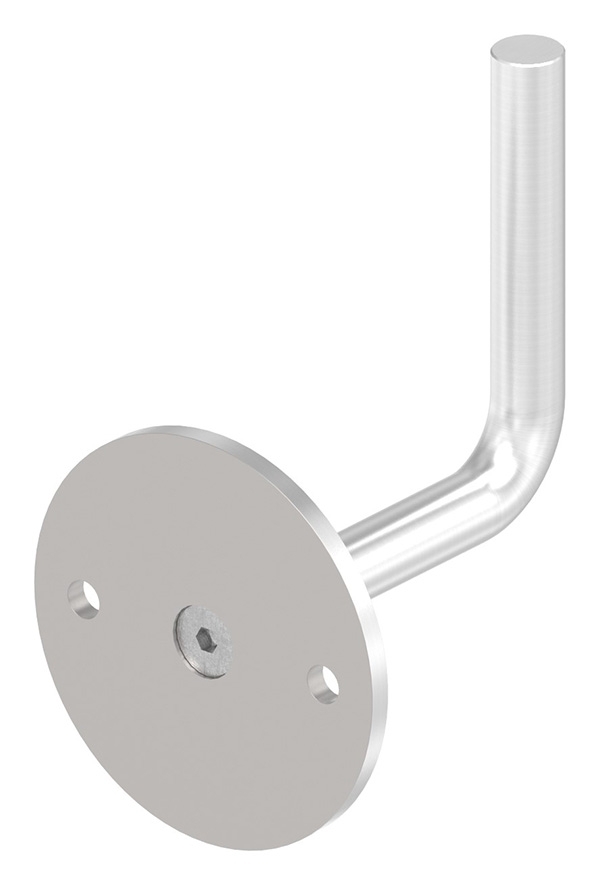

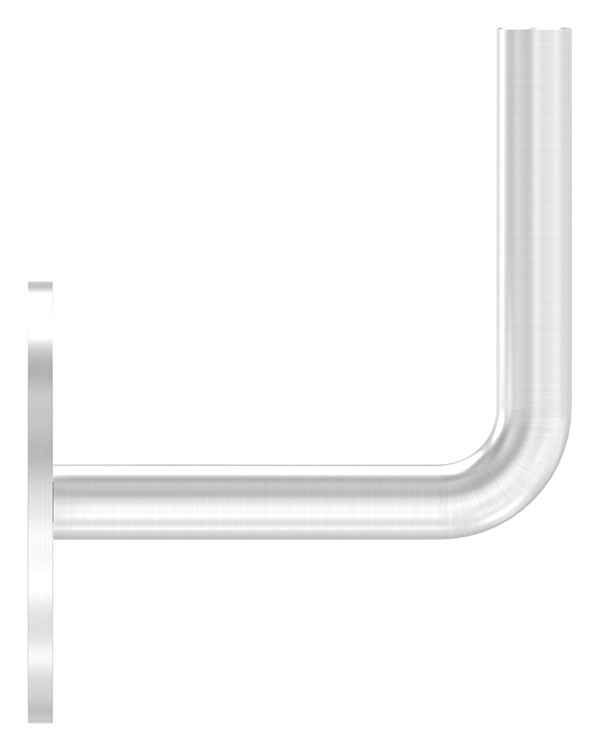

Handrail bracket with disc 70 x 5 mm for welding, V4A
made of AISI 316 or 1.4401/04 stainless steel – sanded to 240 grit Disc: 70 x 5 mm with 2 holes 8.5 mm Bracket: 12 mm Wall clearance (centre of bracket): 77.5 mm Wall clearance – rear edge of disc to centre of bracket: 77.5 mm
Disc and bracket bolted together | fitted with threadlocker Material 1.4571 | 240-grit polished | Edges polished and chamfered | Protective film
made of AISI 316 or 1.4401/04 stainless steel – sanded to 240 grit Disc: 70 x 5 mm with 2 holes 8.5 mm Bracket: 12 mm Wall clearance (centre of bracket): 77.5 mm Wall clearance – rear edge of disc to centre of bracket: 77.5 mm
Disc and bracket bolted together | fitted with threadlocker Material 1.4571 | 240-grit polished | Edges polished and chamfered | Protective film
Product features
| Form: | mit Ronde |
|---|---|
| Wandabstand Mitte-Handlauf: | 77,5 mm |
| Werkstoff: | V4A |
| Ø Für Rohr | Ø Außendurchmesser | Ø Anschluss: | Schweißen |
