Handrail bracket | with 70x4 mm flange | for 42.4 mm diameter pipe | S235JR steel, untreated
$9.02*
Available now, delivery time: Lieferzeit 1-2 Werktage
Lagerbestand:
758
Product number:
30.1420.8
EAN:
4251412945144
Gewicht:
0.28 kg
Description
Product information "Handrail bracket | with 70x4 mm flange | for 42.4 mm diameter pipe | S235JR steel, untreated"

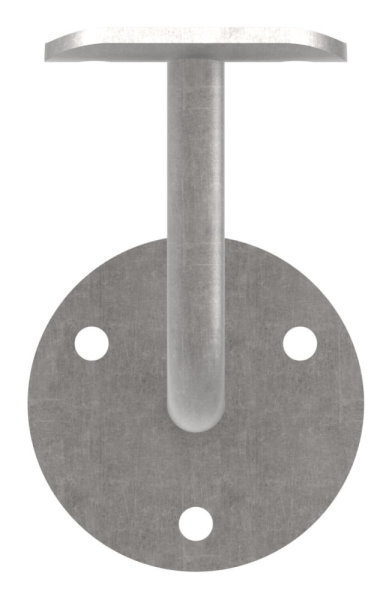

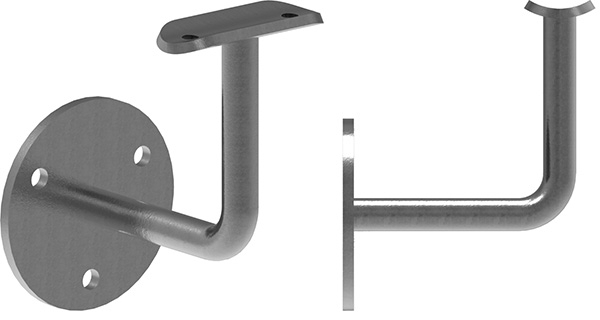

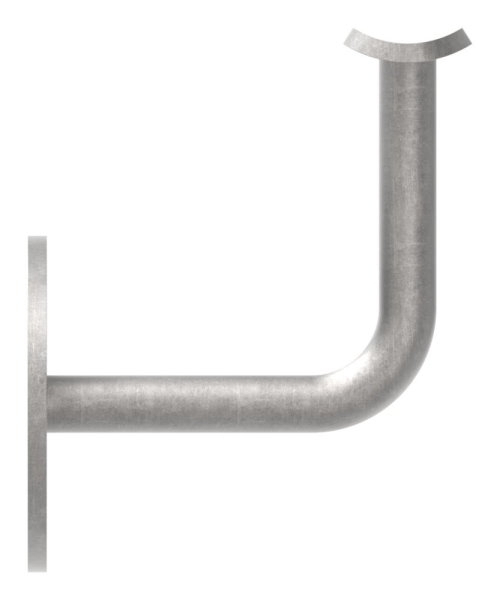

Handrail bracket | with 70x4 mm flange | for 42.4 mm diameter tube, 3 holes | S235JR steel, untreated
[ Technical details ] S235JR steel, raw
[ Specific details ] with 3 countersunk holes, bracket and disc welded, with mounting plate for 42.4 mm pipe, raw steel

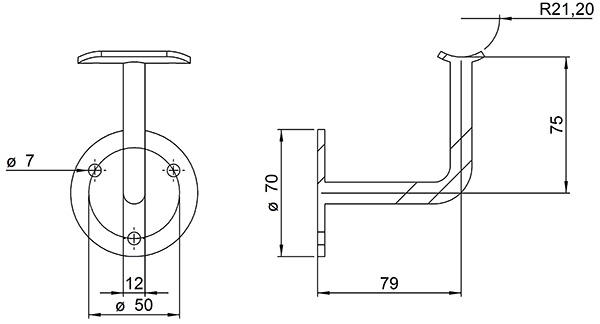

[ Further specific details ] Disc: 70 x 4 mm with 3 holes Ø 7 mm; Bracket: 12 mm; bracket welded to disc; retaining plate with 3 holes for handrail tube Ø 42.4 mm
[ Application ] Position the handrail bracket where required and secure it using suitable screws (not included)
Eigenschaften
| Anzahl Bohrungen: | 3 gesenkt |
|---|---|
| Bohrung Ø in mm: | 7 mm |
| Werkstoff: | S235JR (ST37), roh |
