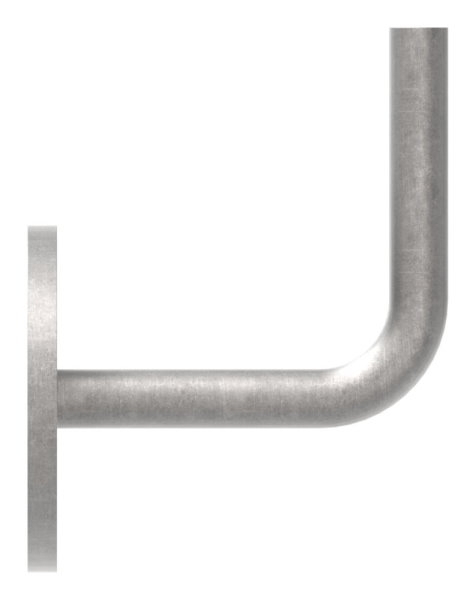

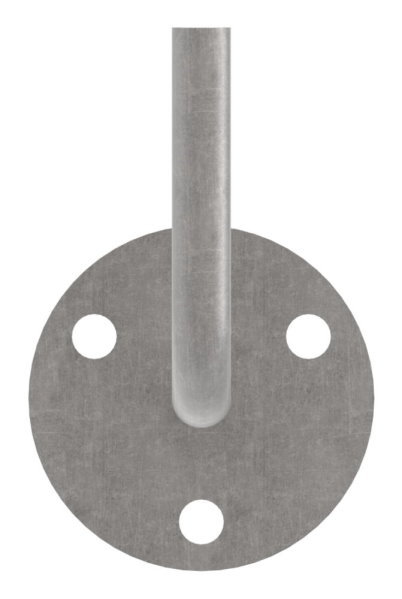

Handrail bracket | with 70x6 mm flange | for welding | S235JR steel, untreated
$7.52*
Available now, delivery time: Lieferzeit 1-2 Werktage
Lagerbestand:
388
Product number:
30.1417.8
EAN:
4251412945113
Gewicht:
0.29 kg
Description
Product information "Handrail bracket | with 70x6 mm flange | for welding | S235JR steel, untreated"
Handrail bracket | with 70x6 mm disc | for welding | S235JR steel, untreated
[ Technical details ] S235JR steel, raw
[ Specific details ] with 2 holes, bracket and disc welded together, for welding on, raw steel

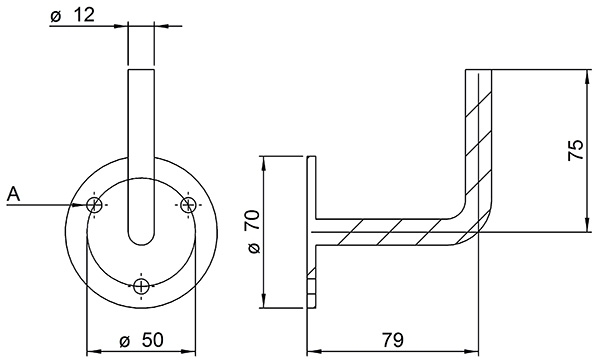

[ Further specific details ] Disc: 70 x 6 mm with 3 holes Ø 9 mm; Bracket: 12 mm; bracket welded to disc; distance from wall to centre of bracket: approx. 79 mm
[ Application ] Position the handrail bracket at the desired location and secure it using suitable screws (not included)
Eigenschaften
| Anzahl Bohrungen: | 2 |
|---|---|
| Bohrung Ø in mm: | 9 mm |
| Wandabstand Mitte-Handlauf: | 79 mm |
| Werkstoff: | S235JR (ST37), roh |
