Handrail bracket | with round plate 70x4 mm | with mounting plate f | S235JR steel, untreated
$9.98*
Available now, delivery time: Lieferzeit 1-2 Werktage
Lagerbestand:
5
Product number:
30.1419.8
EAN:
4251412945137
Gewicht:
0.28 kg
Description
Product information "Handrail bracket | with round plate 70x4 mm | with mounting plate f | S235JR steel, untreated"
Handrail bracket | with 70x4 mm flange | with mounting plate f | S235JR steel, untreated
[ Technical details ] S235JR steel, raw
[ Specific details ] with 2 countersunk holes, bracket and disc welded, with mounting plate for 42.4 mm raw steel

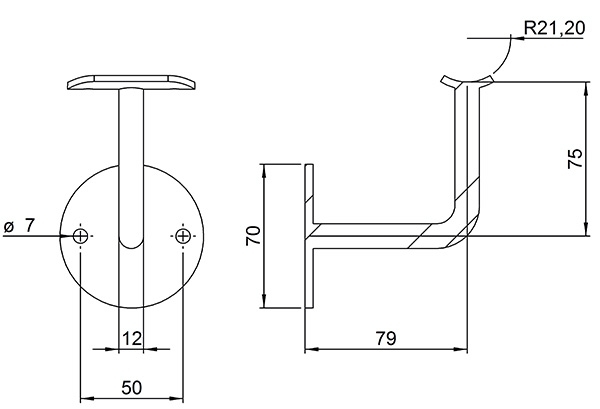

tube [ Further specific details ] Disc: 70 x 4 mm with 2 holes Ø 7 mm; Bracket: 12 mm; bracket welded to disc; retaining plate with 2 holes for handrail tube Ø 42.4 mm; wall clearance to centre of bracket: 79 mm
[ Application ] Position the handrail bracket at the desired location and secure it using suitable screws (not included)
Eigenschaften
| Anzahl Bohrungen: | 2 gesenkt |
|---|---|
| Bohrung Ø in mm: | 7 mm |
| Wandabstand Mitte-Handlauf: | 79 mm |
| Werkstoff: | S235JR (ST37), roh |
