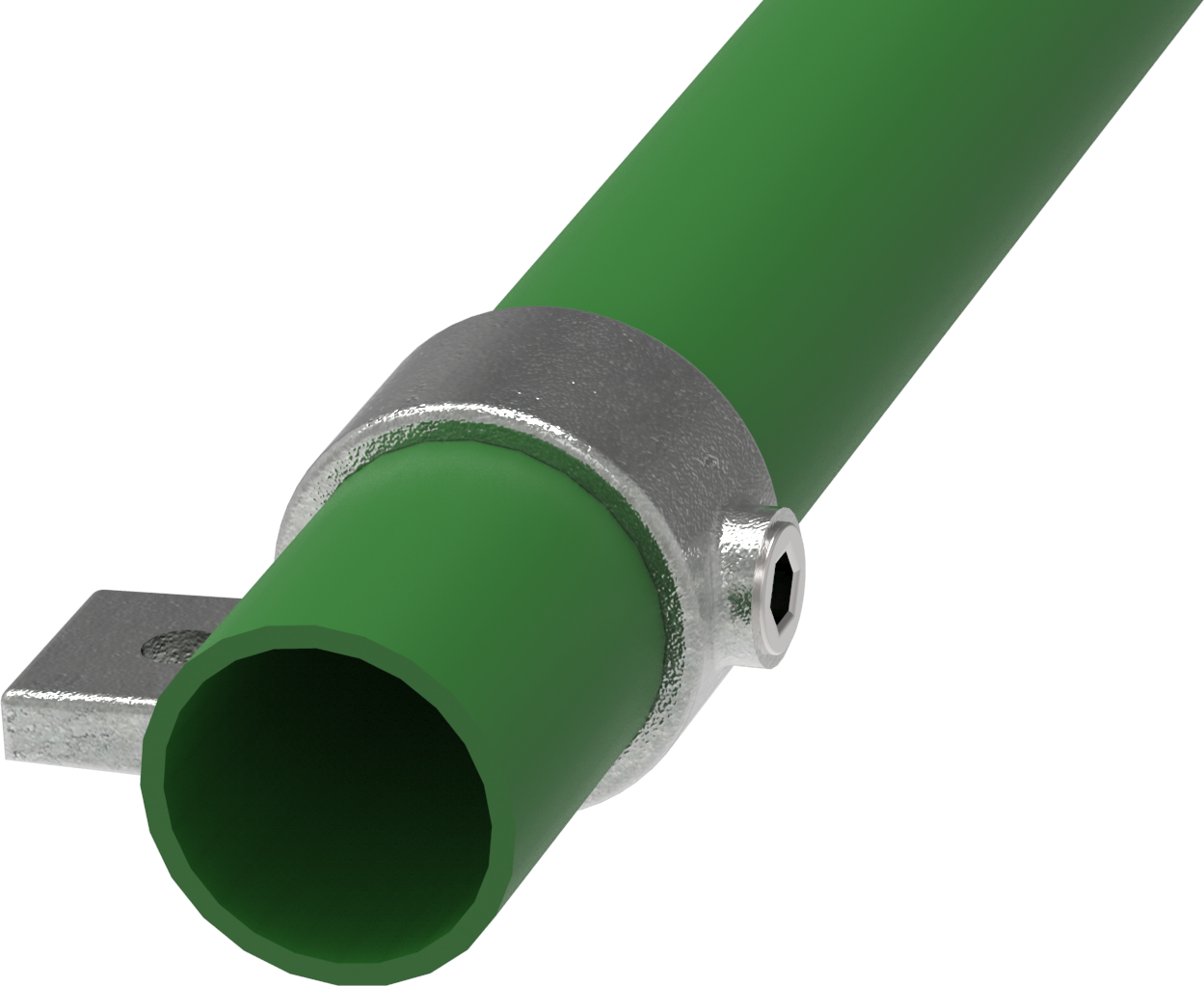

Pipe connector | Clamping ring with flange, 1 hole | 199S17 | 17.2 mm | 3/8" | Hot-dip galvanised and electro-galvanised
![Rohrverbinder - Befestigungsring mit Flansch 1 Bohrung - 199S17 - 17-2 mm - 3-8- - Feuerverzinkt u. Elektrogalvanisiert-199S17](https://fenau.us/media/60/a6/83/1771486762/Rohrverbinder-Befestigungsring-mit-Flansch-1-Bohrung-199S17-17-2-mm-3-8-Feuerverzinkt-u-Elektrogalvanisiert-199S17-1.png?ts=1775631136 "Pipe connector | Clamping ring with flange, 1 hole | 199S17 | 17.2 mm | 3/8" | Hot-dip galvanised and electro-galvanised")
![Rohrverbinder - Befestigungsring mit Flansch 1 Bohrung - 199S17 - 17-2 mm - 3-8- - Feuerverzinkt u. Elektrogalvanisiert-199S17](https://fenau.us/media/96/37/97/1771486763/Rohrverbinder-Befestigungsring-mit-Flansch-1-Bohrung-199S17-17-2-mm-3-8-Feuerverzinkt-u-Elektrogalvanisiert-199S17-2.jpeg?ts=1775630480 "Pipe connector | Clamping ring with flange, 1 hole | 199S17 | 17.2 mm | 3/8" | Hot-dip galvanised and electro-galvanised")
$11.30*
Available now, delivery time: Lieferzeit 1-2 Werktage
Product information "Pipe connector | Clamping ring with flange, 1 hole | 199S17 | 17.2 mm | 3/8" | Hot-dip galvanised and electro-galvanised"
[ Scope of delivery ] 1x adjusting ring bracket with single tab, including stainless steel clamping self-tapping screws - (Item no.: 199A27) | Optimal corrosion protection against the elements – durable, stable and universally applicable (outer diameter in accordance with DIN EN ISO 6708 and EN 10255)

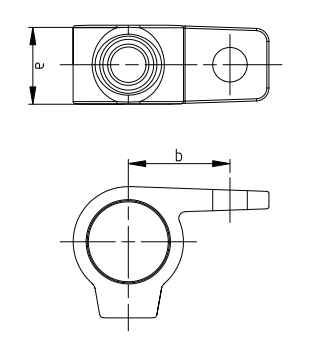

[ Technical details ] Dimensions (see illustration): For Ø 26.9 mm / ¾" Dimension (A): 35 mm / Dimension (B): 47 mm / Weight: 0.22 kg | Professional quality thanks to electro-galvanisation and hot-dip galvanisation - Material: malleable cast iron
[ Wrong size? - Suitable items ] (Item no.: 199A27) Dimensions: Ø 26.9 mm / ¾" | (Item no.: 199B34) Dimensions: Ø 33.7 mm / 1" | (Item No.: 199C42) Dimensions: Ø 42.4 mm / 1 ¼" | (Item No.: 199D48) Dimensions: Ø 48.3 mm / 1 ½"
[ Application ] Wide range of applications | Used to secure various components | For steel structures, scaffolding, handrails, railings, shelving, etc. | Not the right pipe connector? No problem, we stock a wide range of pipe connectors in various shapes
For tube Dimension a Dimension b Bore Allen 26.9 mm 35 mm 47 mm 10 mm 301AB 33.7 mm 30 mm 43 mm 10 mm 301AB 42.4 mm 33 mm 48 mm 10 mm 301CDE 48.3 mm 35 mm 52 mm 10 mm 301CDE
| Versand Gurtmasspflichtig: | Nein |
|---|---|
| Ø Für Rohr | Ø Außendurchmesser | Ø Anschluss: | Ø 17.2mm |
