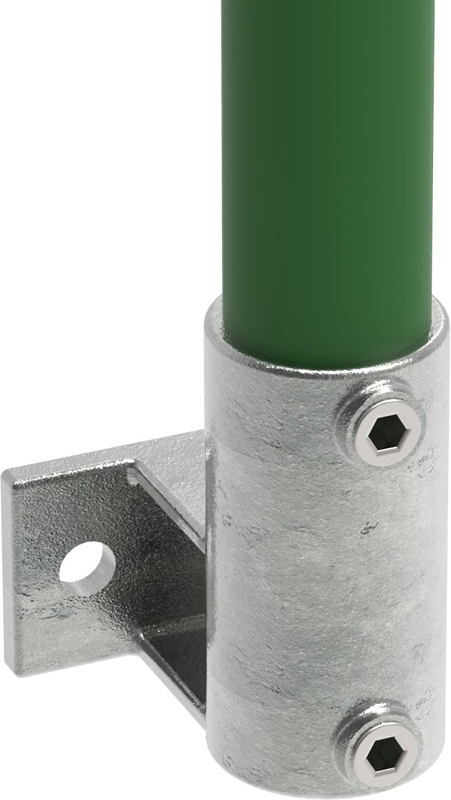

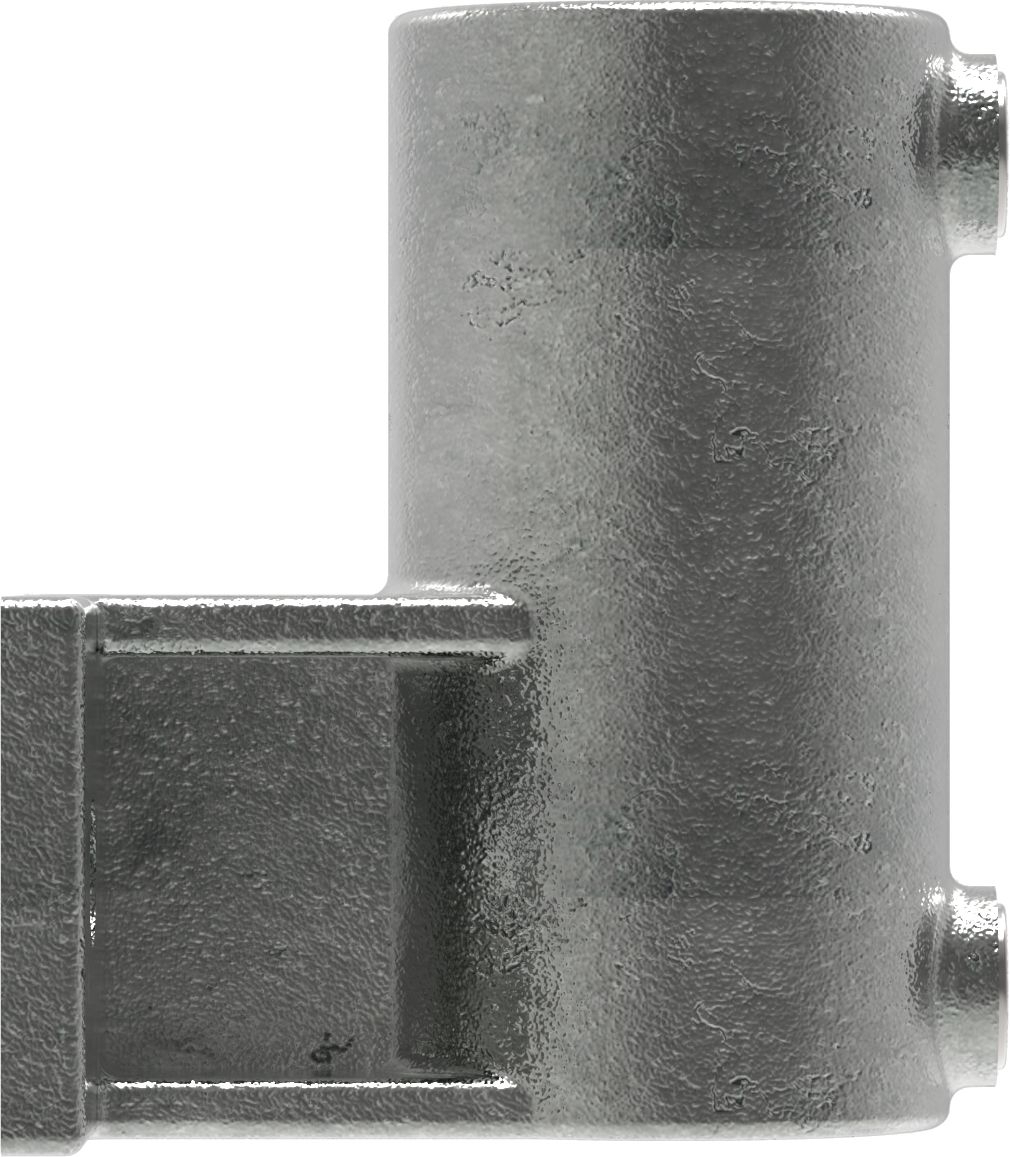

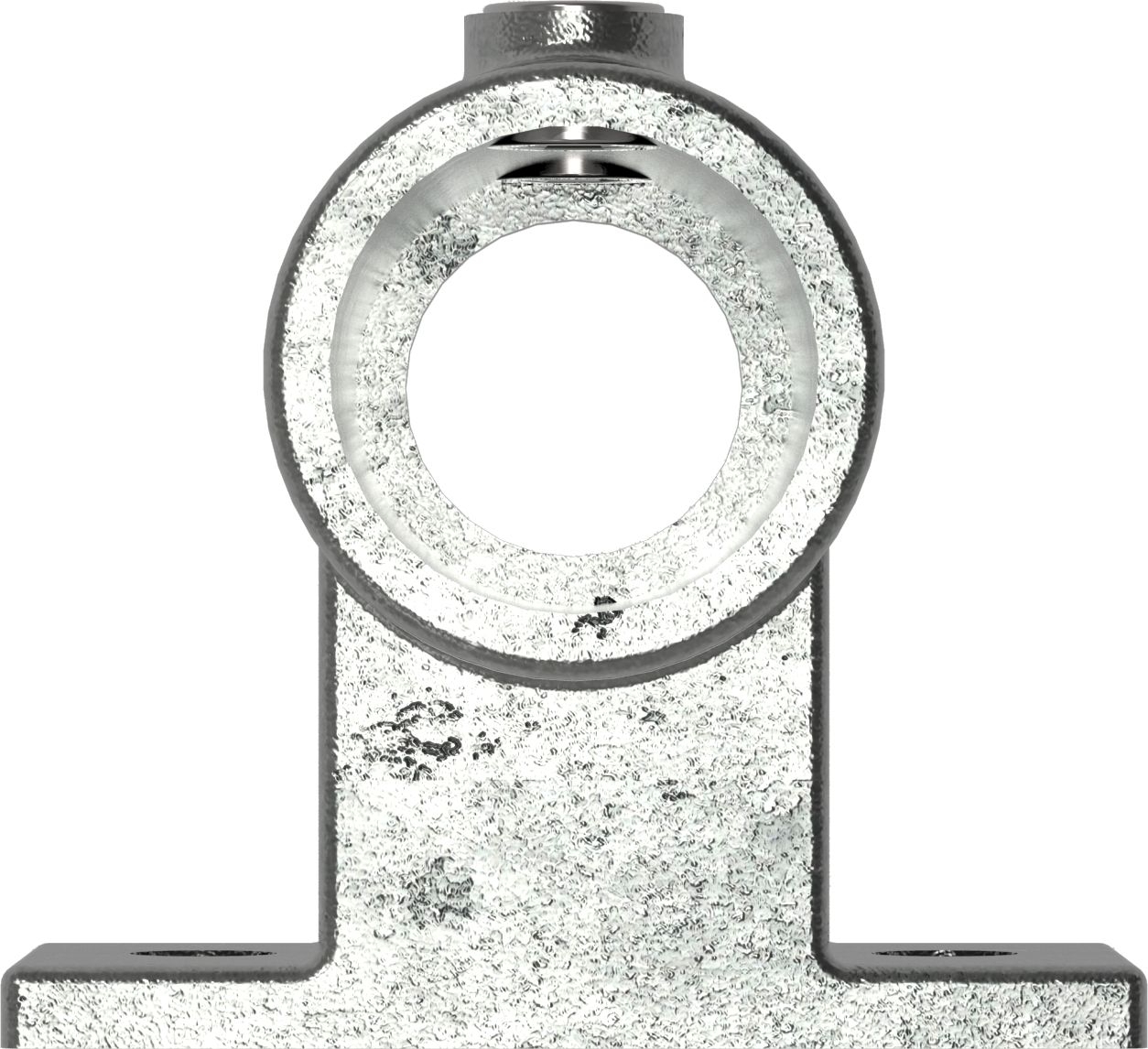

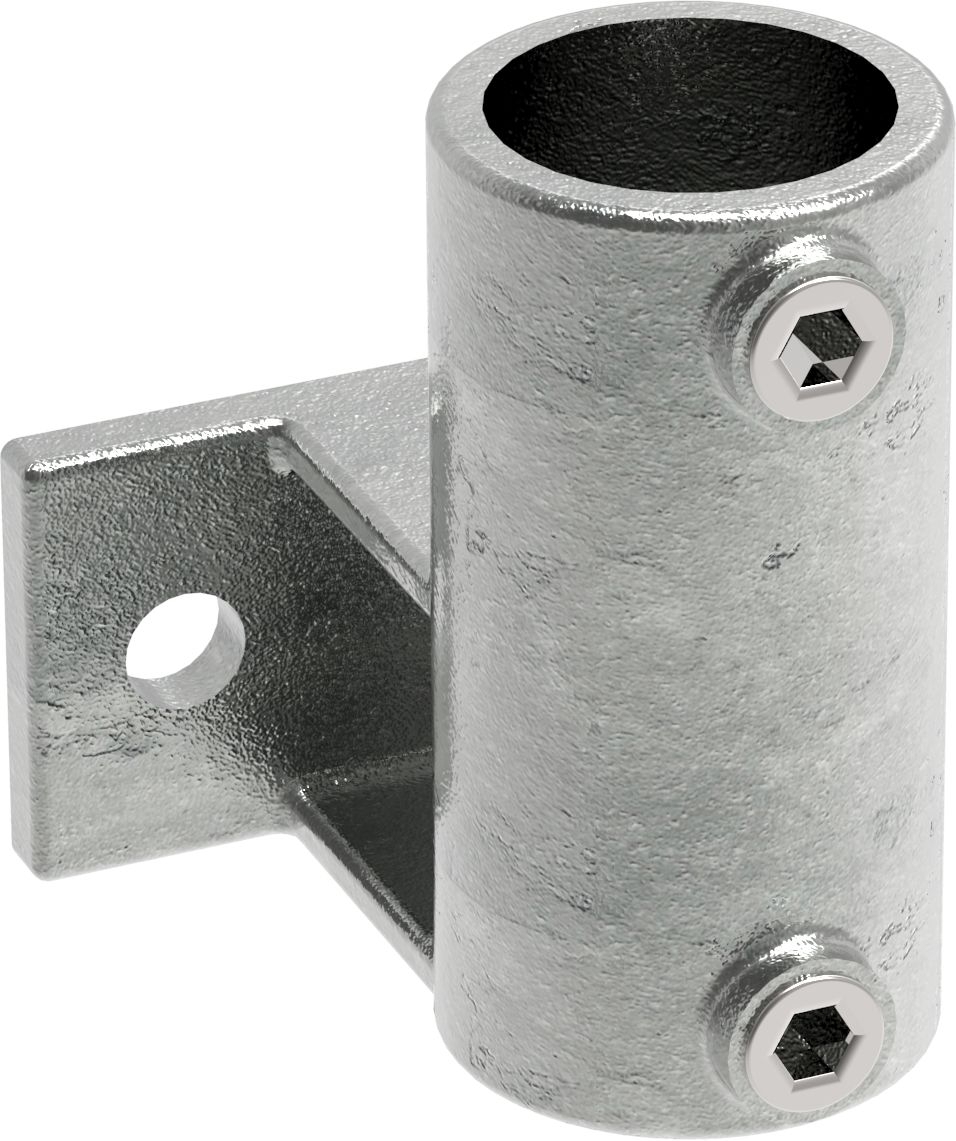

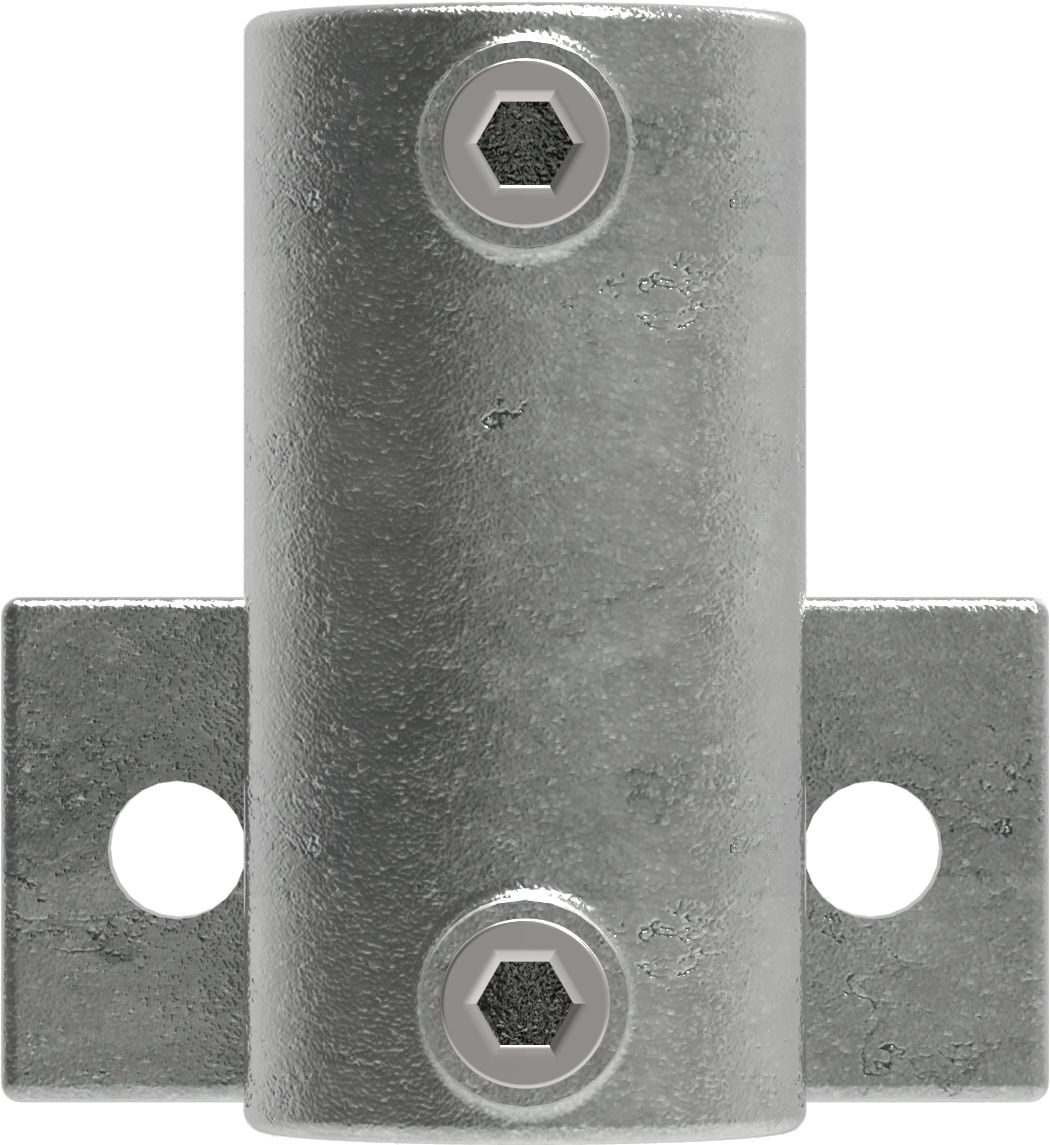

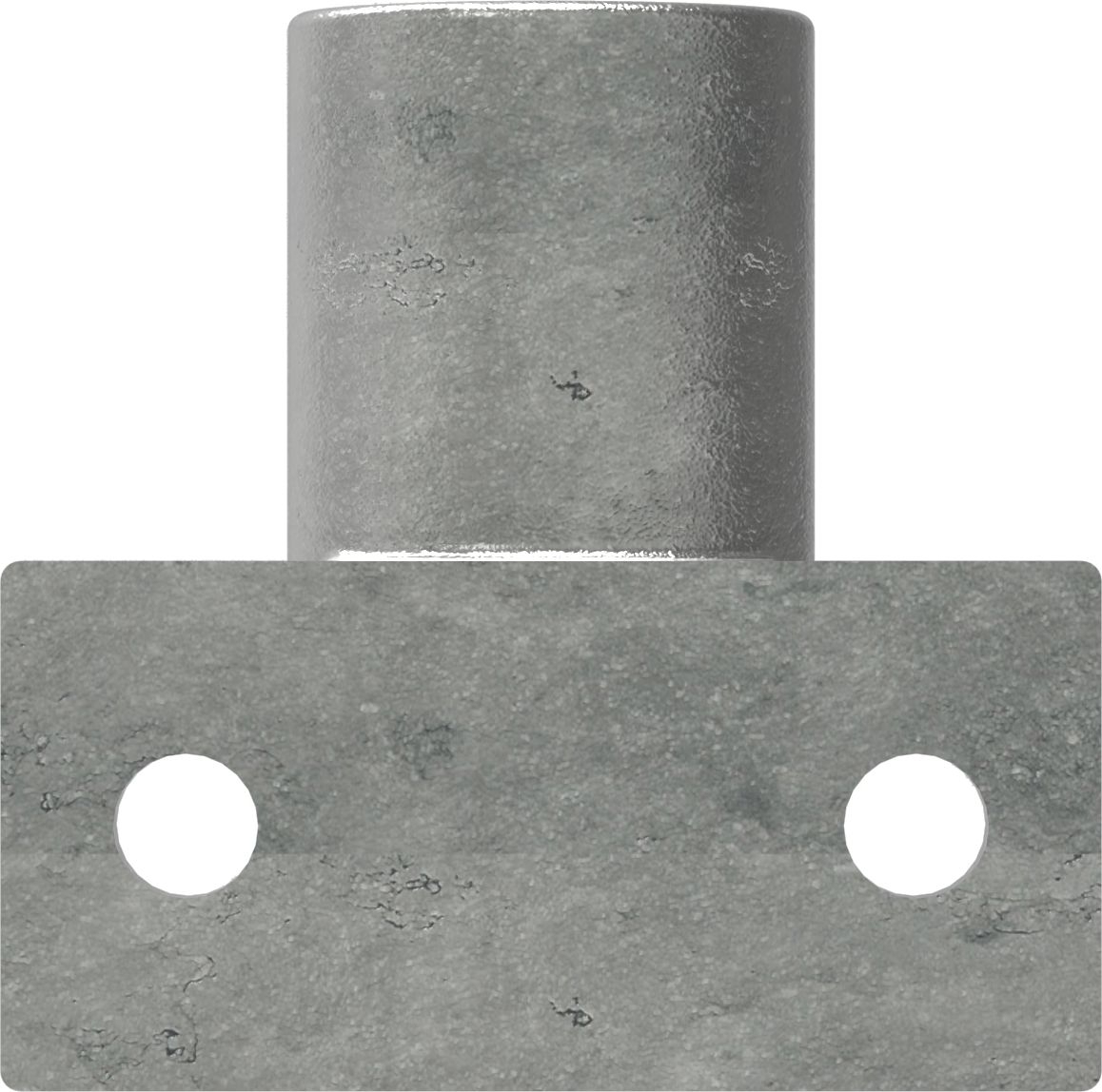

Pipe connector | Horizontal wall bracket | 145D48 | 48.3 mm | 1 1/2" | Hot-dip galvanised and electro-galvanised

Rohraußendurchmesser: Ø 48,3 mm
Skip the photo gallery
Rohrverbinder - Wandhalter Platte horizontal - 145D48 - 48-3 mm - 1 1-2- - Feuerverzinkt u. Elektrogalvanisiert-145D48
Rohrverbinder - Wandhalter Platte horizontal - 145D48 - 48-3 mm - 1 1-2- - Feuerverzinkt u. Elektrogalvanisiert-145D48
Rohrverbinder - Wandhalter Platte horizontal - 145D48 - 48-3 mm - 1 1-2- - Feuerverzinkt u. Elektrogalvanisiert-145D48
Rohrverbinder - Wandhalter Platte horizontal - 145D48 - 48-3 mm - 1 1-2- - Feuerverzinkt u. Elektrogalvanisiert-145D48
Rohrverbinder - Wandhalter Platte horizontal - 145D48 - 48-3 mm - 1 1-2- - Feuerverzinkt u. Elektrogalvanisiert-145D48
Rohrverbinder - Wandhalter Platte horizontal - 145D48 - 48-3 mm - 1 1-2- - Feuerverzinkt u. Elektrogalvanisiert-145D48
Rohrverbinder - Wandhalter Platte horizontal - 145D48 - 48-3 mm - 1 1-2- - Feuerverzinkt u. Elektrogalvanisiert-145D48
Rohrverbinder - Wandhalter Platte horizontal - 145D48 - 48-3 mm - 1 1-2- - Feuerverzinkt u. Elektrogalvanisiert-145D48
Rohrverbinder - Wandhalter Platte horizontal - 145D48 - 48-3 mm - 1 1-2- - Feuerverzinkt u. Elektrogalvanisiert-145D48
Rohrverbinder - Wandhalter Platte horizontal - 145D48 - 48-3 mm - 1 1-2- - Feuerverzinkt u. Elektrogalvanisiert-145D48
Rohrverbinder - Wandhalter Platte horizontal - 145D48 - 48-3 mm - 1 1-2- - Feuerverzinkt u. Elektrogalvanisiert-145D48
Rohrverbinder - Wandhalter Platte horizontal - 145D48 - 48-3 mm - 1 1-2- - Feuerverzinkt u. Elektrogalvanisiert-145D48
Rohrverbinder - Wandhalter Platte horizontal - 145D48 - 48-3 mm - 1 1-2- - Feuerverzinkt u. Elektrogalvanisiert-145D48
Rohrverbinder - Wandhalter Platte horizontal - 145D48 - 48-3 mm - 1 1-2- - Feuerverzinkt u. Elektrogalvanisiert-145D48
Rohrverbinder - Wandhalter Platte horizontal - 145D48 - 48-3 mm - 1 1-2- - Feuerverzinkt u. Elektrogalvanisiert-145D48
Rohrverbinder - Wandhalter Platte horizontal - 145D48 - 48-3 mm - 1 1-2- - Feuerverzinkt u. Elektrogalvanisiert-145D48

$40.72*

Prices include VAT, plus delivery charges

Available now, delivery time: Lieferzeit 1-2 Werktage

Rohraußendurchmesser
Stk
Stock: 394
Product number: 145D48
EAN: 4251412902390
Weight: 1 kg
20,000 items in stock
CAD data available after login
Over 200,000 satisfied customers
Worldwide delivery
Description

Product information "Pipe connector | Horizontal wall bracket | 145D48 | 48.3 mm | 1 1/2" | Hot-dip galvanised and electro-galvanised"

Pipe connector | Horizontal wall bracket | 145D48 | 48.3 mm | 1 1/2" | Malleable cast iron, hot-dip galvanised and electro-galvanised

[ Technical Details ] Material: Malleable cast iron; hot-dip galvanised and electro-galvanised with stainless steel self-tapping clamping screws

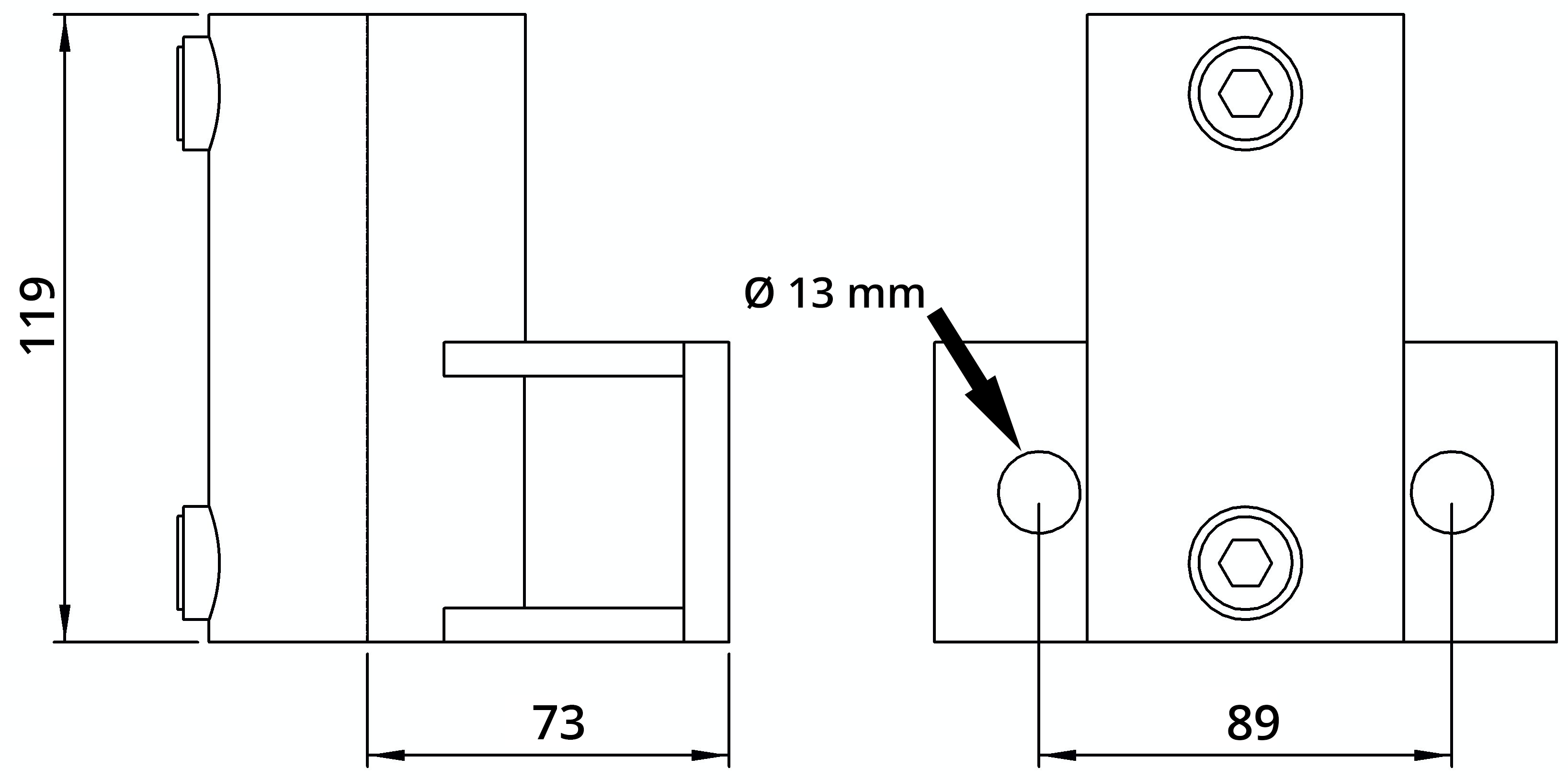

[ Specific Details ] For pipe Ø: 48.3 mm (1 1/2"); Dimension a: 120 mm; Dimension b: 90 mm; Dimension c: 73 mm; Mounting plate height: 60 mmØ; Drill holes: 14 mm; Mounting plate thickness: 8 mm
[ Further Specific Details ] Required Allen key: Item No.: 301CDE

Product features
Ø Für Rohr | Ø Außendurchmesser | Ø Anschluss: Ø 48.3mm (11⁄2″)
Skip the product gallery

Accessories

Rohrverbinder - Kunststoffstopfen hellgrau - 133D48-K - 48-3 x 3 mm - 1 1-2-133D48-K
133D48-K
Pipe connector | Light grey plastic plug | 133D48-K | 48.3 x 3 mm | 1 1/2"
Pipe connector | Light grey plastic plug | 133 | 21.3 mm – 60.3 mm | 1/2"–2" | Malleable cast iron and electro-galvanised [ Specific details ] for pipe Ø: 21.3 mm – 60.3 mm (1/2"–2"); wall thickness: 1–2 mm [ Application ] Insert plastic plugs into open pipe ends to seal them

Variants from $0.62*
$1.54*
Gelaenderrohr - Ø 48-3x2-0 mm - Laenge- 1500 mm - Stahl S235JR- verzinkt-30-2248-1500.7 Gelaenderrohr - Ø 48-3x2-0 mm - Laenge- 1500 mm - Stahl S235JR- verzinkt-30-2248-1500.7
30.2248-1500.7
Balustrade tube | Ø 48.3 x 2.0 mm | Length: 1500 mm | S235JR steel, galvanised
Railing tube | Ø 48.3 x 2.0 mm | Length: 1500 mm | S235JR steel, galvanised We are happy to produce tube cuts to your specified lengths! [ Technical details ] S235JR steel, galvanised [ Specific details ] Length: 6000 mm; tube Ø 21.3 x 1.75 mmLength: 1500 mm; tube Ø 48.3 x 2.0 mm [ Further specific details ] Tube in accordance with EN 10219 / EN 10240

Variants from $38.20*
$76.40*
Rohrverbinder - Kunststoffstopfen schwarz - 133D48-S - 48-3 x 1 - 2 mm - 1 1-2-133D48-S Rohrverbinder - Kunststoffstopfen schwarz - 133D48-S - 48-3 x 1 - 2 mm - 1 1-2-133D48-S
133D48-S
Pipe connector | Black plastic plug | 133D48-S | 48.3 x 1–2 mm | 1 1/2"
Pipe connector | Black plastic plug | 133D48-S | 48.3 x 1–2 mm | 1 1/2" [ Specific details ] for pipe Ø: 48.3 mm (1 1/2"); wall thickness: 1–2 mm [ Application ] Insert plastic plug into open pipe end and seal

Variants from $0.50*

Available, : Lieferzeit 1-2 Werktage

$1.48*
Rohrverbinder - Kunststoffstopfen schwarz - 133D48-K-S - 48-3 x 3 mm - 1 1-2-133D48-K-S
133D48-K-S
Pipe connector | Black plastic plug | 133D48-K-S | 48.3 x 3 mm | 1 1/2"
Pipe connector | Black plastic plug | 133 | 21.3 mm – 60.3 mm | 1/2"–2" | Malleable cast iron and electro-galvanised [ Specific details ] for pipe Ø: 21.3 mm – 60.3 mm (1/2"–2"); wall thickness: 1–2 mm [ Application ] Insert plastic plugs into open pipe ends to seal them

Variants from $0.62*

Available, : Lieferzeit 1-2 Werktage

$1.48*
Rohrverbinder - Einschlagstopfen Feuerverzinkt - 184 - 48-3mm - 1 1-2-184D48 Rohrverbinder - Einschlagstopfen Feuerverzinkt - 184 - 48-3mm - 1 1-2-184D48
184D48
Pipe connector | Hot-dip galvanised drive-in plug | 184 | 48.3 mm | 1 1/2"
Pipe connector | Malleable cast iron drive-in plug | 184 | 48.3 mm | 1 1/2" [ Technical details ] Wall thickness 3.2 mm to 4.0 mm DIN EN 10255

Variants from $5.16*

Available, : Lieferzeit 1-2 Werktage

$6.92*
Gelaenderrohr - Ø 48-3x2-0 mm - Laenge- 1000 mm - Stahl S235JR- verzinkt-30-2248-1000.7 Gelaenderrohr - Ø 48-3x2-0 mm - Laenge- 1000 mm - Stahl S235JR- verzinkt-30-2248-1000.7
30.2248-1000.7
Balustrade tube | Ø 48.3 x 2.0 mm | Length: 1000 mm | S235JR steel, galvanised
Balustrade tube | Ø 48.3 x 2.0 mm | Length: 1000 mm | S235JR steel, galvanised We are happy to produce tube cuts to your specified lengths! [ Technical details ] S235JR steel, galvanised [ Specific details ] Length: 6000 mm; Tube Ø 21.3x1.75 mmLength: 1000 mm; Tube Ø 48.3x2.0 mm [ Further specific details ] Tube in accordance with EN 10219 / EN 10240

Variants from $38.20*
$63.66*
Rohrverbinder - Kunststoffstopfen hellgrau - 133D48 - 48-3 x 1 - 2 mm - 1 1-2-133D48 Rohrverbinder - Kunststoffstopfen hellgrau - 133D48 - 48-3 x 1 - 2 mm - 1 1-2-133D48
133D48
Pipe connector | Light grey plastic plug | 133D48 | 48.3 x 1–2 mm | 1 1/2"
Pipe connector | Light grey plastic plug | 133D48 | 48.3 mm | 1 1/2" | Malleable cast iron and electro-galvanised [ Specific details ] for pipe Ø: 48.3 mm (1 1/2"); wall thickness: 1 - 2 mm [ Application ] Insert plastic plug into open pipe end and seal

Variants from $0.50*

Available, : Lieferzeit 1-2 Werktage

$1.54*
Gelaenderrohr - Ø 48-3x2-0 mm - Laenge- 6000 mm - Stahl S235JR- verzinkt-30-2248.7 Gelaenderrohr - Ø 48-3x2-0 mm - Laenge- 6000 mm - Stahl S235JR- verzinkt-30-2248.7
Stk
30.2248.7
Balustrade tube | Ø 48.3 x 2.0 mm | Length: 6000 mm | S235JR steel, galvanised
Balustrade tube | Ø 48.3 x 2.0 mm | Length: 6000 mm | S235JR steel, galvanised We are happy to produce tube cuts to your specified lengths! [ Technical details ] S235JR steel, galvanised [ Specific details ] Length: 6000 mm; Tube Ø 21.3x1.75 mmLength: 6000 mm; Tube Ø 48.3x2.0 mm [ Further specific details ] Tube in accordance with EN 10219 / EN 10240

Available, : Lieferzeit 3-5 Werktage

$178.26*
Gelaenderrohr - Ø 48-3x2-0 mm - Laenge- 500 mm - Stahl S235JR- verzinkt-30-2248-500.7 Gelaenderrohr - Ø 48-3x2-0 mm - Laenge- 500 mm - Stahl S235JR- verzinkt-30-2248-500.7
30.2248-500.7
Balustrade tube | Ø 48.3 x 2.0 mm | Length: 500 mm | S235JR steel, galvanised
Balustrade tube | Ø 48.3 x 2.0 mm | Length: 500 mm | S235JR steel, galvanised We are happy to produce tube cuts to your specified lengths! [ Technical details ] S235JR steel, galvanised [ Specific details ] Length: 6000 mm; tube Ø 21.3 x 1.75 mmLength: 500 mm; tube Ø 48.3 x 2.0 mm [ Further specific details ] Tube in accordance with EN 10219 / EN 10240

$38.20*
Schneidschrauben - fuer Rohrverbinder 42-4mm - 48-3mm - 60-3mm - 300CDE - Edelstahl-300CDE Schneidschrauben - fuer Rohrverbinder 42-4mm - 48-3mm - 60-3mm - 300CDE - Edelstahl-300CDE
300CDE
Self-tapping screws | for pipe connectors 42.4 mm, 48.3 mm & 60.3 mm | 300CDE | Stainless steel
Stainless steel self-tapping screws, type 300CDE Special screws for pipe connectors Ø 42.4 mm, 48.3 mm & 60.3 mm Product details Material: High-quality stainless steel Application: Fixing pipe connector systems Compatibility: Ideal for heavy-duty pipe connector models Name Size Description Number of threads Thread pitch Thread length GNLJSD 3/8" x 12.7 3/8" screw, length 12.7 mm 9.5 mm 1.337 mm 12.7 mm Installation note: Thanks to its stainless steel construction, this screw is particularly durable and provides optimum hold in tubular structures for both indoor and outdoor use.

Variants from $1.78*

Available, : Lieferzeit 1-2 Werktage

$1.98*
Sechskantschluessel- fuer Rohrverbinder 42-4mm - 48-3mm - 60-3mm - 301CDE-301CDE Sechskantschluessel- fuer Rohrverbinder 42-4mm - 48-3mm - 60-3mm - 301CDE-301CDE
301CDE
Hex key | for pipe connectors 42.4 mm, 48.3 mm & 60.3 mm | 301CDE
Pipe coupler | Hex key for pipe couplers 42.4 mm, 48.3 mm and 60.3 mm | 301CDE

Variants from $3.62*

Available, : Lieferzeit 1-2 Werktage

$9.50*
