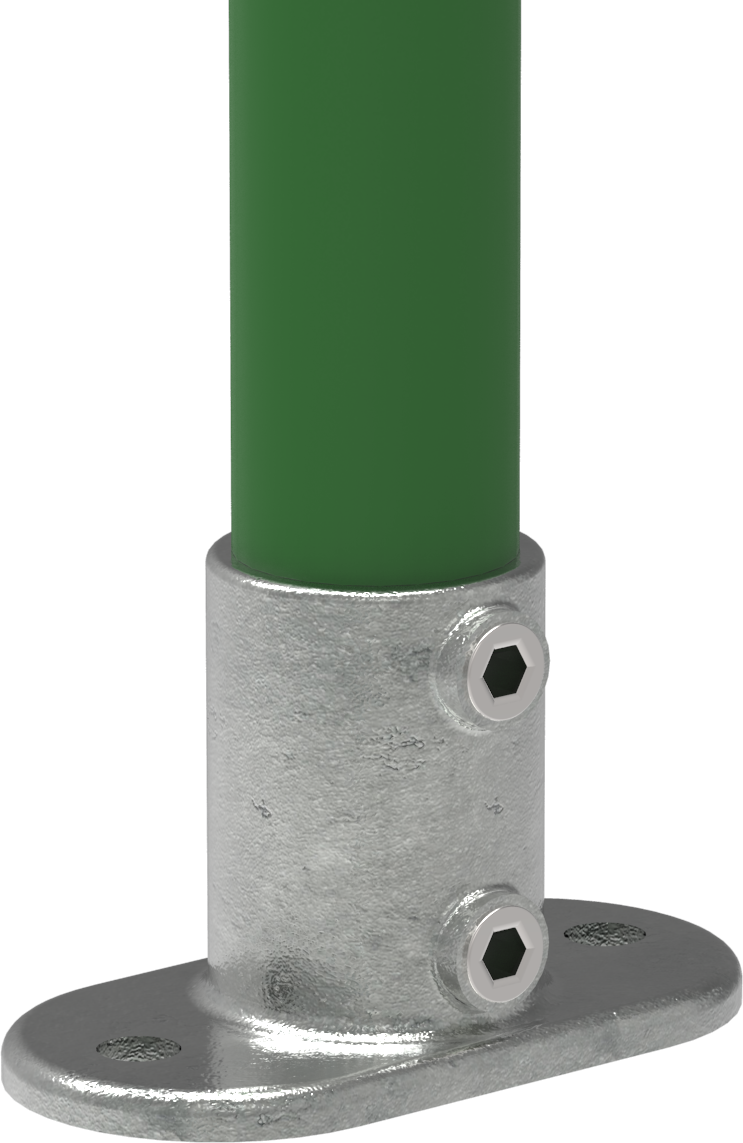

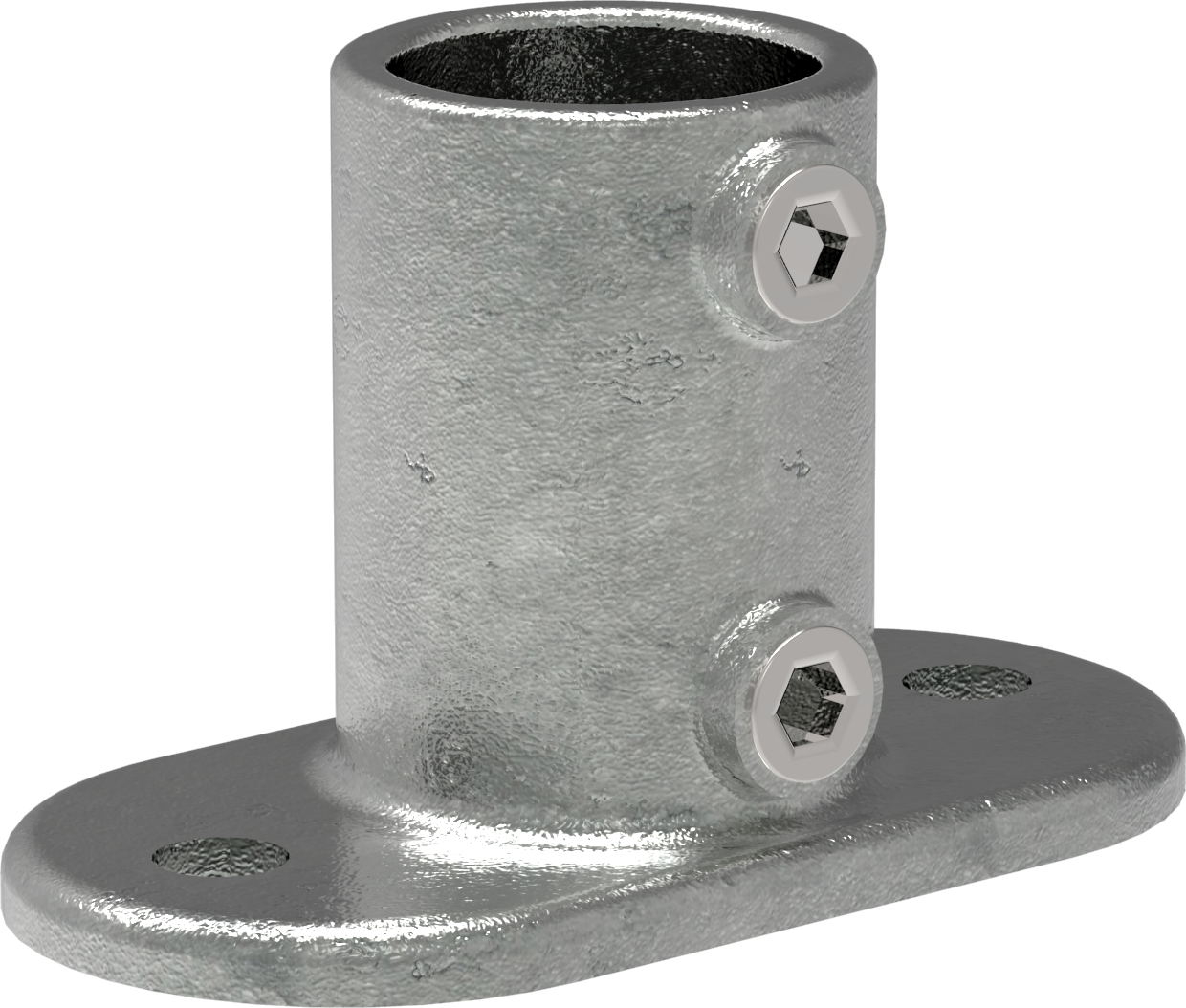

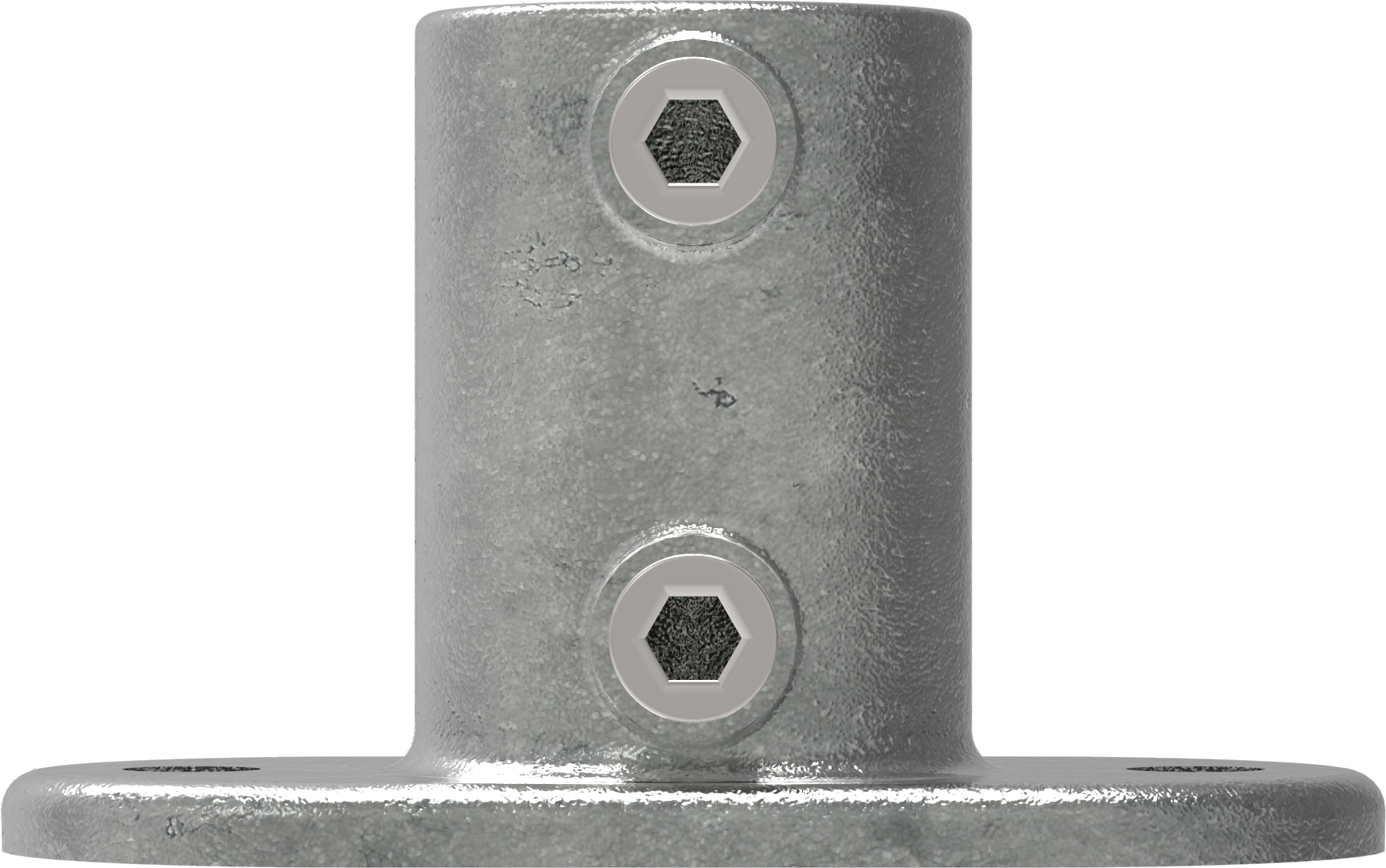

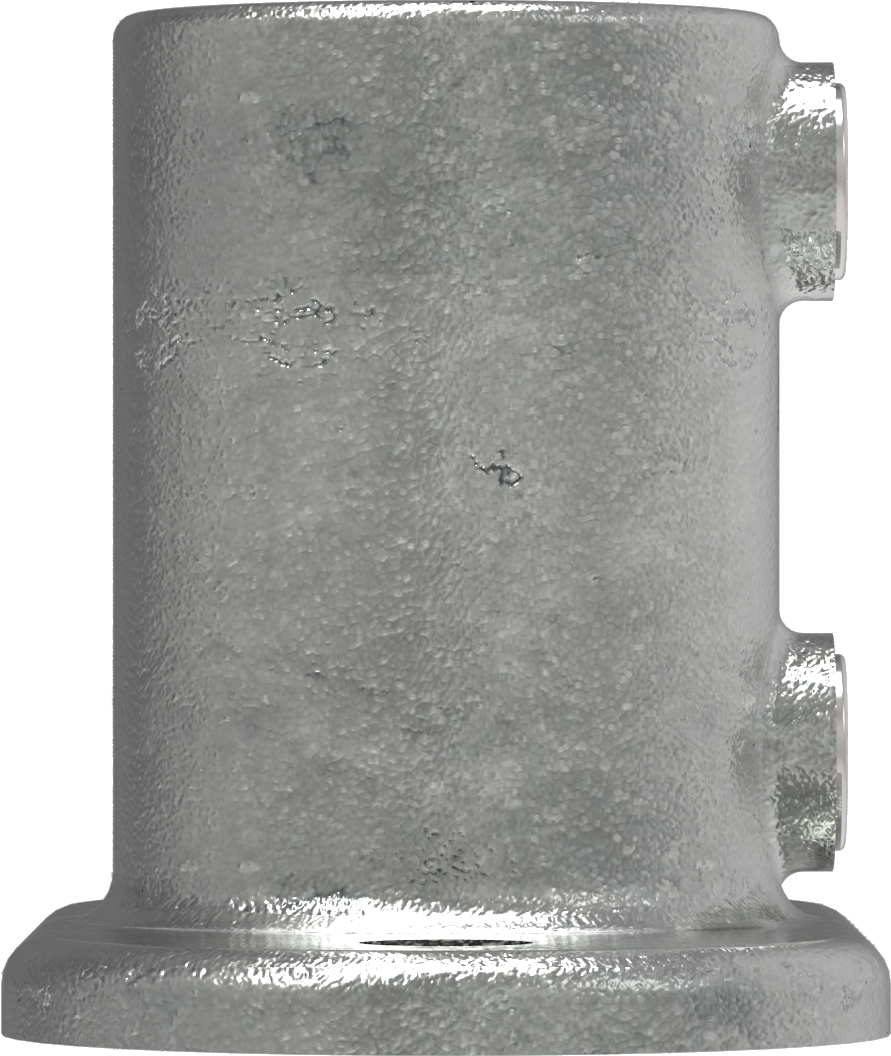

Pipe connector | Oval base plate | 132S17 | 17.2 mm | 3/8" | Hot-dip galvanised and electro-galvanised

Rohraußendurchmesser: Ø 17,2 mm

FeNau Ltd

$10.72*

Prices include VAT, plus delivery charges

Available now, delivery time: Lieferzeit 1-2 Werktage

Rohraußendurchmesser

Ø 26,9 mm

Ø 33,7 mm

Ø 42,4 mm

Ø 48,3 mm

Ø 60,3 mm

Ø 17,2 mm

Stk

Lagerbestand: 442

Product number: 132S17

EAN: 4067014011572

Gewicht: 0.19 kg

20,000 items in stock

CAD data available after login

Over 200,000 satisfied customers

Worldwide delivery

Product information "Pipe connector | Oval base plate | 132S17 | 17.2 mm | 3/8" | Hot-dip galvanised and electro-galvanised"

[ Scope of delivery ] 1x base flange (oval / rigid) incl. stainless steel clamping and cutting screws - (Item no.: 132A27) | Optimal corrosion protection against the elements – durable, stable and universally applicable (outer diameter in accordance with DIN EN ISO 6708 and EN 10255)

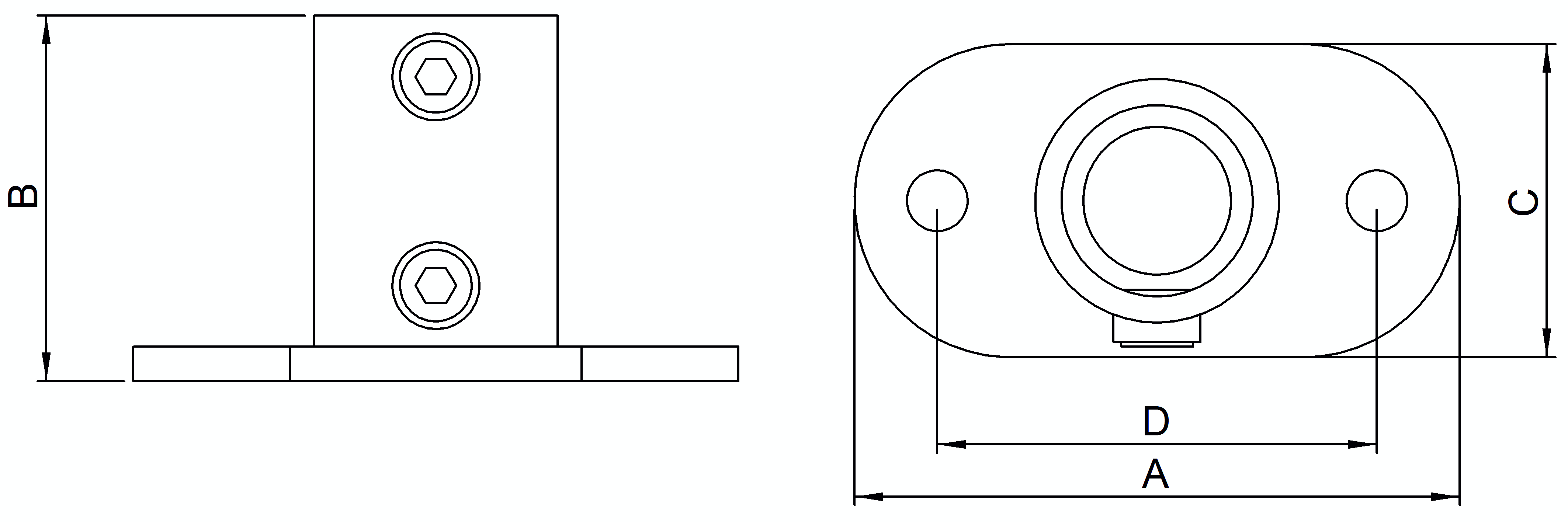

[ Technical details ] Dimensions (see illustration): For Ø 26.9 mm / ¾" Dimension (A): 105 mm / Dimension (B): 60 mm / Dimension (C): 52 mm / Dimension (D): 76 mm / Weight: 0.52 kg | Professional quality through electro-galvanisation and hot-dip galvanisation - Material: malleable cast iron

[ Wrong size? - Suitable items ] (Item no.: 132A27) Dimensions: Ø 26.9 mm / ¾" | (Item no.: 132B34) Dimensions: Ø 33.7 mm / 1" | (Item No.: 132C42) Dimensions: Ø 42.4 mm / 1 ¼" | (Item No.: 132D48) Dimensions: Ø 48.3 mm / 1 ½" | (Item No.: 132E60) Dimensions: Ø 60.3 mm / 2"

[ Application ] Wide range of applications | For securing posts (very stable thanks to 2 adjusting screws) | For steel structures, scaffolding, handrails, railings, shelving, etc. | Not the right tube connector? No problem, we stock a wide range of tube connectors in various shapes

For tube Dimension a Dimension b Dimension c Dimension d Bore Insertion depth Allen key 17.2 mm 72.5 mm 50 mm 40 mm 47 mm 301T 26.9 mm 105 mm 60 mm 52 mm 76 mm 11 mm 60 mm301AB 33.7 mm 127 mm 71 mm 62 mm 89 mm 14 mm 68 mm301AB 42.4 mm 139 mm 84 mm 72 mm 101 mm 14 mm .301CDE 48.3 mm 152 mm 89 mm 86 mm 114 mm 14 mm 87 mm301CDE 60.3 mm 165 mm 104 mm 96 mm 14 mm 94 mm301CDE

Ø Für Rohr \| Ø Außendurchmesser \| Ø Anschluss:	Ø 17.2mm

Accessories

184S17

Pipe connector | Hot-dip galvanised drive-in plug | 184 | 17.2 mm 3/8"

Pipe connector | Malleable cast iron drive-in plug | 184 | 17.2 mm 3/8" [ Technical details ] Wall thickness 2.3 mm to 2.9 mm DIN EN 10255

Variants from $5.16*

Available, : Lieferzeit 1-2 Werktage

$6.28*
