Pipe connector | Oval base plate | 132E60 | 60.3 mm | 2" | Hot-dip galvanised and electro-galvanised

Rohraußendurchmesser: Ø 60,3 mm

FeNau Ltd

$39.94*

Prices include VAT, plus delivery charges

Available now, delivery time: Lieferzeit 1-2 Werktage

Rohraußendurchmesser

Ø 26,9 mm

Ø 33,7 mm

Ø 42,4 mm

Ø 48,3 mm

Ø 60,3 mm

Ø 17,2 mm

Stk

Stock: 851

Product number: 132E60

EAN: 4251412902017

Weight: 1.5 kg

20,000 items in stock

CAD data available after login

Over 200,000 satisfied customers

Worldwide delivery

Product information "Pipe connector | Oval base plate | 132E60 | 60.3 mm | 2" | Hot-dip galvanised and electro-galvanised"

Pipe connector | Oval base plate | 132E60 | 60.3 mm | 2" | Malleable cast iron, hot-dip galvanised and electro-galvanised

[ Technical details ] Material: malleable cast iron; hot-dip galvanised and electro-galvanised with stainless steel clamping and cutting screws

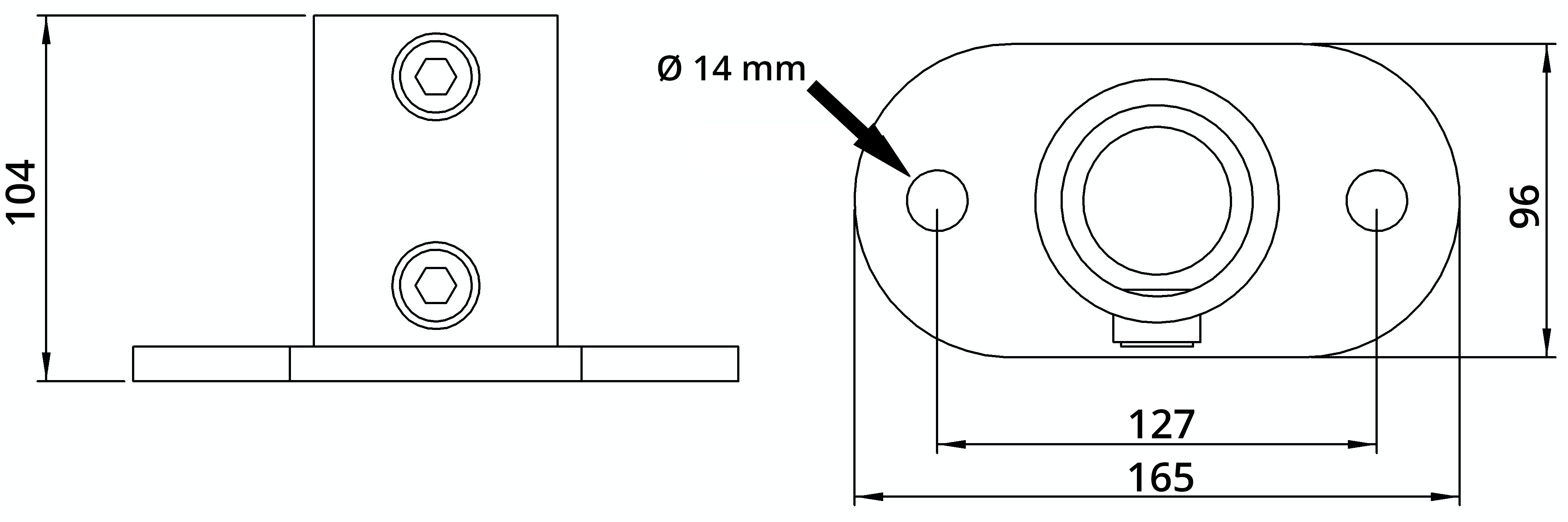

[ Specific details ] for pipe Ø: 60.3 mm (2"); Plate with 2 holes, each 17 mm; Dimension a: 165 mm; Dimension b: 104 mm; Dimension c: 96 mm; Dimension d: 127 mm
[ Further Specific Details ] Required Allen key: Item No.: 301CDE

Ø Für Rohr \| Ø Außendurchmesser \| Ø Anschluss:	Ø 60.3mm (2″)

Accessories

301CDE

Hex key | for pipe connectors 42.4 mm, 48.3 mm & 60.3 mm | 301CDE

Pipe coupler | Hex key for pipe couplers 42.4 mm, 48.3 mm and 60.3 mm | 301CDE

Variants from $3.62*

Available, : Lieferzeit 1-2 Werktage

$9.50*

300CDE

Self-tapping screws | for pipe connectors 42.4 mm, 48.3 mm & 60.3 mm | 300CDE | Stainless steel

Stainless steel self-tapping screws, type 300CDE Special screws for pipe connectors Ø 42.4 mm, 48.3 mm & 60.3 mm Product details Material: High-quality stainless steel Application: Fixing pipe connector systems Compatibility: Ideal for heavy-duty pipe connector models Name Size Description Number of threads Thread pitch Thread length GNLJSD 3/8" x 12.7 3/8" screw, length 12.7 mm 9.5 mm 1.337 mm 12.7 mm Installation note: Thanks to its stainless steel construction, this screw is particularly durable and provides optimum hold in tubular structures for both indoor and outdoor use.

Variants from $1.78*

Available, : Lieferzeit 1-2 Werktage

$1.98*

133E60

Pipe connector | Light grey plastic plug | 133E60 | 60.3 x 1.5–2.5 mm | 2"

Pipe connector | Light grey plastic plug | 133E60 | 60.3 mm | 2" | Malleable cast iron and electro-galvanised [ Specific details ] for pipe Ø: 60.3 mm (2"); wall thickness: 1.5 - 2.5 mm [ Application ] Insert plastic plug into open pipe end and seal

Variants from $0.50*

Available, : Lieferzeit 1-2 Werktage

$2.30*

133E60-S

Pipe connector | Black plastic plug | 133E60-S | 60.3 x 1.5–2.5 mm | 2"

Pipe connector | Black plastic plug | 133E60-S | 60.3 x 1.5–2.5 mm | 2" [ Specific details ] for pipe Ø: 60.3 mm (2"); wall thickness: 1.5 - 2.5 mm [ Application ] Insert plastic plug into open pipe end and seal

Variants from $0.50*

Available, : Lieferzeit 1-2 Werktage

$2.30*

133E60-K

Pipe connector | Light grey plastic plug | 133E60-K | 60.3 x 3–4 mm | 2"

Pipe connector | Light grey plastic plug | 133 | 21.3 mm – 60.3 mm | 1/2"–2" | Malleable cast iron and electro-galvanised [ Specific details ] for pipe Ø: 21.3 mm – 60.3 mm (1/2"–2"); wall thickness: 1–2 mm [ Application ] Insert plastic plugs into open pipe ends to seal them

Variants from $0.62*

Available, : Lieferzeit 1-2 Werktage

$2.30*

133E60-S-K

Pipe connector | Black plastic plug | 133E60-K-S | 60.3 x 3–4 mm | 2"

Pipe connector | Black plastic plug | 133 | 21.3 mm – 60.3 mm | 1/2"–2" | Malleable cast iron and electro-galvanised [ Specific details ] for pipe Ø: 21.3 mm – 60.3 mm (1/2"–2"); wall thickness: 1–2 mm [ Application ] Insert plastic plugs into open pipe ends to seal them

Variants from $0.62*

Available, : Lieferzeit 1-2 Werktage

$2.30*

184E60

Pipe connector | Hot-dip galvanised drive-in plug | 184 | 60.3 mm | 2"

Pipe connector | Malleable cast iron drive-in plug | 184 | 60.3 mm 2" [ Technical details ]Wall thickness 3.6 mm to 4.5 mm DIN EN 10255

Variants from $5.16*

Available, : Lieferzeit 1-2 Werktage

$10.52*

30.2260-500.7

Balustrade tube | Ø 60.3 x 2.0 mm | Length: 500 mm | S235JR steel, galvanised

Balustrade tube | Ø 60.3 x 2.0 mm | Length: 500 mm | S235JR steel, galvanised We are happy to produce tube cuts to your specified lengths! [ Technical details ] S235JR steel, galvanised [ Specific details ] Length: 6000 mm; tube Ø 21.3 x 1.75 mmLength: 500 mm; tube Ø 60.3 x 2.0 mm [ Further specific details ] Tube in accordance with EN 10219 / EN 10240

$38.20*

30.2260-1000.7

Railing tube | Ø 60.3 x 2.0 mm | Length: 1000 mm | S235JR steel, galvanised

Railing tube | Ø 60.3 x 2.0 mm | Length: 1000 mm | S235JR steel, galvanised We are happy to produce tube cuts to your specified lengths! [ Technical details ] S235JR steel, galvanised [ Specific details ] Length: 6000 mm; Tube Ø 21.3 x 1.75 mmLength: 1000 mm; Tube Ø 60.3 x 2.0 mm [ Further specific details ] Tube in accordance with EN 10219 / EN 10240

Variants from $38.20*

$73.26*

30.2260-1500.7

Balustrade tube | Ø 60.3 x 2.0 mm | Length: 1500 mm | S235JR steel, galvanised

Balustrade tube | Ø 60.3 x 2.0 mm | Length: 1500 mm | S235JR steel, galvanised We are happy to produce tube cuts to your specified lengths! [ Technical details ] S235JR steel, galvanised [ Specific details ] Length: 6000 mm; tube Ø 21.3 x 1.75 mmLength: 1500 mm; tube Ø 60.3 x 2.0 mm [ Further specific details ] Tube in accordance with EN 10219 / EN 10240

Variants from $38.20*

$82.78*

Gelaenderrohr - Ø 60-3x2-0 mm - Laenge- 6000 mm - Stahl S235JR- verzinkt-30-2260.7

Stk

30.2260.7

Balustrade tube | Ø 60.3 x 2.0 mm | Length: 6000 mm | S235JR steel, galvanised

Balustrade tube | Ø 60.3 x 2.0 mm | Length: 6000 mm | S235JR steel, galvanised We are happy to produce tube cuts to your specified length! [ Technical details ] S235JR steel, galvanised [ Specific details ] Length: 6000 mm; Tube Ø 21.3 x 1.75 mmLength: 6000 mm; Tube Ø 60.3 x 2.0 mm [ Further specific details ] Tube in accordance with EN 10219 / EN 10240

$374.50*
