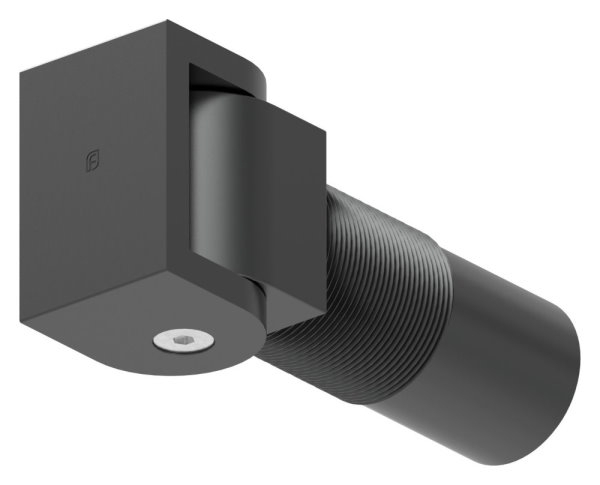

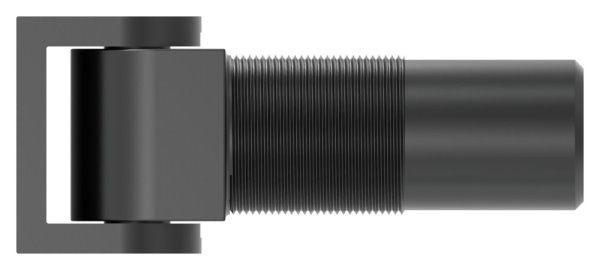

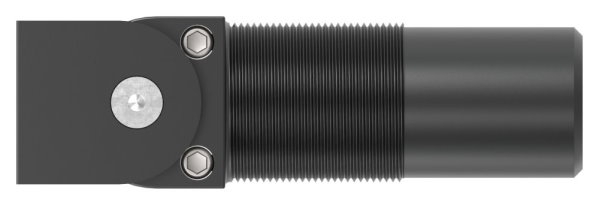

Self-closing gate hinge with stop and end stop, weldable aluminium version ITEM: 108 W-weld-on version
Product information "Self-closing gate hinge with stop and end stop, weldable aluminium version ITEM: 108 W-weld-on version"
Self-closing aluminium door hinge with stop and final closing action, suitable for welding
[Description] With hydraulic closing mechanism, closing and final closing speed adjustable[Technical details] Stop at 0°, +/-90°, opening angle +/-90° to 0°, automatic operation from +/-85° to 0°
[Notes] Weld-on version: The weld-on bracket must be protected against corrosion afterwards! Welding is only possible after galvanising!
Self-closing gate hinges – Ariete series for pedestrian gates
The Ariete series offers high-quality, hydraulically assisted gate hinges for self-closing pedestrian gates. These hinges enable automatic, gentle and safe closing – without any electricity or external control.
Suitable for gate leaves up to 120 kg and up to 1000 mm wide, available in two versions:
- S version: With aluminium bracket for screw mounting

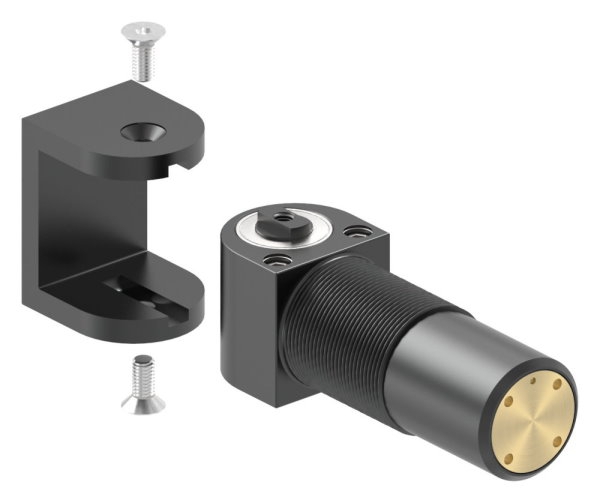

- W version: With iron bracket for welding
Mounting plates for fixing to the gate are available separately.
Advantages at a glance:
- Hydraulic self-closing function
- Adjustable closing speed (models 57 & 108)
- Additional end stop adjustable (Model 108)
- Weather-resistant & durable
- Quiet, controlled closing action
Model overview – Ariete gate hinges
| Model | Function | Special features | Version without hold-open function |
|---|---|---|---|
| Ariete SM | Mechanical, without hydraulics | Can be combined with Ariete 57/108 | – |
| Ariete 57 | Hydraulic, with adjustable closing speed | Smooth, automatic closing | 57 SF – without hold-open function |
| Ariete 108 | Hydraulic, with two adjustment functions (speed & final stroke) | Ideal for gates with an electric lock | 108 SF – without hold-open function |
Technical data:
- Max. gate weight: 120 kg
- Max. gate width: 1000 mm
- Mounting types: Screws (S) or welding (W)
- Material: Aluminium or steel, corrosion-protected
Applications:
- Garden and courtyard gates
- Private homes and apartment blocks
- Commercial access areas
- Gates with access control or electric locking
Thanks to hydraulic self-closing without an external power supply, Ariete gate hinges offer a secure, durable and convenient gate experience. These high-quality hinges prove their worth in practice, particularly at frequently used entrances or in security-related applications.
Tip: For optimum performance, we recommend combining a hydraulic hinge (Ariete 57 or 108) with a mechanical Ariete SM as the load-bearing hinge.
What does the final push function mean?
The final push function ensures that the gate automatically and powerfully pulls itself into the closed position during the last few centimetres of the closing process. From around 10–15 degrees before closing, an additional impulse is triggered, which safely brings the gate to a close – even if it has only been lightly nudged.
Advantages of the final push function:
- Reliable closing even in windy conditions or when operated imprecisely
- No unwanted door left open
- Greater ease of use – no need to pull the door shut firmly
- Low wear and tear thanks to gentle, hydraulic control
Particularly practical for courtyard gates, garden gates and doors with a self-closing mechanism.
| Gewinde : | M37x1,5 |
|---|---|
| Versand Gurtmasspflichtig: | Nein |
| Werkstoff: | Aluminium |
