V2A stainless steel crossbar bracket – 60.3 mm connection, suitable for 12 mm round bars, screws included

FeNau Ltd

Querstabhalter Edelstahl V2A fuer Rohr Ø 60-3 mm- Bohrung Ø 12-2 mm- geschliffen Korn 240-88-1150387.240A

$4.86*

Prices include VAT, plus delivery charges

Available now, delivery time: Lieferzeit 5-10 Werktage

Stk

Stock: 516

Product number: 88.1150387.240A

EAN: 4067014001092

Weight: 0.054 kg

20,000 items in stock

CAD data available after login

Over 200,000 satisfied customers

Worldwide delivery

Product information "V2A stainless steel crossbar bracket – 60.3 mm connection, suitable for 12 mm round bars, screws included"

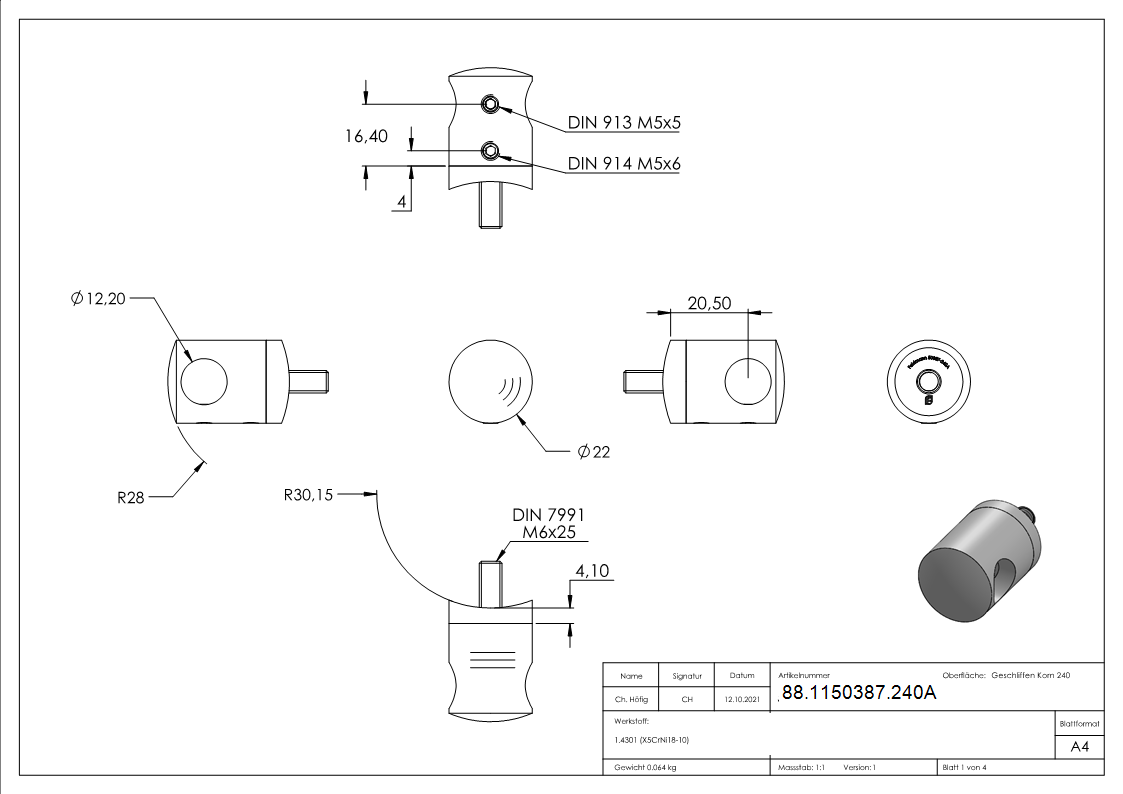

Crossbar bracket for 60.3 mm tubing, with a 12.2 mm bore, including grub screws and fixing screws, V2A

Bohrung Ø in mm:	12,2 mm
Werkstoff:	V2A
Ø Für Rohr \| Ø Außendurchmesser \| Ø Anschluss:	60,3 mm

Zubehör

Gelaenderpfosten - fuer 4 Querstabhalter M6 - Laenge- 880 mm - V2A-14-0001.4

Stk

14.0001.4

Baluster | for 4 M6 crossbar holders | Length: 880 mm | V2A

Balustrade post | for 4 M6 crossbar holders | Length: 880 mm | V2A [ Technical details ] Stainless steel 1.4301/V2A/AISI 304 – 240-grit finish [ Post details ] Post: Length: 880 mm; Ø 42.4 x 2.0 mm; with 4 x M6 flow-formed threads for crossbar holders; Spacing for crossbar holder holes: 192.2 mm [ Further details ] Welded anchor plate: Dimensions: 100x6 mm with 3 holes, each 11 mm; Cover rosette: Dimensions: 105x25 mm [ Scope of delivery ] Consisting of: Stainless steel tube with welded-on anchor plate (Item No.: 11.2265.4) + enclosed cover rosette (Item No.: 11.2505.4) [ Application ] Secure crossbar holders in the threaded holes, screw on the anchor plate and then fit the cover rosette over it

Available, : Lieferzeit 5-10 Werktage

$94.22*

Gelaenderpfosten seitliche Montage fuer 4 Querstabhalter M6 Laenge- 1190 mm V2A-14-0020.4

Stk

14.0020.4

Railing post for side mounting, for 4 M6 crossbar holders, length: 1190 mm, V2A

Balustrade post | side mounting | for 4 M6 crossbar holders | Length: 1190 mm | V2A [ Technical details ] Stainless steel 1.4301/V2A/AISI 304 – 240-grit polished [ Post details ] Post: Length: 1190 mm; Ø 42.4 x 2.0 mm; with 4 x M6 flow-formed threads for crossbar holders; Spacing for crossbar holder holes 192.2 mm [ Further details ] with wall anchor for adjustment: Plate: 120x10 mm with 2 slotted holes, each 20x11 mm [Contents] comprising: stainless steel post & wall mounting (Item No.: 11.3065.4) [Application] Secure crossbar holders in threaded holes, screw in wall anchors and clamp in place the stainless steel post

Available, : Lieferzeit 5-10 Werktage

$162.46*

Stk

11.5027.4

Pipe plug for Ø 42.4 x 2.0 mm, slightly domed, for hammering in, V2A

Pipe plug for Ø 42.4 x 2.0 mm, slightly domed, for hammering in | V2A Made from V2A stainless steel (1.4301), solid material – sanded to 240 grit with knurling for hammering in, for pipe outer diameter 42.4 mm with wall or material thickness 2.0 mm Dimension A: 7 mm Dimension B: 8 mm Weight: 0.13 kg

Available, : Lieferzeit 5-10 Werktage

$6.62*

Tip

Endkappe Edelstahl V2A fuer Rohr Ø 42-4x2-0 mm- M8 Gewinde- gewoelbt- zum Einschlagen-11-5063.4

Stk

11.5063.4

Pipe plug for Ø 42.4 x 2.0 mm, slightly domed, for hammering in, with M8 V2A

Slightly domed pipe plug, V2A solid material with M8 thread for Ø 42.4 x 2.0 mm Made from V2A stainless steel (1.4301), solid material – sanded to 240 grit with knurling for hammering in , with M8 internal thread. Weight: 0.12 kg

Available, : Lieferzeit 5-10 Werktage

$6.26*

Handlaufstuetze aus einem Stueck fuer 42-4x2-0 mm V2A-11-3861.4

Stk

11.3861.4

One-piece handrail bracket for 42.4 x 2.0 mm V2A

One-piece handrail bracket for 42.4 x 2.0 mm tubing, for welding (top) V2A Made of stainless steel 1.4301/V2A/AISI 304 . Plug for round tube Ø 42.4 x 2.0 mm for gluing. Pin Ø 14 mm. Height: 80 mm (excluding plug)

Available, : Lieferzeit 5-10 Werktage

$15.24*

Handlaufstuetze aus einem Stueck mit Halteplatte V2A-11-3864.4

Stk

11.3864.4

One-piece handrail bracket with V2A mounting plate

One-piece handrail bracket for 42.4 x 2.0 mm tubing with mounting plate for Ø 42.4 mm tubing Made of stainless steel 1.4301/V2A/AISI 304 Plug for round tube Ø 42.4 x 2.0 mm for gluing Pin Ø 14 mm Mounting plate for tube Ø 42.4 mm Height: 80 mm (excluding plug)

Available, : Lieferzeit 5-10 Werktage

$19.32*
