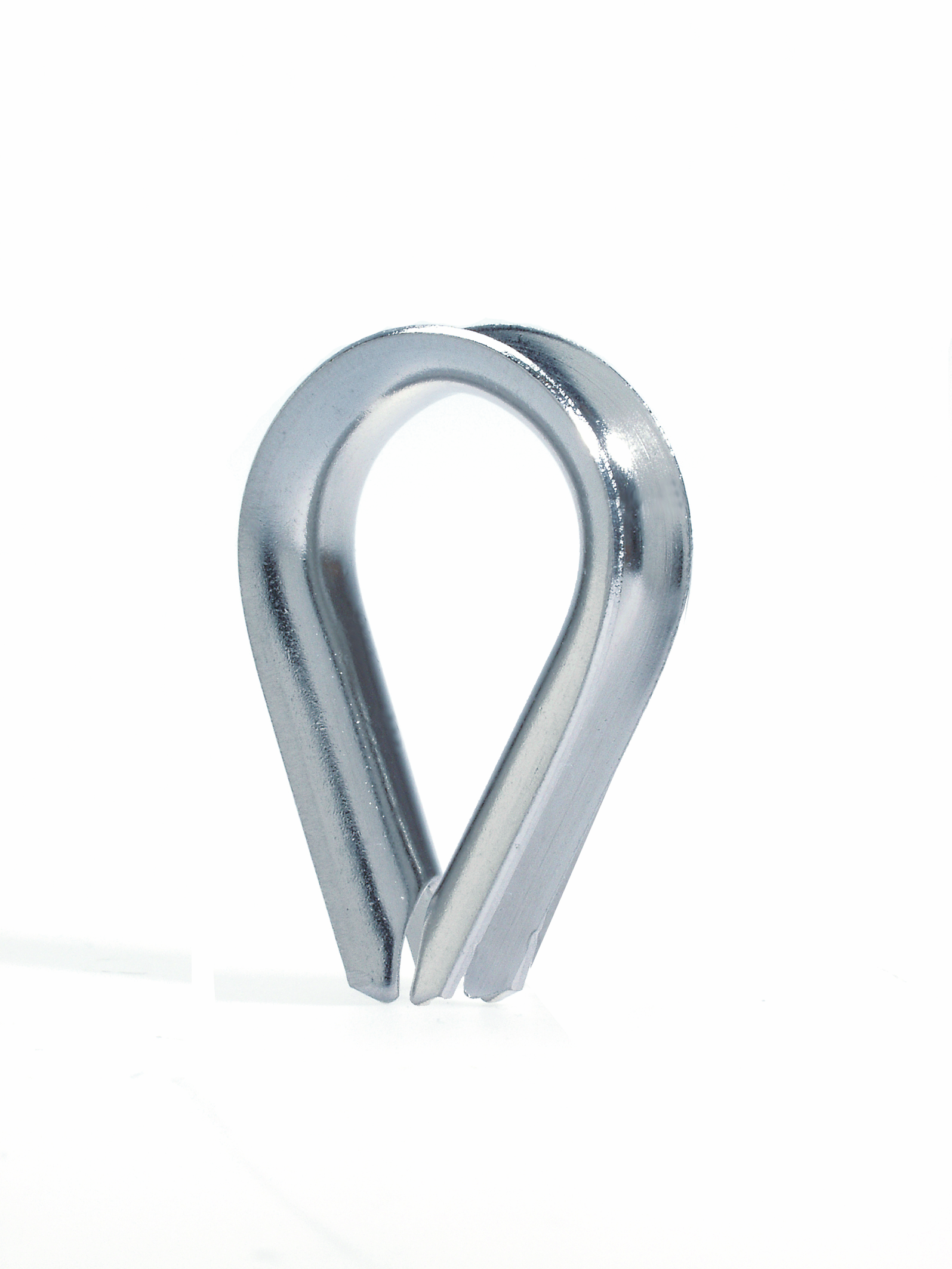

V4A thimble, 2 mm – Pack of 200
Ø Drahtseil:
2 mm
$60.80*
Available now, delivery time: Lieferzeit 5-10 Werktage
Lagerbestand:
9997
Product number:
66.64.411.8247402
EAN:
4022697012094
Gewicht:
0.002 kg
Description
Product information "V4A thimble, 2 mm – Pack of 200"
Thimble | for wire rope | Inner height: 10 mm – 92 mm | V4A
[ Technical details ] made of stainless steel 1.4401/V4A/AISI 316

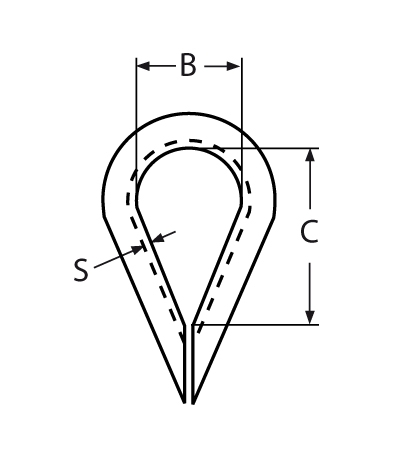

| Wire rope Ø | B | C | S |
|---|---|---|---|
| 2 mm | 7 mm | 10 mm | 0.7 mm |
| 2.5 mm | 8 mm | 14 mm | 0.7 mm |
| 3 mm | 9 mm | 15 mm | 1.0 mm |
| 4 mm | 11 mm | 18 mm | 1.0 mm |
| 5 mm | 14 mm | 20 mm | 1.2 mm |
| 6 mm | 15 mm | 26 mm | 1.2 mm |
| 8 mm | 18 mm | 29 mm | 1.5 mm |
| 10 mm | 24 mm | 37 mm | 1.5 mm |
| 12 mm | 29 mm | 50 mm | 1.5 mm |
| 14 mm | 33 mm | 54 mm | 2.0 mm |
| 16 mm | 37 mm | 64 mm | 2.0 mm |
| 18 mm | 40 mm | 70 mm | 2.5 mm |
| 20 mm | 45 mm | 75 mm | 2.5 mm |
| 22 mm | 53 mm | 88 mm | 2.5 mm |
| 24 mm | 58 mm | 92 mm | 3.0 |
