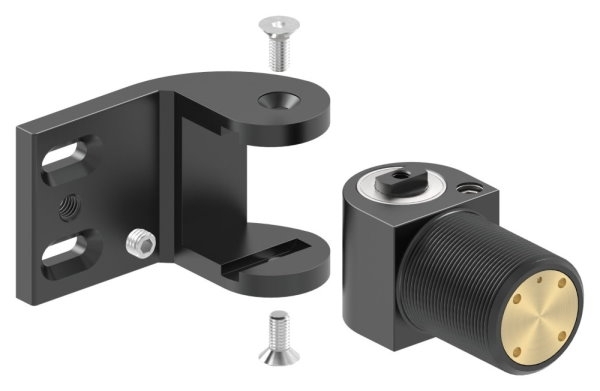

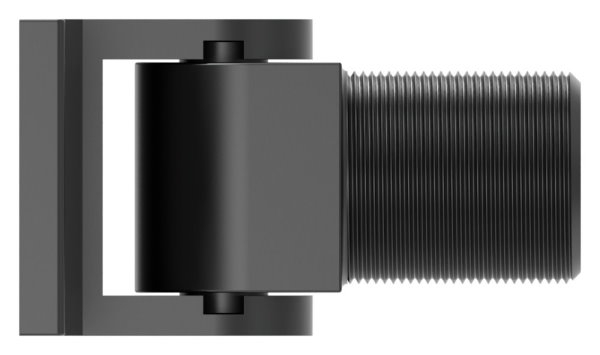

180° aluminium self-closing door hinge with stop, screw-on type ITEM: 57 AT90 S screw-on version
$277.18*
Available now, delivery time: Lieferzeit 1-2 Werktage
Product information "180° aluminium self-closing door hinge with stop, screw-on type ITEM: 57 AT90 S screw-on version"
If there is limited space between the posts and the gate, we offer two clever solutions: S (for screwing) and W (for welding). Both versions are ideal for tight installation spaces.
180° aluminium gate hinge, self-closing with stop, screw-mounted
[Description] with hydraulic closing, adjustableclosing speed[Technical details] Stop from 90–180°, opening angle 0–180°, automatic operation from 85–0°
[Notes] Weld-on version: The weld-on bracket must be protected against corrosion afterwards! Welding is only possible after galvanising!
Ariete AT90° – Gate hinge with and without automatic mechanism
The Ariete AT90° gate hinges stand for quality, flexibility and functionality. They comprise various models for different applications – with or without an oil-dynamic closing mechanism, available as screw-on (S) or weld-on (W) versions.
Advantages at a glance
- Flexible installation: All models are available as S (screw-on) or W (weld-on) variants.
- Wide opening angle: Up to 180° manually (SF variants 90°).
- Automatic closing: Models 57 and 108 with oil-dynamic mechanism.
- Customisation: Adjustable closing speed and final latch (model 108).
- Perfect combination: Ariete SM is ideal as a complement to an automated hinge.
Model overview
| Model | Automatic | Mounting type | Opening angle | Automatic closing | Adjustment options | Special features |
|---|---|---|---|---|---|---|
| Ariete SM AT90° | No | S or W | Up to 180° (SF: 90°) | None | – | Ideal in combination with 57 or 108 |
| Ariete 57 AT90° | Yes (hydraulic) | S or W | Up to 180° (SF: from 90°) | 85° to 0° | Closing speed via nozzle | Compact automatic mechanism |
| Ariete 108 AT90° | Yes (hydraulic) | S or W | Up to 180° (SF: from 90°) | 85° to 0° | Two jets for speed & final stroke | Maximum control & comfort |
| Gewinde : | M37x1,5 |
|---|---|
| Versand Gurtmasspflichtig: | Nein |
| Werkstoff: | Aluminium |
