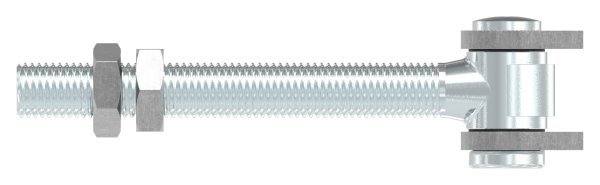

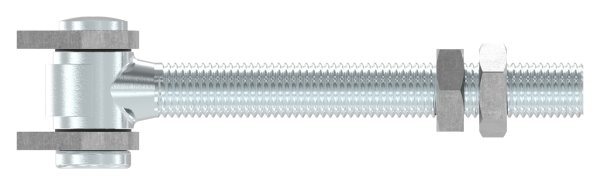

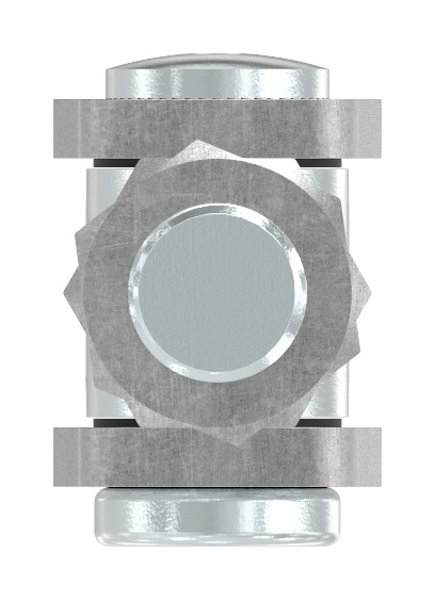

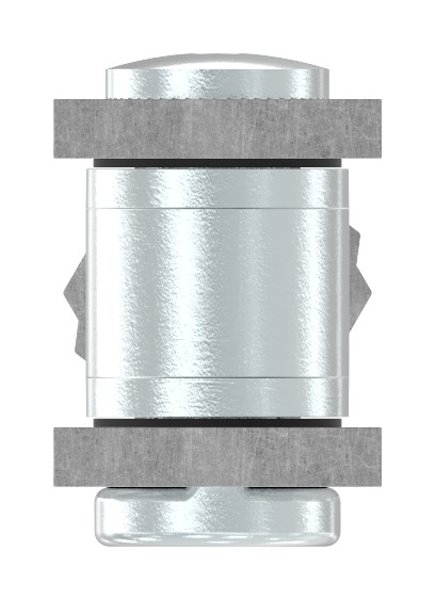

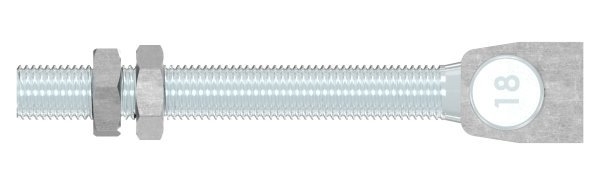

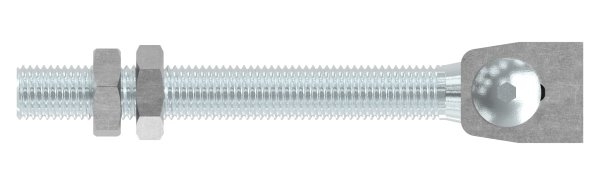

Adjustable M18 door hinge, steel (unfinished) S235JR
$21.52*
Available now, delivery time: Lieferzeit 5-10 Werktage
Product information "Adjustable M18 door hinge, steel (unfinished) S235JR"
[ Technical details ] S235JR steel, raw

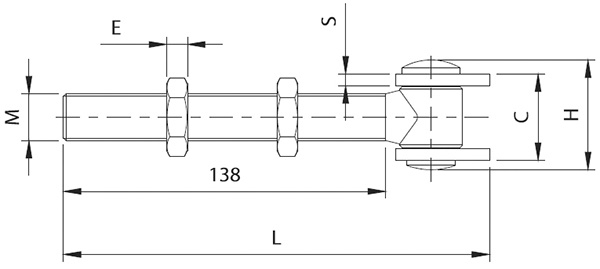

[ Specific details ] Eye bolt and pin hot-dip galvanised; Dimension A: 33 mm; Dimension B: 40 mm; Dimension C: 39 mm; Dimension E: 9 mm; Dimension G: 25 mm; Dimension H: 49 mm; Dimension L: 185 mm; Dimension M: M18; Dimension S: 6 mm; Load capacity per pair: 125 kg

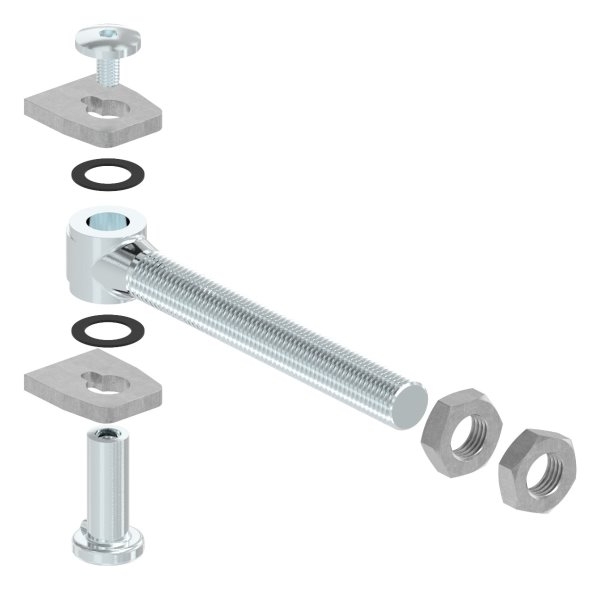

[ Further Specific Details ] Gate hinge with long thread, adjustable / hot-dip galvanised eye bolts and pins / with 2x flat hex nuts and 2x washers / pin rotation stop and locking screw
[ Application ] Position the gate hinge where required, adjust at the lower end of the eye bolt
| Gewinde : | M18 |
|---|---|
| Werkstoff: | Stahl roh |
Product safety (GPSR)
Manufacturer / responsible person in the EU: FeNau GmbH, Veit-Stoß-Str. 20, 90579 Langenzenn, Germany · info@fenau.eu · +49 911 97917230
Safety information: metal products may have sharp edges – wear protective gloves. Observe permissible loads and installation instructions; secure components properly before use.
