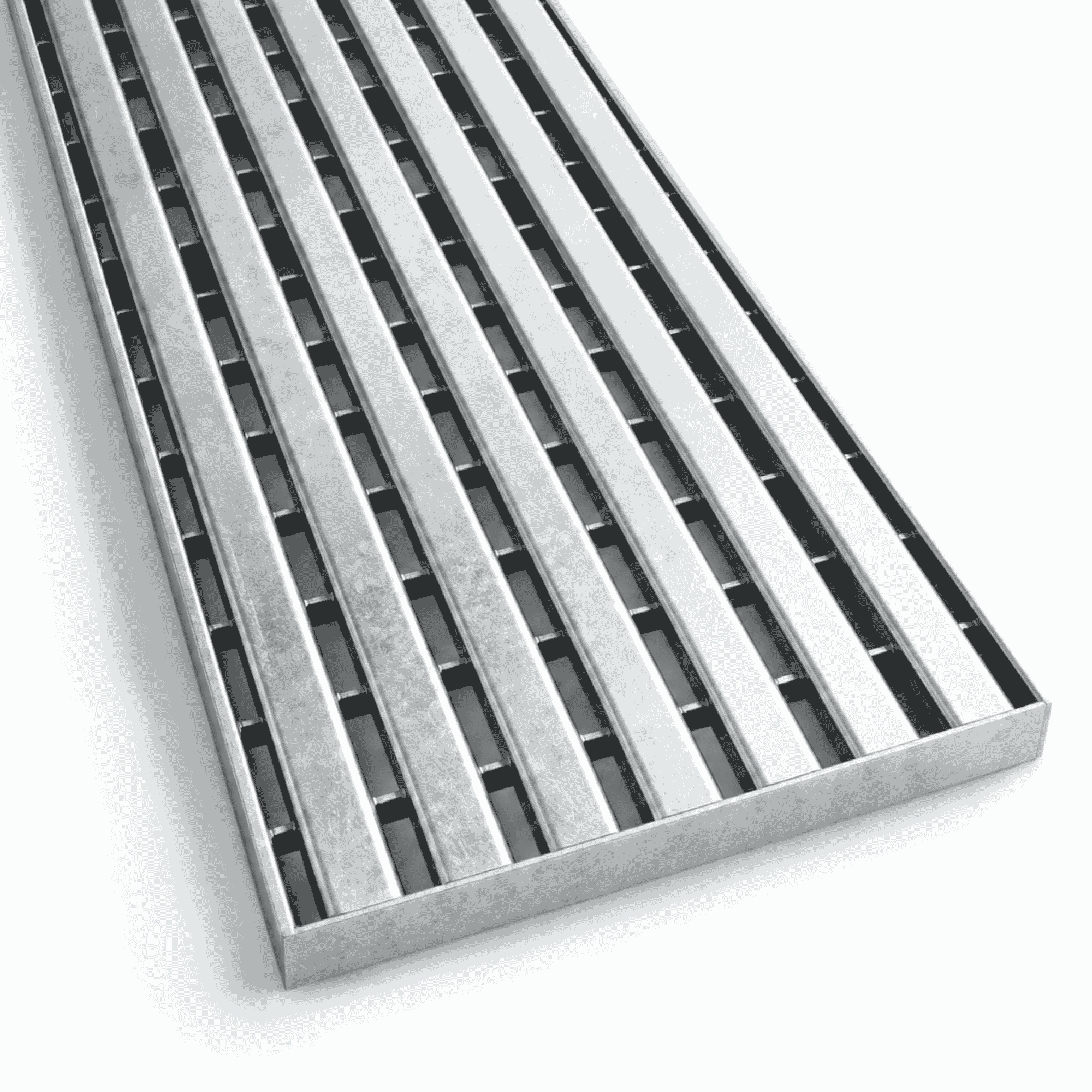

Boat jetty grating dimensions: 250 x 1000 x 20 mm, hot-dip galvanised
FeNau Ltd
$122.74*
Available now, delivery time: Lieferzeit 1-2 Werktage
Lagerbestand:
170
Product number:
22.25100202.7
EAN:
4067014011350
Gewicht:
5.92 kg
Description
Product information "Boat jetty grating dimensions: 250 x 1000 x 20 mm, hot-dip galvanised"
Boat jetty grating 250x1000 mm 20/2 mm
Made from S235JR (St37-2), hot-dip galvanised
with flat bar edging
Length (in the direction of the bearing bars): 250 mm
Width (in the direction of the infill or U-profile): 1000 mm
Grating height: 20 mm
Bearing bar (height/material thickness): 20/2 mm
Weight: 5.35 kg
Point load on 100 mm² load cube: 2.43 kN (243 kg)
Product note: Hot-dip galvanising is intended for corrosion protection and is not a surface finishing process. Due to the nature of the process, irregularities may occur in the zinc coating.
Galvanisation in accordance with DIN EN ISO 1461
Eigenschaften
| Höhe: | 20 mm |
|---|---|
| Länge: | 250 mm |
| Versand Gurtmasspflichtig: | Nein |
| Breite: | 1000 mm |
