Bottom roller, double-bearing, roller diameter 100 mm MEA 10337636
FeNau Ltd
$264.20*
Available now, delivery time: Lieferzeit 1-2 Werktage
Stock:
999
Product number:
60.0200.7
EAN:
4251412907715
Weight:
4.21 kg
Description
Product information "Bottom roller, double-bearing, roller diameter 100 mm MEA 10337636"

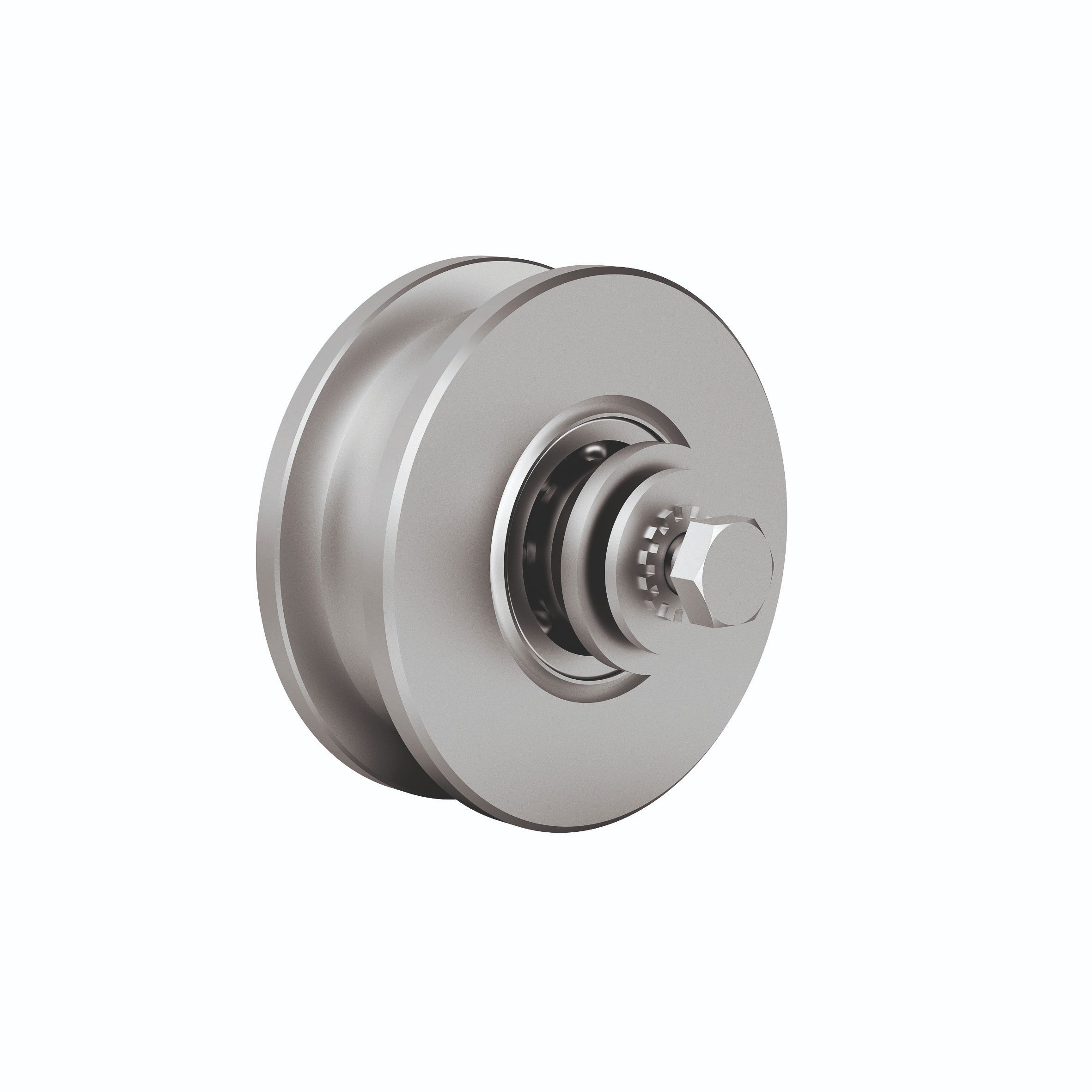

Bottom roller, double-bearing – roller diameter 100 mm

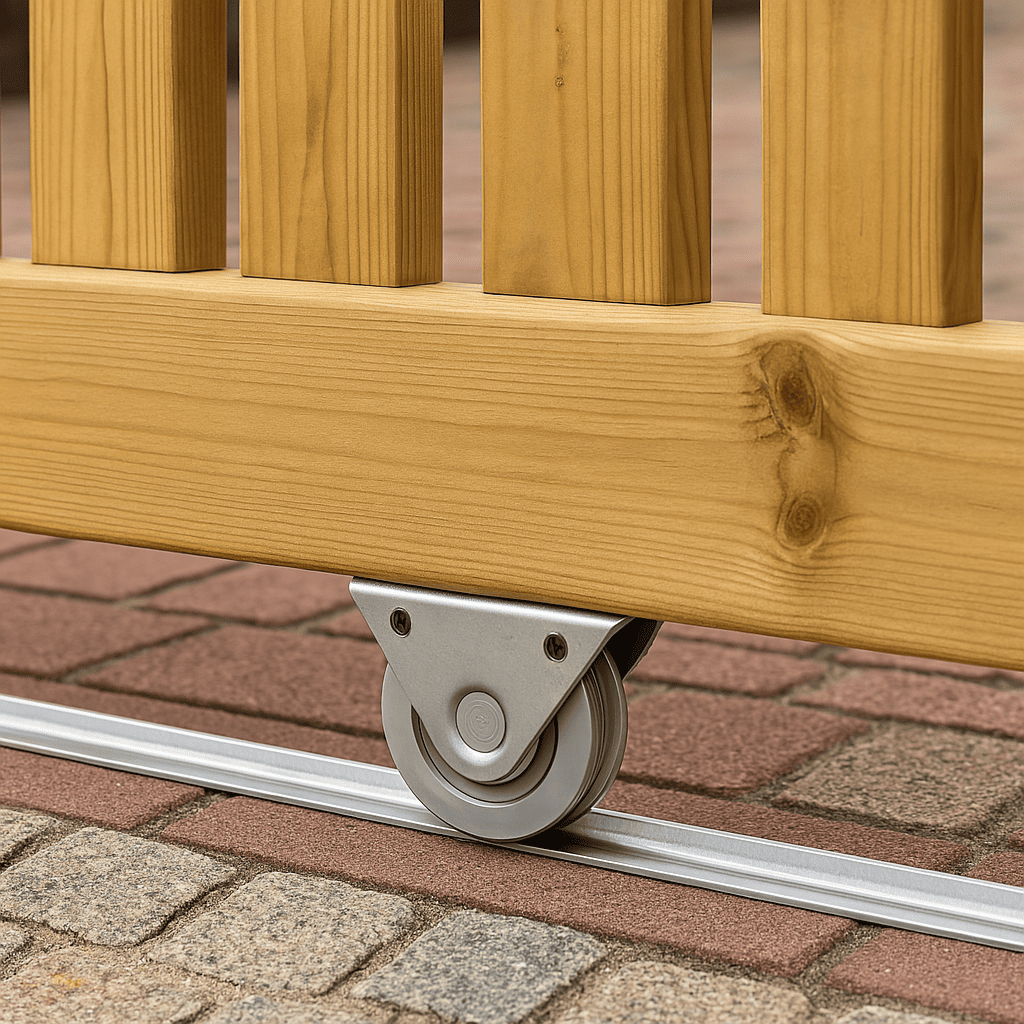

High-quality roller made from S235JR steel, electro-galvanised – ideal for use in sliding gate systems and other heavy-duty applications.
- Material: S235JR steel, electro-galvanised
- Roller diameter: 100 mm
- Load capacity per roller: 500 kg
- Rail width: 20 mm

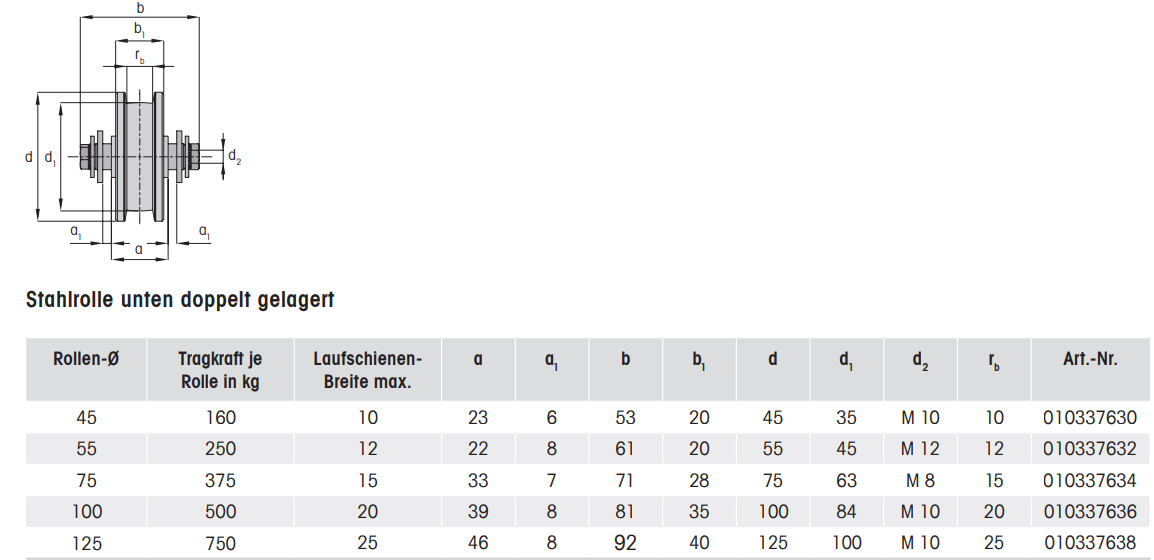

Dimensions at a glance
| Designation | Dimension |
|---|---|
| Dimension a | 39 mm |
| Dimension a1 | 8 mm |
| Dimension b | 81 mm |
| Dimension b1 | 35 mm |
| Dimension d | 100 mm |
| Dimension d1 | 84 mm |
| Dimension d2 | M 10 |
| Dimension Rb | 20 mm |
| Item number | 010337636 |
Product features
| Durchmesser: | Ø 100 mm |
|---|---|
| Form: | Laufrolle |
