Bottom roller, double-bearing, roller diameter 55 mm MEA 10337632
FeNau Ltd
$79.52*
Available now, delivery time: Lieferzeit 1-2 Werktage
Lagerbestand:
1003
Product number:
60.0198.7
EAN:
4251412907692
Gewicht:
2.26 kg
Description
Product information "Bottom roller, double-bearing, roller diameter 55 mm MEA 10337632"
Bottom roller, double-bearing – roller diameter 55 mm

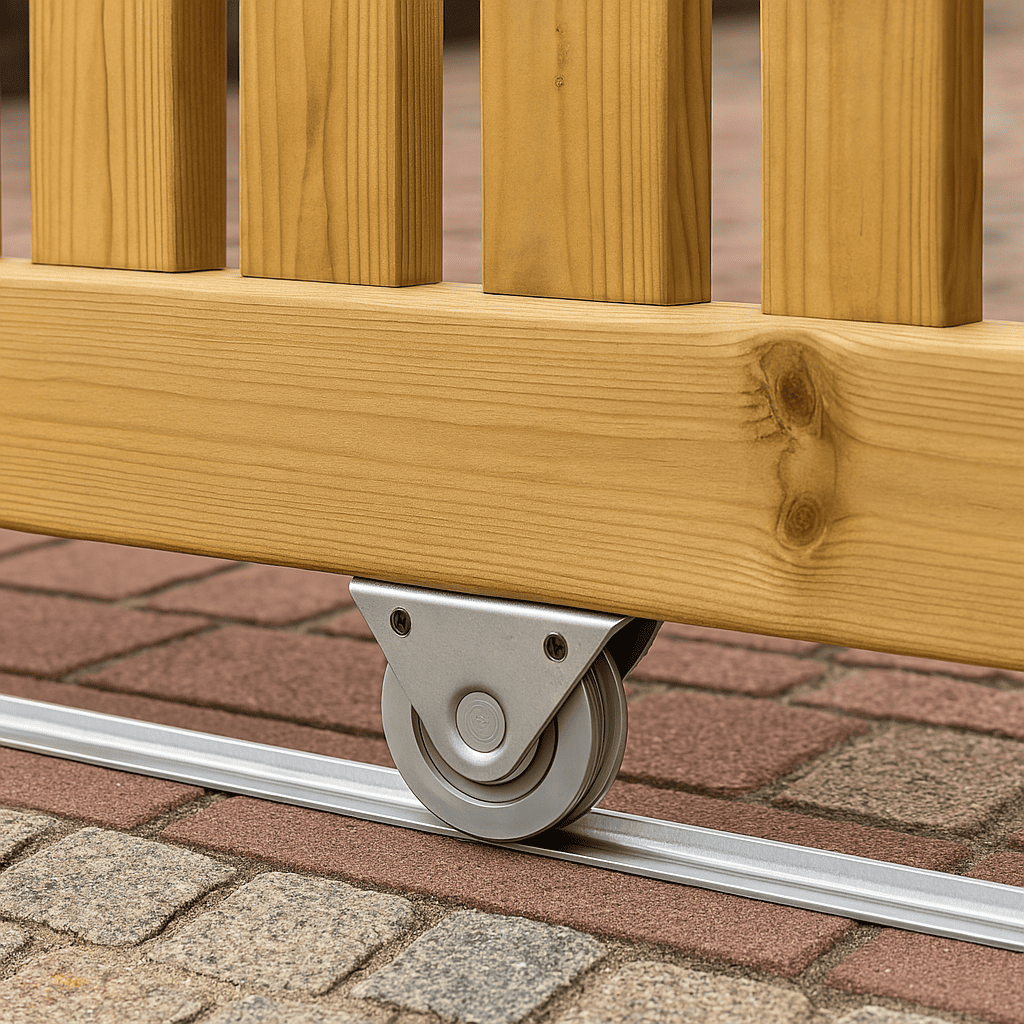

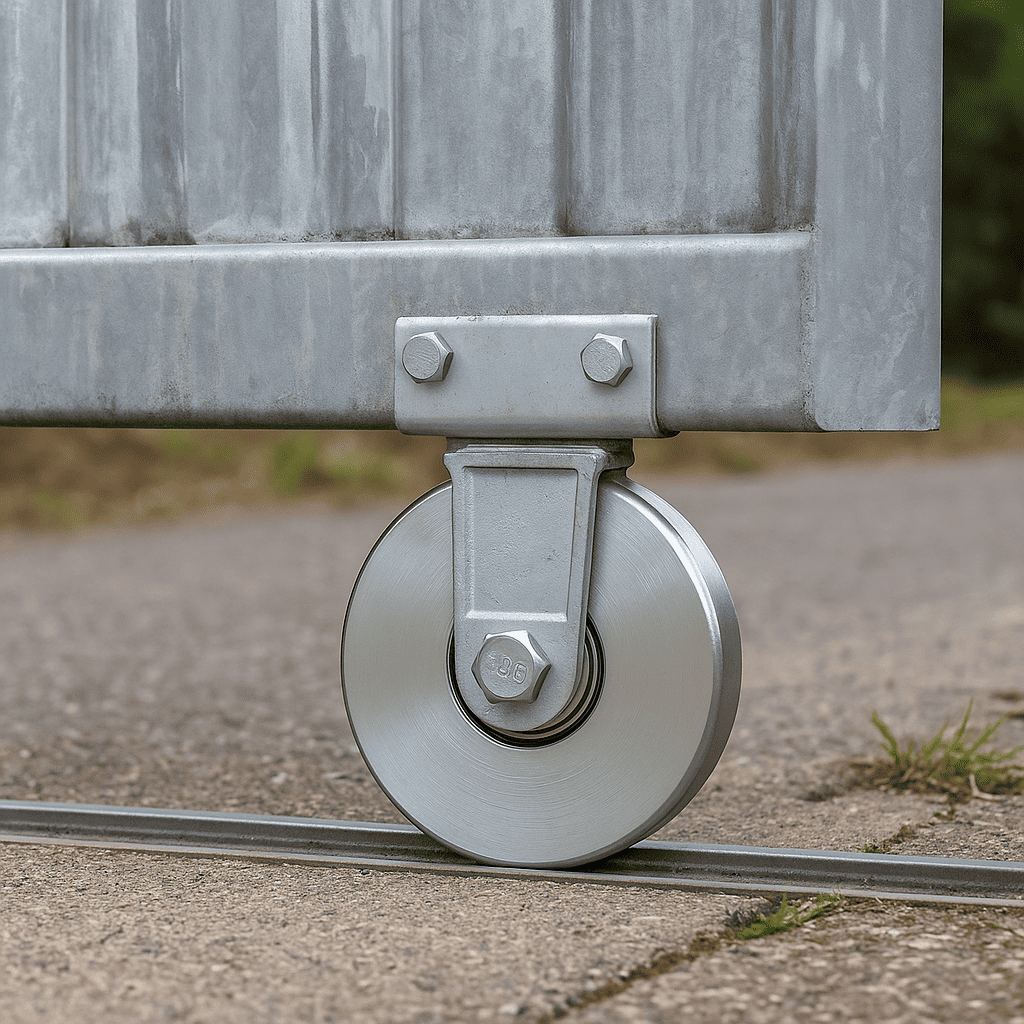

High-quality roller made from S235JR steel, electro-galvanised – ideal for use in sliding gate systems and other heavy-duty applications.
- Material: S235JR steel, electro-galvanised
- Roller diameter: 55 mm
- Load capacity per roller: 250 kg
- Rail width: 12 mm
Dimensions at a glance
| Designation | Dimension |
|---|---|
| Dimension a | 22 mm |
| Dimension a1 | 8 mm |
| Dimension b | 61 mm |
| Dimension b1 | 20 mm |
| Dimension d | 55 mm |
| Dimension d1 | 45 mm |
| Dimension d2 | M 12 |
| Dimension Rb | 12 mm |
| Item number | 010337632 |
Eigenschaften
| Durchmesser: | Ø 55 mm |
|---|---|
| Form: | Laufrolle |
