Bottom roller, double-bearing, roller diameter 75 mm MEA 10337634
FeNau Ltd
$163.22*
Available now, delivery time: Lieferzeit 1-2 Werktage
Lagerbestand:
1003
Product number:
60.0199.7
EAN:
4251412907708
Gewicht:
3.25 kg
Description
Product information "Bottom roller, double-bearing, roller diameter 75 mm MEA 10337634"

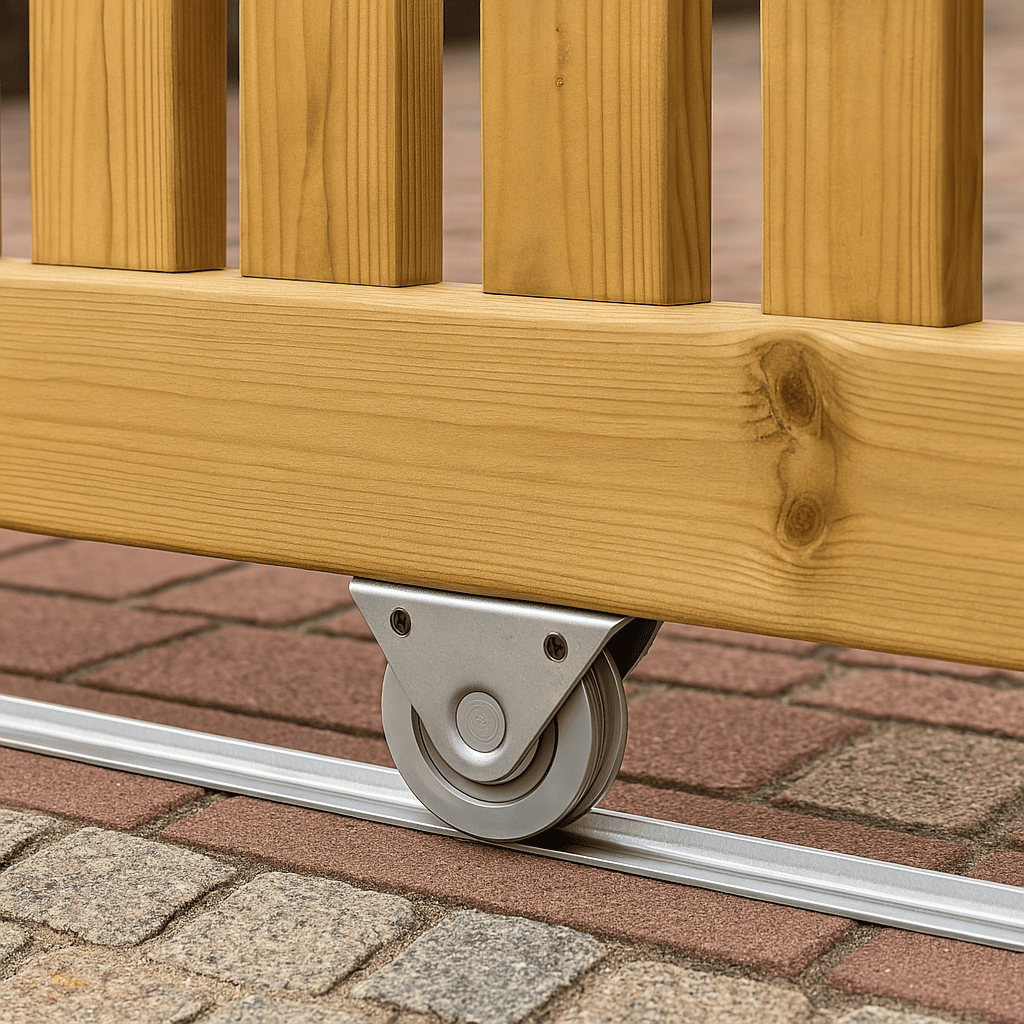

Bottom roller, double-bearing – roller diameter 75 mm
High-quality roller made from S235JR steel, electro-galvanised – ideal for use in sliding gate systems and other heavy-duty applications.
- Material: S235JR steel, electro-galvanised
- Roller diameter: 75 mm
- Load capacity per roller: 375 kg
- Rail width: 15 mm
Dimensions at a glance
| Designation | Dimension |
|---|---|
| Dimension a | 33 mm |
| Dimension a1 | 7 mm |
| Dimension b | 71 mm |
| Dimension b1 | 28 mm |
| Dimension d | 75 mm |
| Dimension d1 | 63 mm |
| Dimension d2 | M 8 |
| Dimension Rb | 15 mm |
| Item number | 010337634 |
Eigenschaften
| Durchmesser: | Ø 75 mm |
|---|---|
| Form: | Laufrolle |
