Bottom roller, single-bearing, roller diameter 120 mm MEA 10337672
FeNau Ltd
$216.58*
Available now, delivery time: Lieferzeit 1-2 Werktage
Lagerbestand:
1007
Product number:
60.0203.7
EAN:
4251412907746
Gewicht:
0.8 kg
Description
Product information "Bottom roller, single-bearing, roller diameter 120 mm MEA 10337672"

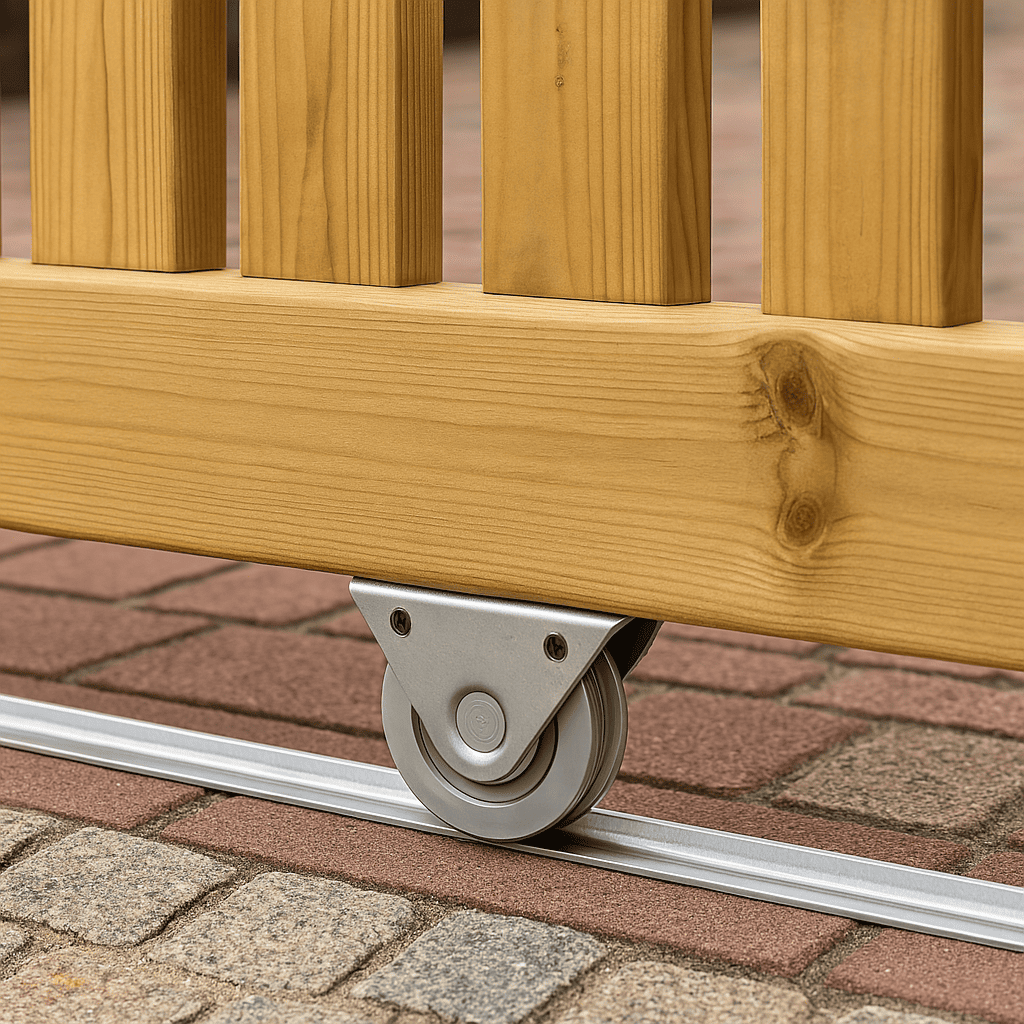

Bottom roller, single-bearing – roller diameter 120 mm
High-quality roller made from S235JR steel, electro-galvanised – ideal for use in sliding gate systems and other heavy-duty applications.
- Material: S235JR steel, electro-galvanised
- Roller diameter: 120 mm
- Load capacity per roller: 270 kg
- Runner width: 14 mm
Dimensions at a glance
| Designation | Dimension |
|---|---|
| Dimension a | 41 mm |
| Dimension a1 | 7 mm |
| Dimension b | 86 mm |
| Dimension b1 | 30 mm |
| Dimension d | 120 mm |
| Dimension d1 | 100 mm |
| Dimension d2 | M 12 |
| Dimension Rb | 13.5 mm |
| Item number | 010337672 |
Eigenschaften
| Durchmesser: | Ø 120 mm |
|---|---|
| Form: | Laufrolle |
