Bottom roller, single-bearing, roller diameter 140 mm MEA 10337674
FeNau Ltd
$265.54*
Available now, delivery time: Lieferzeit 1-2 Werktage
Lagerbestand:
1008
Product number:
60.0204.7
EAN:
4251412907753
Gewicht:
1.73 kg
Description
Product information "Bottom roller, single-bearing, roller diameter 140 mm MEA 10337674"

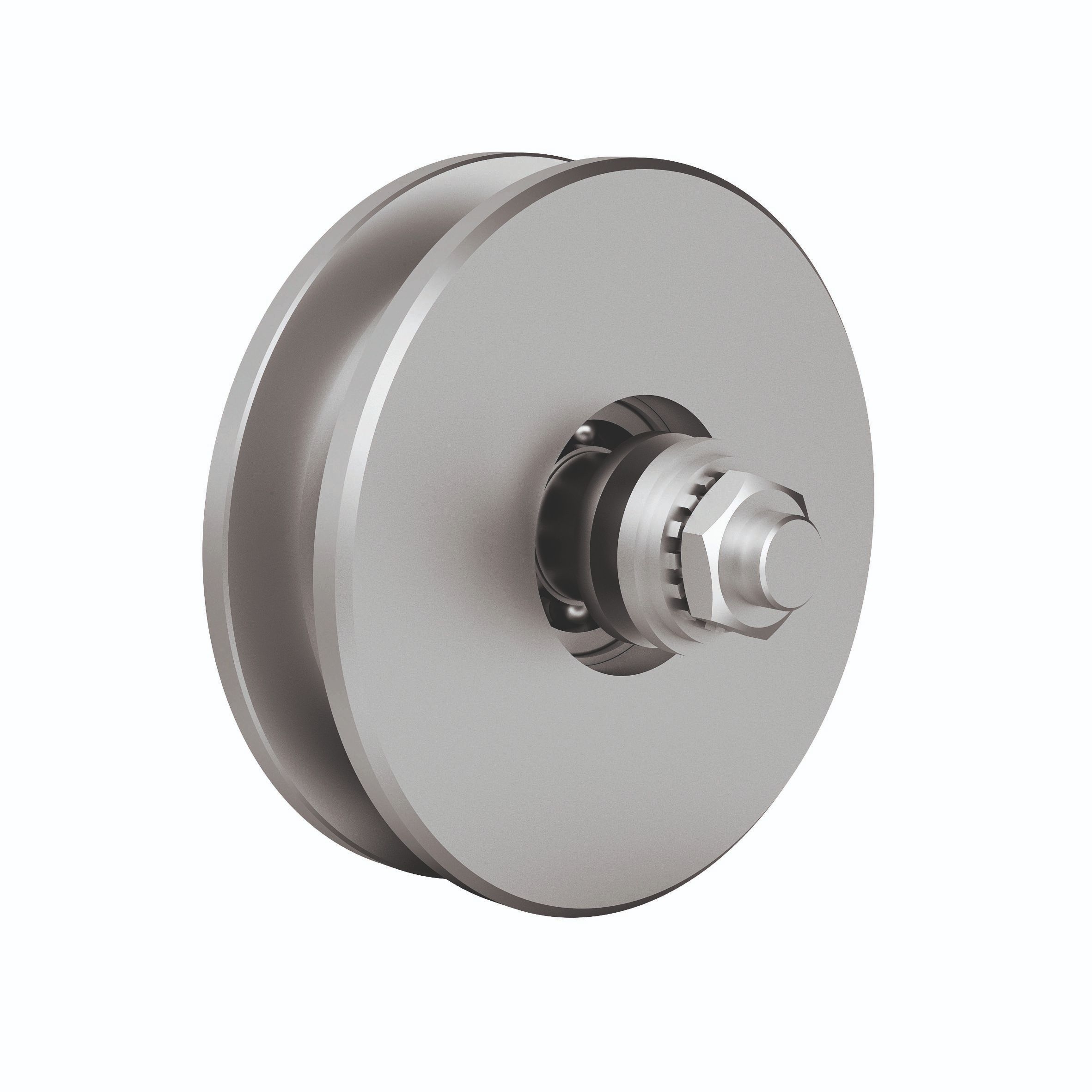

Bottom roller, single-bearing – roller diameter 140 mm

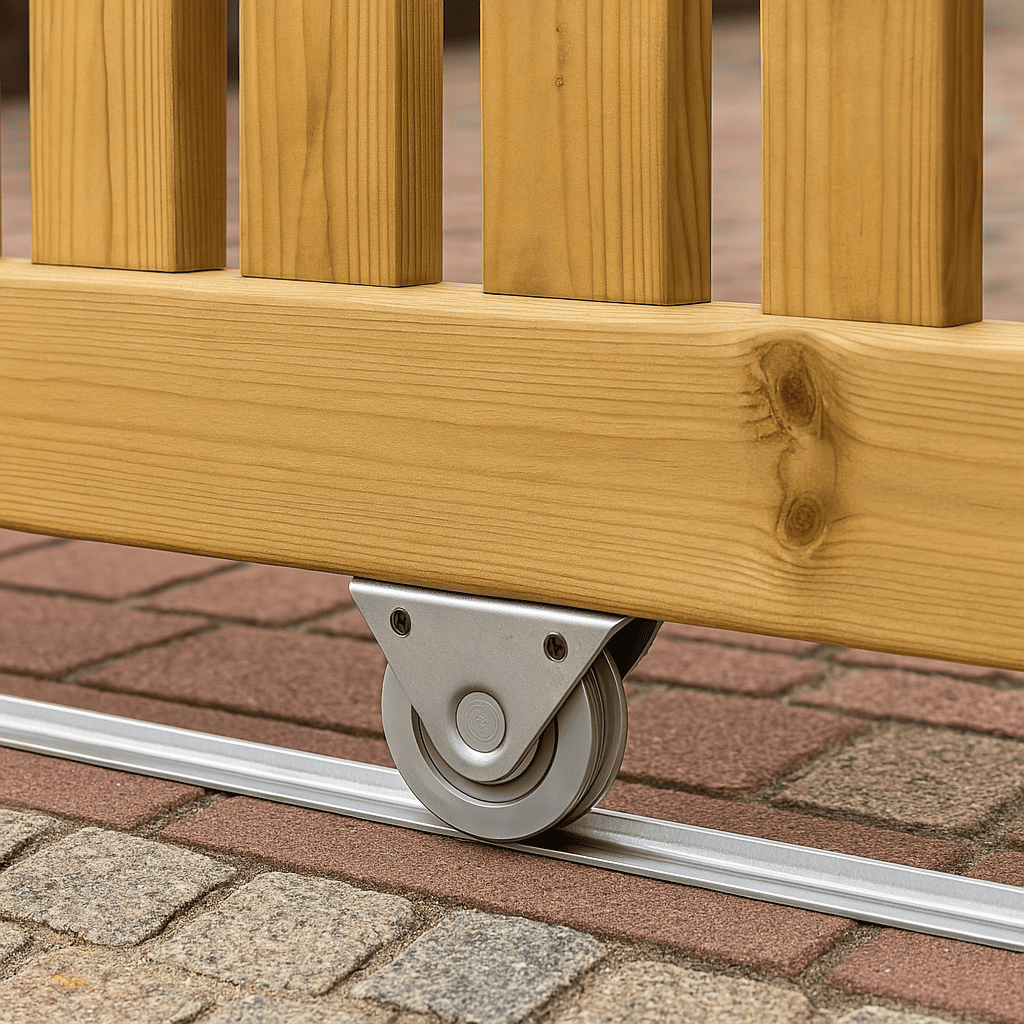

High-quality roller made from S235JR steel, electro-galvanised – ideal for use in sliding gate systems and other heavy-duty applications.
- Material: S235JR steel, electro-galvanised
- Roller diameter: 140 mm
- Load capacity per roller: 400 kg
- Rail width: 14 mm

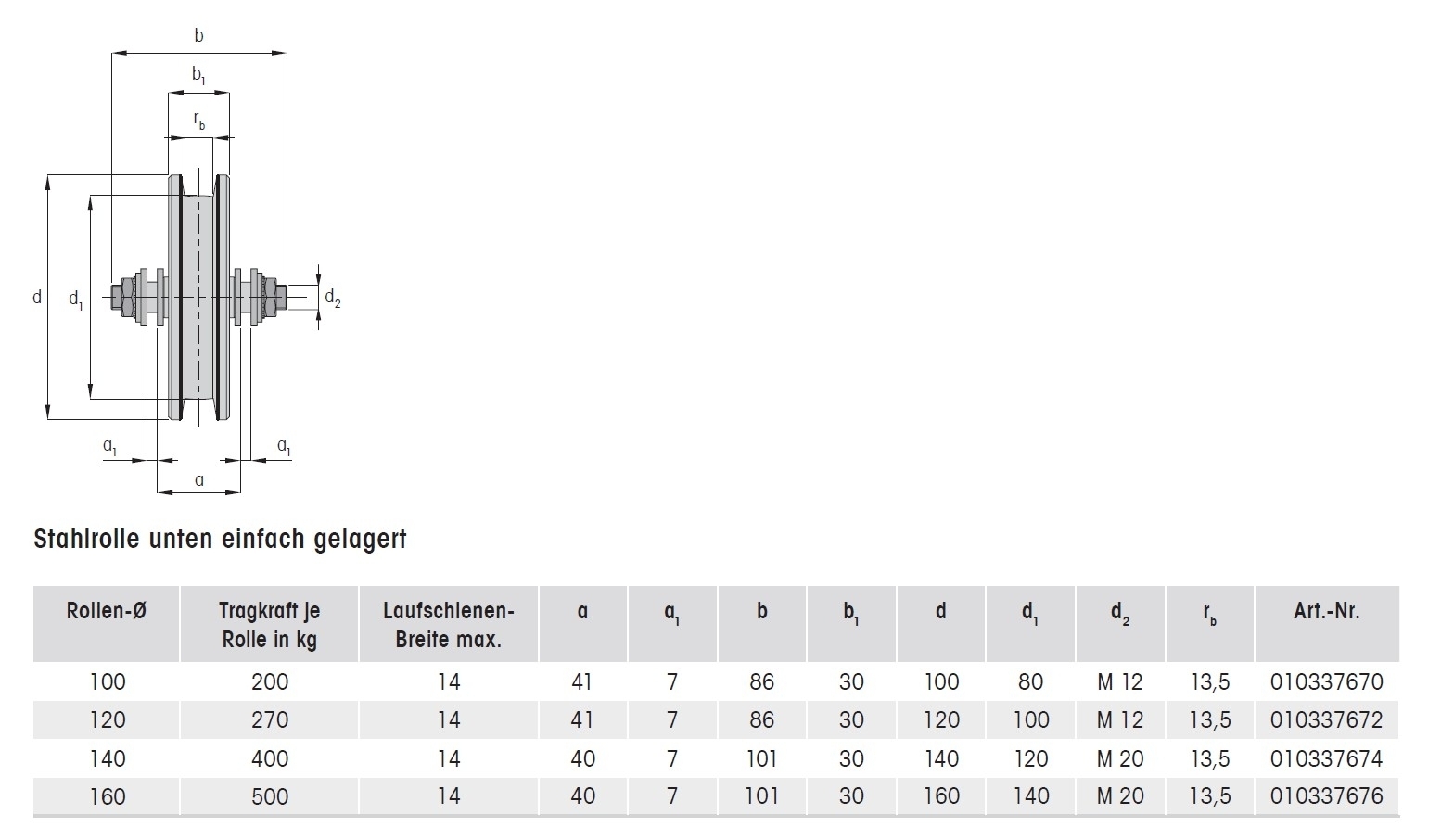

Dimensions at a glance
| Designation | Dimension |
|---|---|
| Dimension a | 40 mm |
| Dimension a1 | 7 mm |
| Dimension b | 101 mm |
| Dimension b1 | 30 mm |
| Dimension d | 140 mm |
| Dimension d1 | 120 mm |
| Dimension d2 | M 20 |
| Dimension Rb | 13.5 mm |
| Item number | 010337674 |
Eigenschaften
| Durchmesser: | Ø 140 mm |
|---|---|
| Form: | Laufrolle |
