Bottom roller, single-bearing, roller diameter 160 mm MEA 10337676
FeNau Ltd
$274.30*
Available now, delivery time: Lieferzeit 1-2 Werktage
Stock:
1007
Product number:
60.0205.7
EAN:
4001990132906
Weight:
2.88 kg
Description
Product information "Bottom roller, single-bearing, roller diameter 160 mm MEA 10337676"

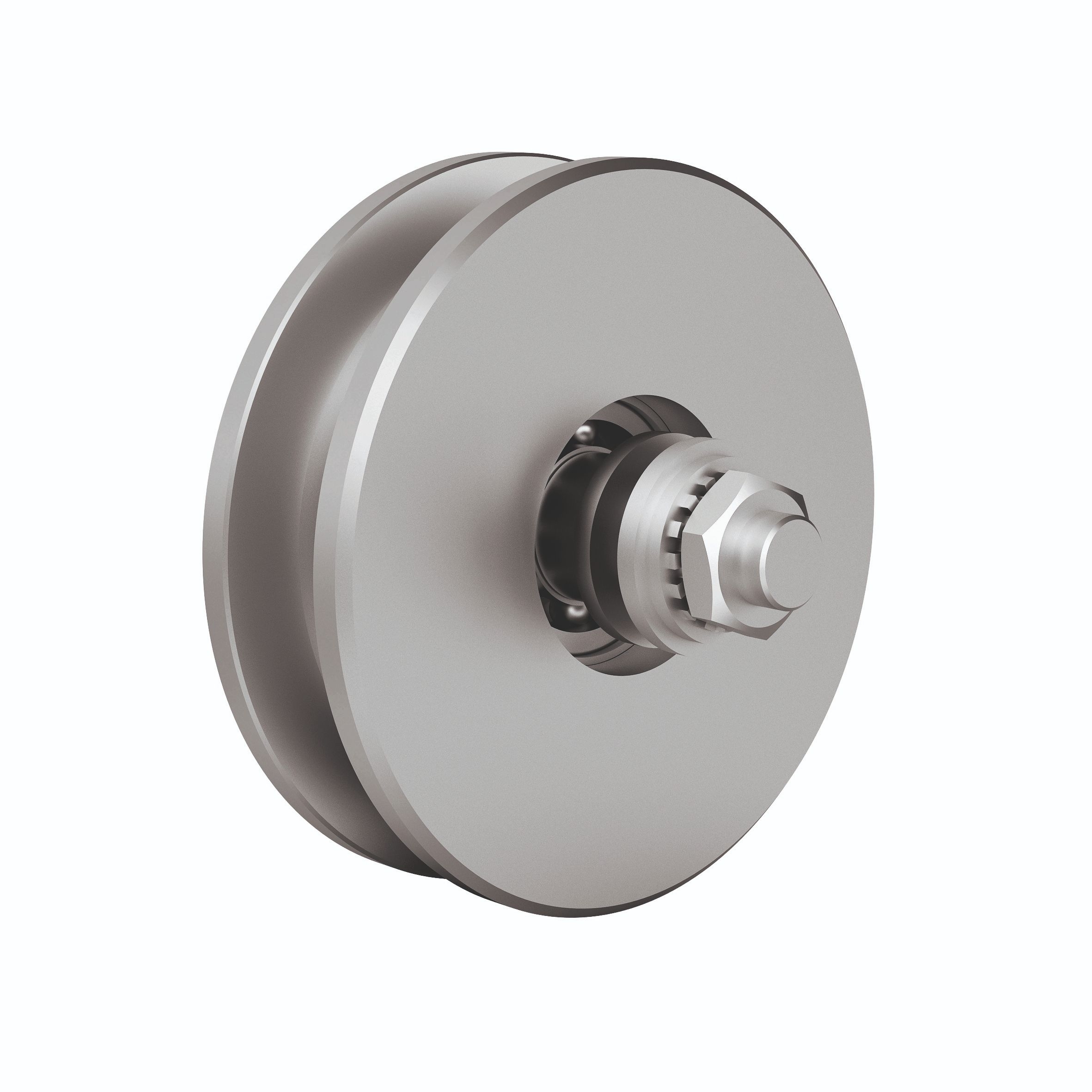

Bottom roller, single-bearing – roller diameter 160 mm

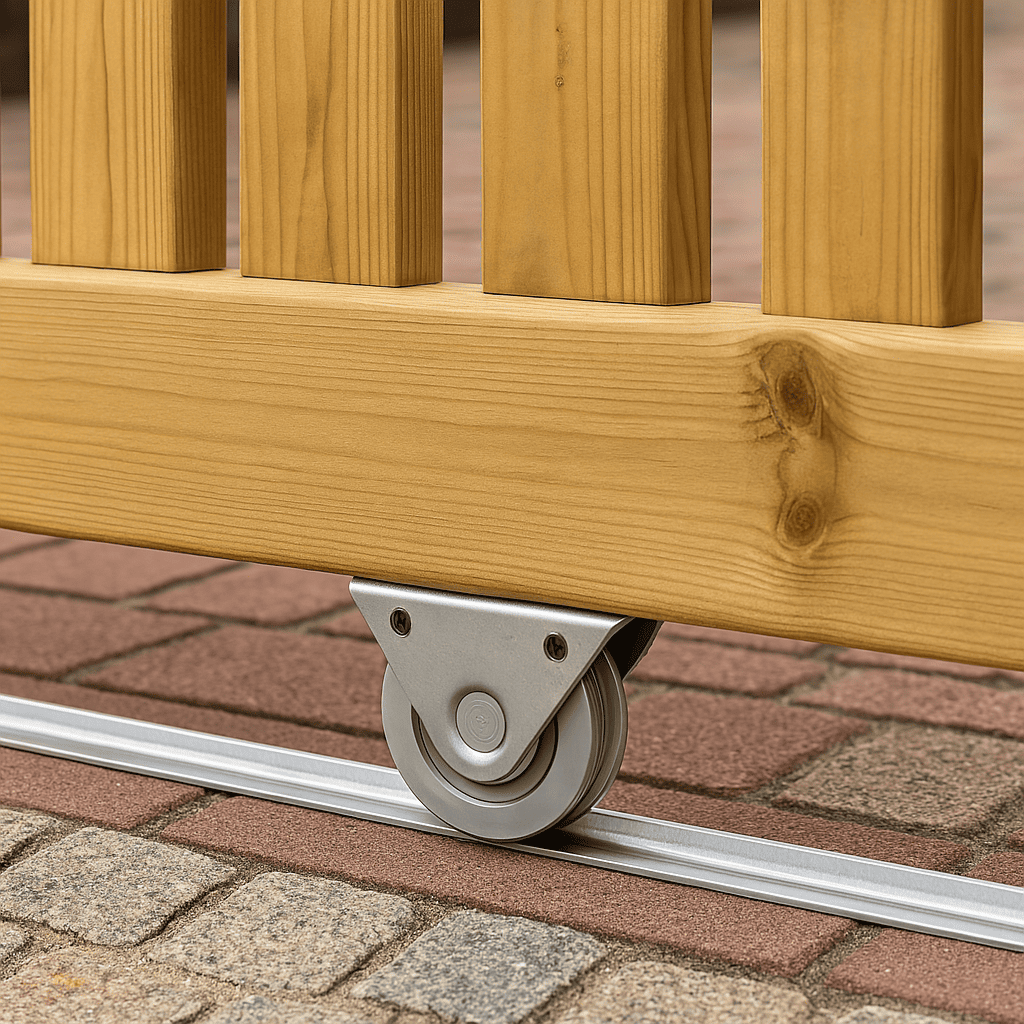

High-quality roller made from S235JR steel, electro-galvanised – ideal for use in sliding gate systems and other heavy-duty applications.
- Material: S235JR steel, electro-galvanised
- Roller diameter: 160 mm
- Load capacity per roller: 500 kg
- Rail width: 14 mm

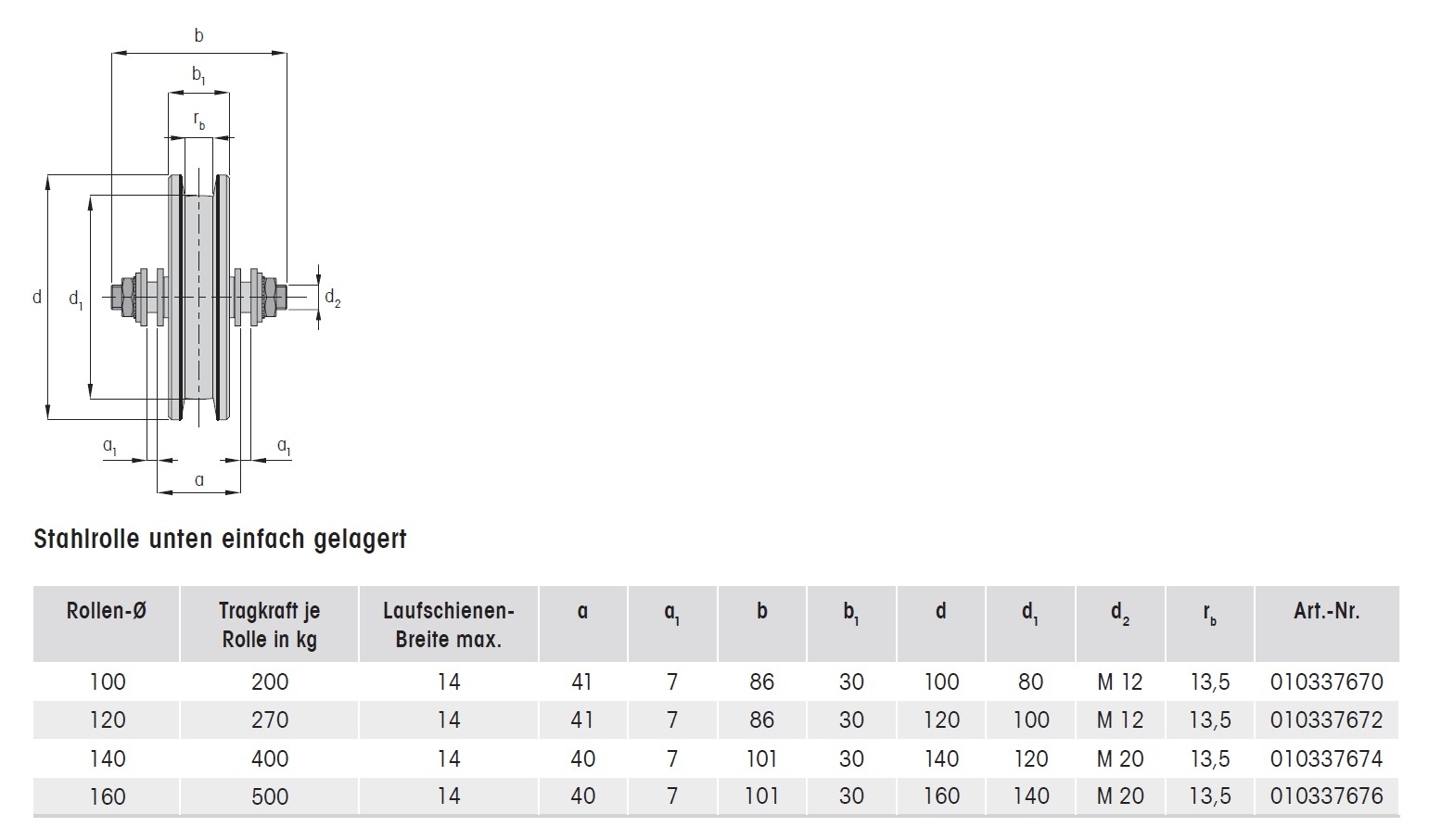

Dimensions at a glance
| Designation | Dimension |
|---|---|
| Dimension a | 40 mm |
| Dimension a1 | 7 mm |
| Dimension b | 101 mm |
| Dimension b1 | 30 mm |
| Dimension d | 160 mm |
| Dimension d1 | 140 mm |
| Dimension d2 | M 20 |
| Dimension Rb | 13.5 mm |
| Item number | 010337676 |
Product features
| Durchmesser: | Ø 160 mm |
|---|---|
| Form: | Laufrolle |
| Gewinde : | M20 |
| Oberfläche: | galvanisch verzinkt |
| Werkstoff: | Stahl / Qualitätskugellager |
| Breite: | 30 mm |
