Cast iron roller, loose, roller diameter 140 mm MEA 11330463
FeNau Ltd
$77.88*
Available now, delivery time: Lieferzeit 5-10 Werktage
Lagerbestand:
997
Product number:
60.0012.9
EAN:
4251412907661
Gewicht:
1.4 kg
Description
Product information "Cast iron roller, loose, roller diameter 140 mm MEA 11330463"

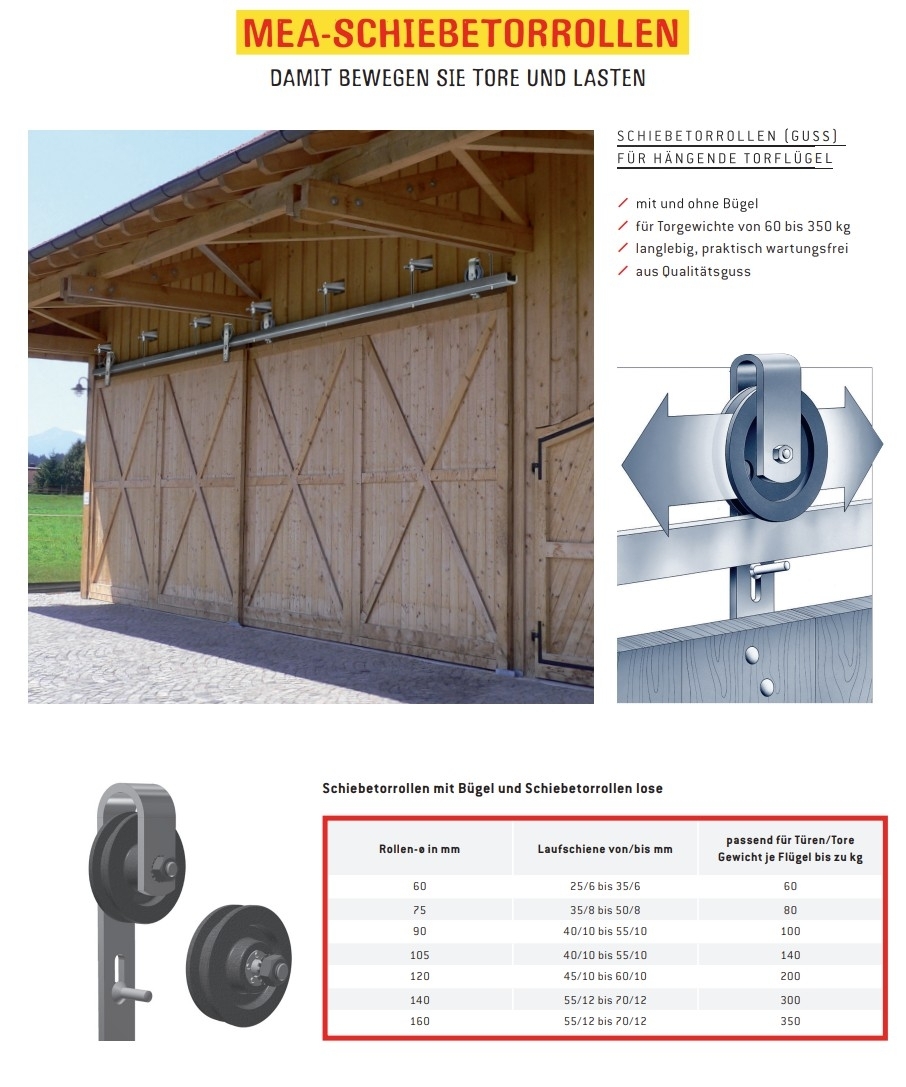

Sliding gate roller (separate) – Roller diameter 140 mm | Load capacity up to 300 kg
This robust sliding gate roller, made from high-quality grey cast iron with a protective coating, is perfect for doors and gates weighing up to 300 kg. The sliding gate roller offers a durable and stable solution for sliding door systems and gates that require smooth movement and high load-bearing capacity.
Product details
- Material: Grey cast iron with protective coating
- Maximum load capacity: 300 kg per roller
- Roller diameter: 140 mm
- Inner roller width: 14 mm
- Outer roller width: 25 mm
- Thread: M12
Dimensions
- Dimension a: 11 mm
- Dimension a1: 2 mm
- Dimension b: 38 mm
- Dimension b1: 25 mm
- Dimension d: 140 mm
- Dimension d1: 116 mm
- Dimension l: 87 mm
- Dimension l1: 62 mm
- Dimension M: 12 mm
- Dimension Rb: 14 mm
Compatibility
This sliding gate roller is compatible with flat bars from 55/12 mm to 70/12 mm and is suitable for a wide range of sliding door systems.
Order now and secure the ideal solution for your sliding door and gate systems!
Eigenschaften
| Durchmesser: | Ø 140 mm |
|---|---|
| Form: | Schiebetorrolle lose |
