Cast iron roller, loose, roller diameter 160 mm MEA 10330471
FeNau Ltd
$96.54*
Available now, delivery time: Lieferzeit 5-10 Werktage
Lagerbestand:
997
Product number:
60.0013.9
EAN:
4251412907678
Gewicht:
1.75 kg
Description
Product information "Cast iron roller, loose, roller diameter 160 mm MEA 10330471"

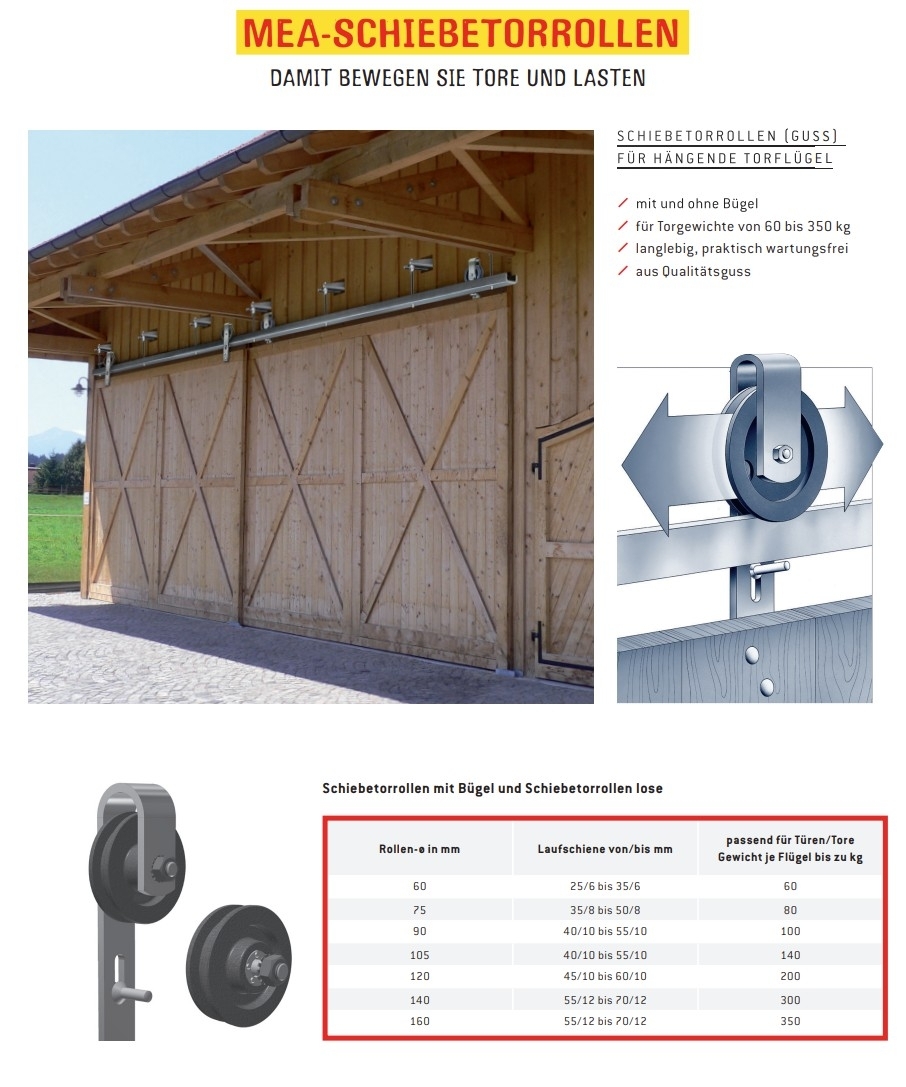

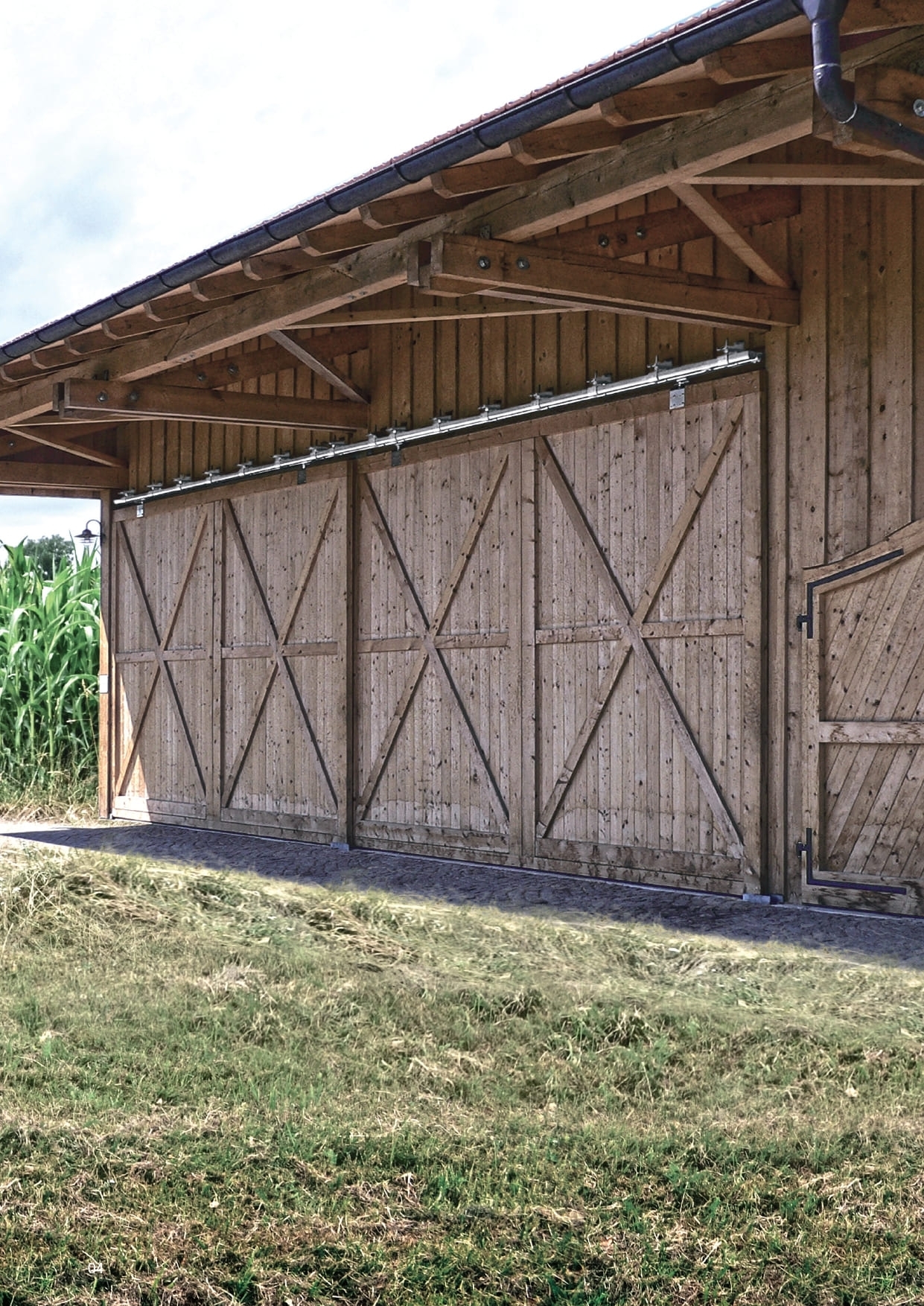

Sliding gate roller (separate), roller diameter 160 mm
High-quality sliding gate roller made of grey cast iron with protective coating – suitable for doors and gates up to 350 kg
- Material: grey cast iron with protective coating
- Roller diameter: 160 mm
- Load capacity: up to 350 kg
Dimensions at a glance
| Designation | Dimension |
|---|---|
| Dimension a | 10 mm |
| Dimension a1 | 2 mm |
| Dimension b | 38 mm |
| Dimension b1 | 26 mm |
| Dimension d | 160 mm |
| Dimension d1 | 136 mm |
| Dimension d2 | M 12 |
| Dimension l | 82.5 mm |
| Dimension l1 | 54 mm |
| Dimension Rb | 14 mm |
| Item number | 010330471 |
Eigenschaften
| Durchmesser: | Ø 160 mm |
|---|---|
| Form: | Schiebetorrolle lose |
