Designer handrail bracket, RAL 9005 Black – V2A stainless steel | For 42.4 mm diameter tubing | Concealed fixing
$18.14*
Available now, delivery time: Lieferzeit 1-2 Werktage
Product information "Designer handrail bracket, RAL 9005 Black – V2A stainless steel | For 42.4 mm diameter tubing | Concealed fixing"

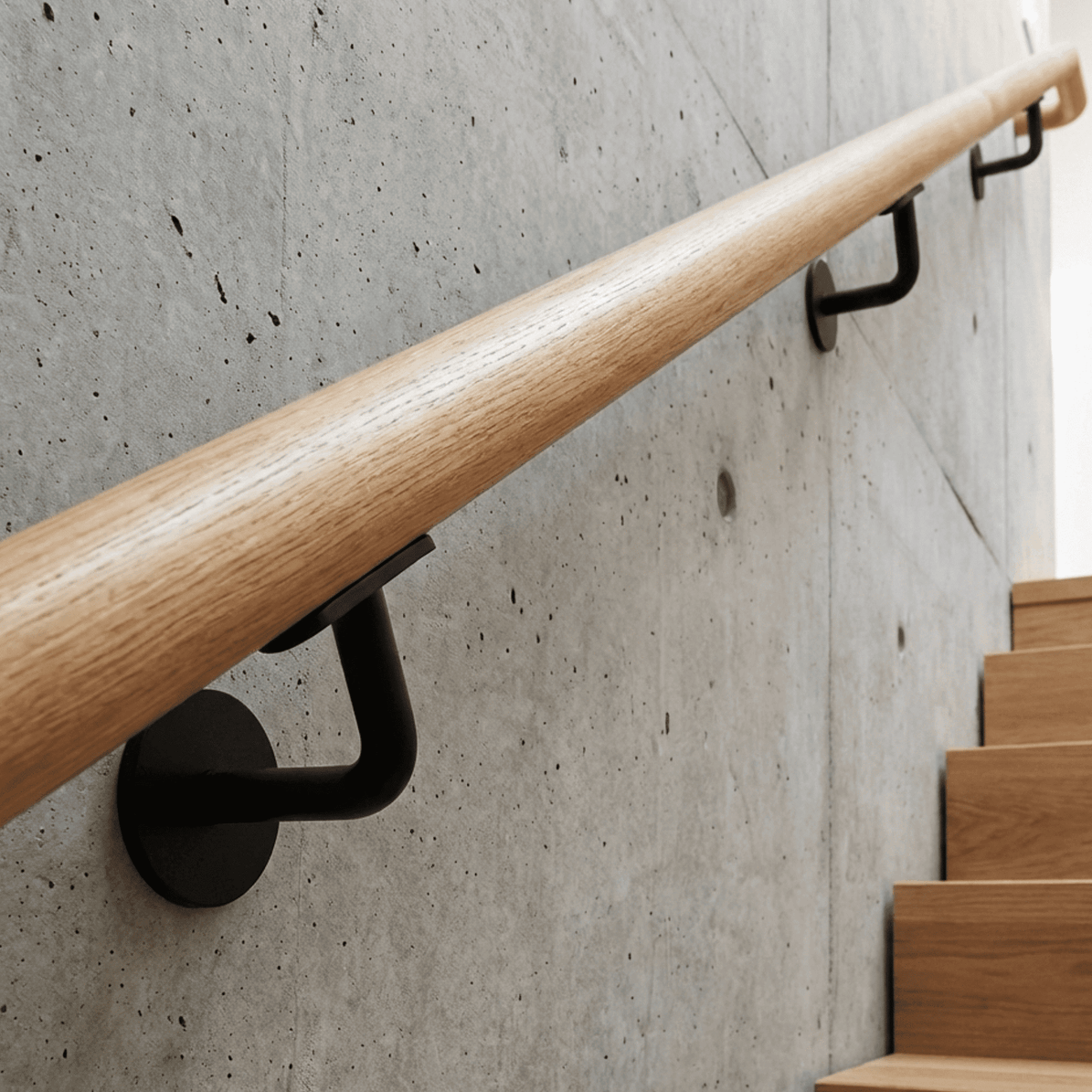

A modern statement for your staircase
This high-quality handrail bracket combines minimalist design with robust functionality. Crafted from solid V2A stainless steel and finished with a deep black powder coating (RAL 9005), this bracket is the ideal choice for modern handrail systems in both indoor and outdoor settings.
The firmly welded mounting plate is precisely designed to fit round handrails with a diameter of 42.4 mm and ensures a clean, stable line.
Key features at a glance:
- Elegant appearance: The matt, deep black finish (RAL 9005) is right on trend and fits perfectly with modern interior design, an industrial look, or as a contrast to wooden handrails.
- Solid quality: V2A stainless steel guarantees durability and high stability.
- Clean installation: Thanks to the M8 internal thread on the back, wall mounting is ‘invisible’. There are no unsightly screw heads on the wall plate.
- Secure hold: The handrail support is firmly attached to the bracket (not interchangeable) and provides a secure hold for the handrail tube via two screw points.
Technical data
All key dimensions and materials clearly summarised:
| Feature | Detail |
|---|---|
| Suitable for handrail | Ø 42.4 mm (round tube) |
| Material | V2A stainless steel (AISI 304) |
| Surface / Colour | Powder-coated black (RAL 9005) |
| Wall clearance | 75 mm (wall to centre of handrail) |
| Wall rosette (round) | Ø 60 mm x 5 mm thick |
| Bracket diameter | Ø 14 mm |
| Plate design | Solidly welded, double-perforated (countersunk holes) |

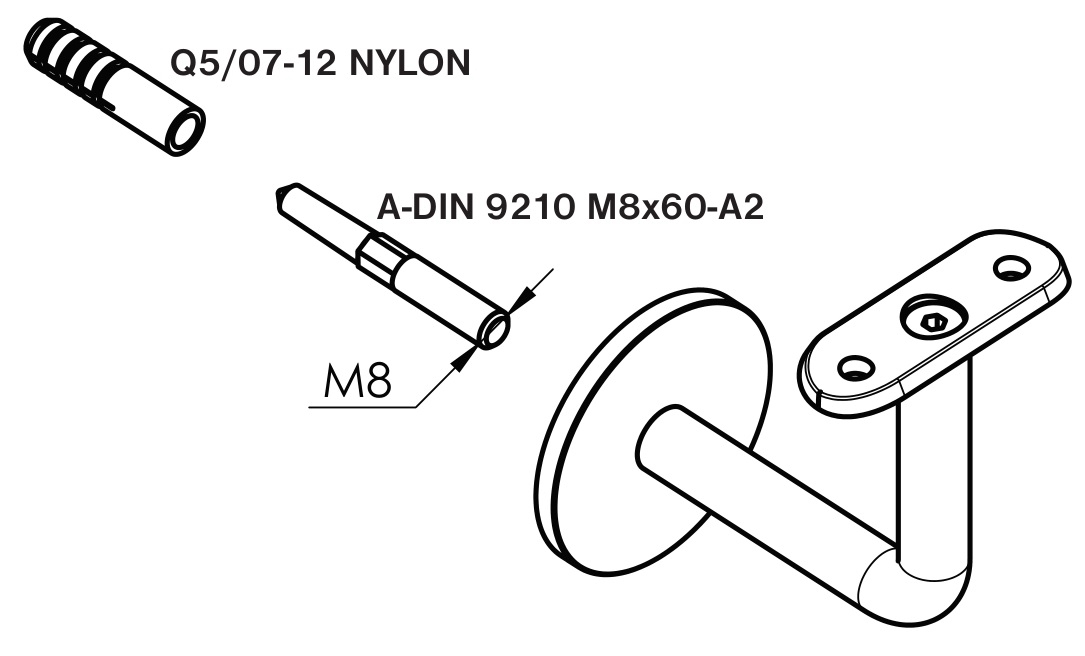

| Mounting (wall) | M8 internal thread (rear) |
Scope of delivery & required accessories

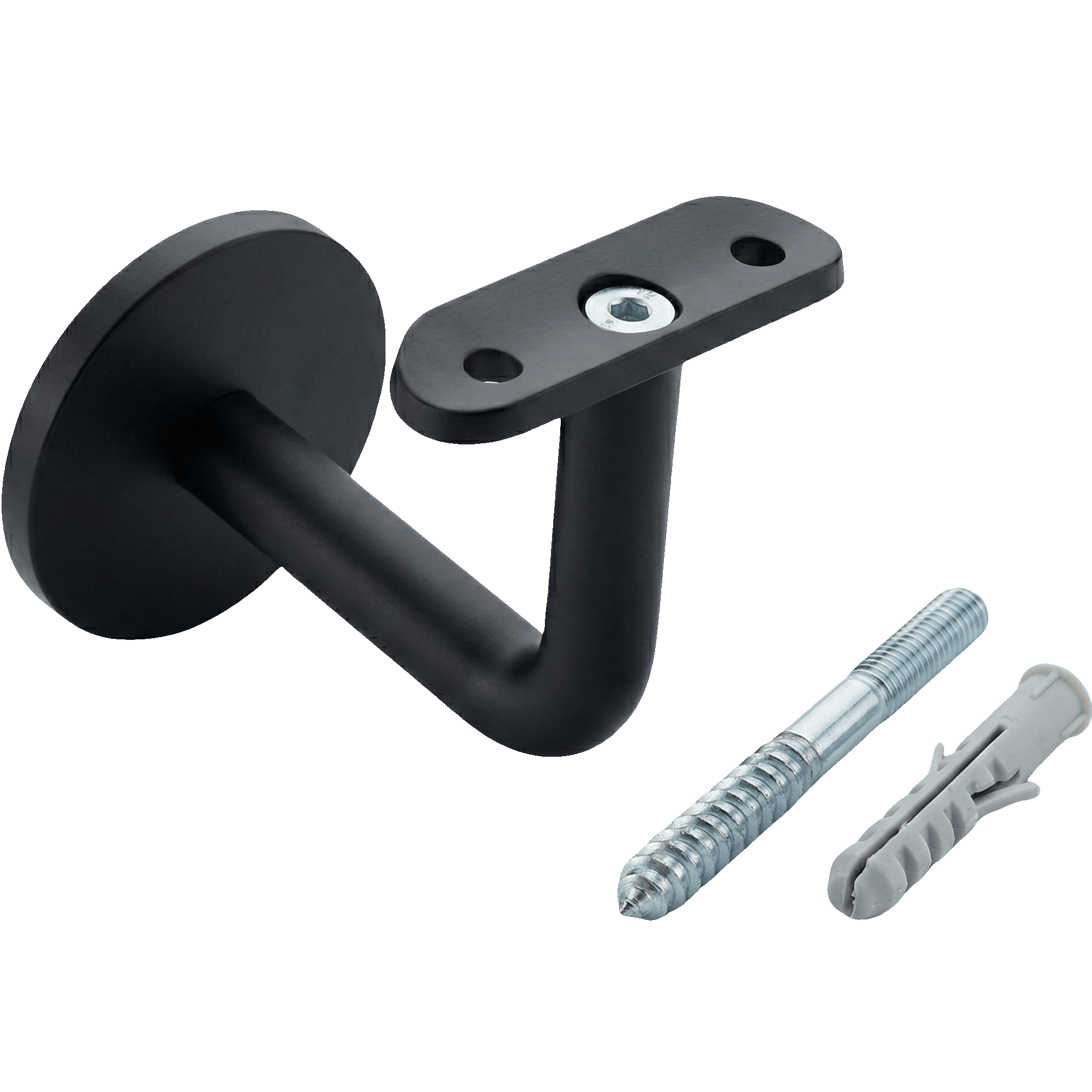

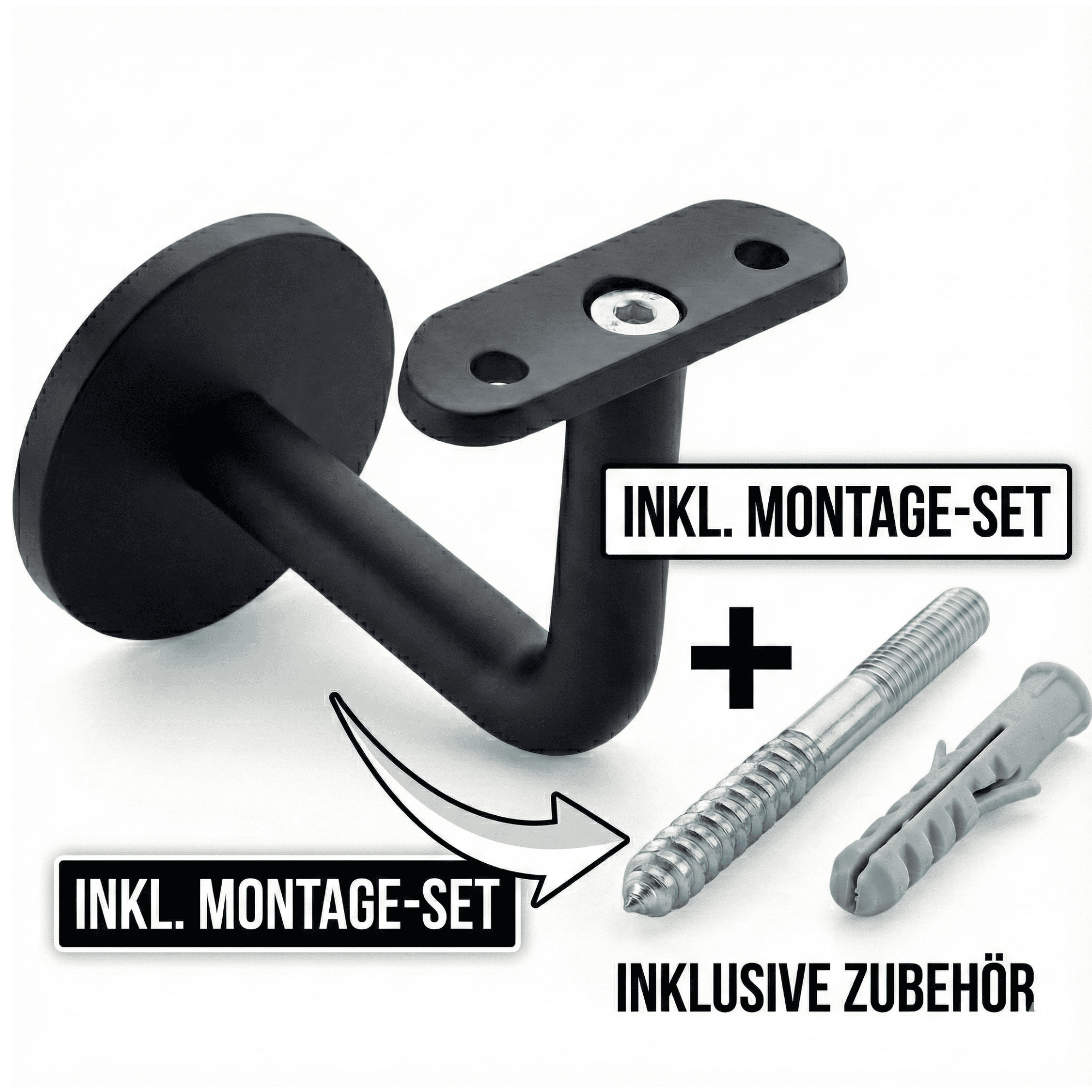

Included in delivery (wall mounting):
To enable you to mount the bracket on the wall immediately, the following items are included:
- 1x handrail bracket, black V2A
- 1x M8 × 60 mm hanger bolt
- 1x Suitable universal wall plug
Also required (handrail mounting):

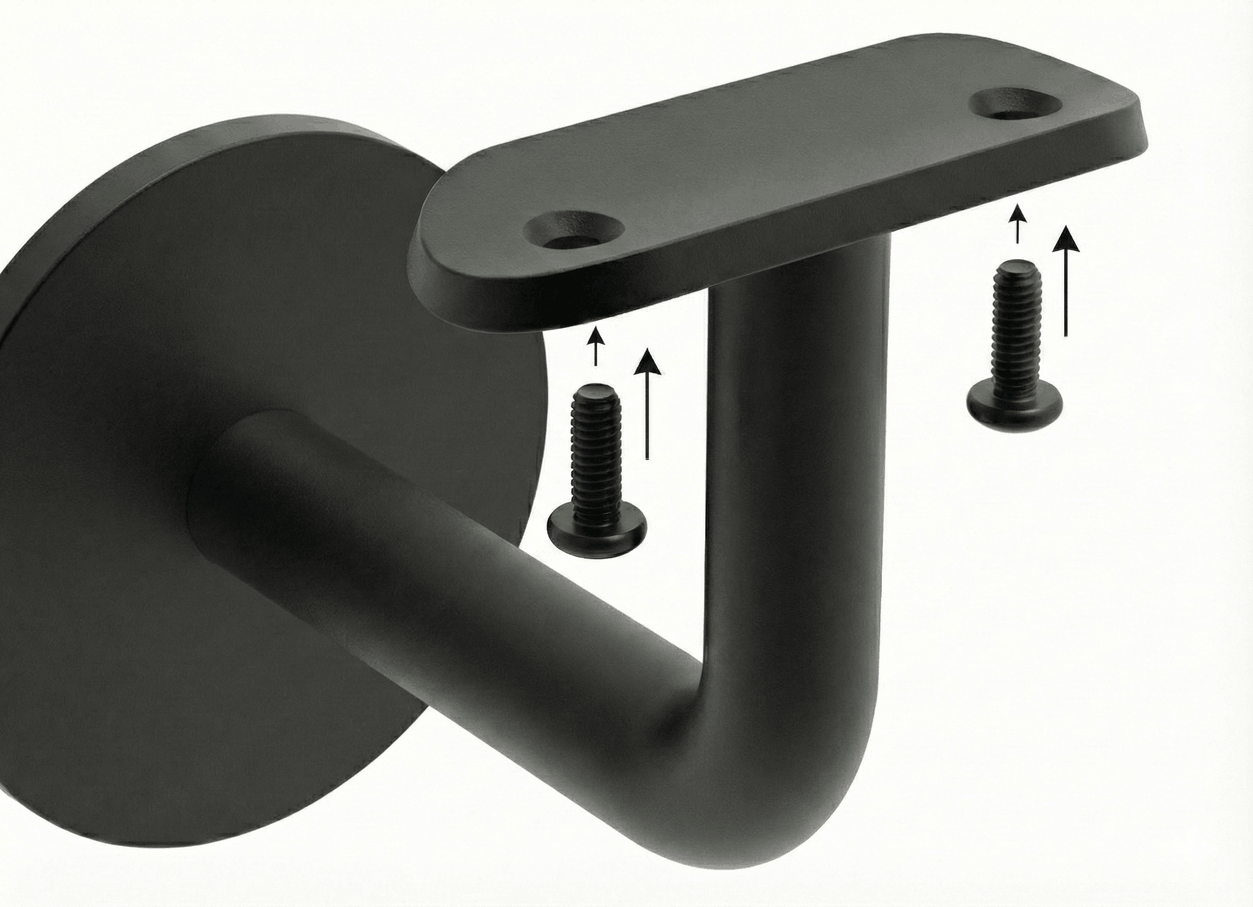

To mount the handrail tube onto the bracket, you will need 2 suitable countersunk screws per bracket. These are not included in the scope of delivery, as the choice of screw depends on the material of your handrail.

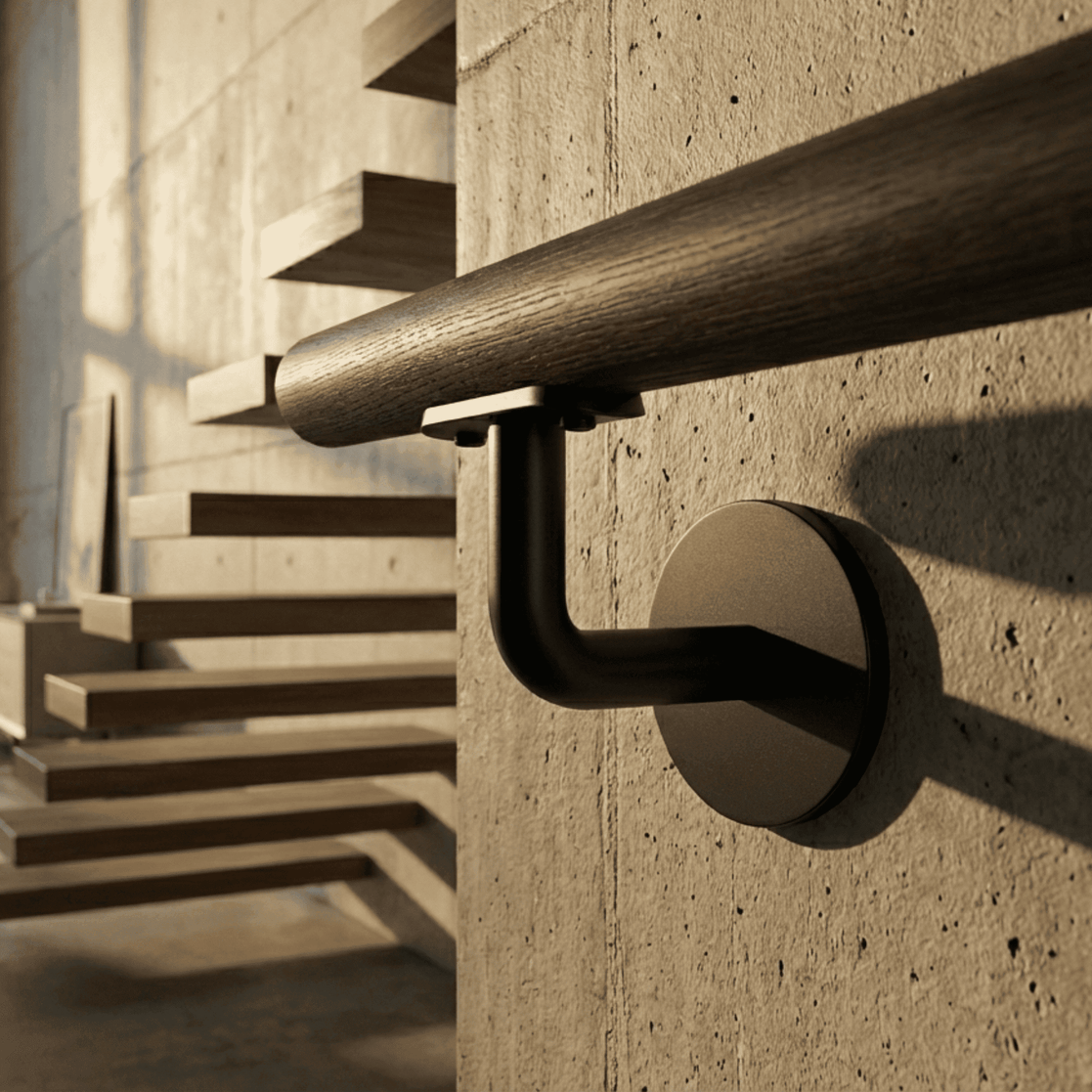

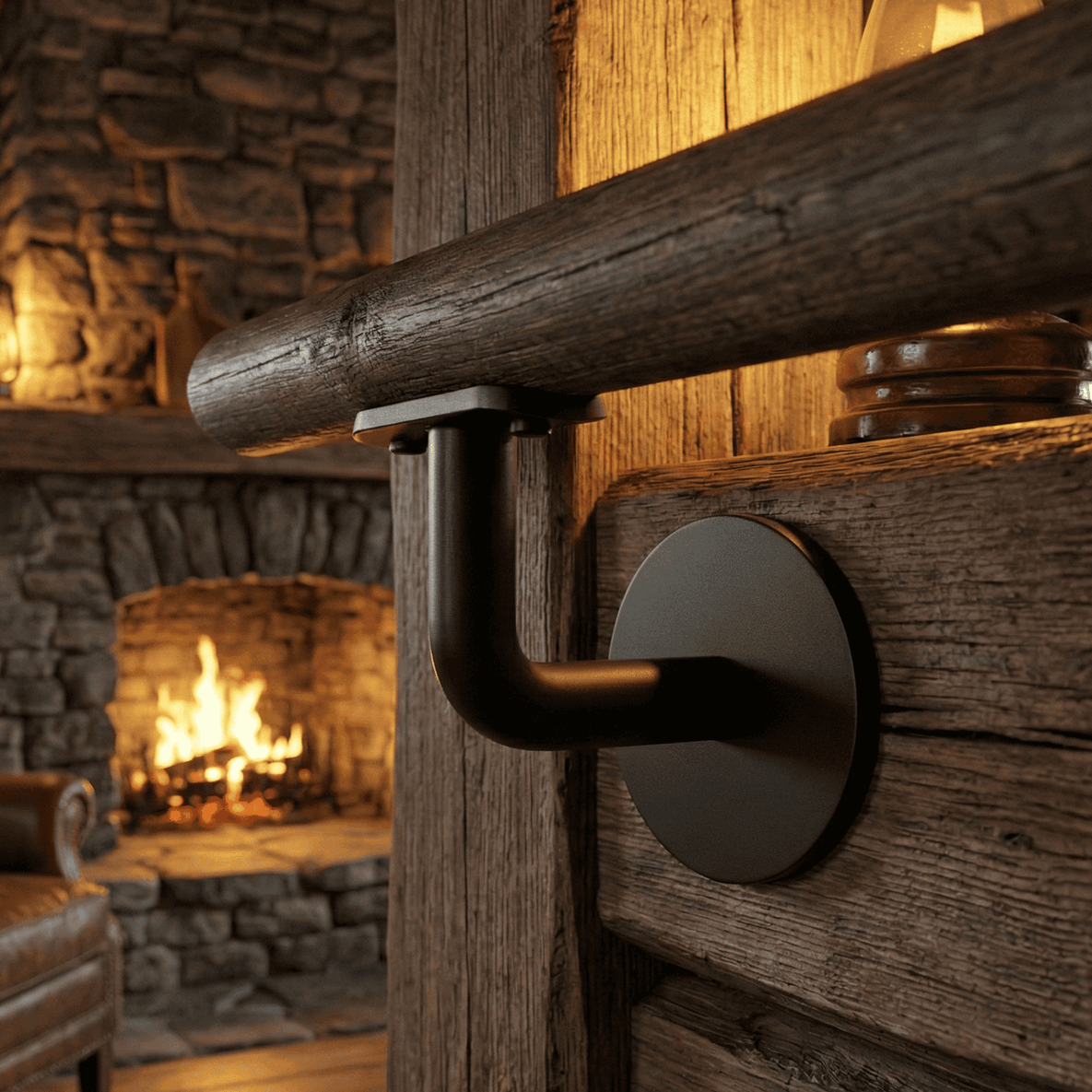

- Recommendation for wooden handrails: countersunk wood screws (e.g. Ø 5.0 x 25 mm). For a perfect black finish, we also recommend black-coated screws or stainless steel screws.

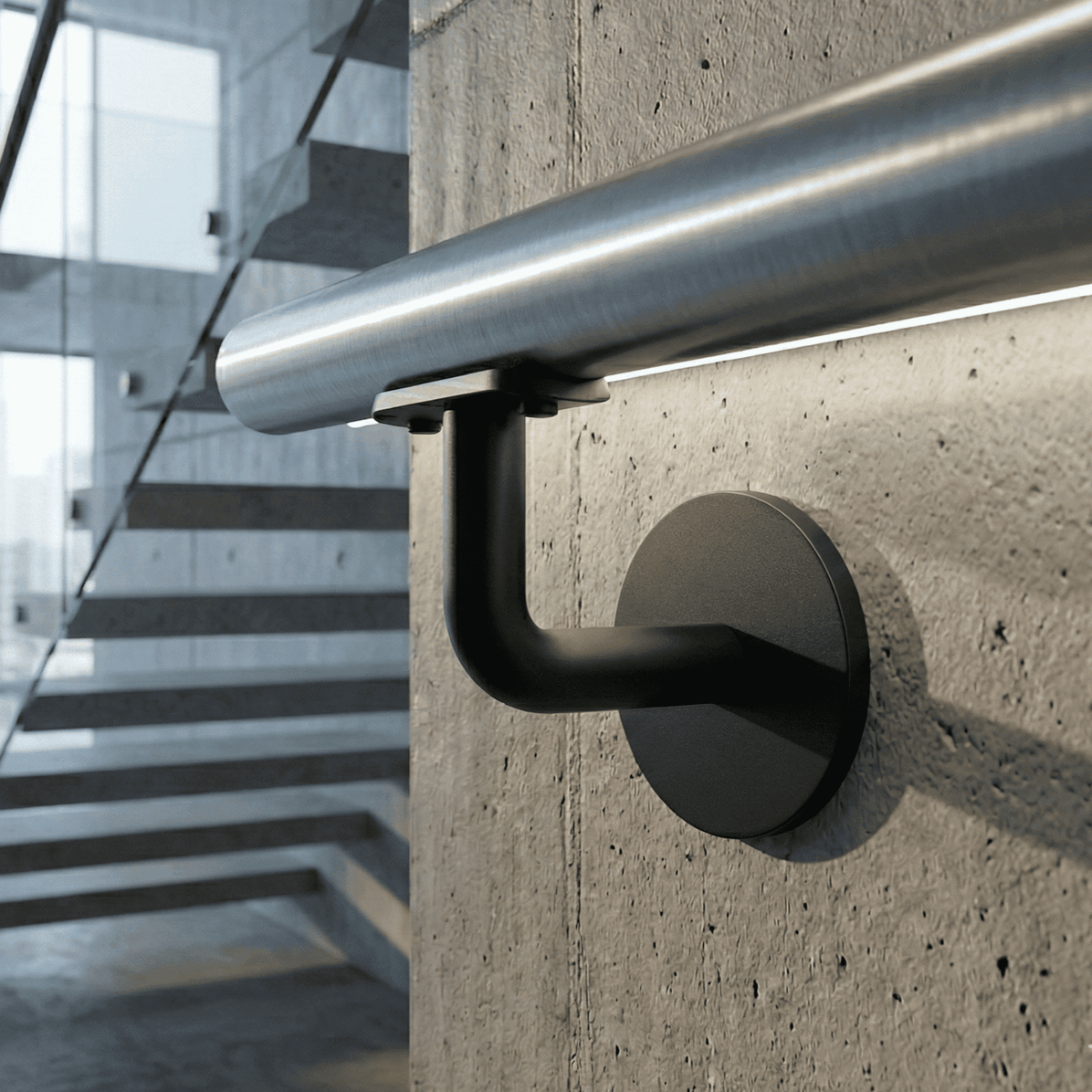

- Recommendation for metal handrails: Depending on how the tube is prepared, use countersunk sheet metal screws or metric countersunk screws (provided the threads have been pre-drilled).
| Form: | mit Ronde |
|---|---|
| Wandabstand Mitte-Handlauf: | 75 mm |
| Werkstoff: | V2A |
| Ø Für Rohr | Ø Außendurchmesser | Ø Anschluss: | Ø 42.4mm (11⁄4″) |
